Aiwa HS-G09

Discussion in 'I found this!' started by Soxbrother, Oct 13, 2017.

  1. Soxbrother

    Soxbrother Member

    Messages:
    104
    Trophy Points:
    18
    Location:
    Belgium

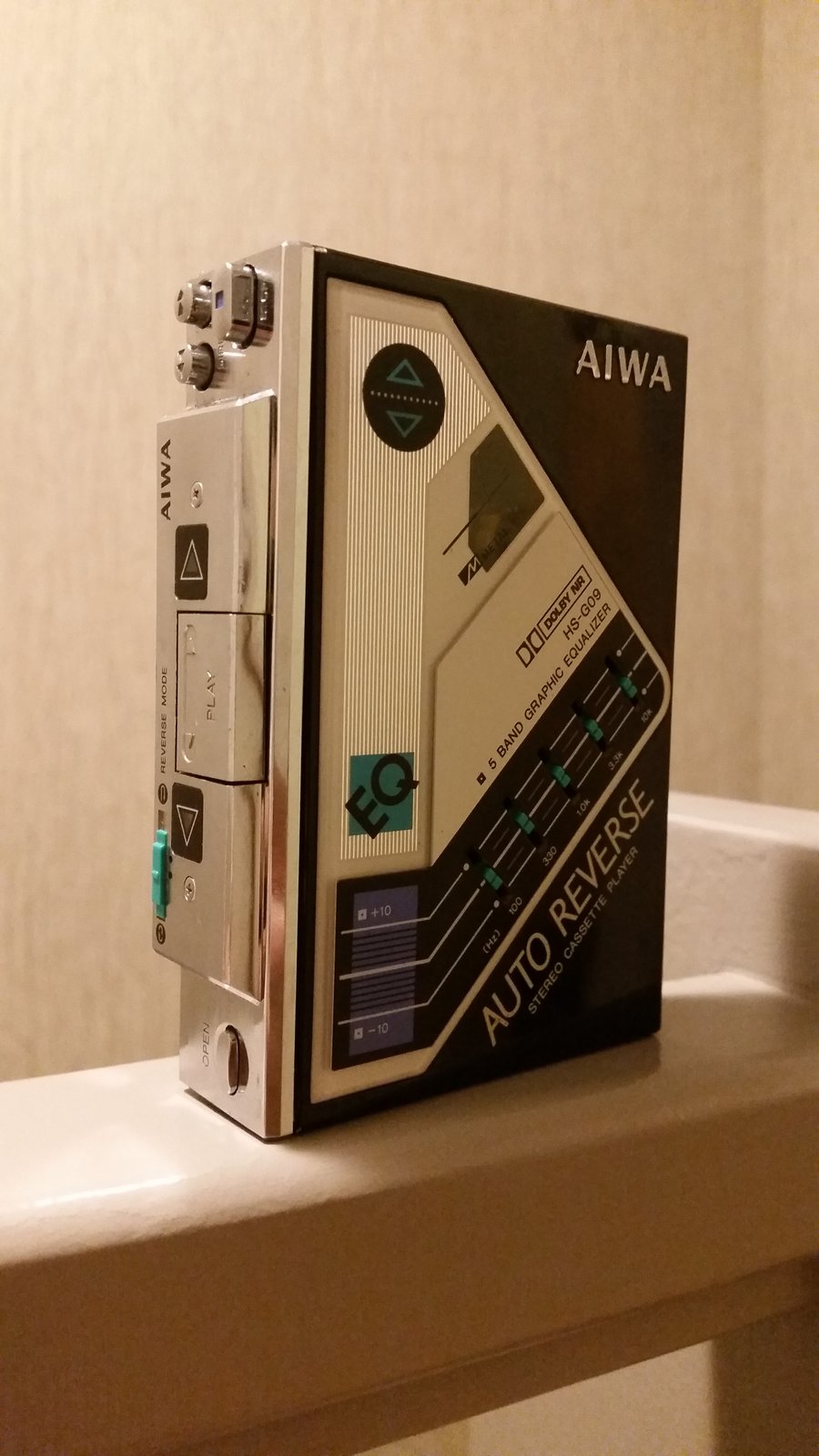

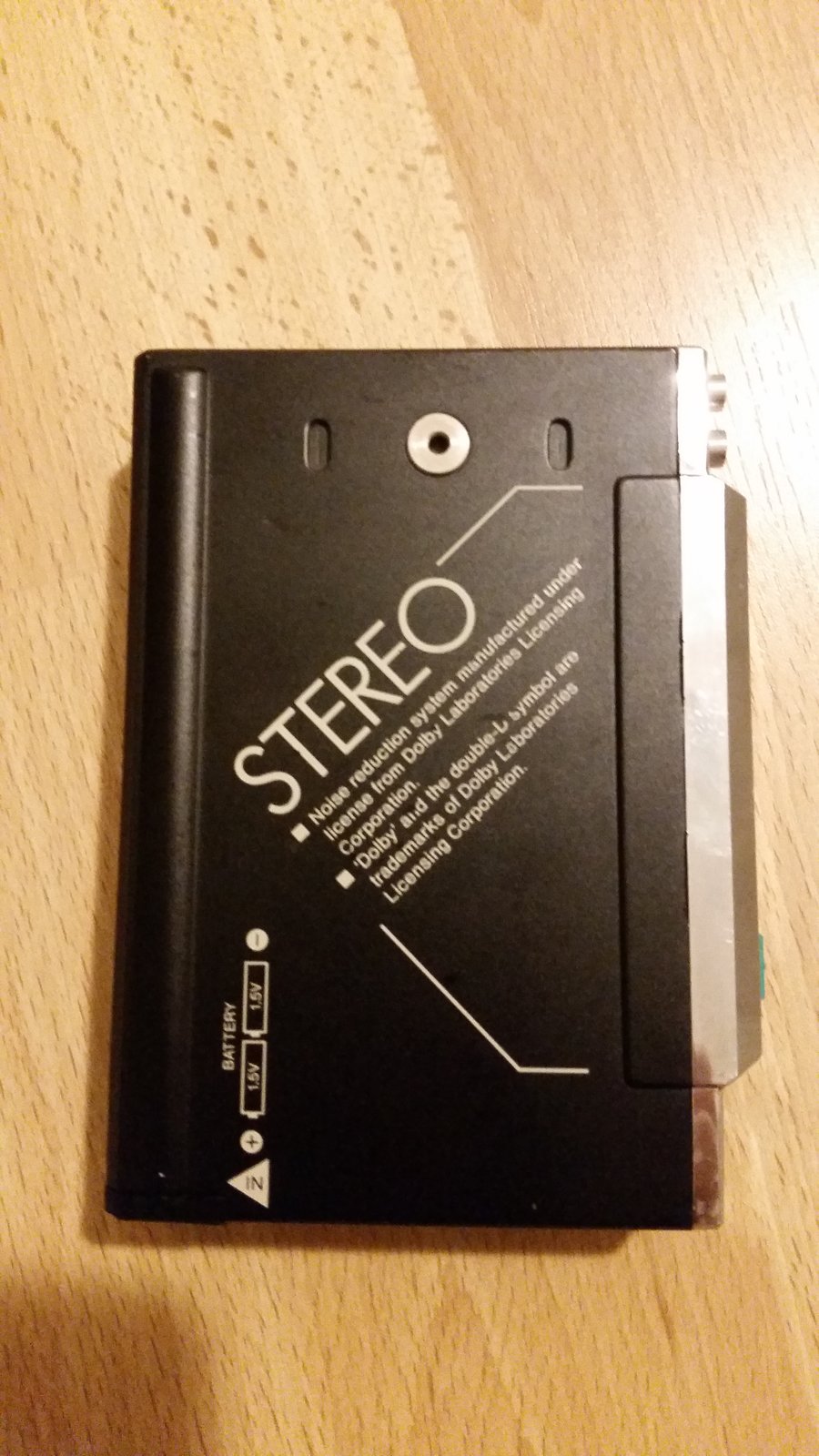

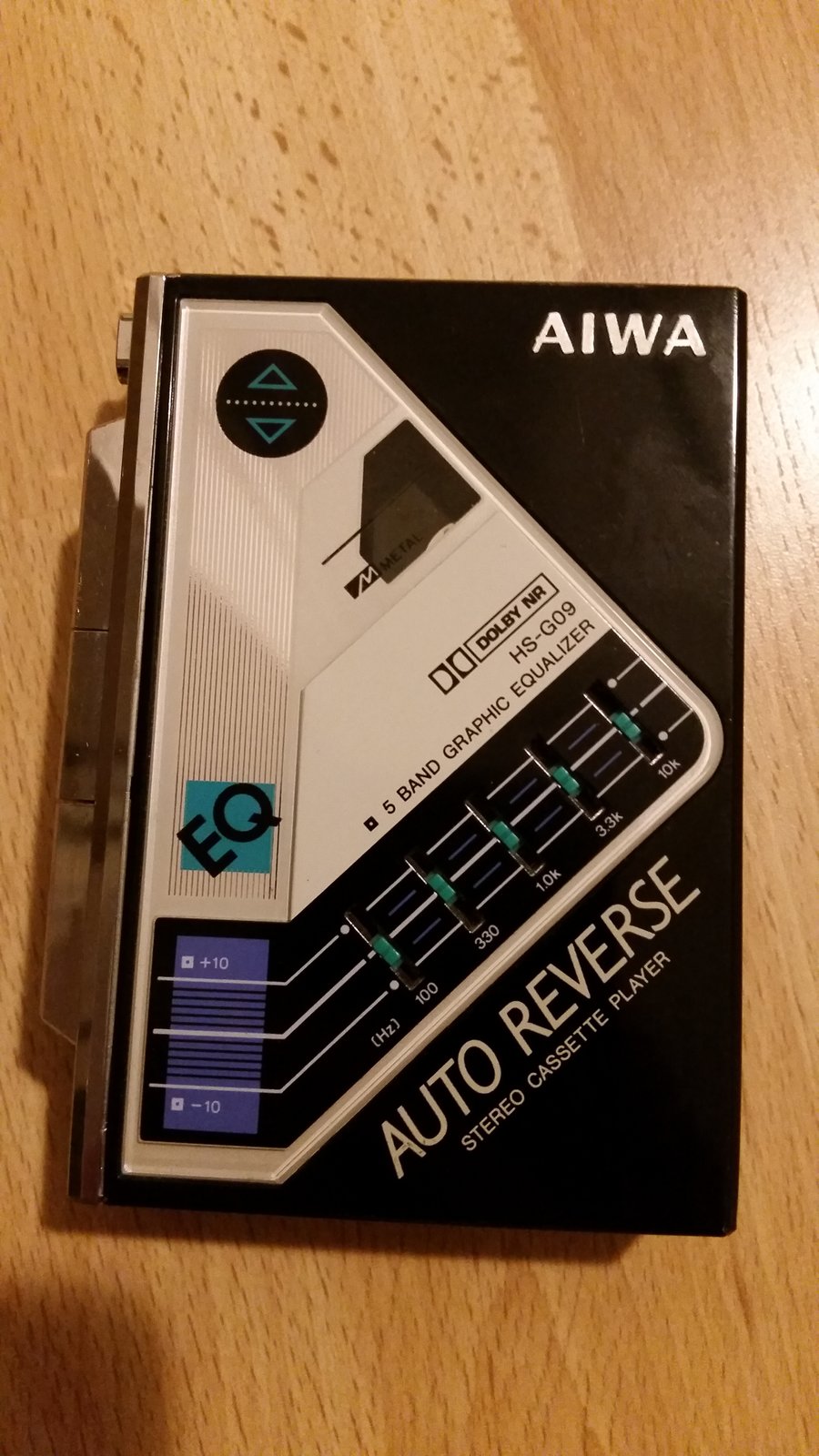

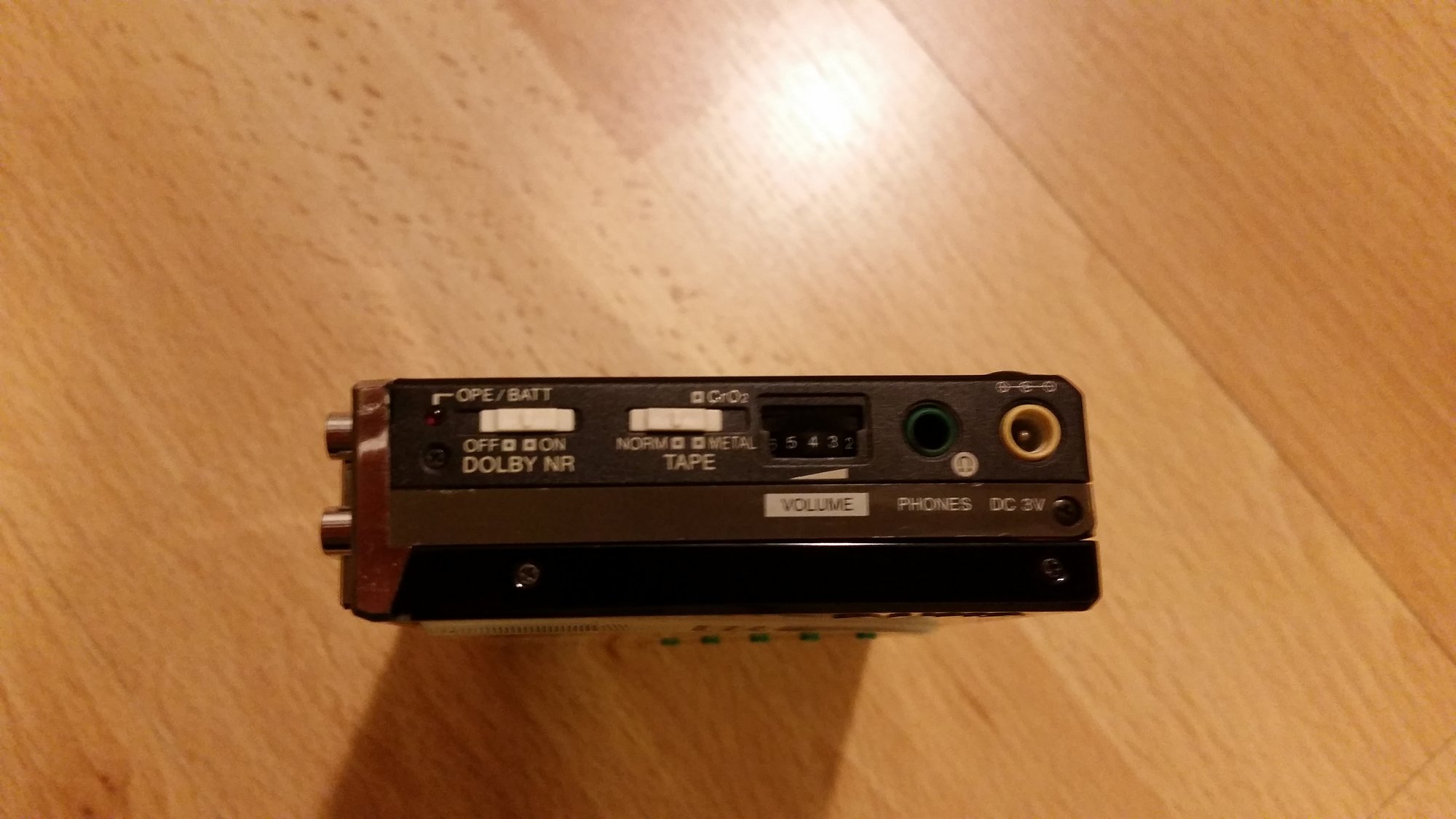

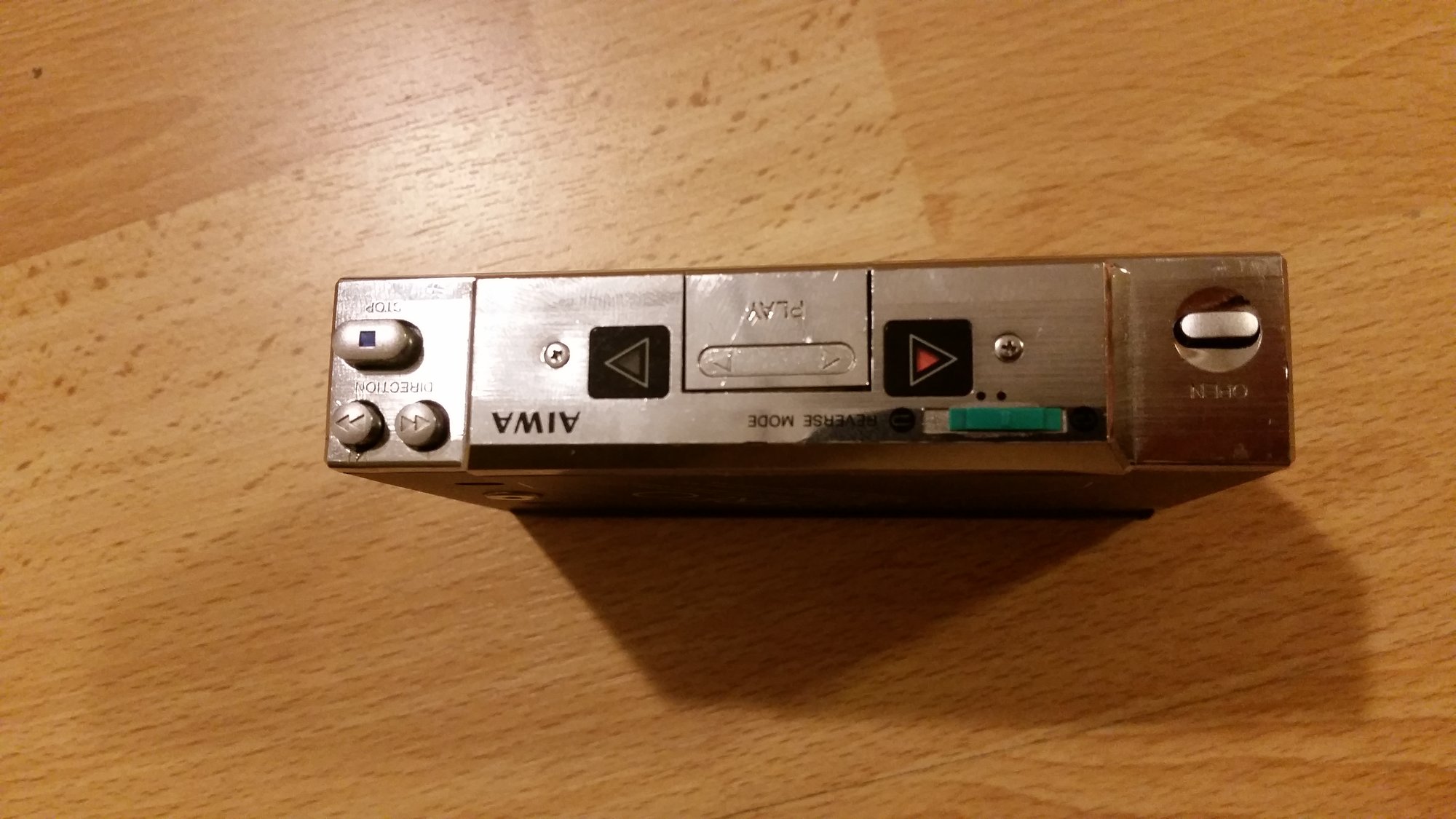

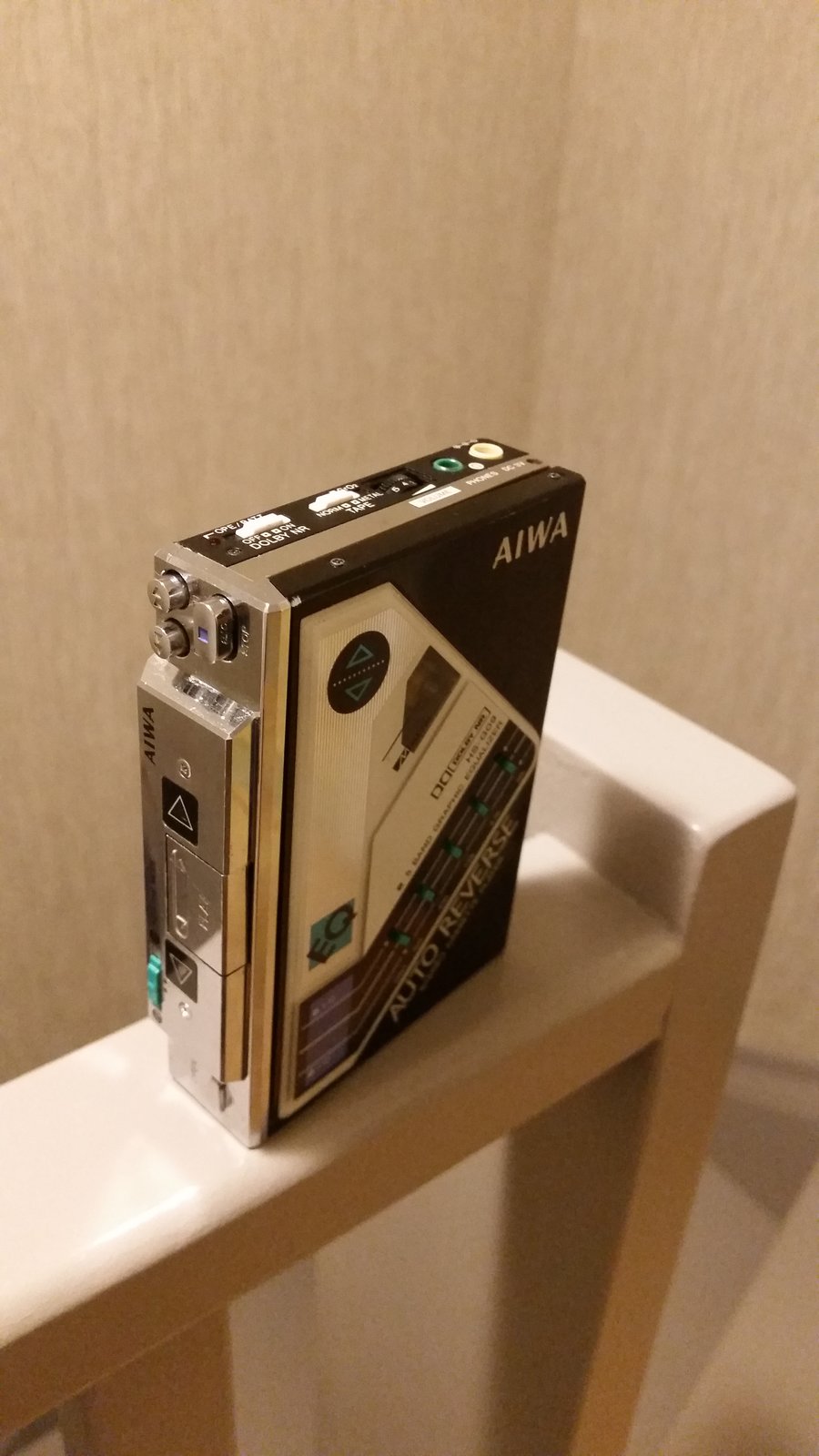

    Here's my Aiwa HS-G09 that I bought from LeBonCoin.fr

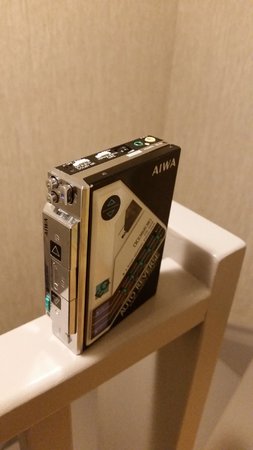

    20171013_221217.jpg 20171013_221208.jpg 20171013_220923.jpg 20171013_220903.jpg 20171013_220840.jpg 20171013_220314.jpg

    Last edited: Oct 13, 2017
  2. T-ster

    T-ster Moderator Staff Member S2G Supporter

    Messages:
    1,464
    Trophy Points:
    113
    Location:
    England
    What a lovely looking unit!

  3. Soxbrother

    Soxbrother Member

    Messages:
    104
    Trophy Points:
    18
    Location:
    Belgium
    Thanks !!

    I think I will have to clean the insides or something.

    Because I hear alot of static noise ( especially on the beginning of a tape, as the music begins, the static noise is not that noticable ) also when you turn the volume dial I hear cracking and depending on how you set the volume sometimes only sound from left ear or right ear
    No static noise on volume level 4, higher than that you hear more static noise.

    Also the autoreverse eats my tape after 10 seconds or something.
    The other reverse mode plays the sound backwards, I don't know if that is it's purpose ? And that mode didn't eat the tape, at least 20 seconds I've let it play.

    I hope someone can help me in fixing it.

    Last edited: Oct 15, 2017
  4. Soxbrother

    Soxbrother Member

    Messages:
    104
    Trophy Points:
    18
    Location:
    Belgium

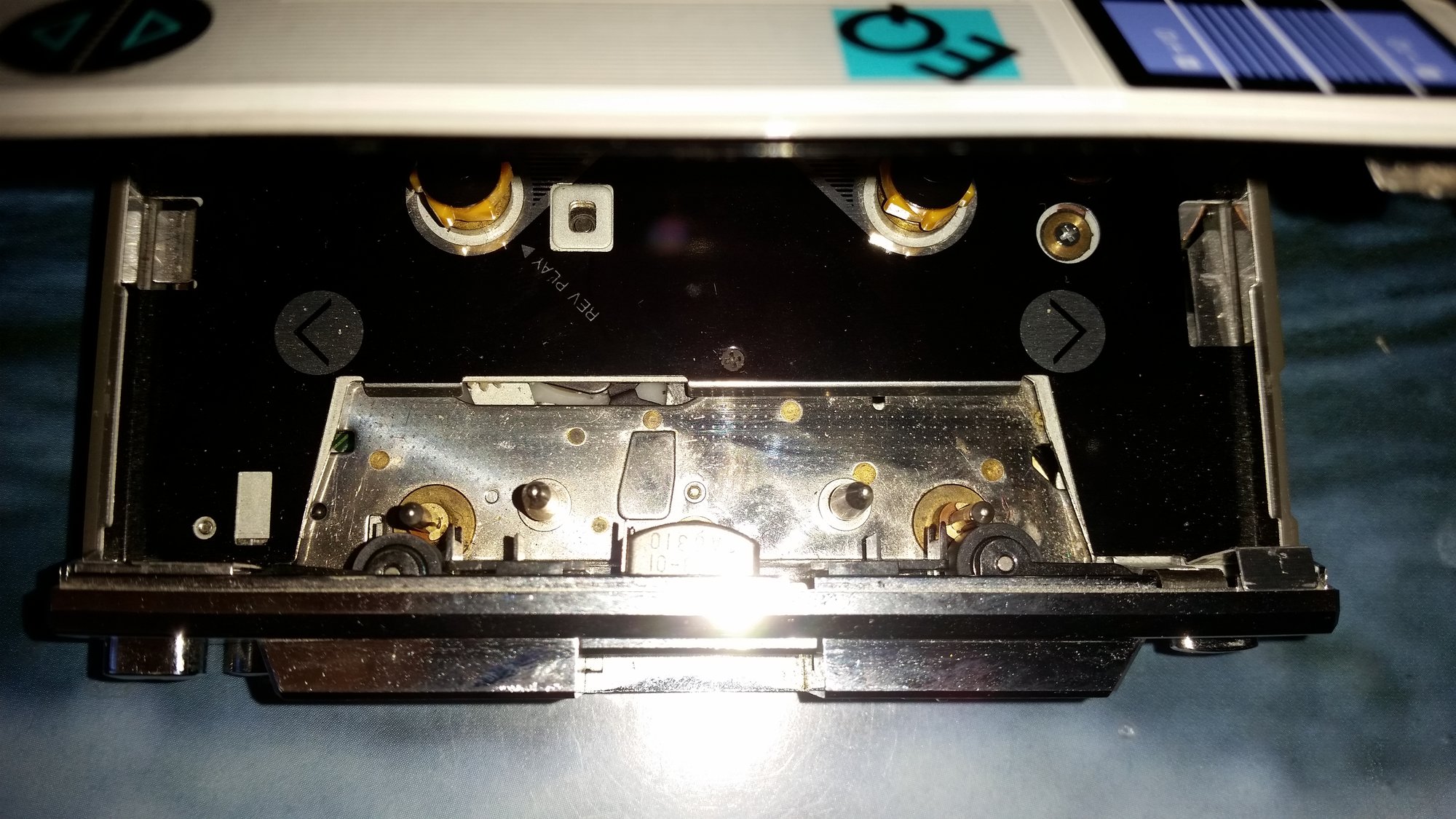

    I've noticed that when you press the play button, the right pinch roller touches the metal turning pin (probably also has a specific name, but don't know it....yet)

    However if you look at the left pinch roller, it doesn't touch the metal turning pin !!

    Is this maybe the reason why the autoreverse eats the tape after a few seconds ?
    By the way the tape is always eaten by the pinch roller positioned on the right.

  5. Soxbrother

    Soxbrother Member

    Messages:
    104
    Trophy Points:
    18
    Location:
    Belgium

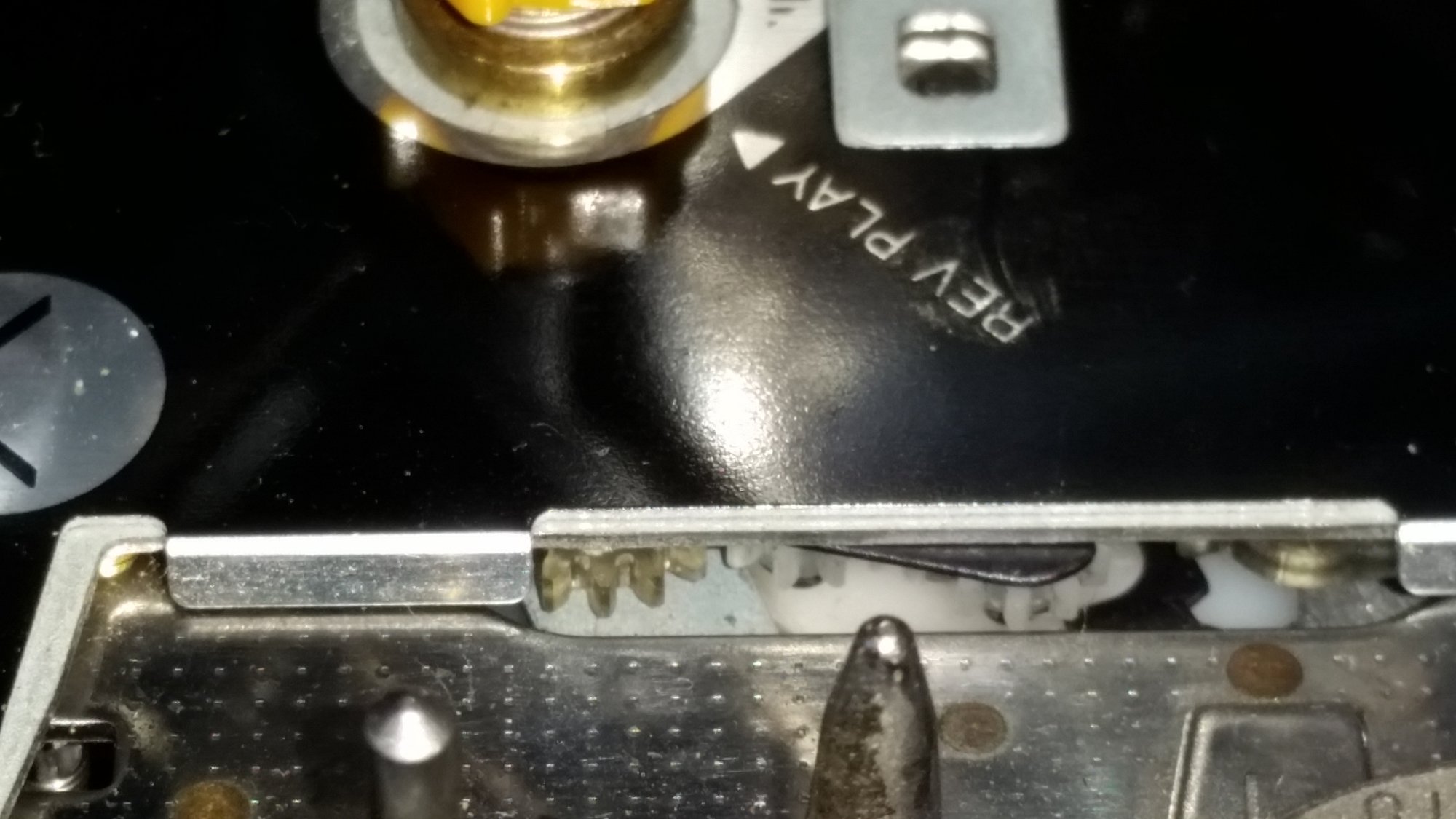

    Another possibilty of the autoreverse is maybe that one of the gears doesn't turn ?
    Without a tape, the 2nd and 3rd white gears on the picture turn, with play, Fast Forward en Rewind.
    The left gear (a bit darker color),
    doesn't turn at all.

    Maybe it only turns when the autoreverse kicks in ? Impossible to see with a tape inside.
