    From One-to-One Magazine, 1988 found on the AmericanRadioHistory Website

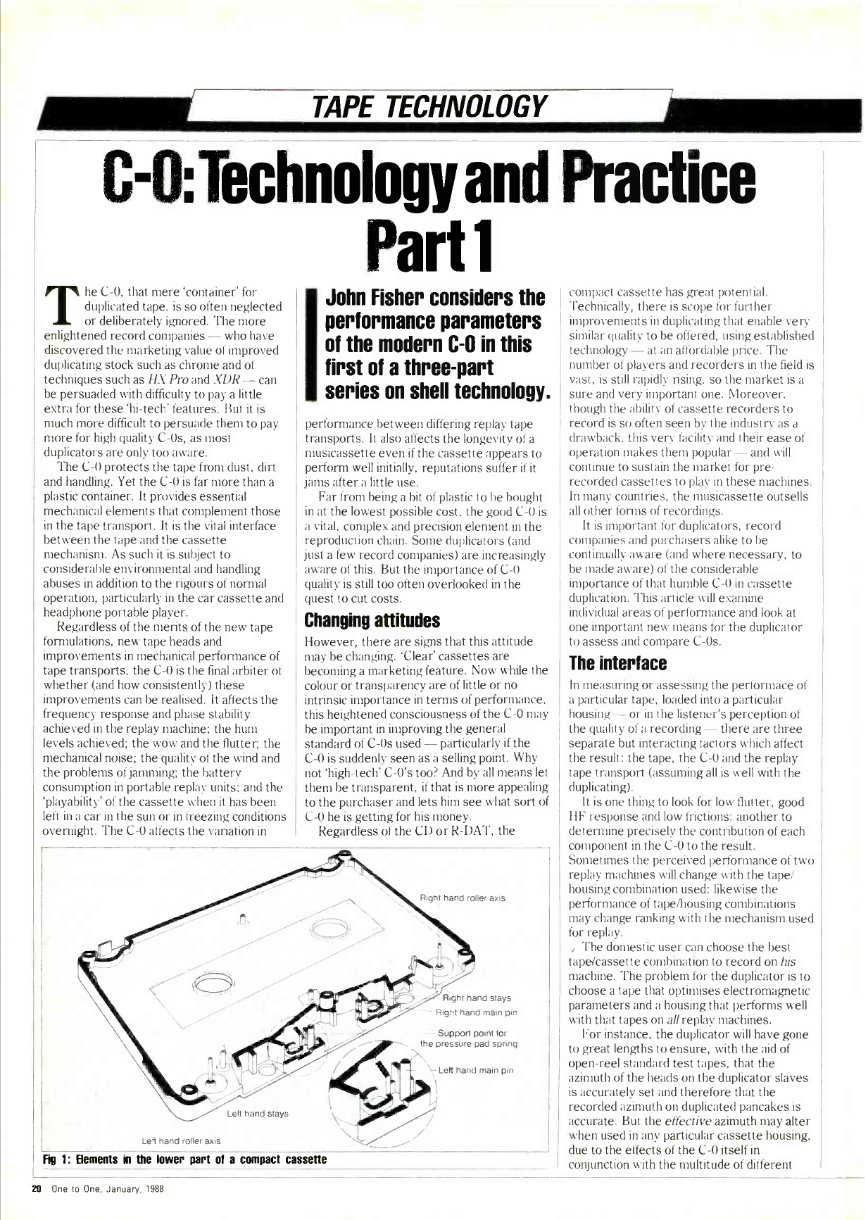

    Tape Tech 1 1988 1.png

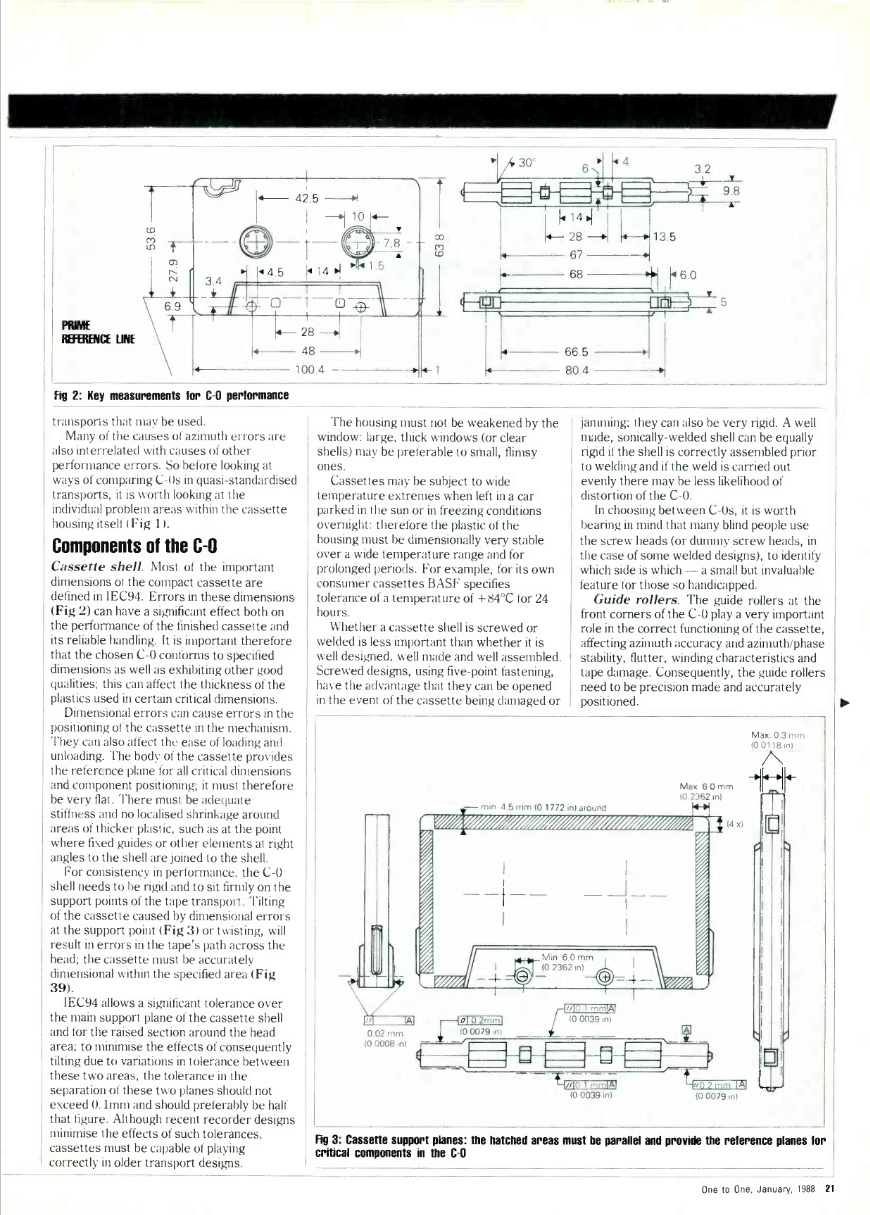

    Tape Tech 1 1988 2.png

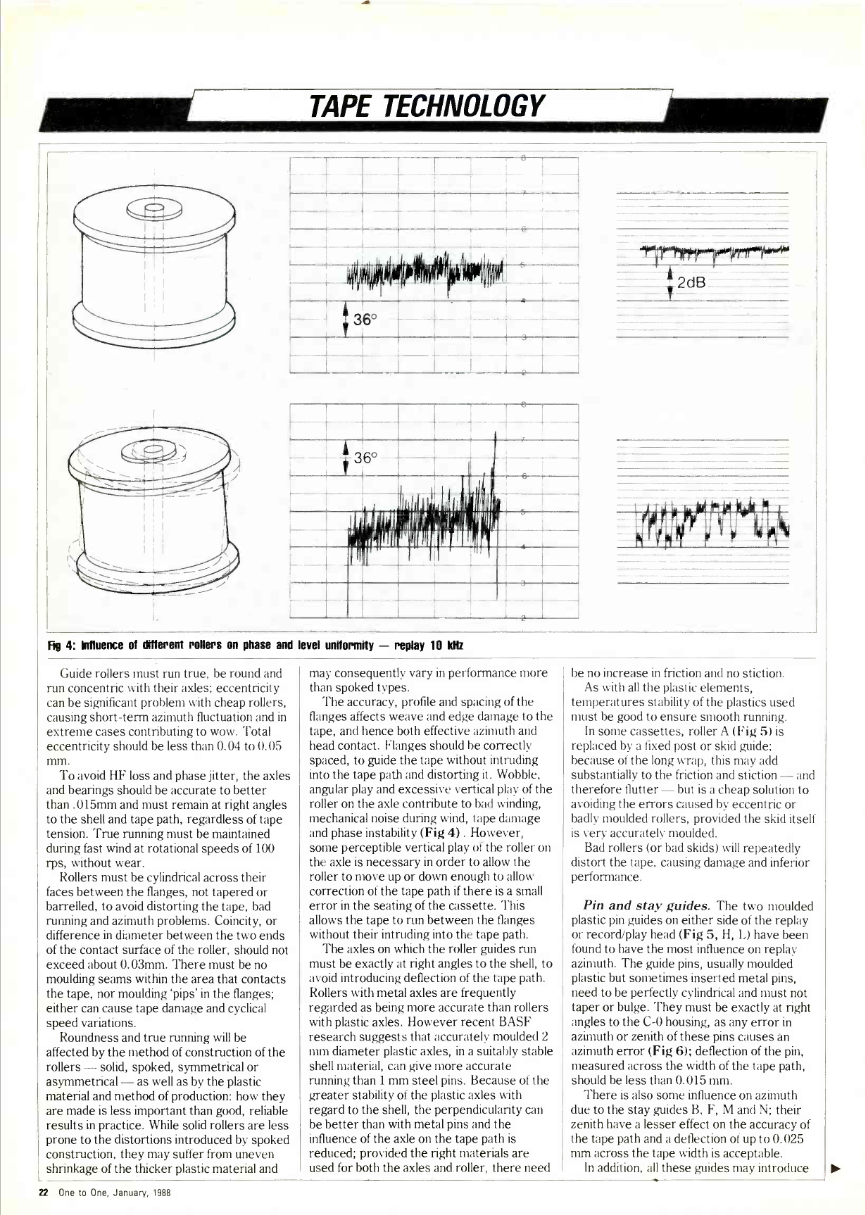

    Tape Tech 1 1988 3.png

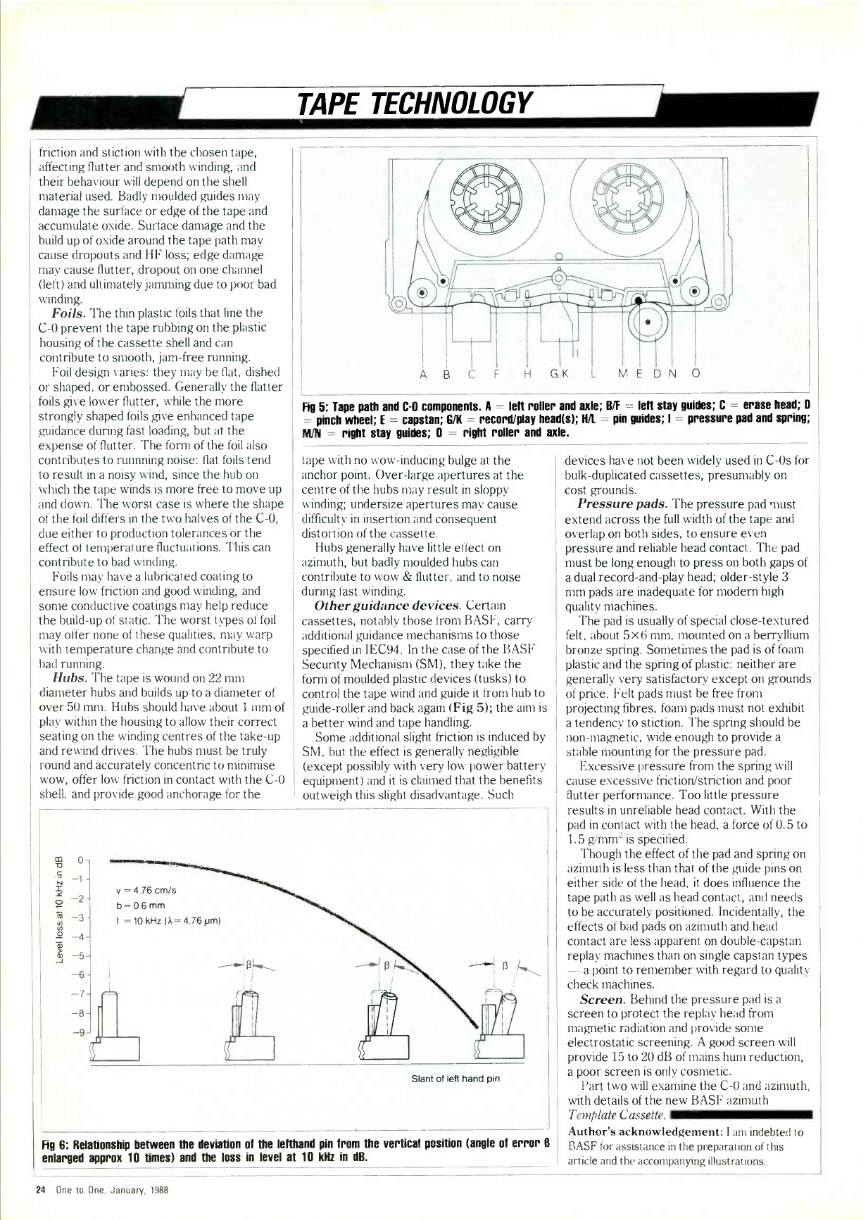

    Tape Tech 1 1988 4.png

    Mister X, Mar 28, 2020
    #1
    Jorge and Deb64 like this.
  2. walkman archive

    walkman archive Administrator Staff Member

    Messages:
    1,897
    Trophy Points:
    113
    Location:
    Barcelona
    Wow, very deep article, thanks!

    walkman archive, Mar 28, 2020
    #2
    Mister X likes this.
  3. Deb64

    Deb64 Well-Known Member S2G Supporter

    Messages:
    259
    Trophy Points:
    63
    Location:
    Leicestershire, England
    Thanks for posting this. Very useful and interesting.

    Deb64, Mar 28, 2020
    #3
    Mister X likes this.
  4. Mister X

    Mister X Moderator Staff Member

    Messages:
    16,833
    Trophy Points:
    113
    Location:
    Minnesota
    Unfortunately they only have random issues of this magazine, it does have some cool technical articles for producers and engineers and some gems like this one.

    Mister X, Mar 28, 2020
    #4
  5. KJ Bleus Parsons

    KJ Bleus Parsons Active Member

    Messages:
    178
    Trophy Points:
    43
    Location:
    MadCity, WI USA
    Excellent reading & informational.

    Might you also have the succeeding articles, Parts 2 & 3, greatly appreciated.

    Thanks to Mr X .....

    Bleusy

    ************

    Last edited: Apr 4, 2020
    KJ Bleus Parsons, Apr 4, 2020
    #5
    Mister X likes this.
  6. KJ Bleus Parsons

    KJ Bleus Parsons Active Member

    Messages:
    178
    Trophy Points:
    43
    Location:
    MadCity, WI USA
    Re: Cassette Tech & Practice, Pt 1

    Just prepped the four pages into a .pdf doc, for easy article reading.

    Attached document for you all .....

    Cheers,

    Bleusy

    ************


    Attached Files:

    KJ Bleus Parsons, Apr 4, 2020
    #6
    Mister X likes this.
  7. Mister X

    Mister X Moderator Staff Member

    Messages:
    16,833
    Trophy Points:
    113
    Location:
    Minnesota
    Sorry Bleusy, they don't have a complete set of issues, this is the only one I could find.

    Mister X, Apr 4, 2020
    #7
  8. KJ Bleus Parsons

    KJ Bleus Parsons Active Member

    Messages:
    178
    Trophy Points:
    43
    Location:
    MadCity, WI USA

    Well, the hunt must continue, somewhere, these essential reference article issues will be found !!!

    Bleusy

    **********

    KJ Bleus Parsons, Apr 4, 2020
    #8
    Mister X likes this.
  9. Paul Barham

    Paul Barham Member

    Messages:
    14
    Trophy Points:
    13
    Location:
    New Zealand
    A very interesting article - thanks for posting.

    Paul Barham, Apr 4, 2020
    #9
    Mister X likes this.
  10. DutchNick

    DutchNick Active Member

    Messages:
    104
    Trophy Points:
    28
    Location:
    United Kingdom
    Great reading. Coincidentally I am in the closing phases of auditioning around 1800 used pre-recorded cassettes. Quite a few had lost their pressure pads. A small handful would simply not run well even after diligent run-throughs, increasingly less non-violent tapping, etc., and needed re-shelling. A small proportion of those have still not been usable; if I have changed everything except the tape itself then the tape itself must be the problem and I'm guessing there are variations in the width of the tape that mean some will never run smoothly inside the sandwich. And I should mention a subset of tapes on the Mercury label that don't have guide rollers. Accountants, hang your heads in shame.
