Hitachi TRK-3D80 W

Discussion in 'Tech talk' started by mefromleeds, Jul 6, 2017.

  1. mefromleeds

    mefromleeds New Member

    Messages:
    2
    Trophy Points:
    1
    Location:
    Leeds
    Hi,
    I bought Hitachi TRK-3D80 W. I bought it damaged to repair. I had hope it's only leaking capacitors or cold soldering joints but no. All boards are intact and clean. Subwoofer plays a kind of "wave" pumping fast in and out (nothing that could damage it as it's in fine condition). I removed all screws, and I disassemble it to the last bit, and I don't see anything unusual. I unplug that speaker and screw all back. Nothing is burned, nothing smells funny. All elements are soldered well. There are not so many expensive elements, and all of it is low voltage. I could measure some voltages if needed. That pumping is heard in main speakers too but in much lower volume. I connected it already to 12V external PSU, and it's still pumping like sonic power toothbrush. This sound is on all sources (tape,radio, line in). What causes that? I would appreciate some help.

    I will send some more p&v as I used sports camera, so the video has too high FOV.

    Thanks.

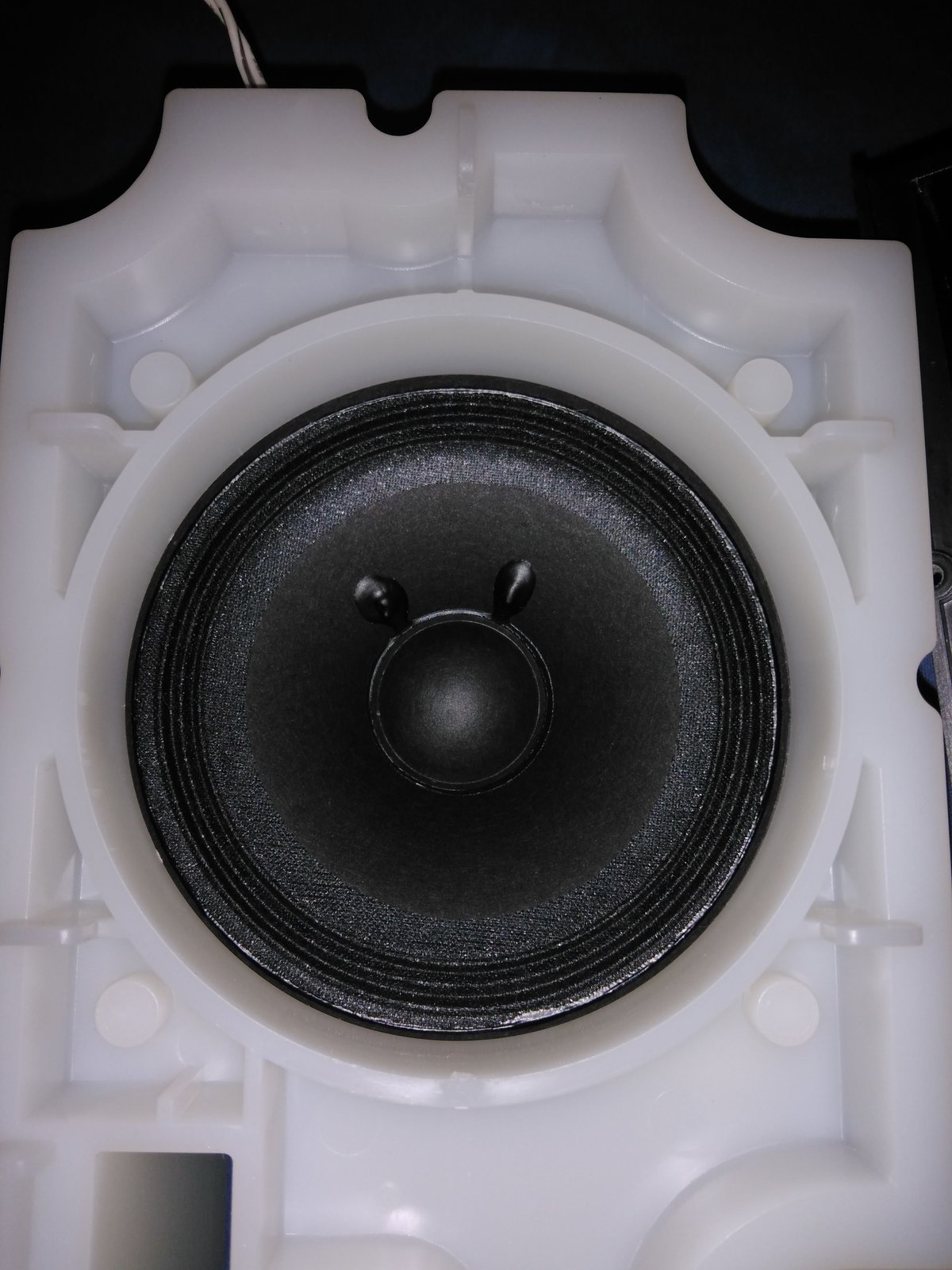

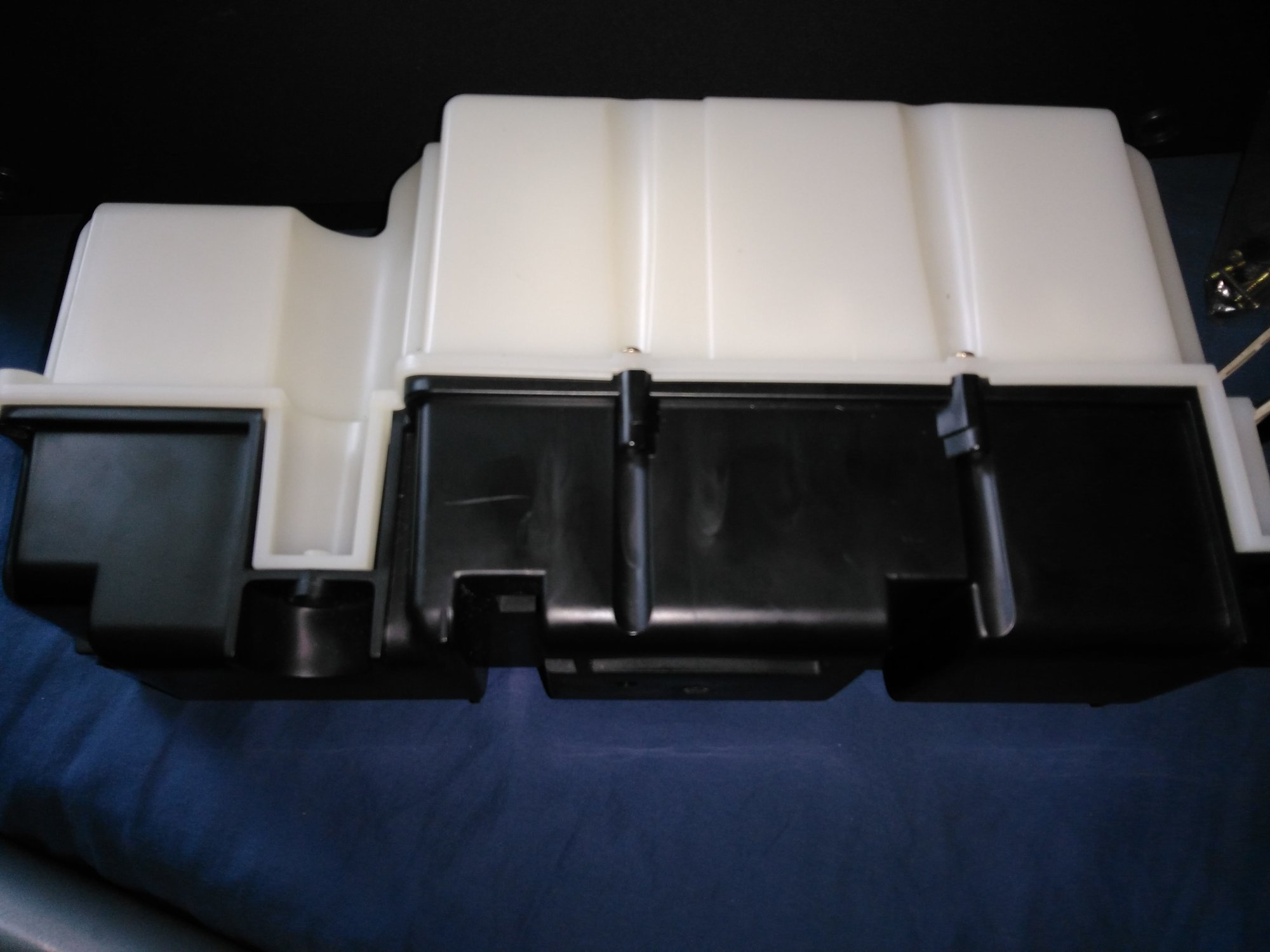

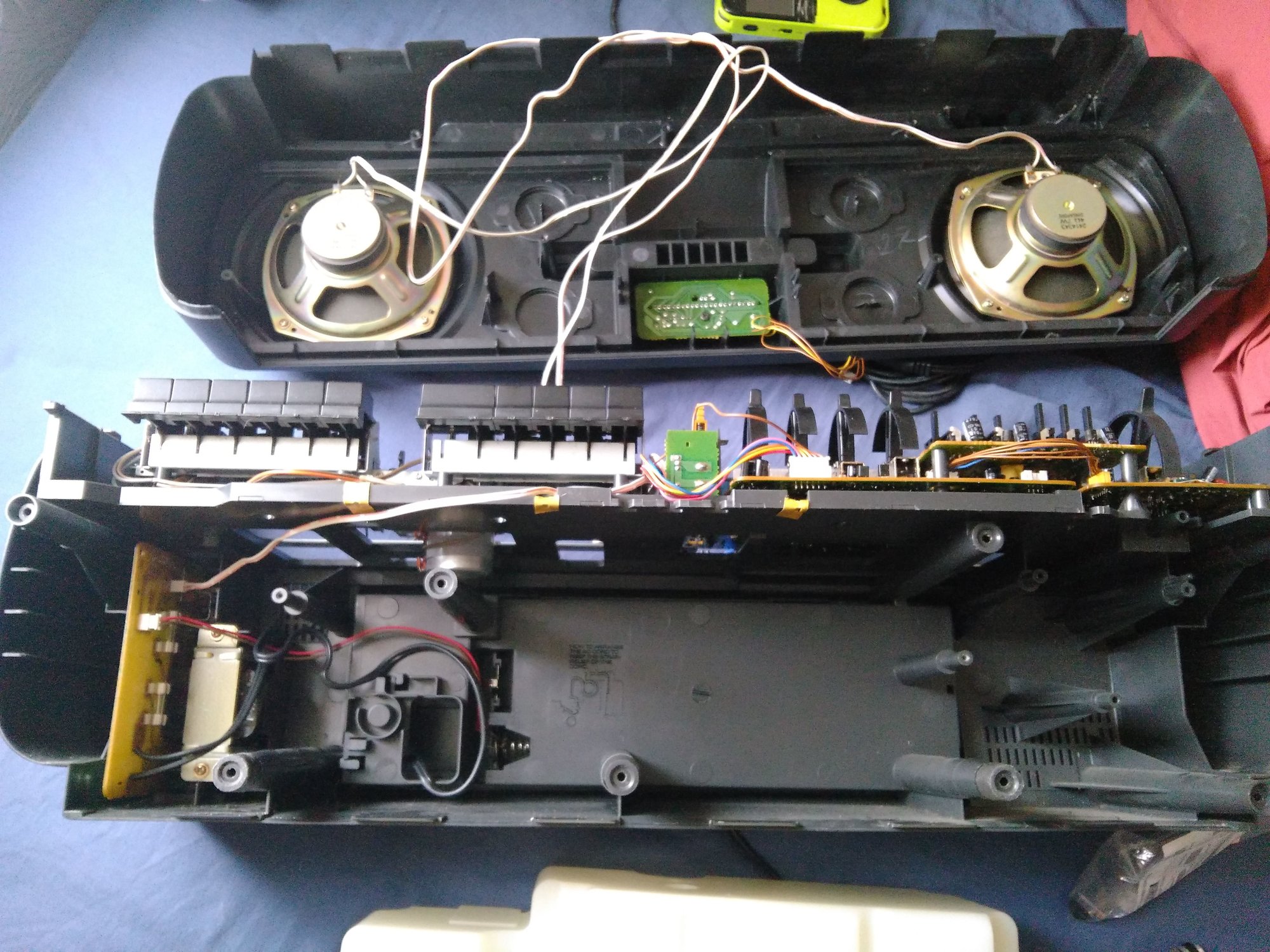

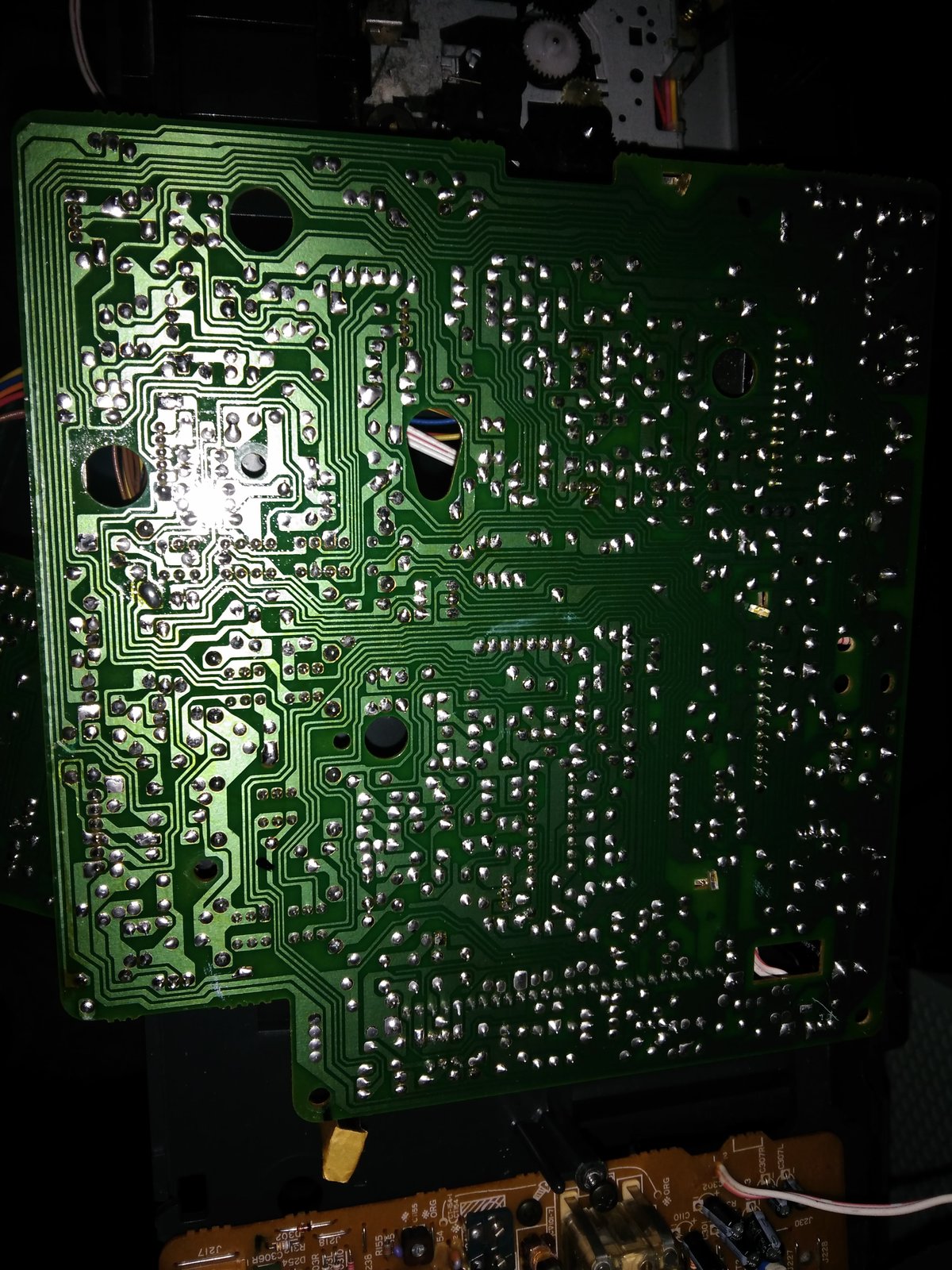

    IMG_20170706_160444-min.jpg IMG_20170706_095652-min.jpg IMG_20170706_160433-min.jpg IMG_20170706_095316-min.jpg

  2. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    500
    Trophy Points:
    63
    Location:
    Dallas Texas USA

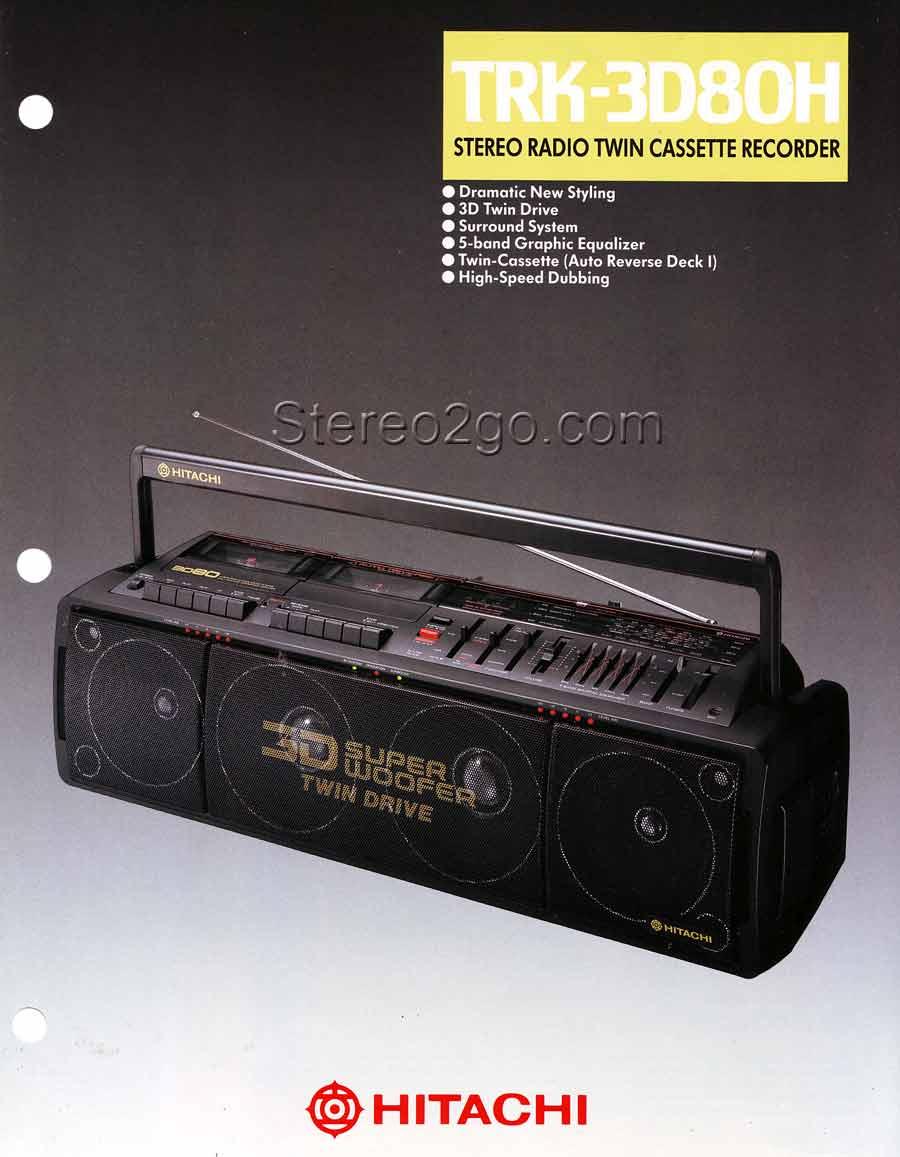

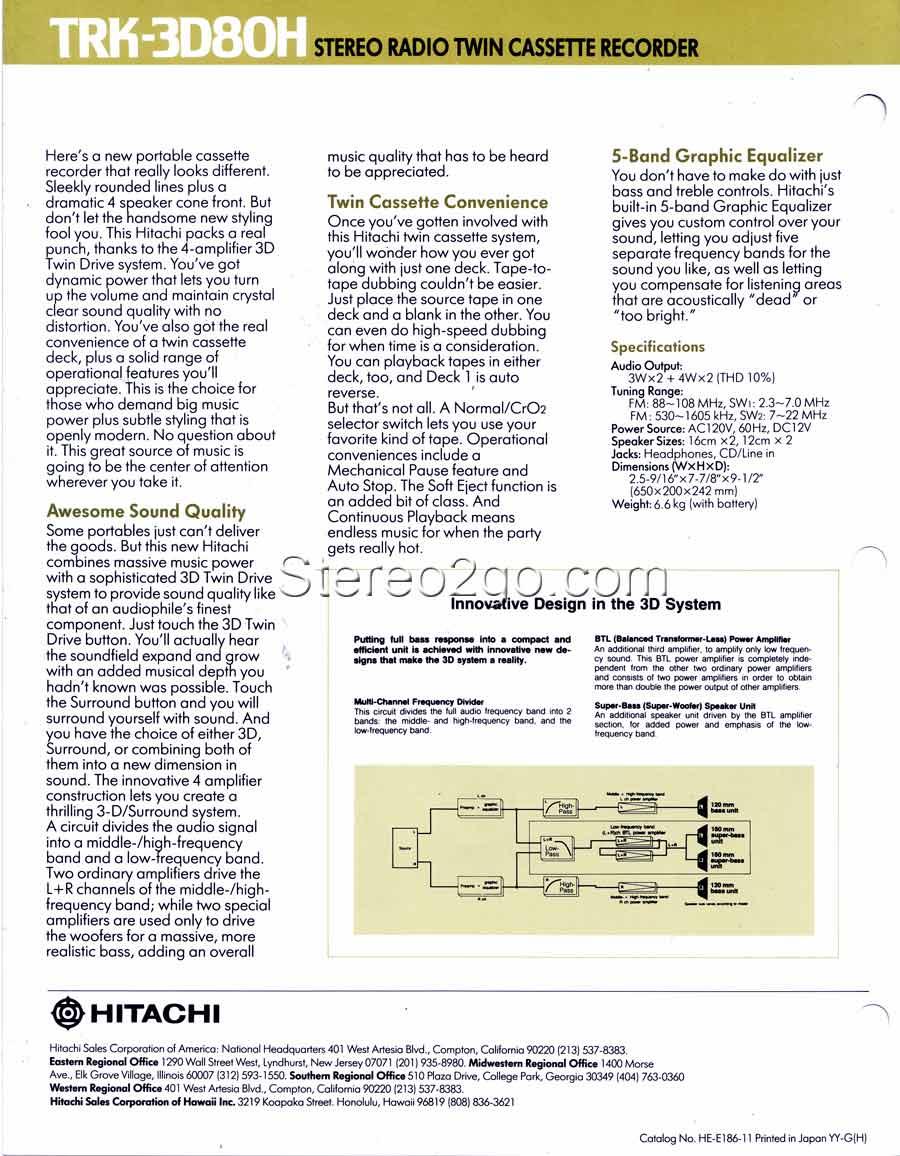

    all I know is hitachi trk-3d80h brouchoure stg change.jpg hitachi trk-3d80h specifications brouchoure stg change.jpg

  3. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    500
    Trophy Points:
    63
    Location:
    Dallas Texas USA
    re-read, sounds like bad capicitors in the preamp circuits that you cannot knowas to being bad until you just repalce them
