Intenna installed in boombox as Ariel or antenna broke

Discussion in 'Tech talk' started by Cassette2go, Aug 12, 2024.

  1. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    1,574
    Trophy Points:
    113
    Location:
    Dallas Texas USA
    My own design of installing a Intenna for the FM for radios that have a broken antenna.

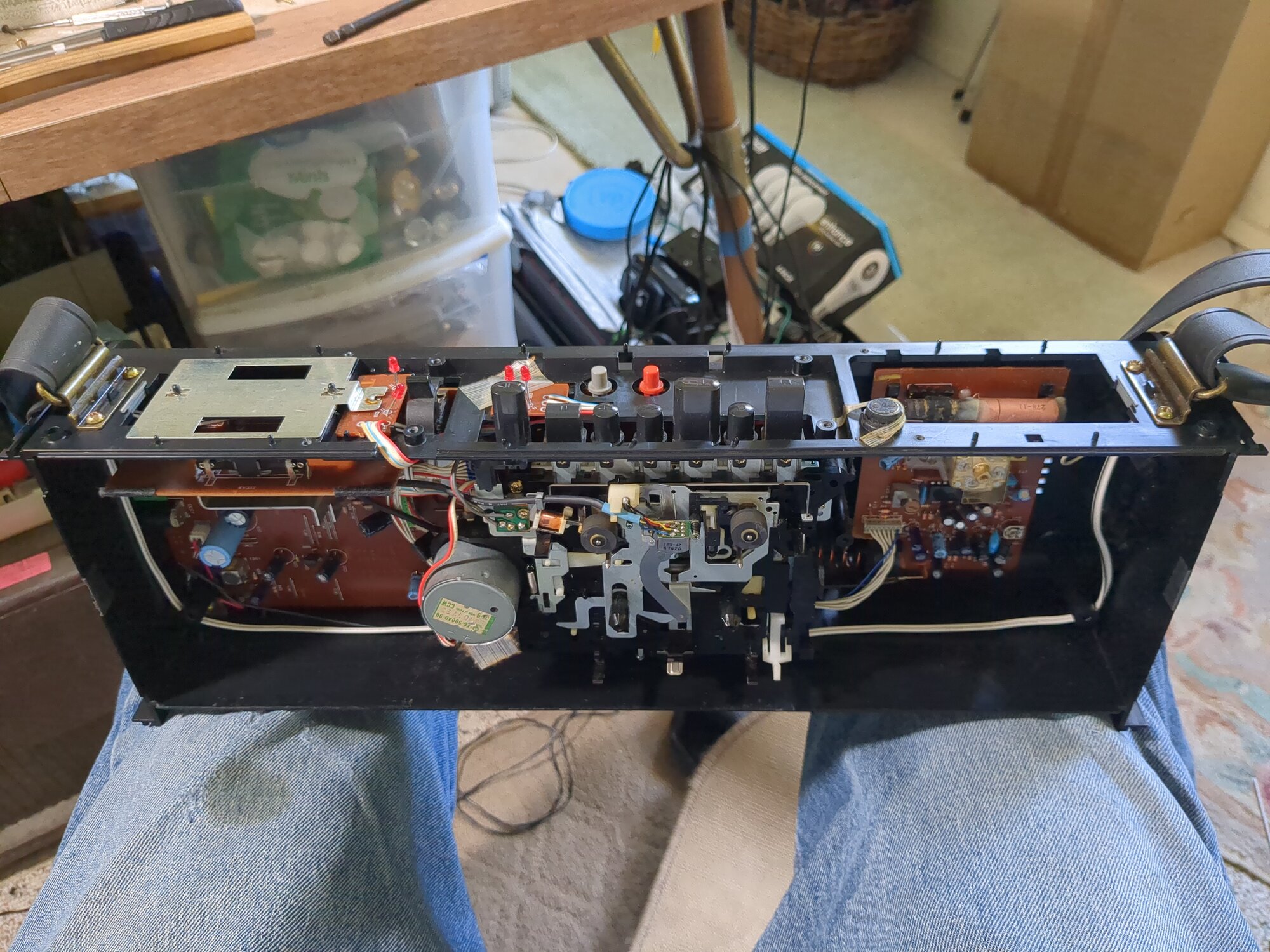

    That's upside down

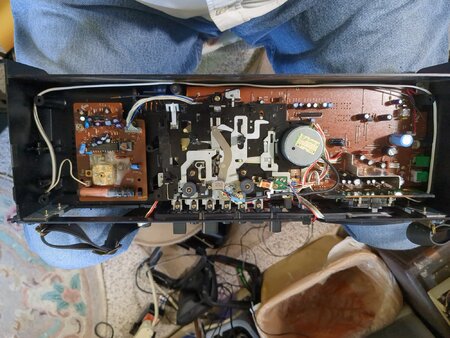

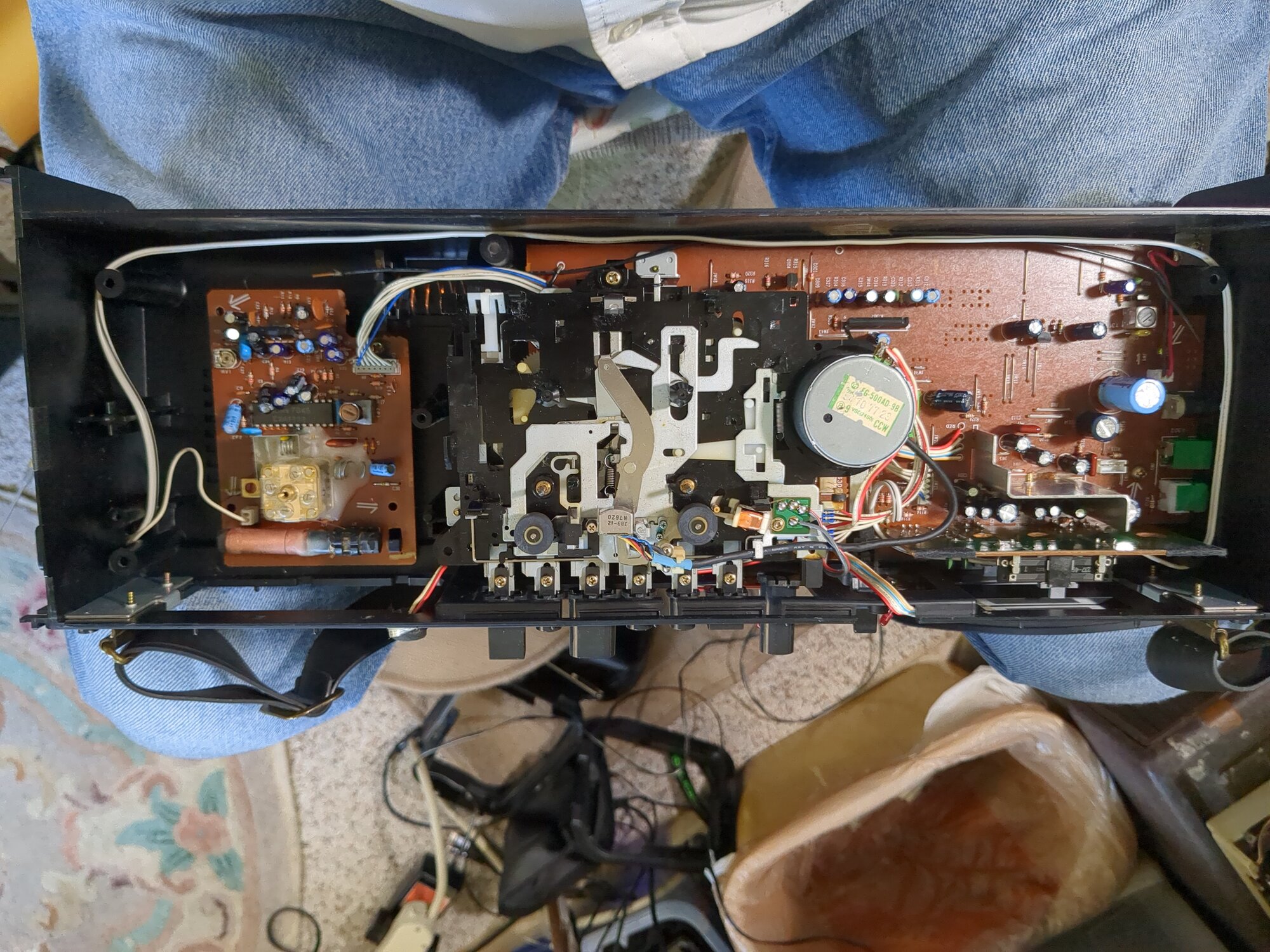

    Notice the white wire which has been installed in place of the external antenna which is now what I call the Intenna.
    You got bonus points if you know what model this is lol.

    Mister X likes this.
  2. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    1,574
    Trophy Points:
    113
    Location:
    Dallas Texas USA
    Sony CFS-S30 Soundy new belts Play cassette radio (15:15) minutes

    Mister X likes this.
  3. Hyperscope

    Hyperscope Well-Known Member S2G Supporter

    Messages:
    387
    Trophy Points:
    63
    Location:
    Vancouver Canada
    Makes sense to just put an internal wire antenna like that for FM. Though for authenticity on old desirable models one can get sorta get various "close enough" replacements on e-bay if needed.

    Mister X and Cassette2go like this.
  4. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    1,574
    Trophy Points:
    113
    Location:
    Dallas Texas USA

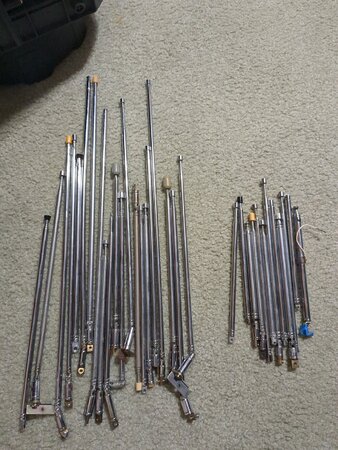

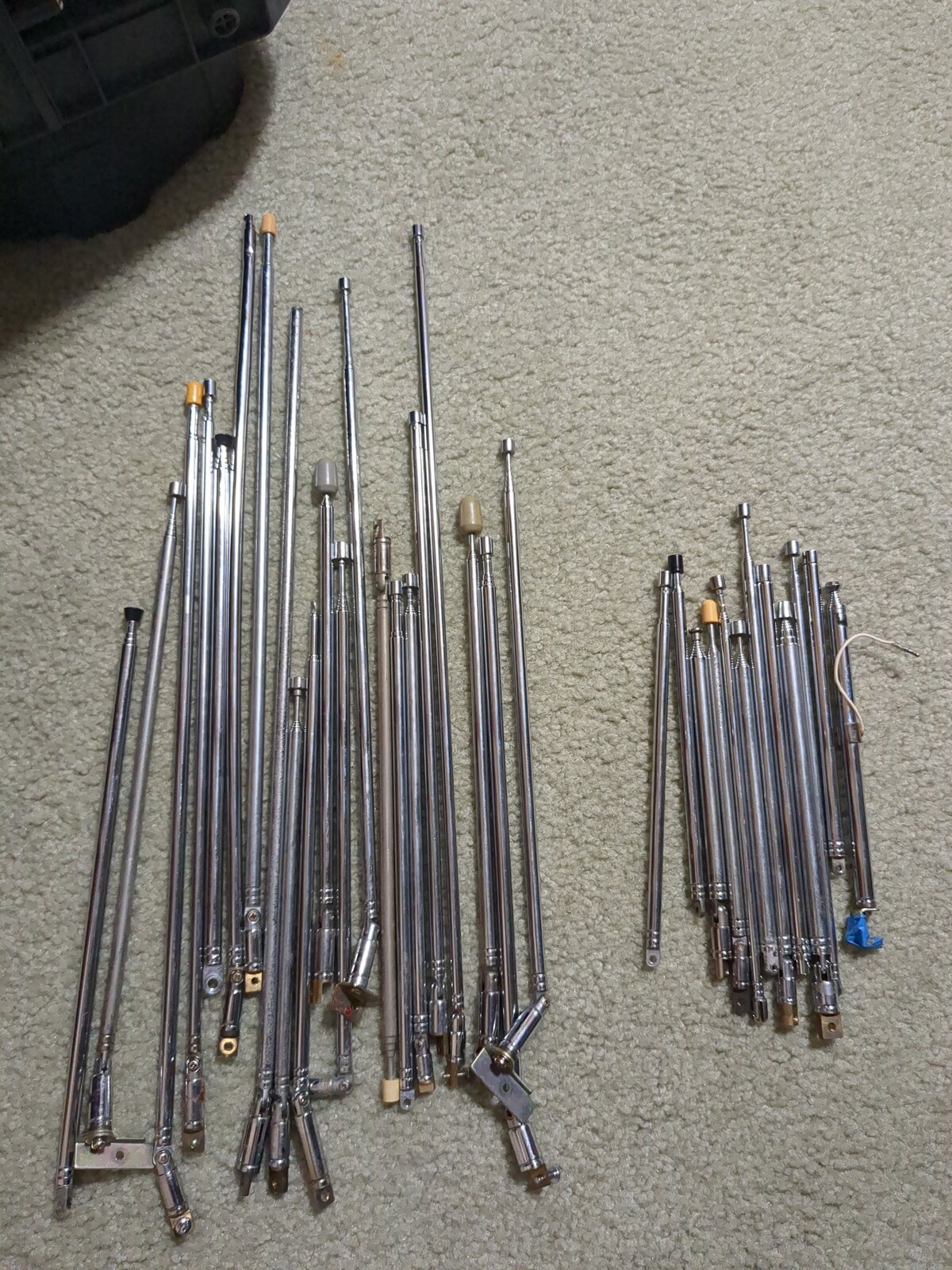

    Nope, I checked that one takes a very specific size and so it's included in the end bag if you really want to get that little piece spot welded on to its specific bracket. Otherwise just deal with it. Having an internal antenna and giving you stereo sound anyway.
    I bought a few and I have a few so none of these work.

    Mister X and Hyperscope like this.
  5. Mister X

    Mister X Moderator Staff Member

    Messages:
    16,981
    Trophy Points:
    113
    Location:
    Minnesota
    I'd love to be able to make antennas, I think I posted a video in the video thread of a small Asian Shop making them.

    Cassette2go likes this.
