    I was thinking about creating a list of walkmans sharing the same internals, ie using
    - similar transport mechanisms,
    - same heads,
    - same audio circuitry, etc.
    That would be useful, when searching for parts.
    here is a page as a starter presenting some walkmans:
    http://www.petervis.com/walkmans/Vintage Walkmans.html
    ... maybe you are aware of some others. Please share them.

    Last edited: Feb 20, 2017
    RTB, Sly., sickly_b and 3 others like this.
  2. Boodokhan

    Boodokhan Well-Known Member

    Messages:
    2,460
    Trophy Points:
    113
    Location:
    California
    Wow.
    great topic. How did i miss this great topic?
    You should have created this topic in walkman section.

    I read some of the articles and fount them extremely useful.
    THANK YOU :thumbup:

    Last edited: Feb 16, 2017
  3. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

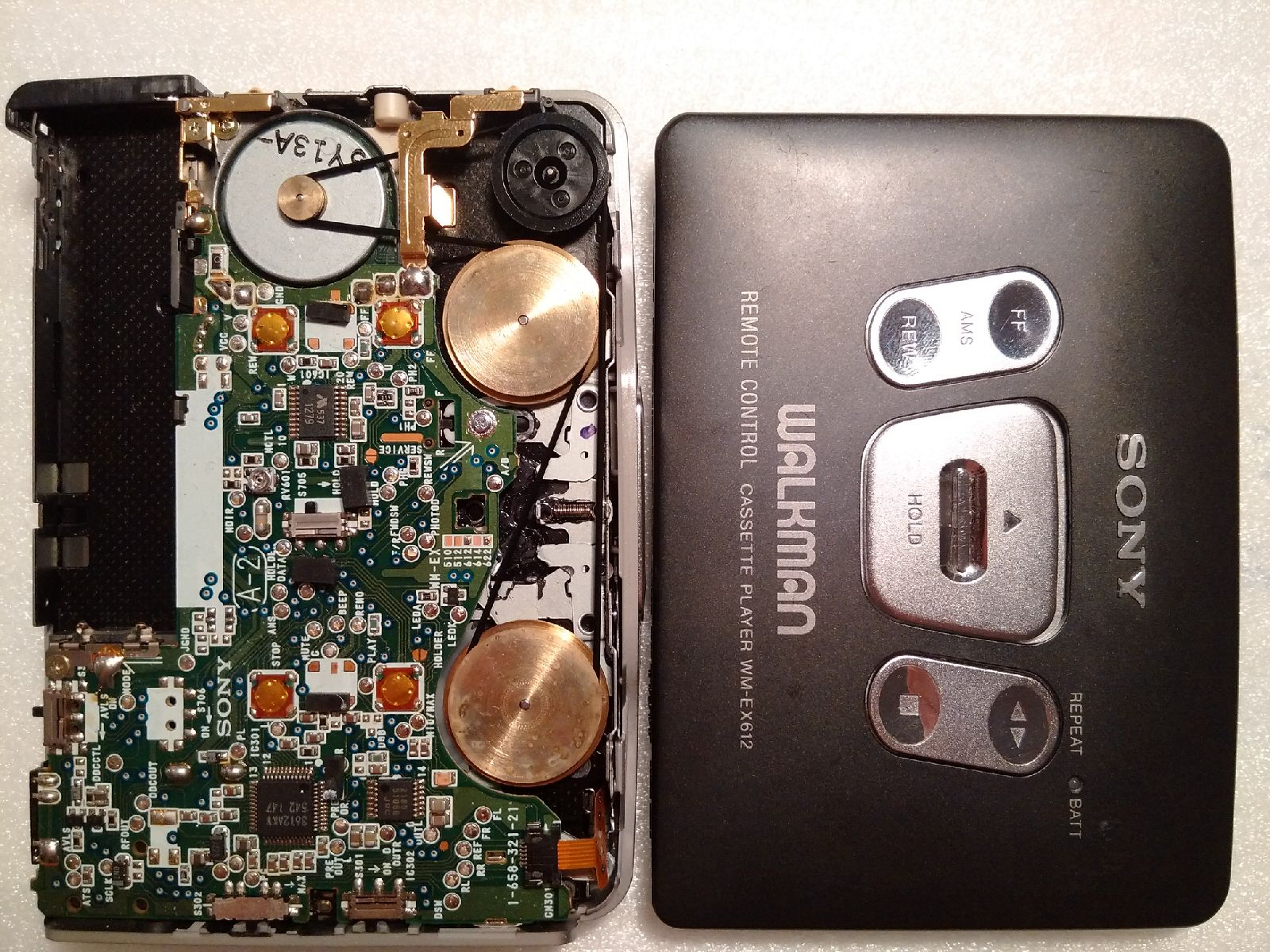

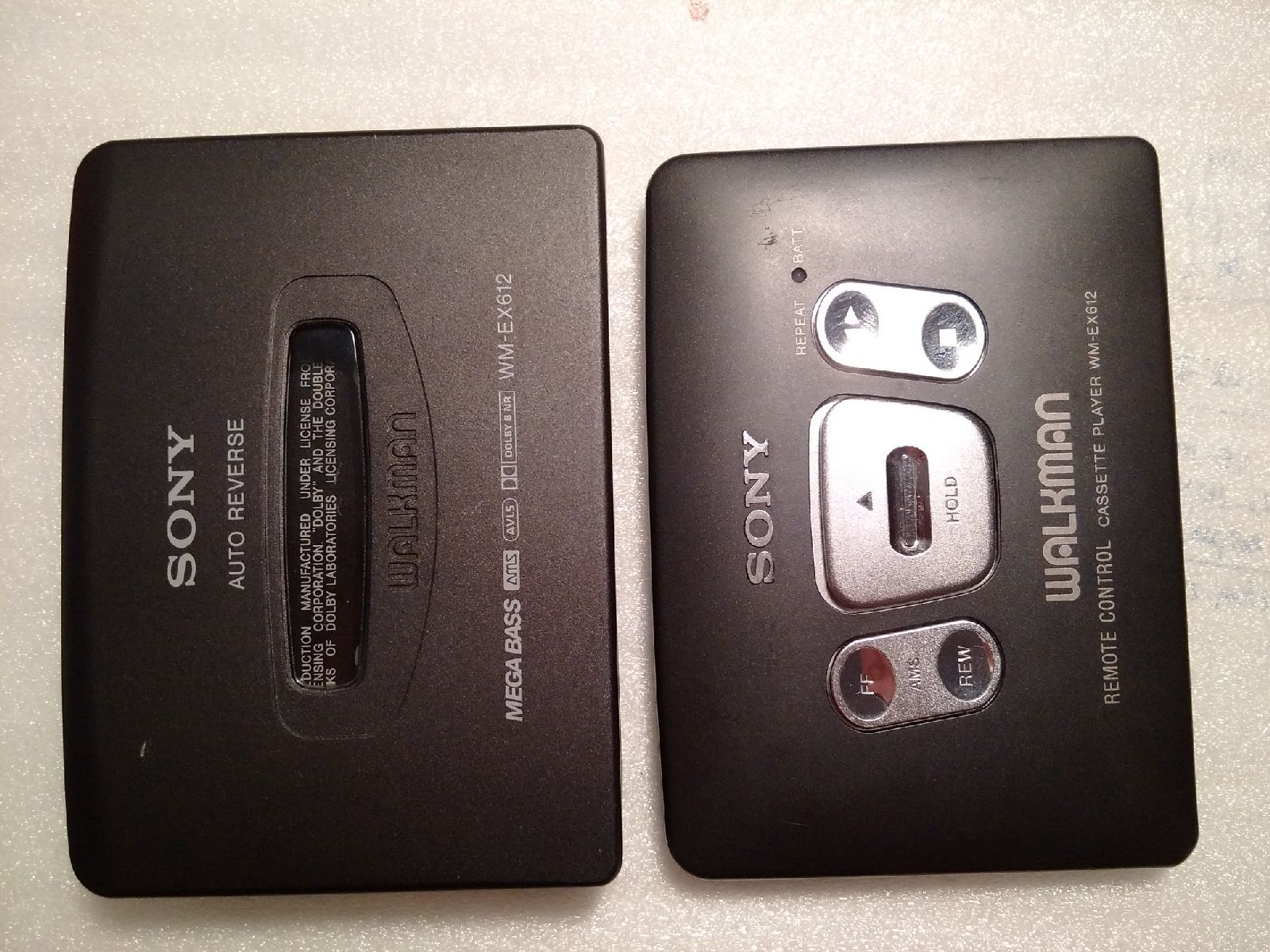

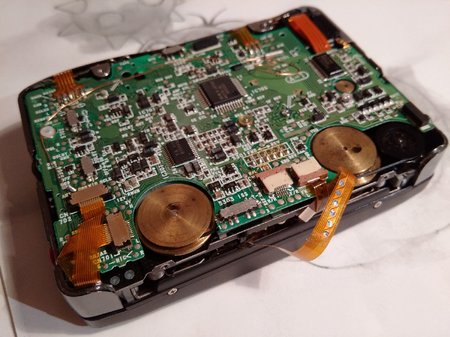

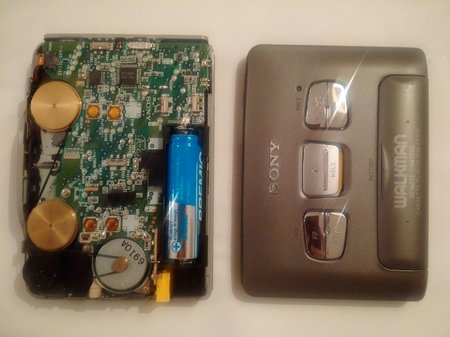

    1. Sony WM-612 internals
    (to Zoom, click the images then click the Arrow in the top right corner)

    IMG_20170115_164647.jpg IMG_20170115_164700.jpg

    Last edited: Feb 20, 2017
  4. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

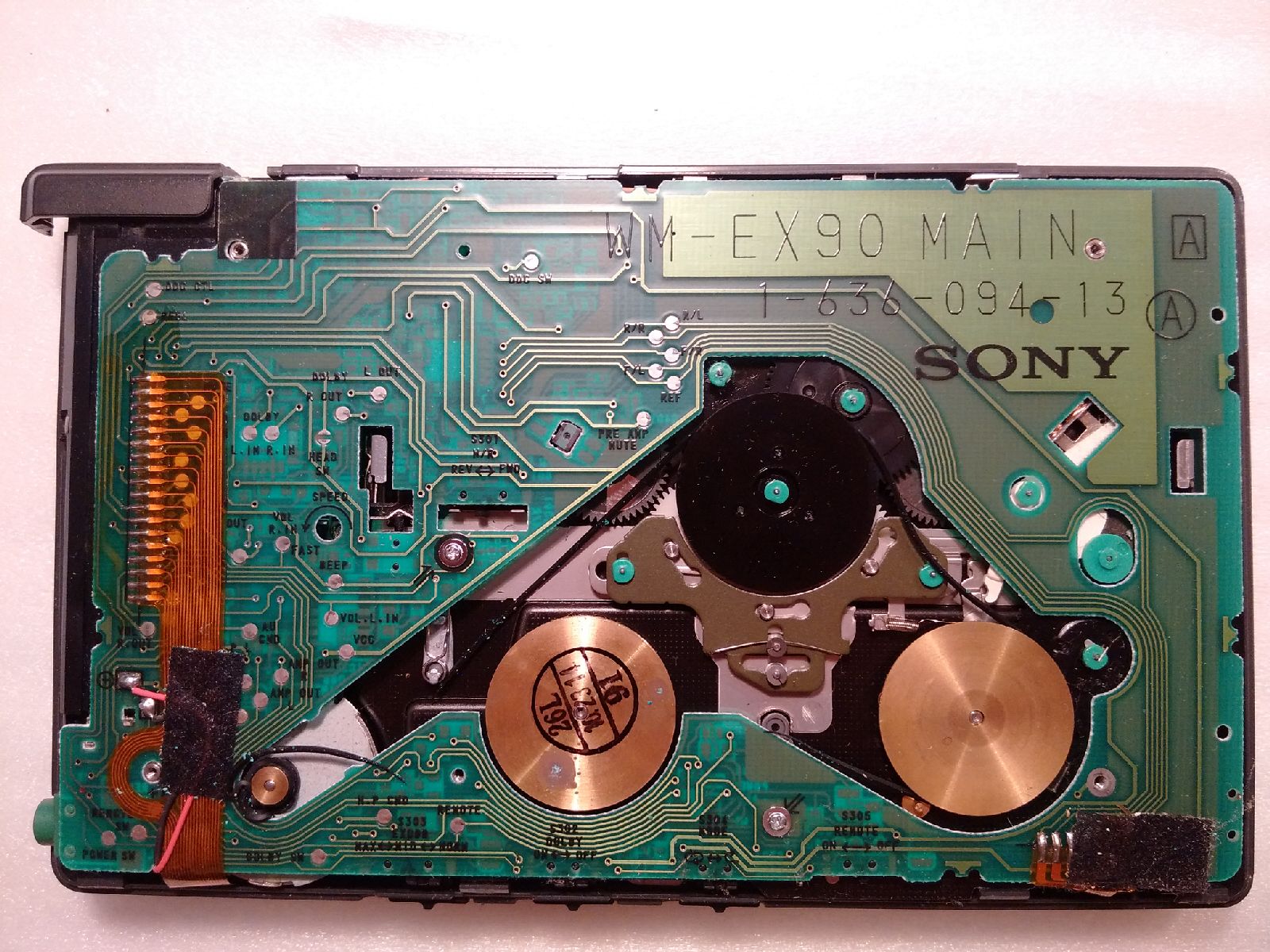

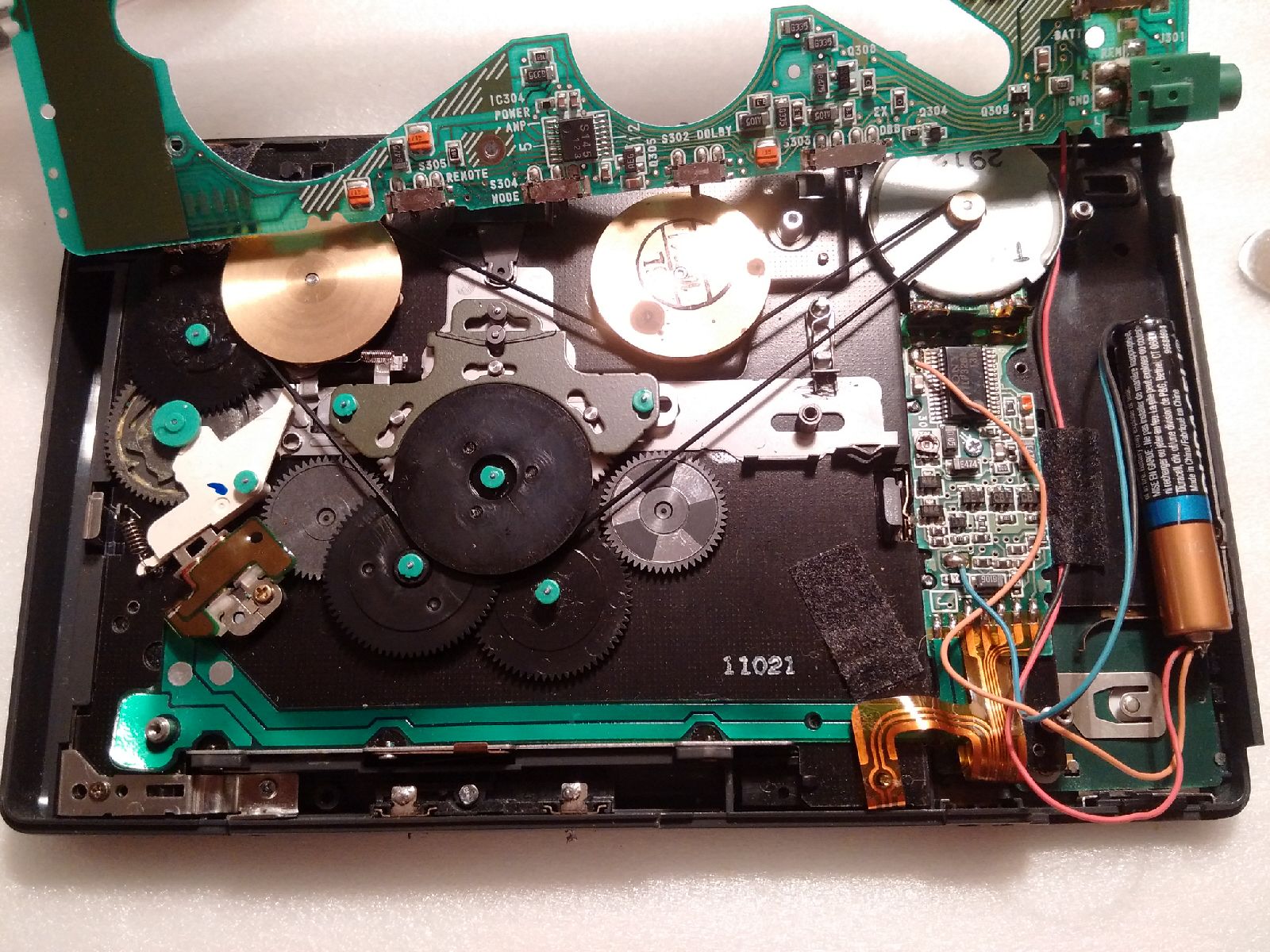

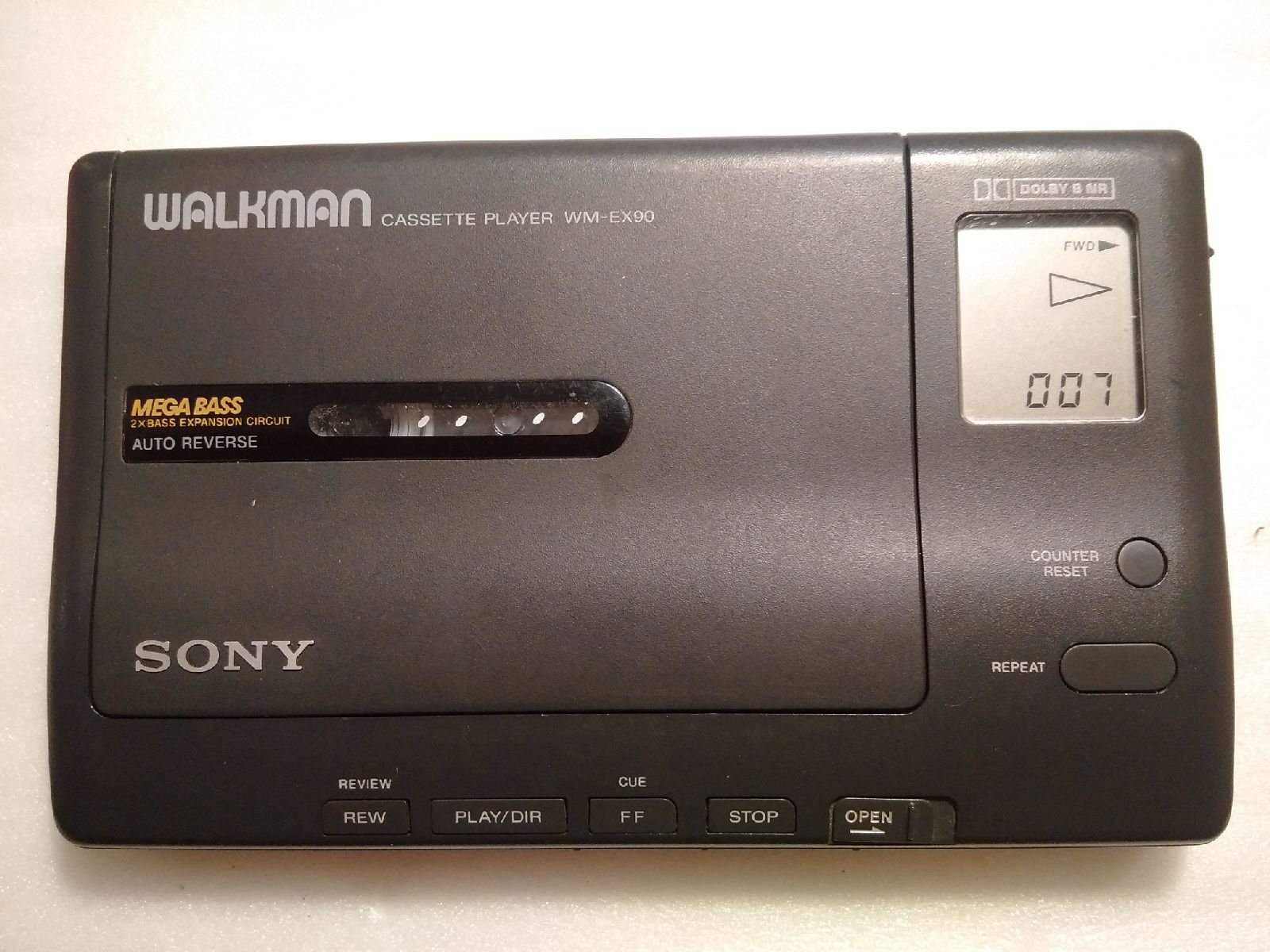

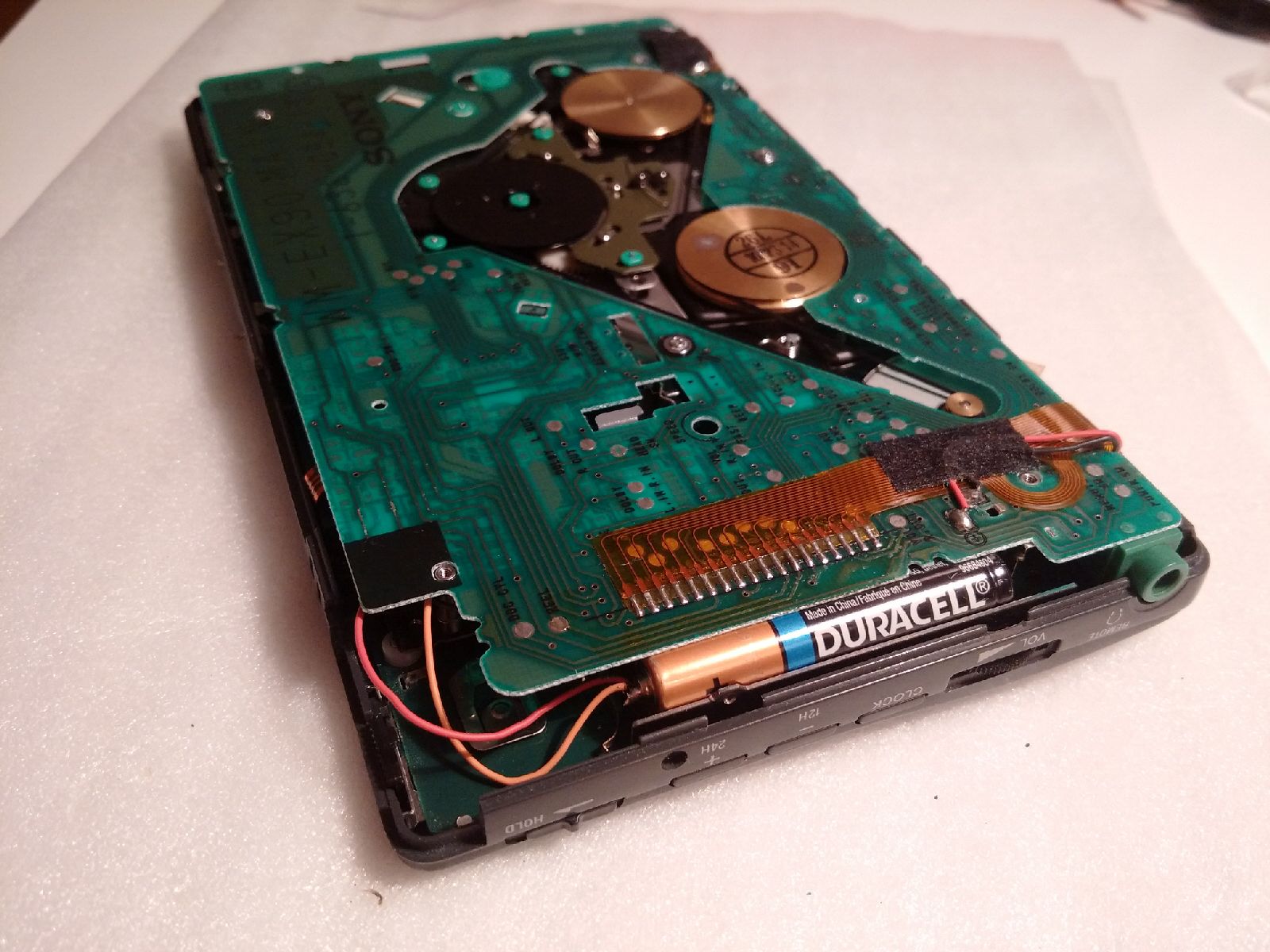

    2. Sony WM-EX90
    IMG_20170111_210701.jpg IMG_20170108_194533.jpg IMG_20170111_210353.jpg IMG_20170111_210052.jpg

    Last edited: Feb 20, 2017
    Brutus442 likes this.
  5. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

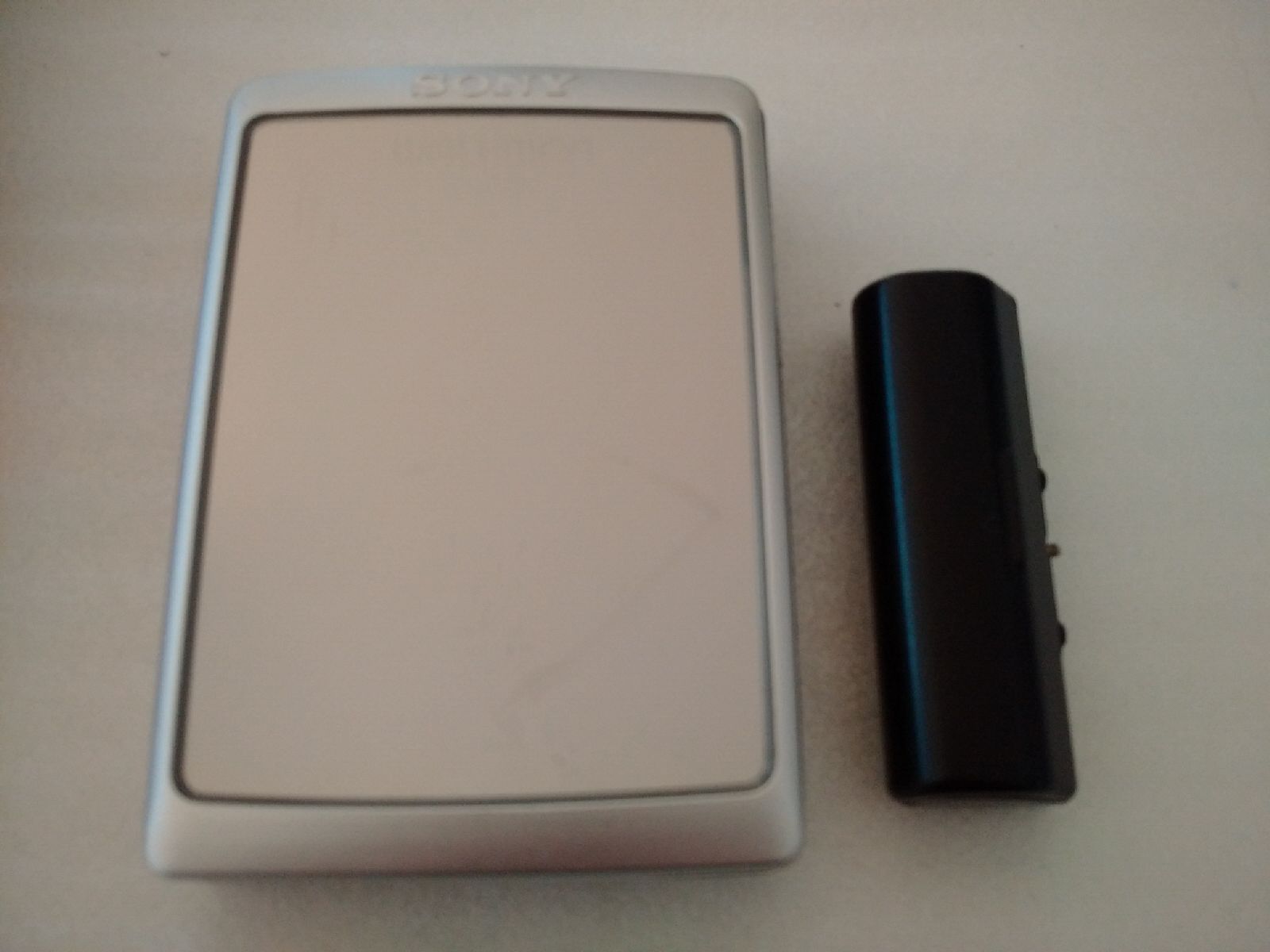

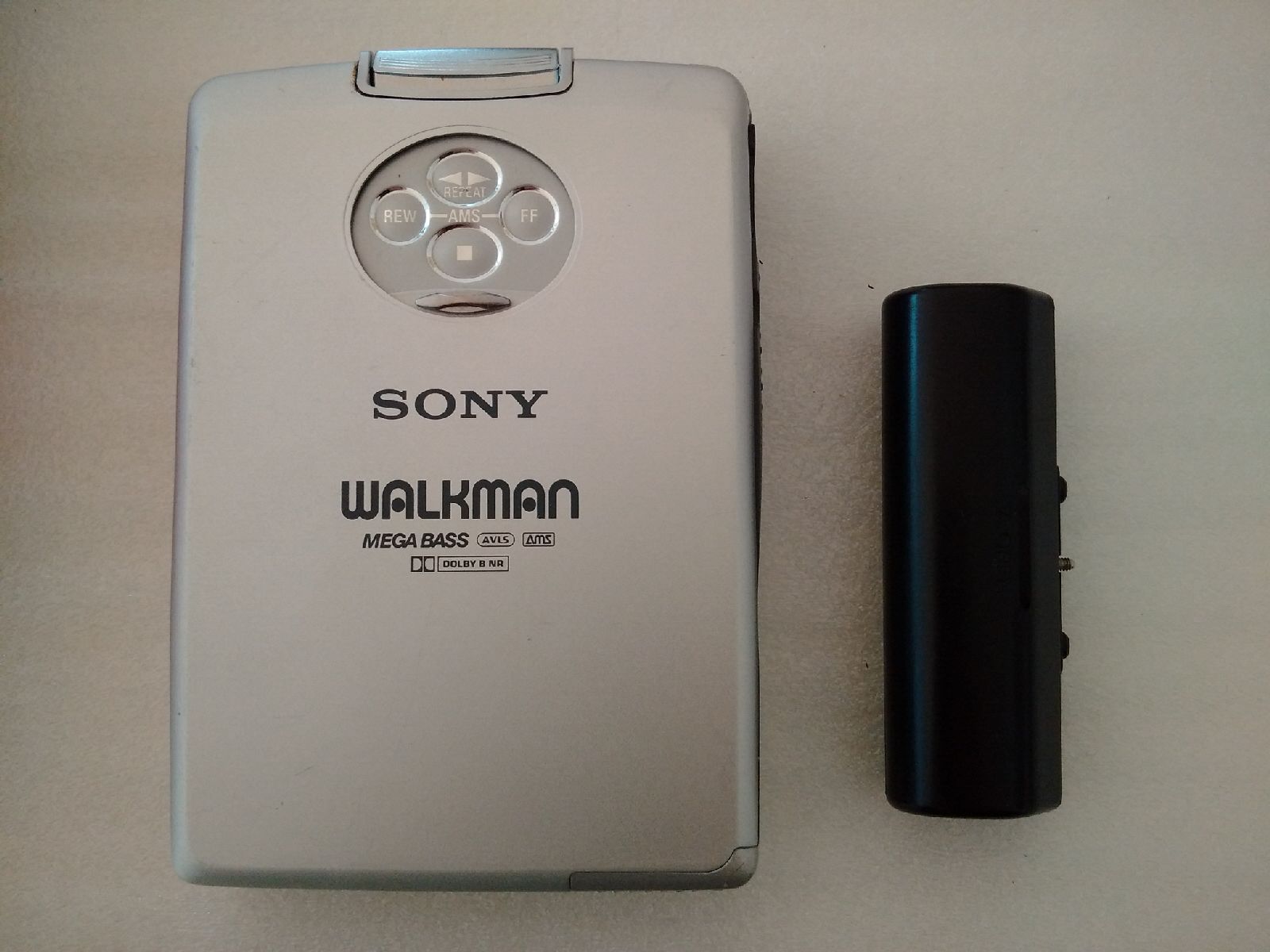

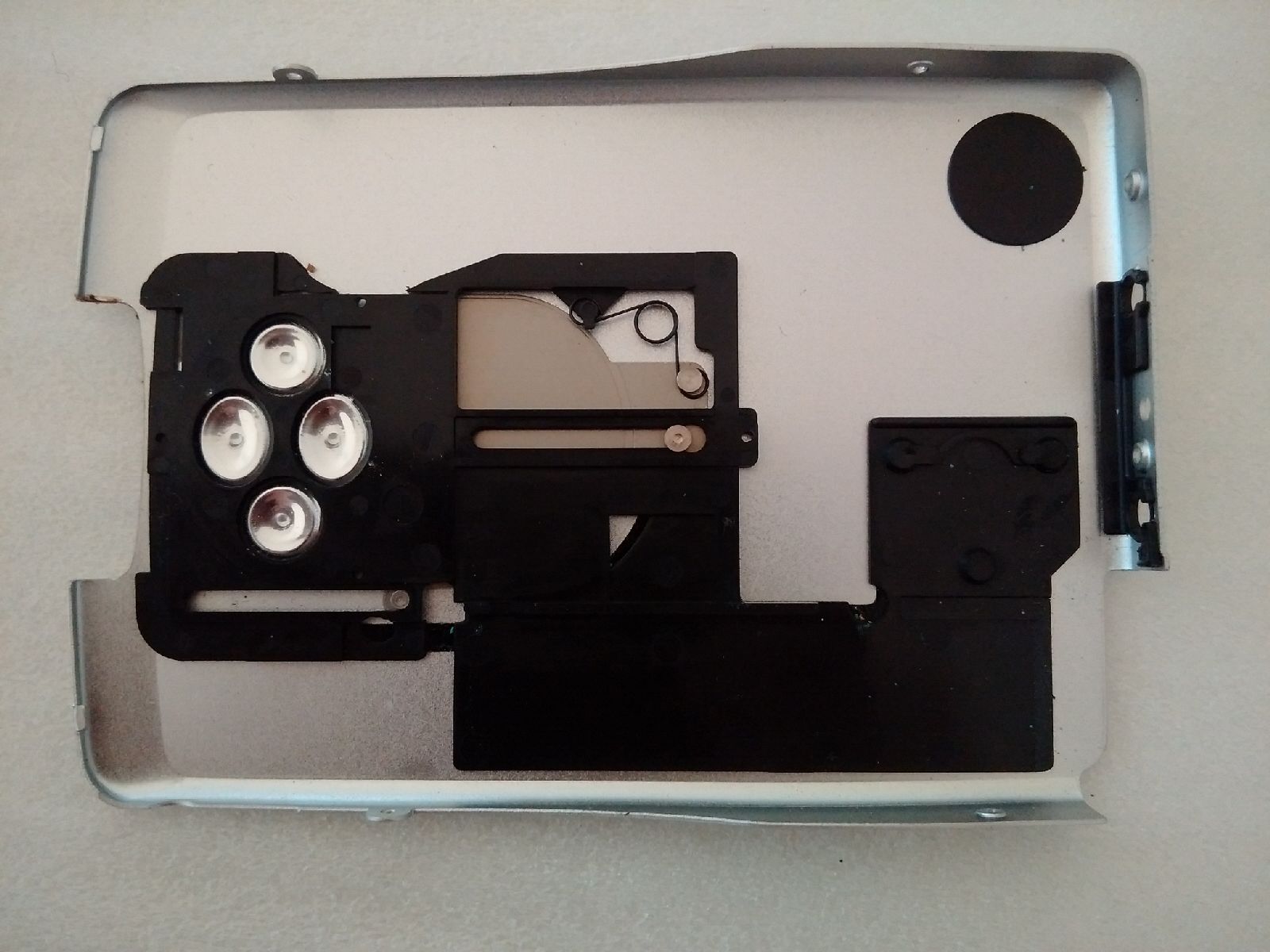

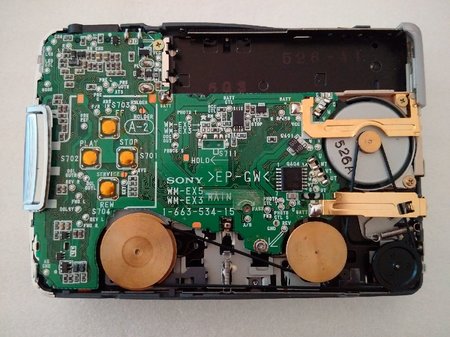

    3. Sony WM-EX5

    IMG_20170115_141050.jpg IMG_20170115_141243.jpg IMG_20170115_141100.jpg IMG_20170115_141301.jpg

    Last edited: Feb 20, 2017
    Brutus442 likes this.
  6. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

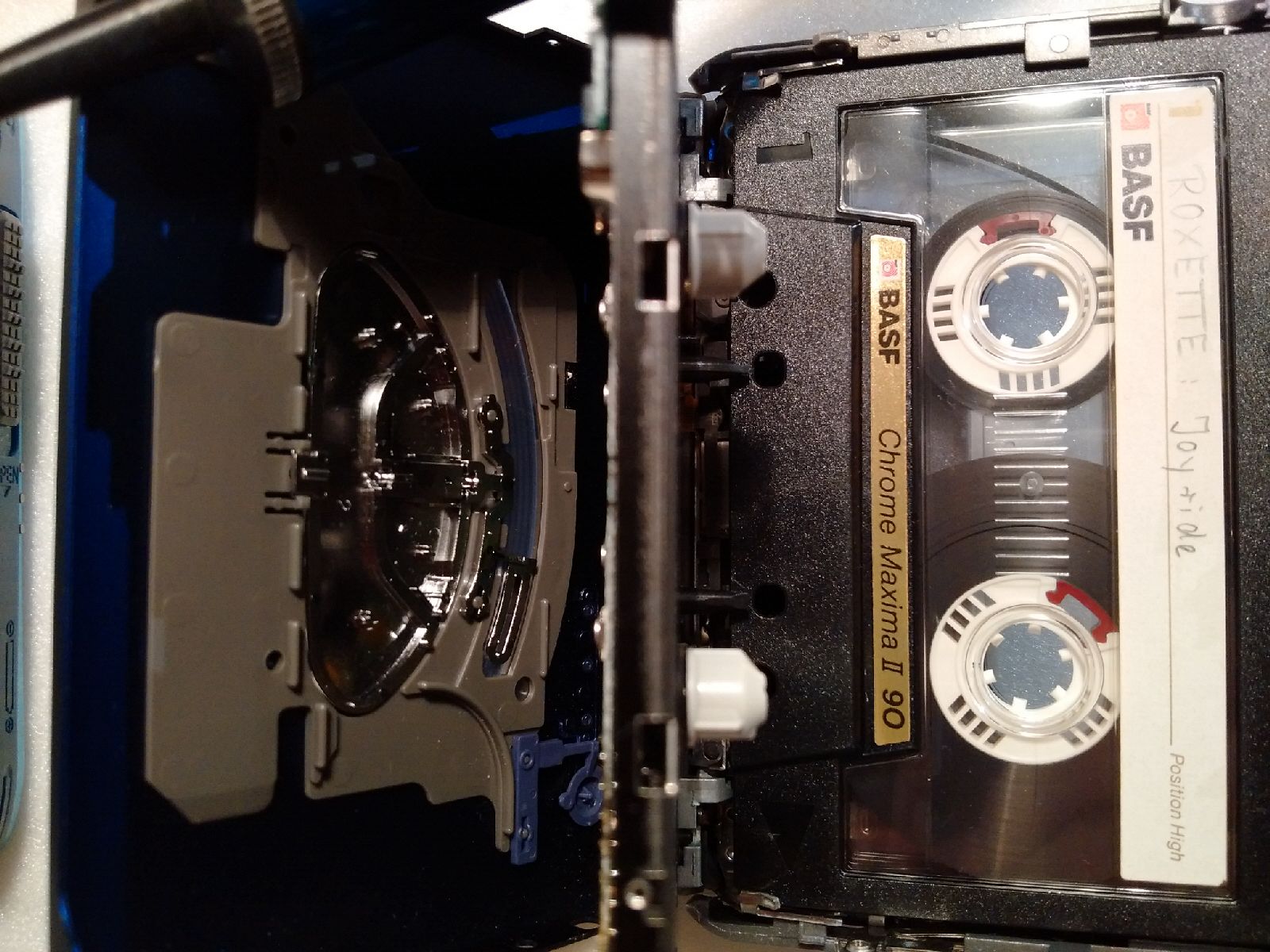

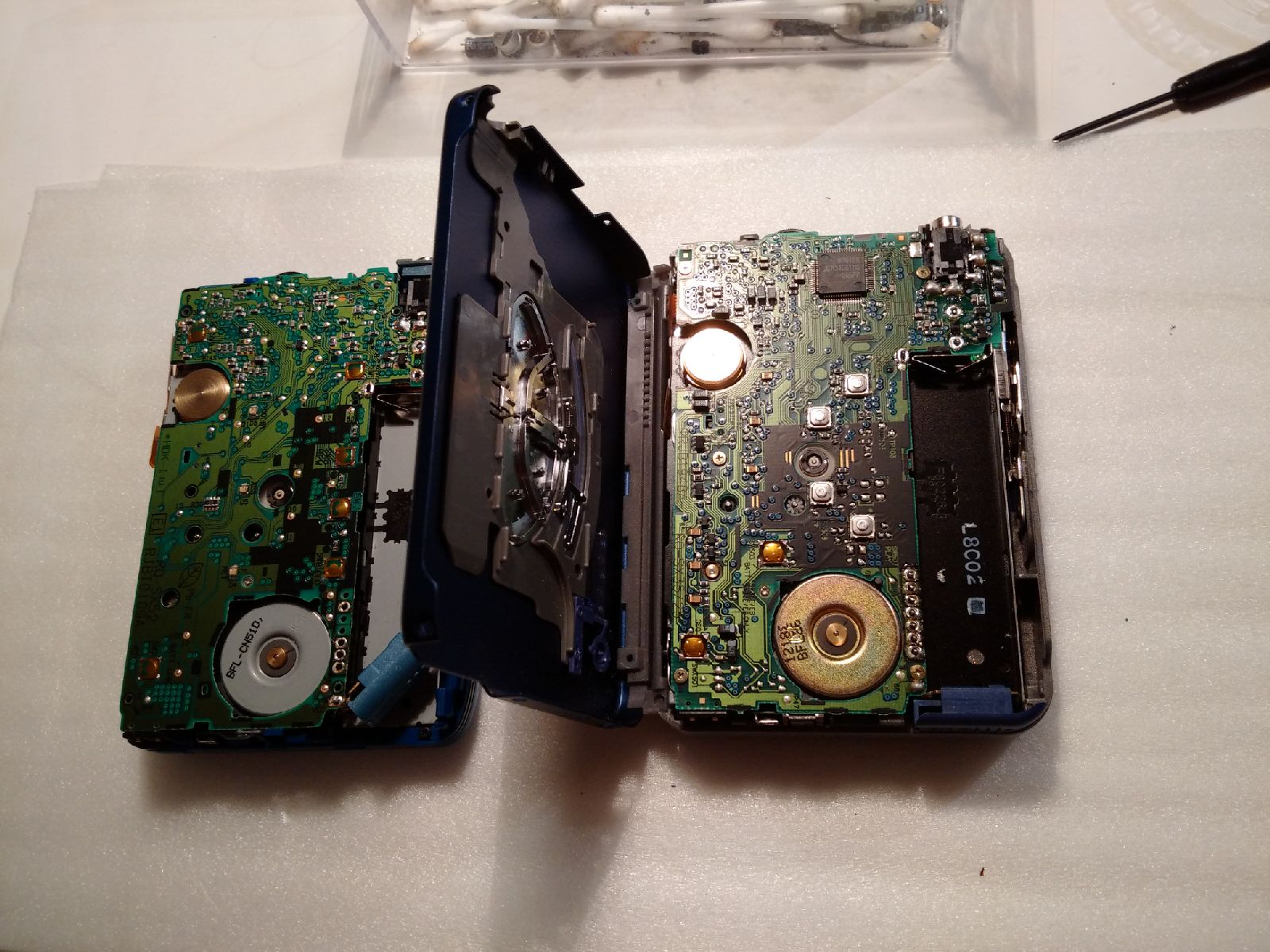

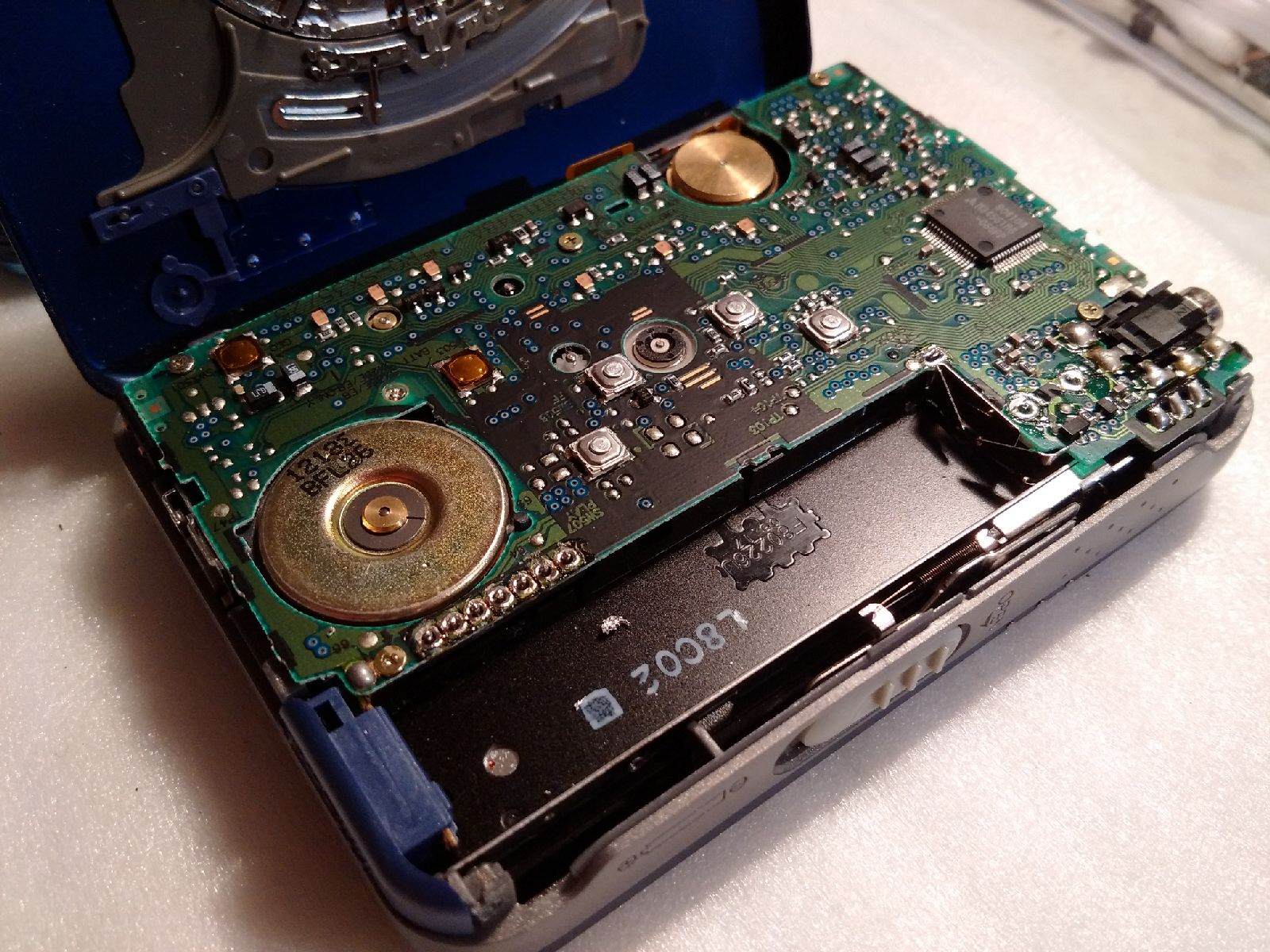

    4. Panasonic RQ-SX35
    (below with RQ-SX52 sharing some details)

    IMG_20170108_170327.jpg IMG_20170108_170555.jpg IMG_20170108_170330.jpg IMG_20170108_170937.jpg

    Last edited: Feb 20, 2017
    Brutus442 likes this.
  7. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

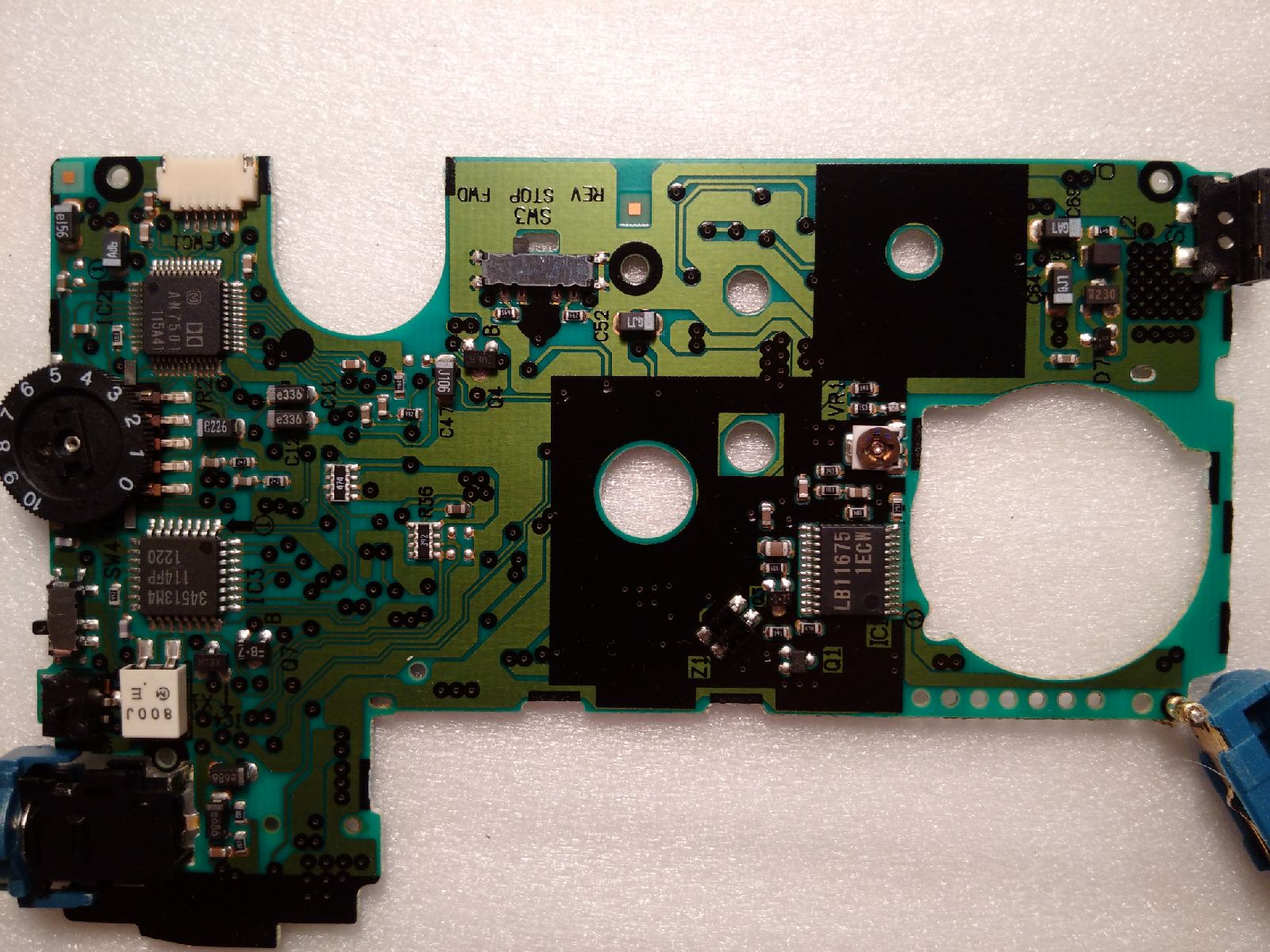

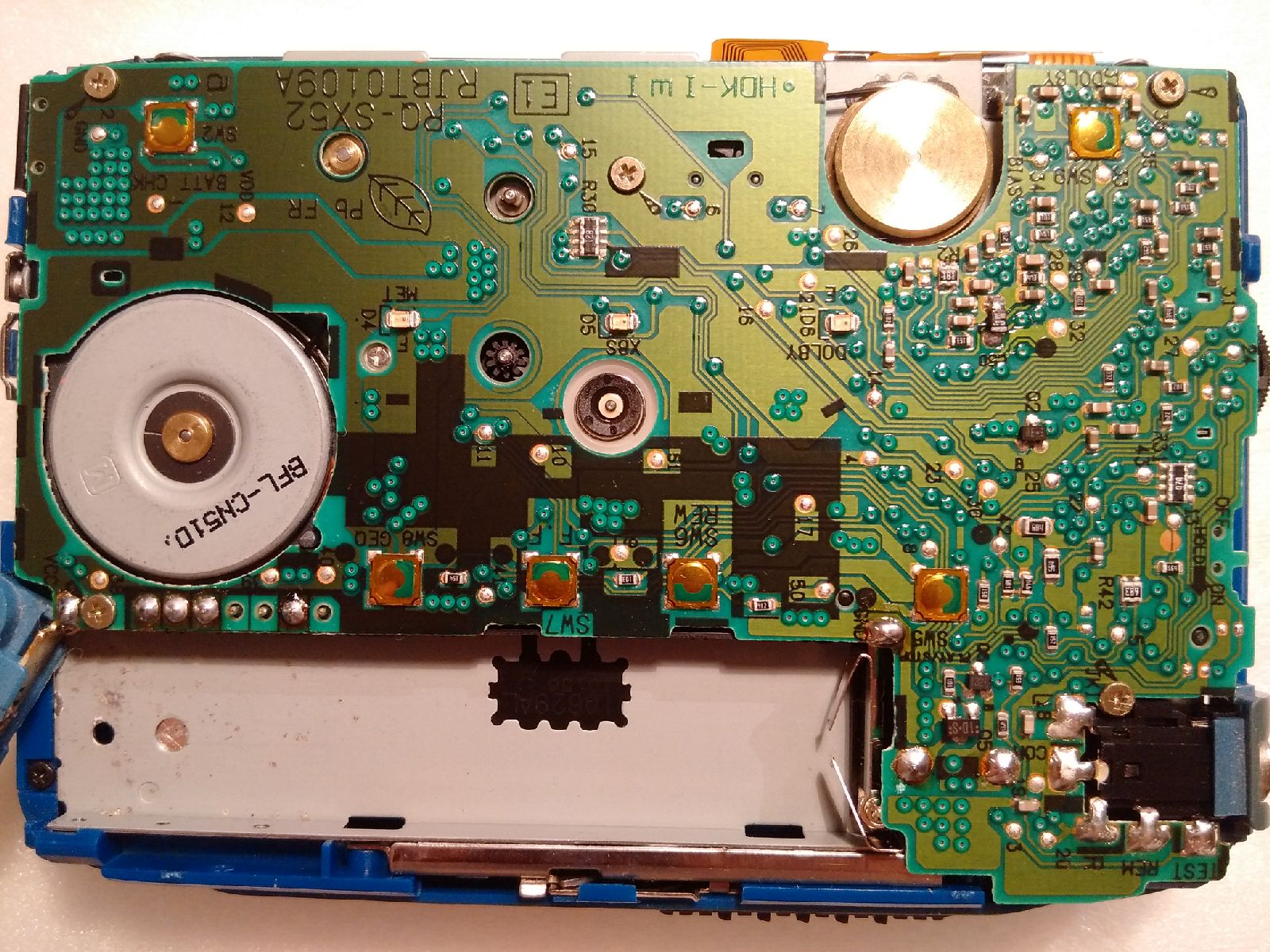

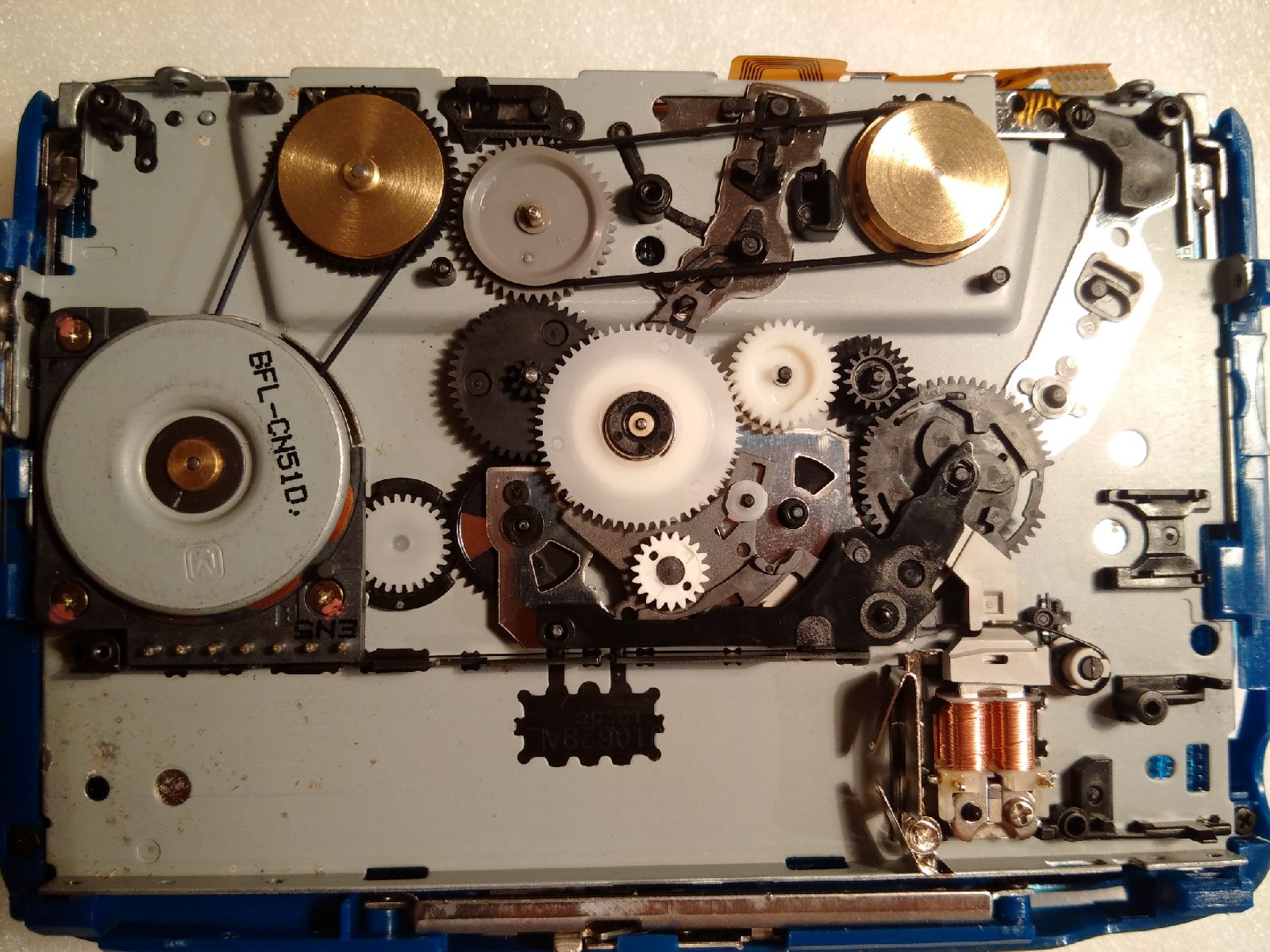

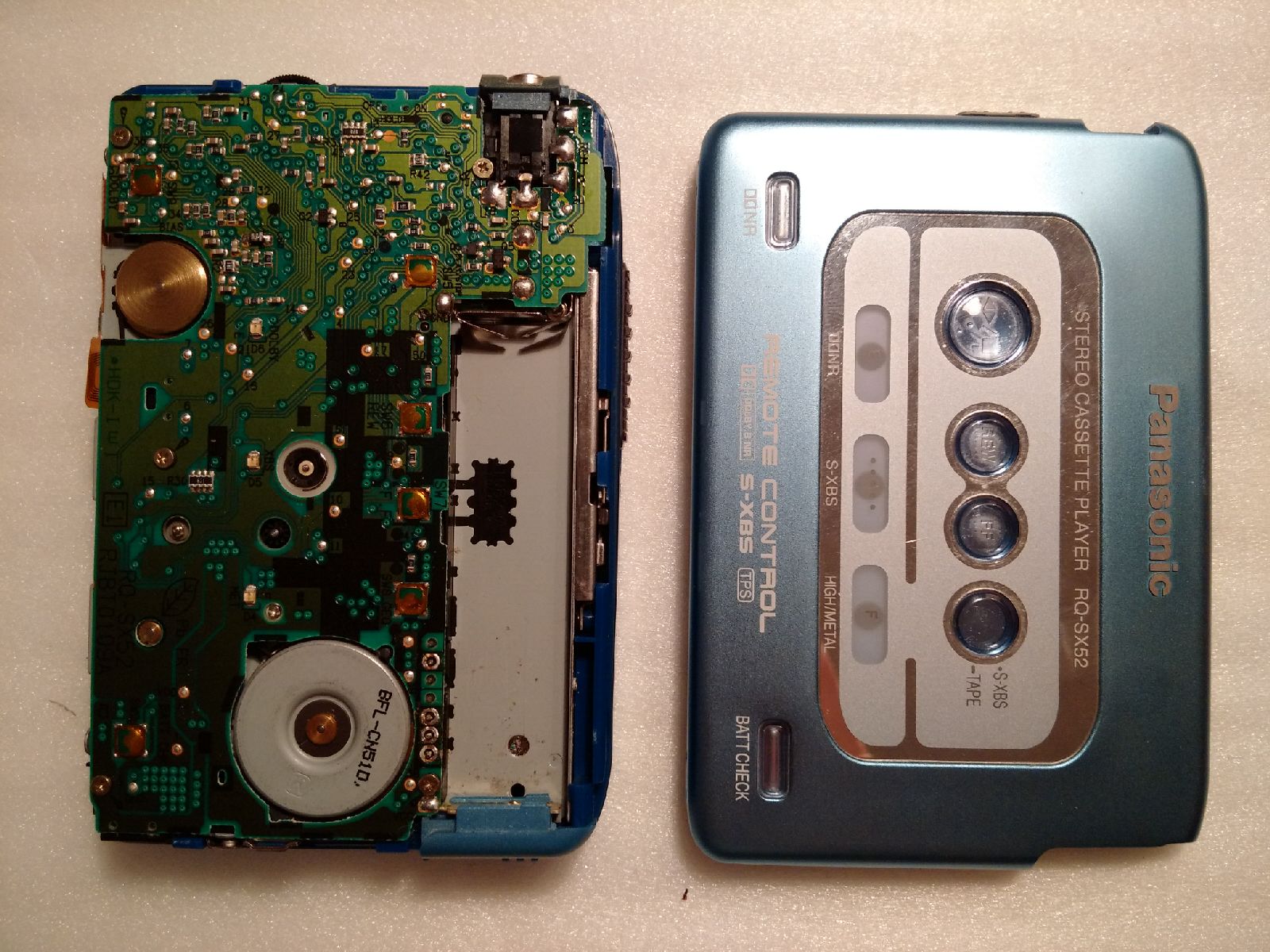

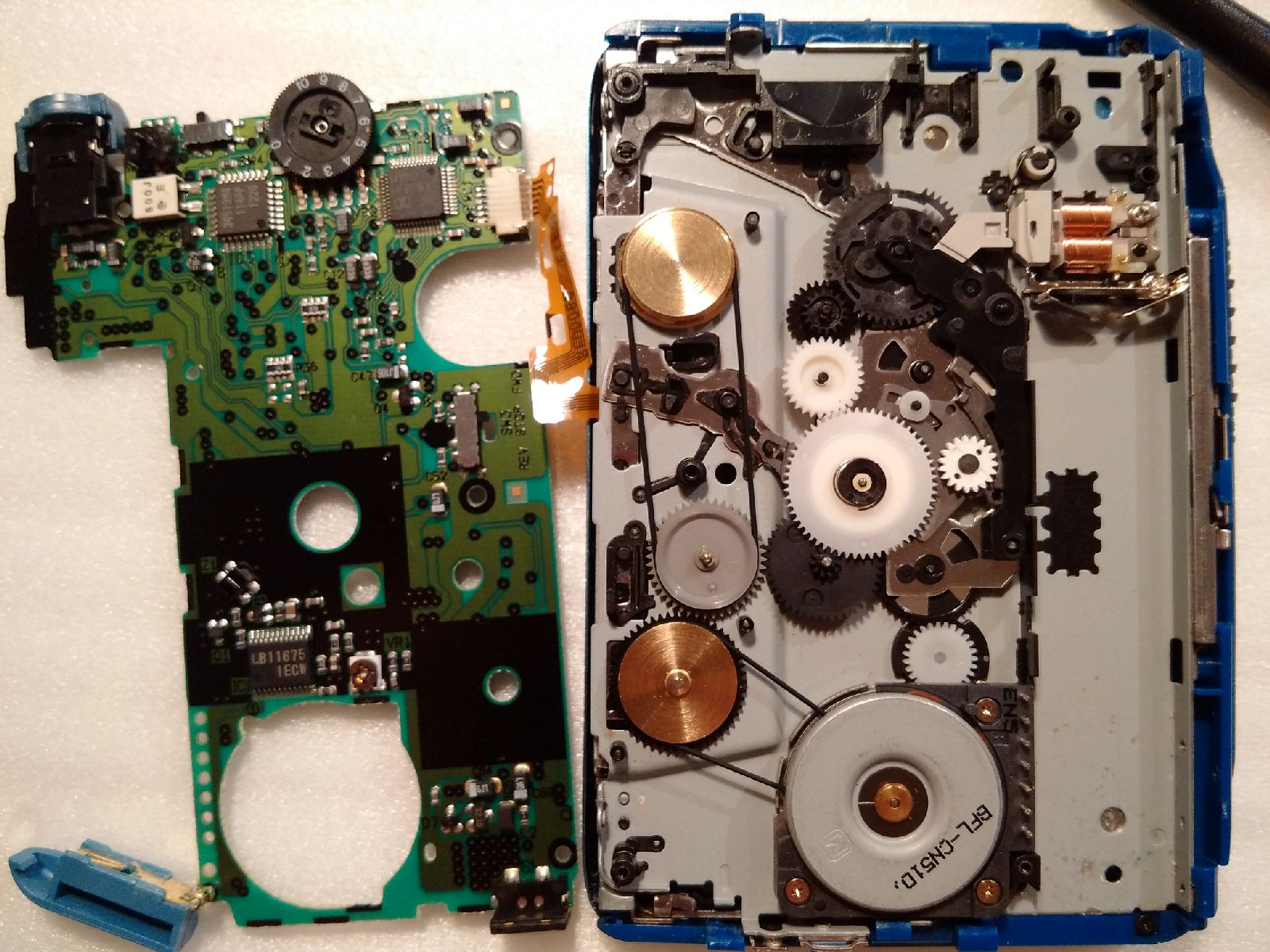

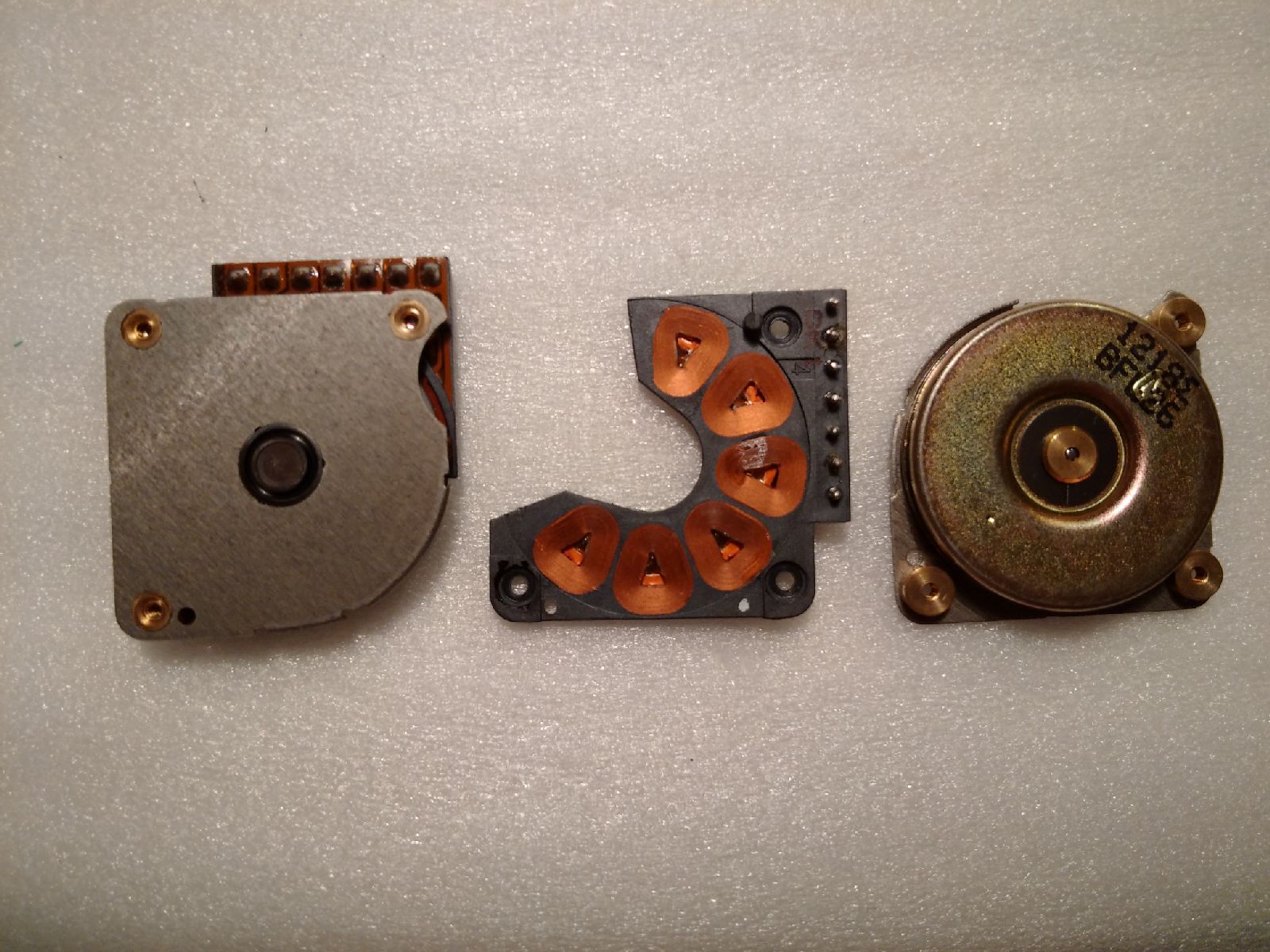

    5. Panasonic RQ-SX52

    IMG_20170108_163826.jpg IMG_20170108_185104.jpg IMG_20170108_164738.jpg IMG_20170108_184246.jpg IMG_20170108_172315.jpg IMG_20170108_184324.jpg

    Last edited: Feb 20, 2017
    sickly_b and Brutus442 like this.
  8. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

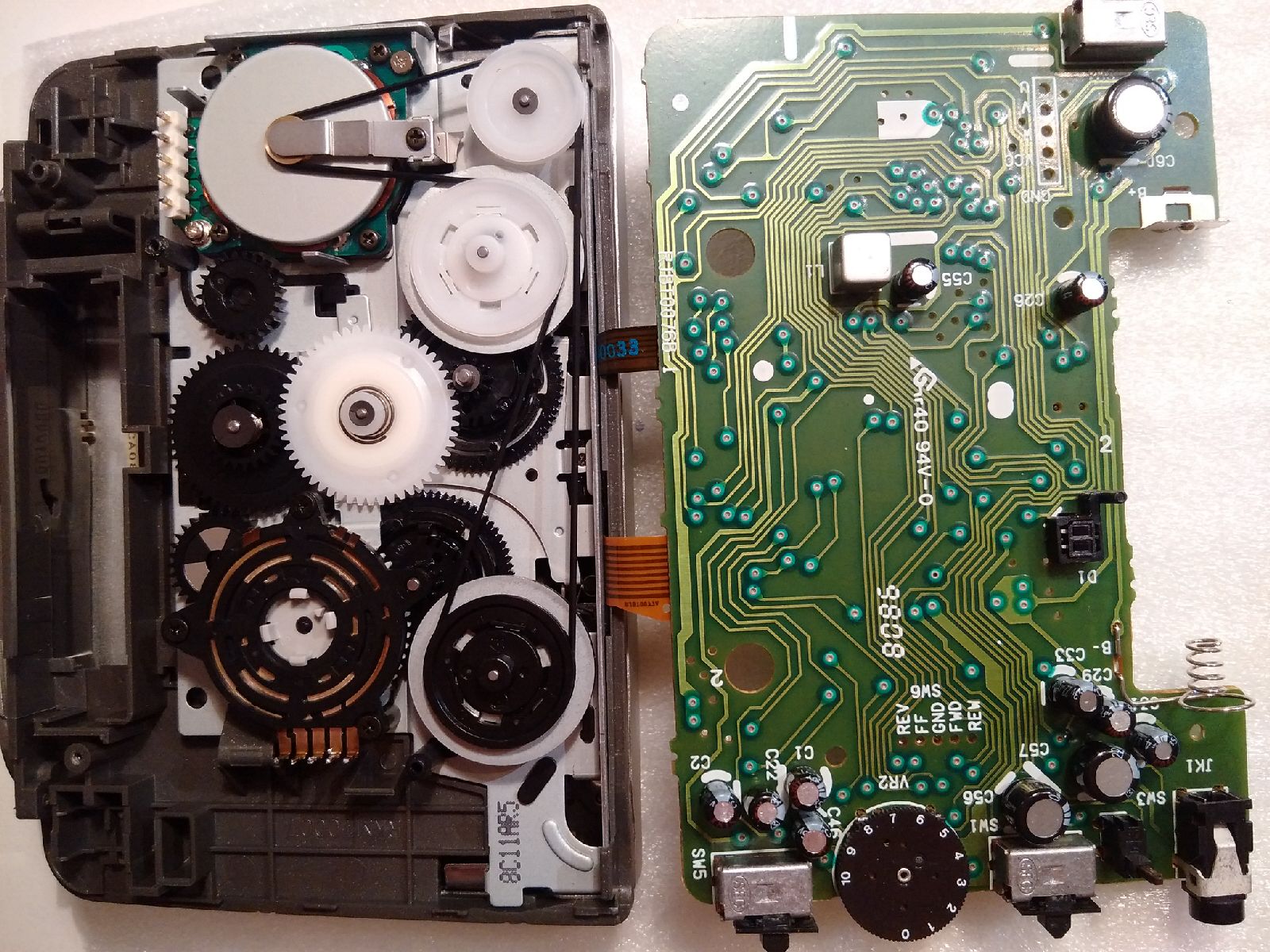

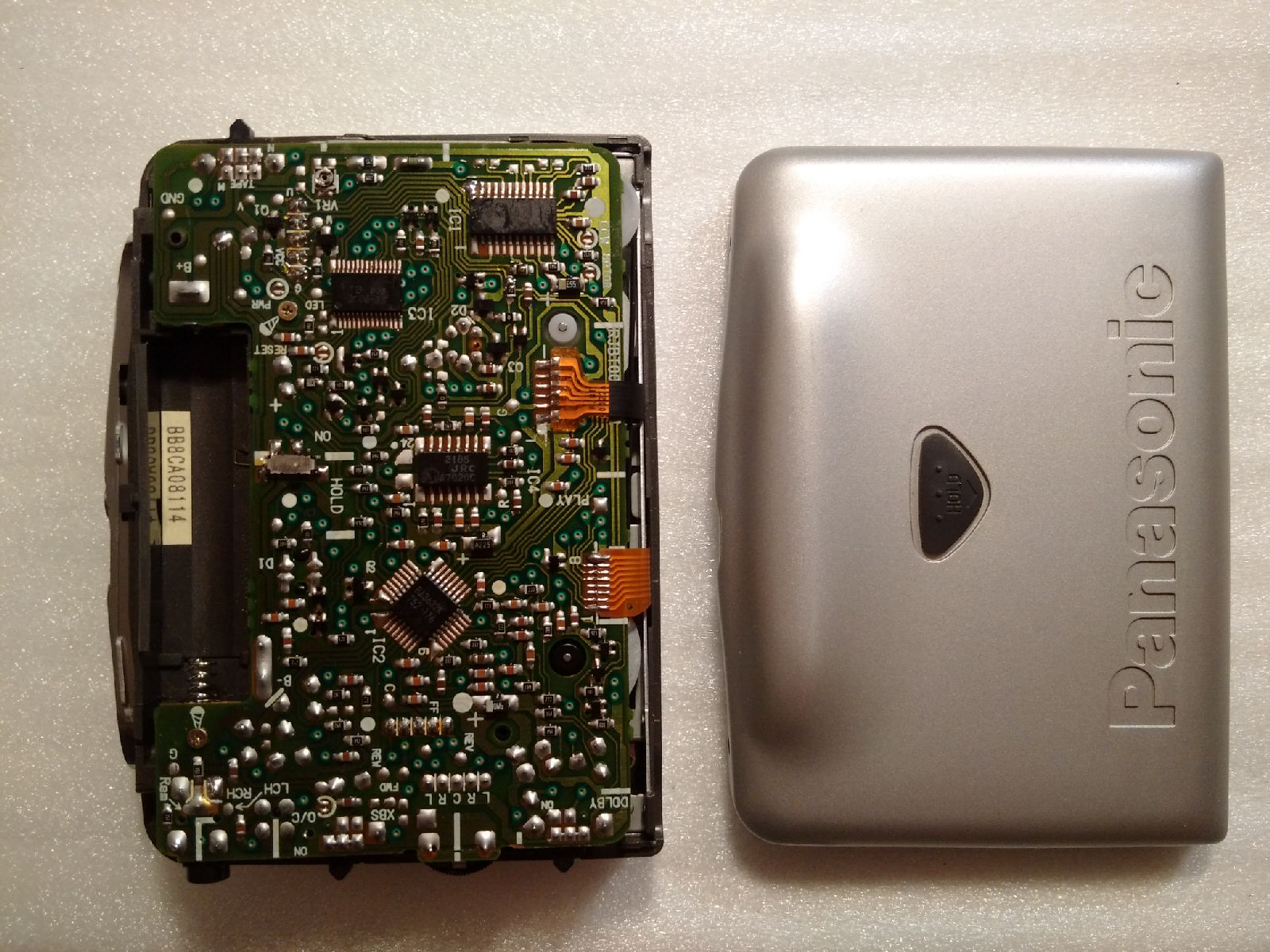

    6. Panasonic RQ-X15

    IMG_20170125_182806.jpg IMG_20170125_184247.jpg

    cavdel and Brutus442 like this.
  9. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

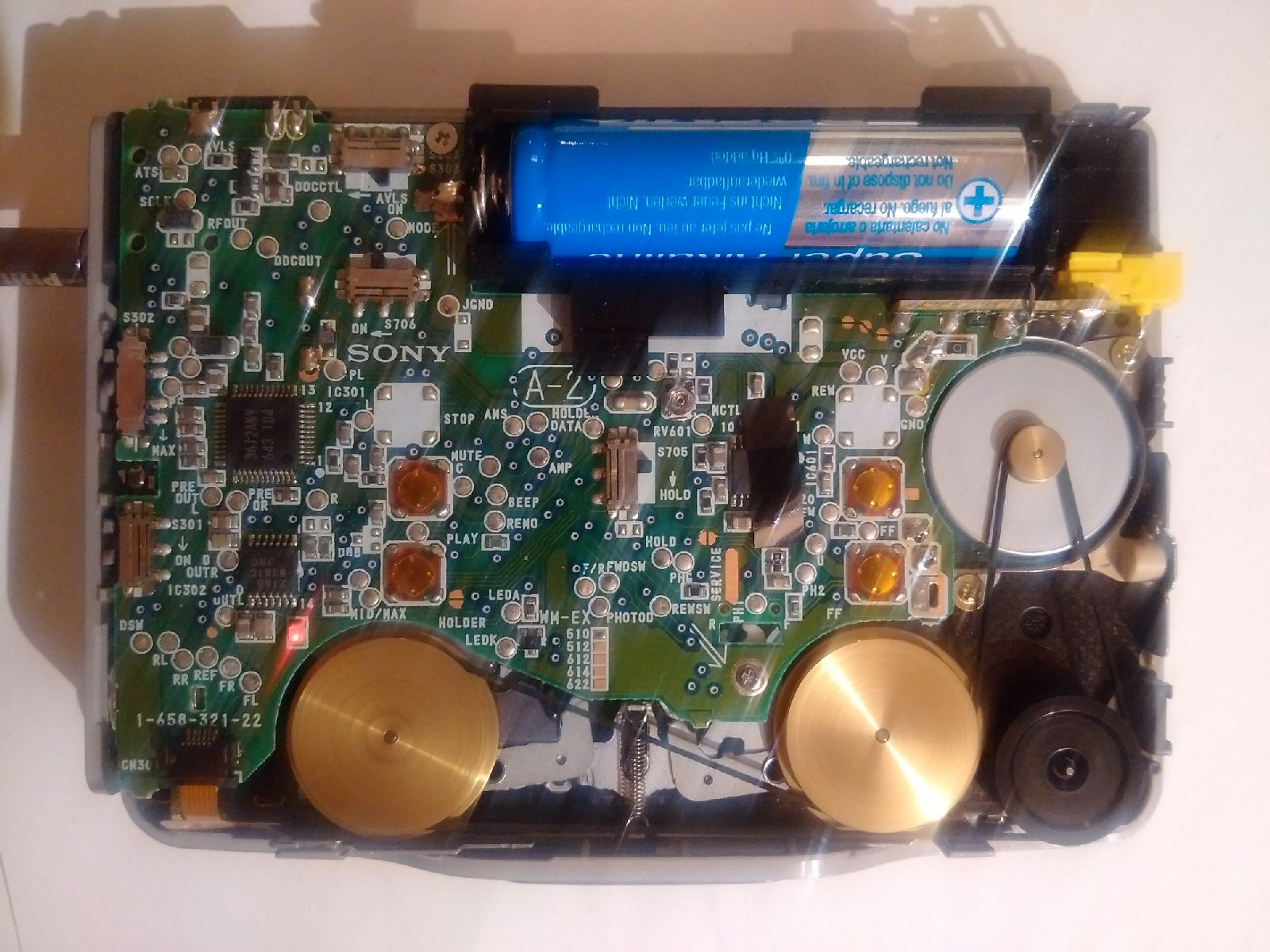

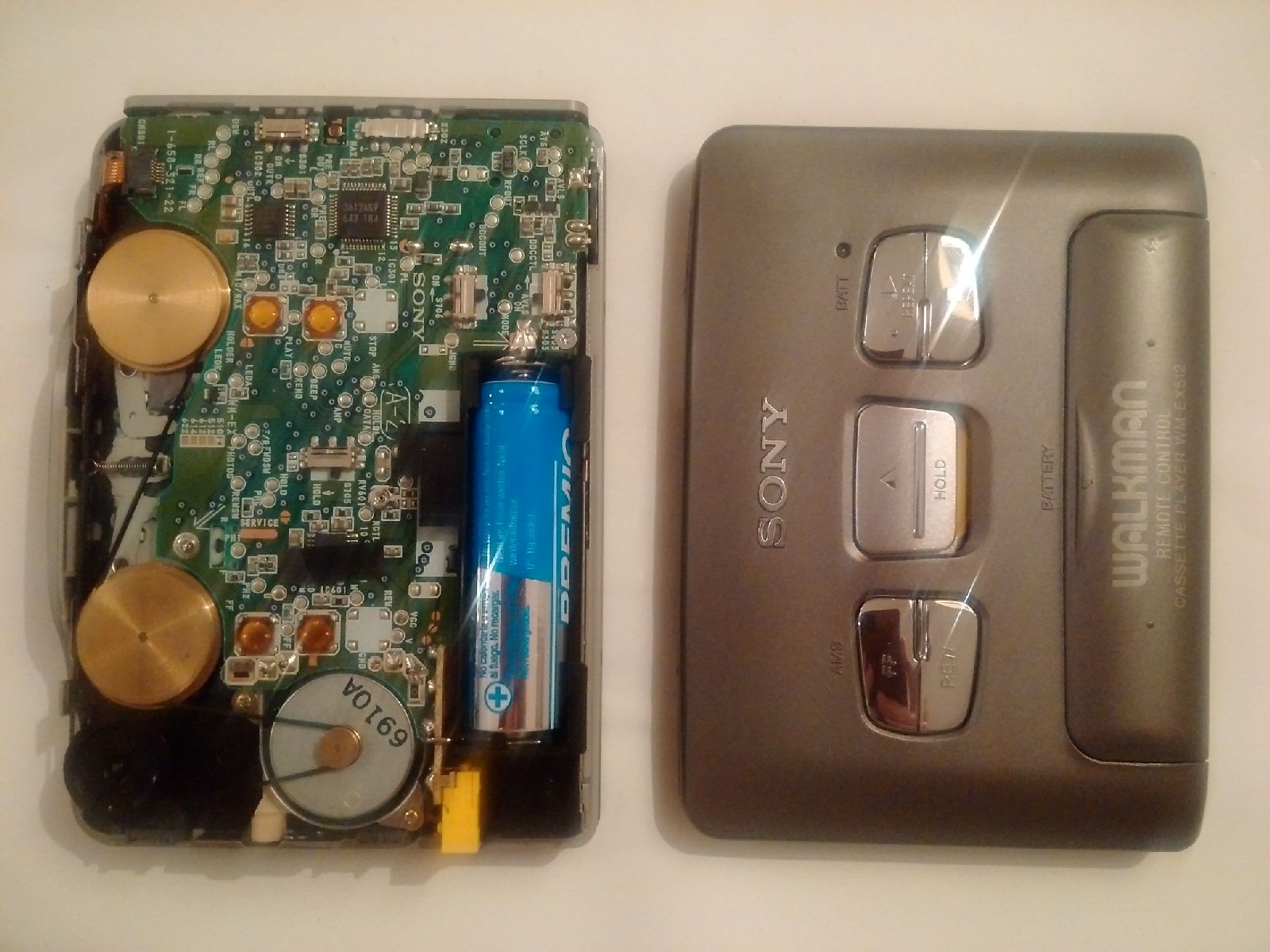

    7. Sony WM-EX512

    IMG_20170206_201903.jpg IMG_20170206_202158.jpg

    Yari and Brutus442 like this.
  10. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

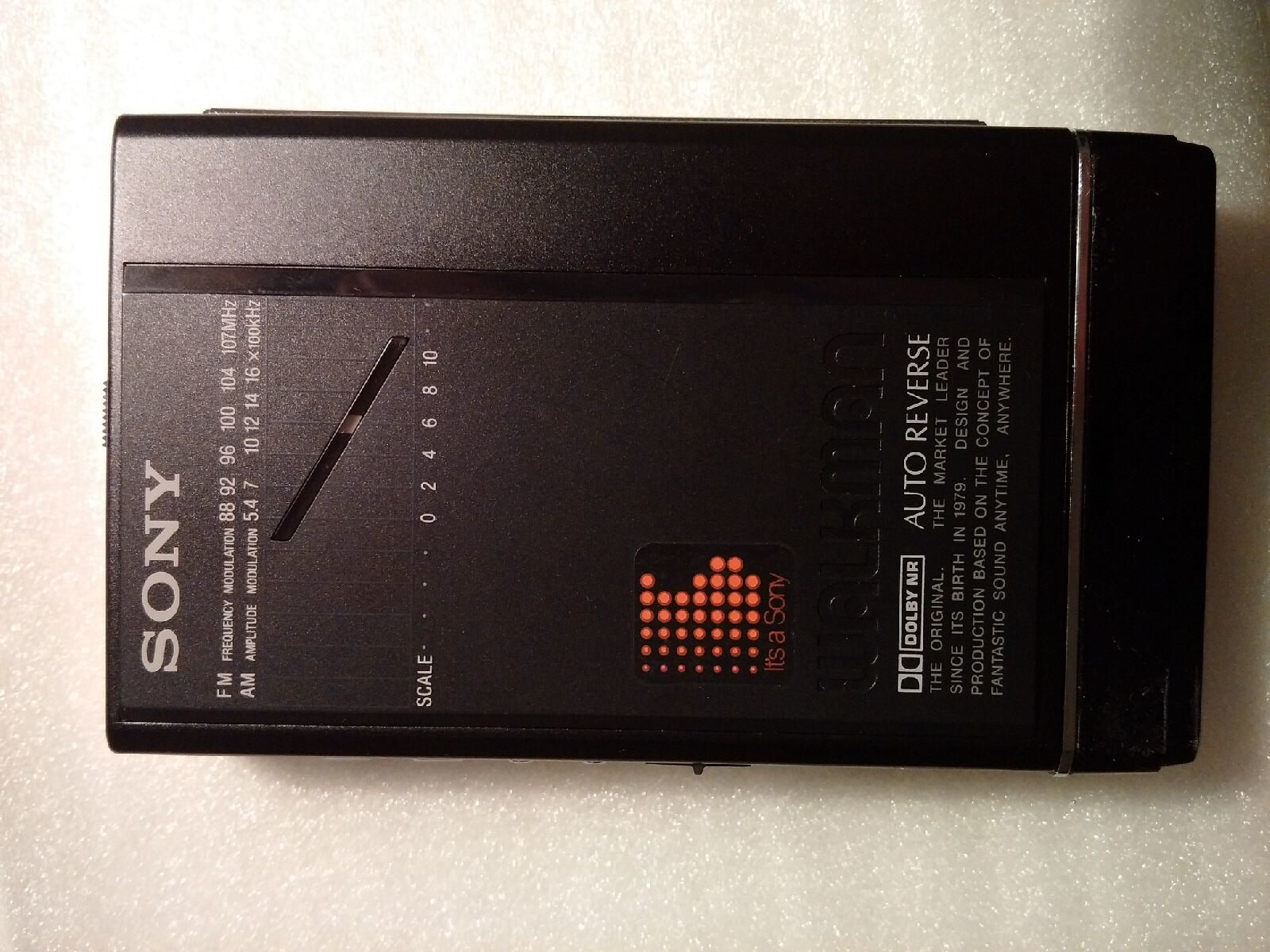

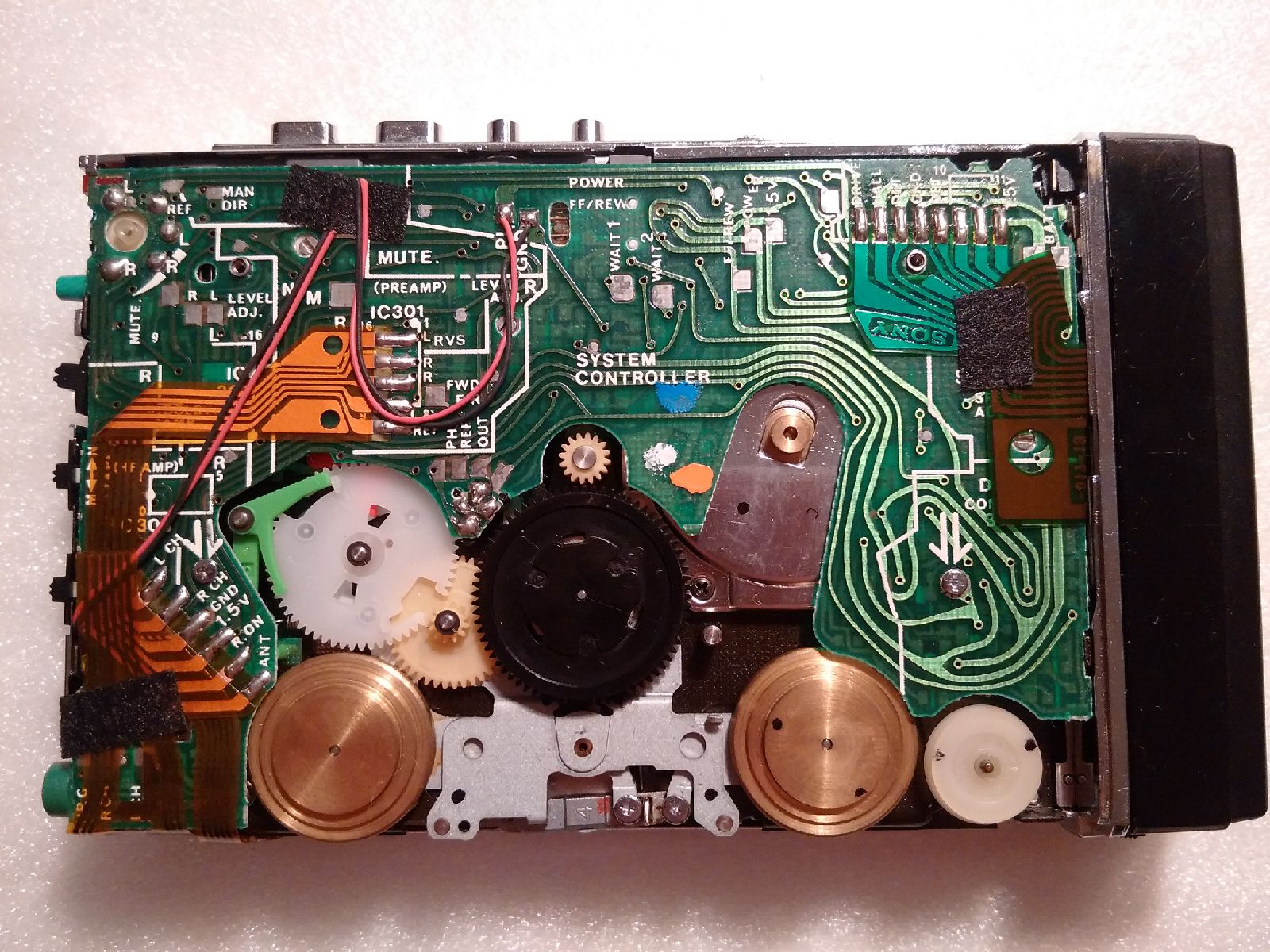

    8. Sony WM-F103

    IMG_20170126_210423.jpg IMG_20170126_204744.jpg

    Brutus442 likes this.
  11. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

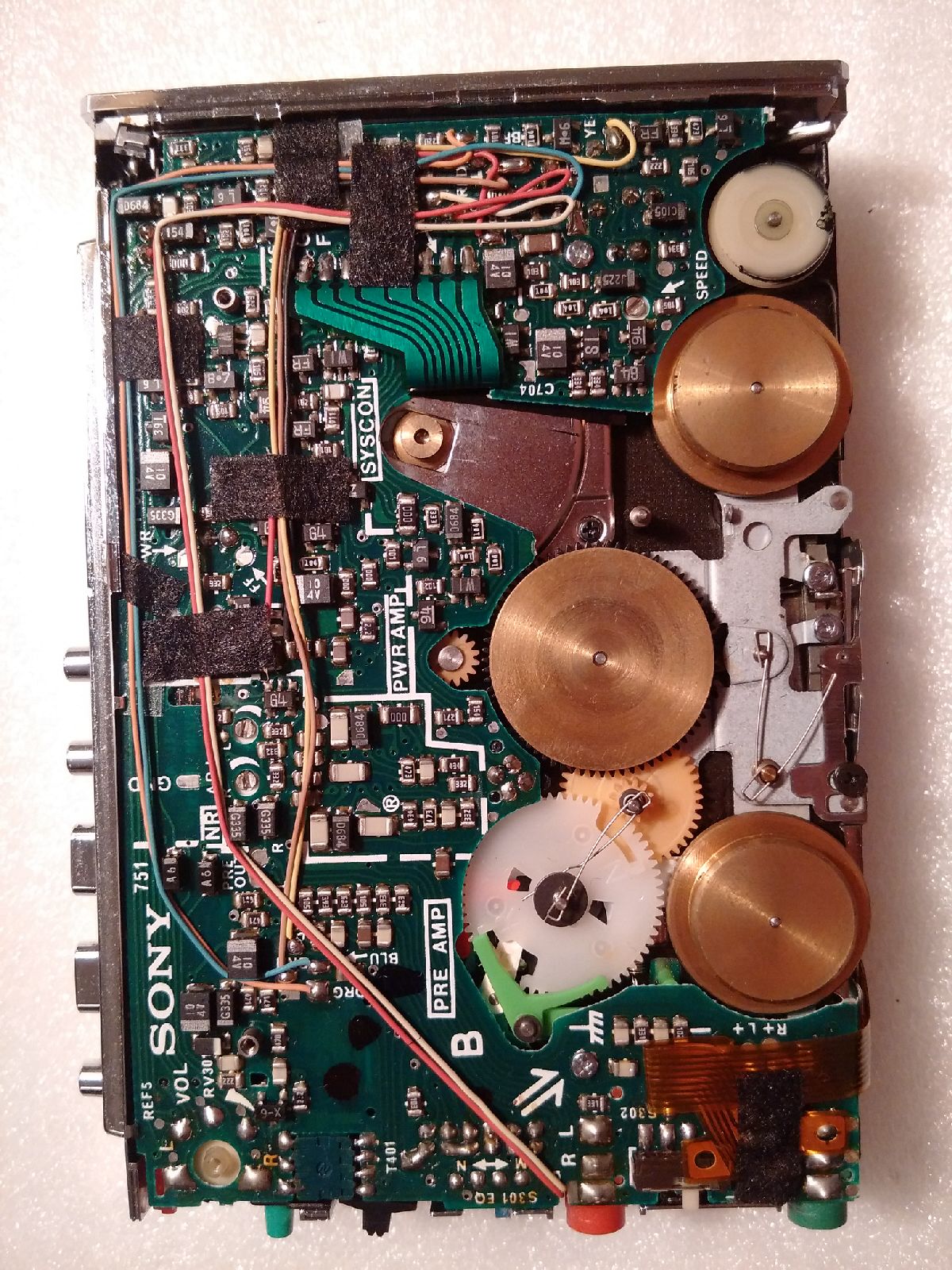

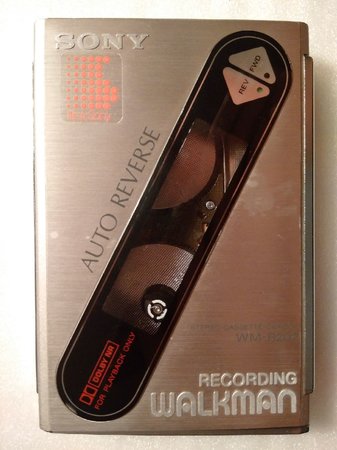

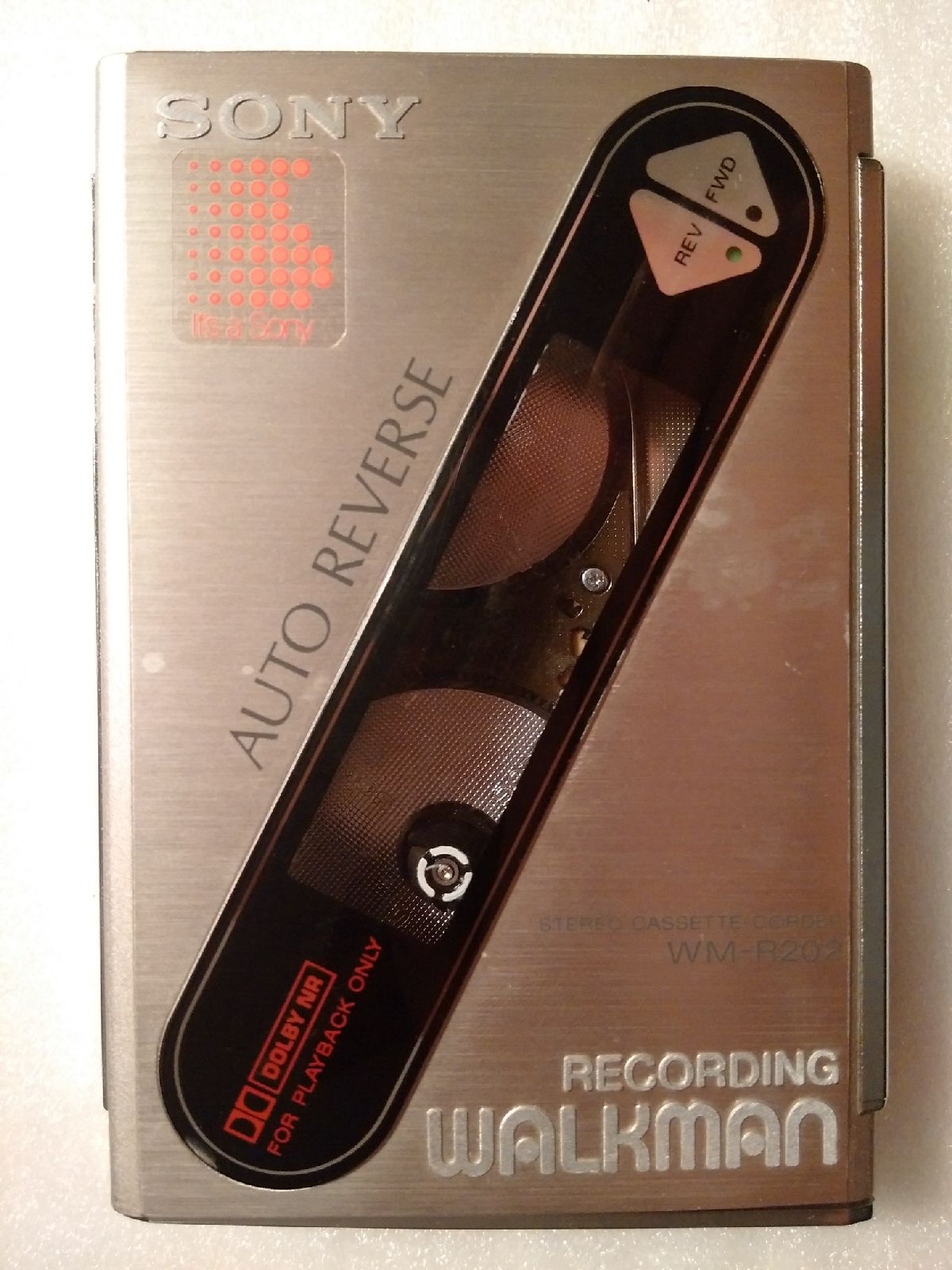

    9. Sony WM-R202

    IMG_20170126_211425.jpg IMG_20170126_211434.jpg

    sickly_b and Brutus442 like this.
  12. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

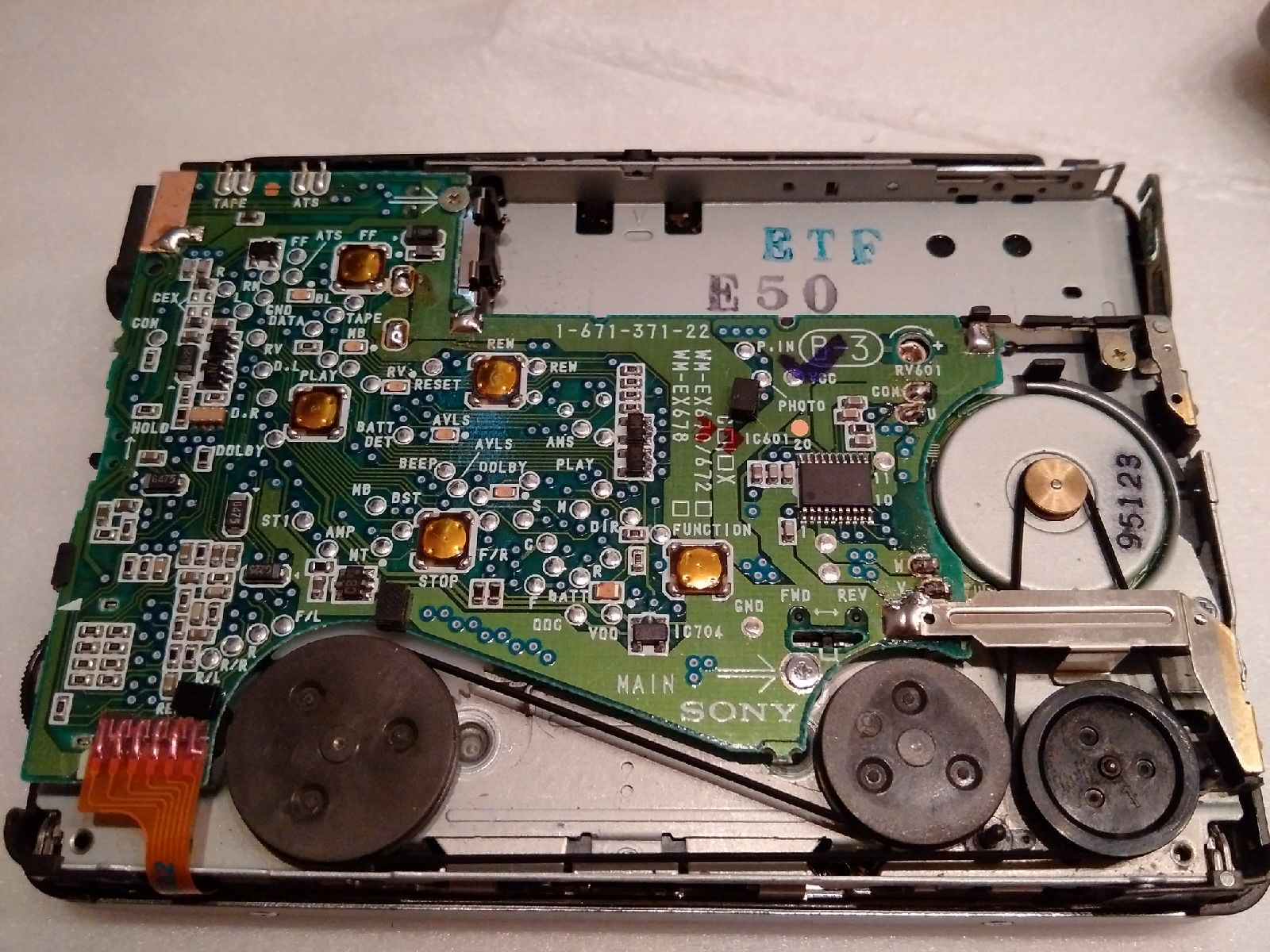

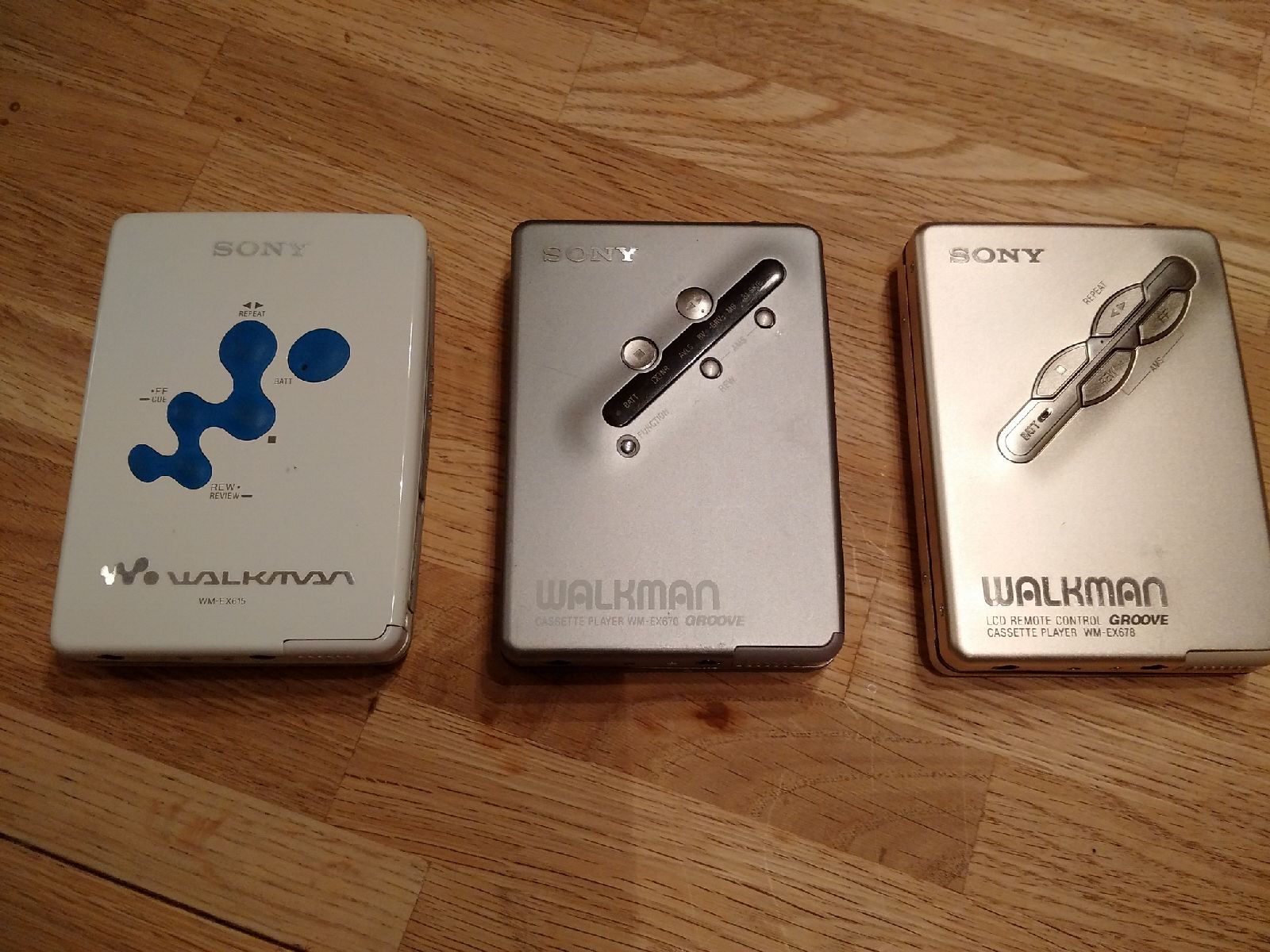

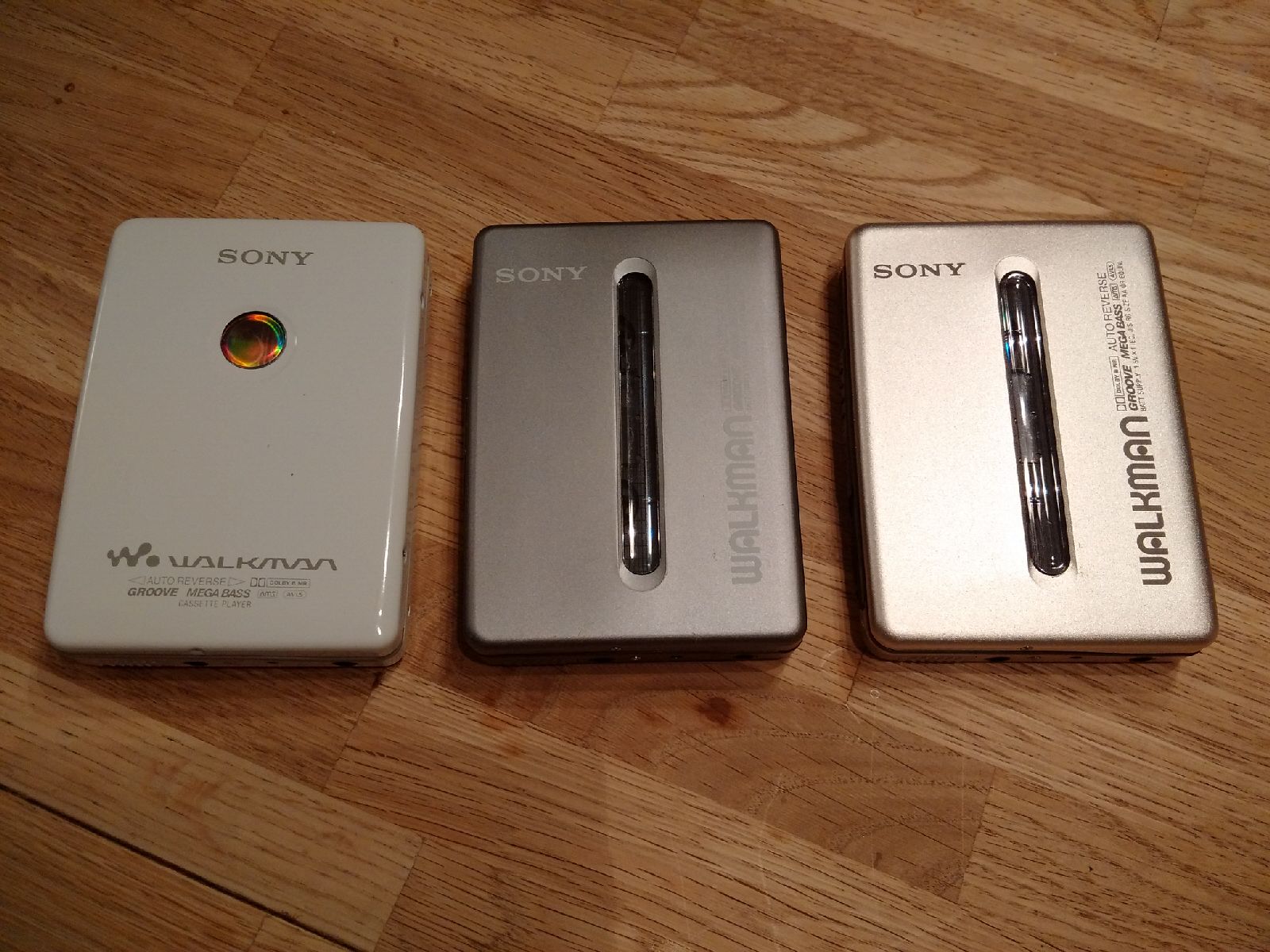

    10. Sony WM-EX 670, WM-EX674, WM-EX678
    and maybe WM-EX615, too.

    IMG_20170220_211314.jpg IMG_20161117_002058.jpg IMG_20170220_211350.jpg IMG_20161117_000157.jpg

    Brutus442 likes this.
  13. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

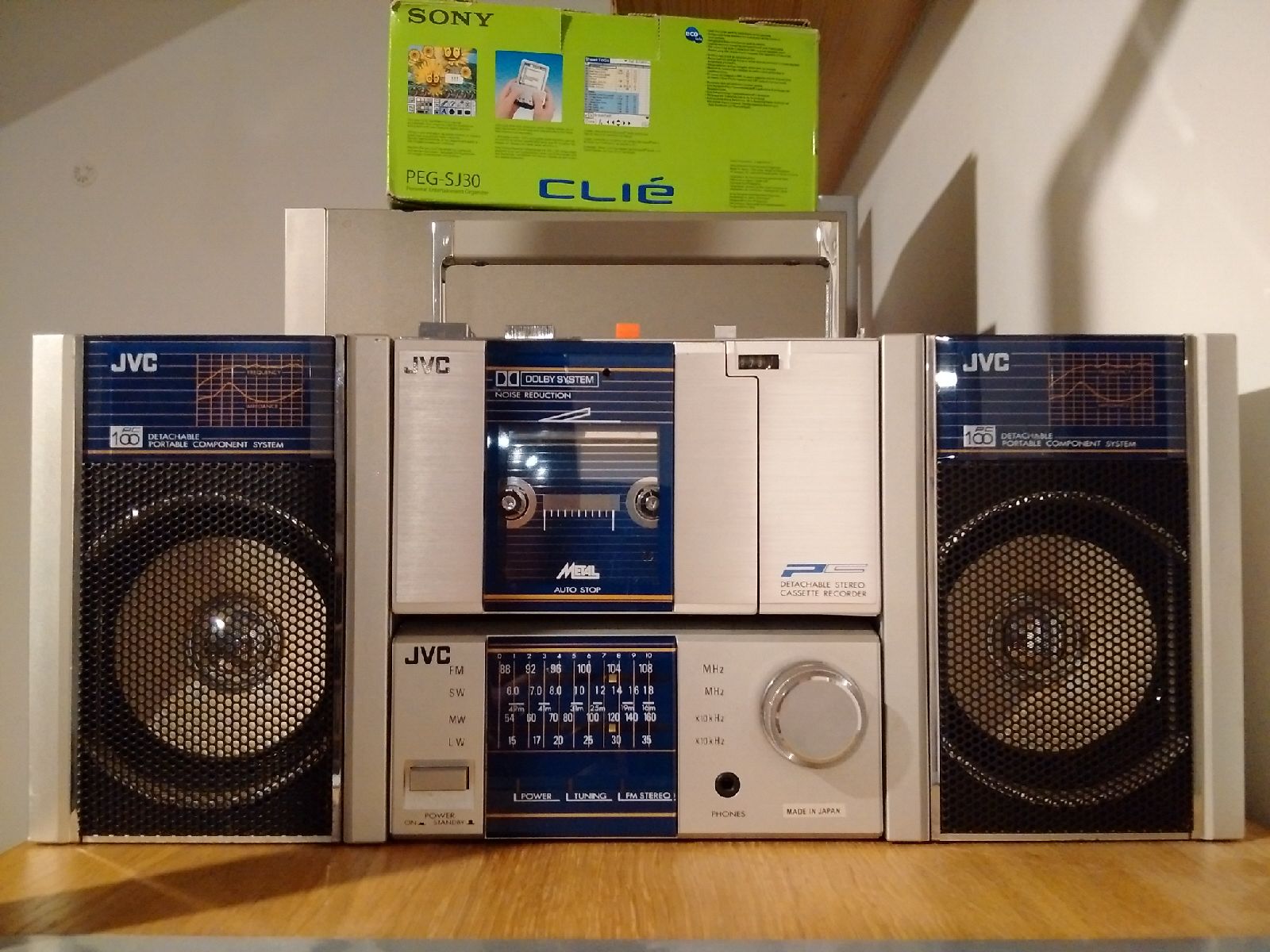

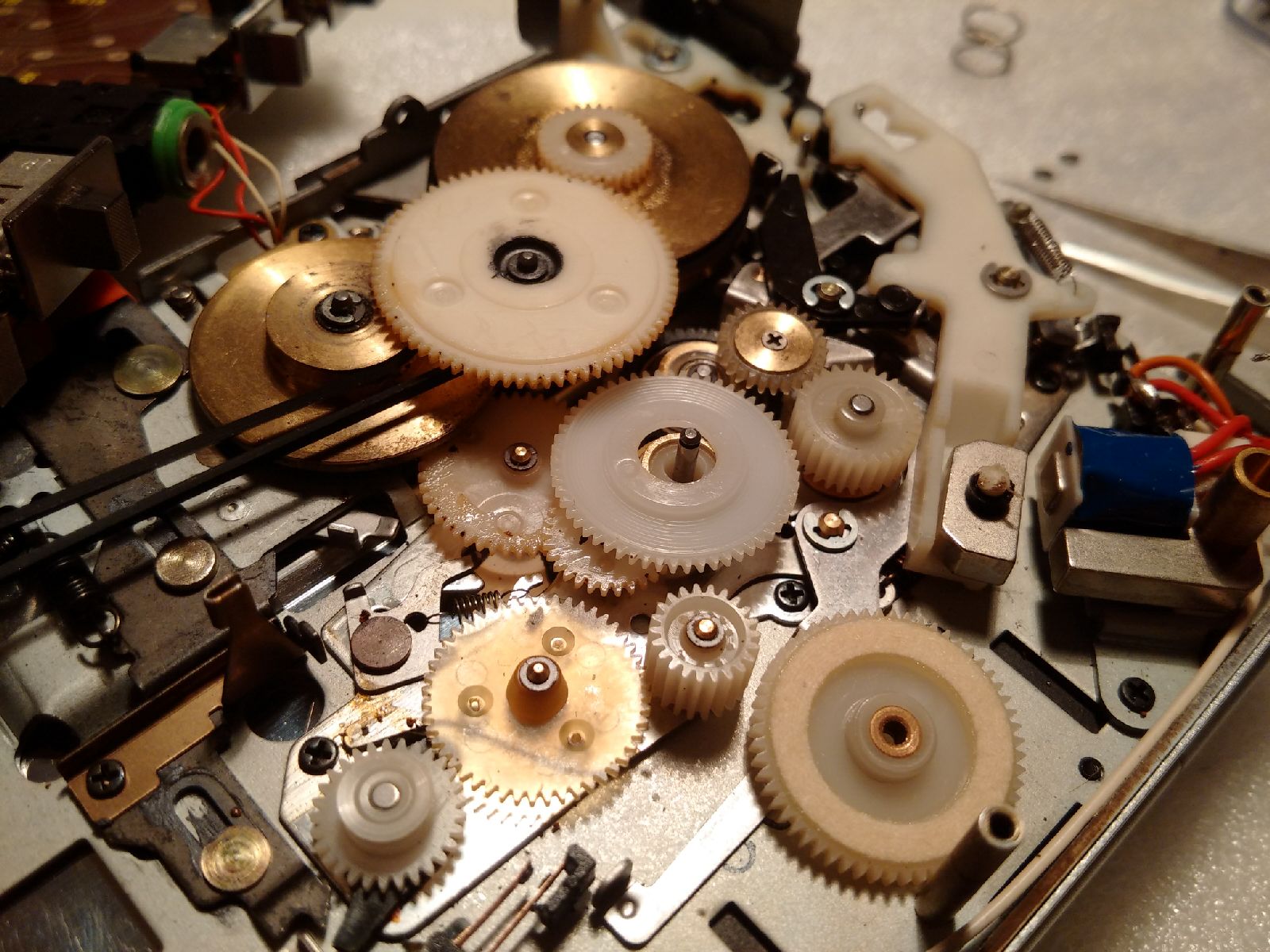

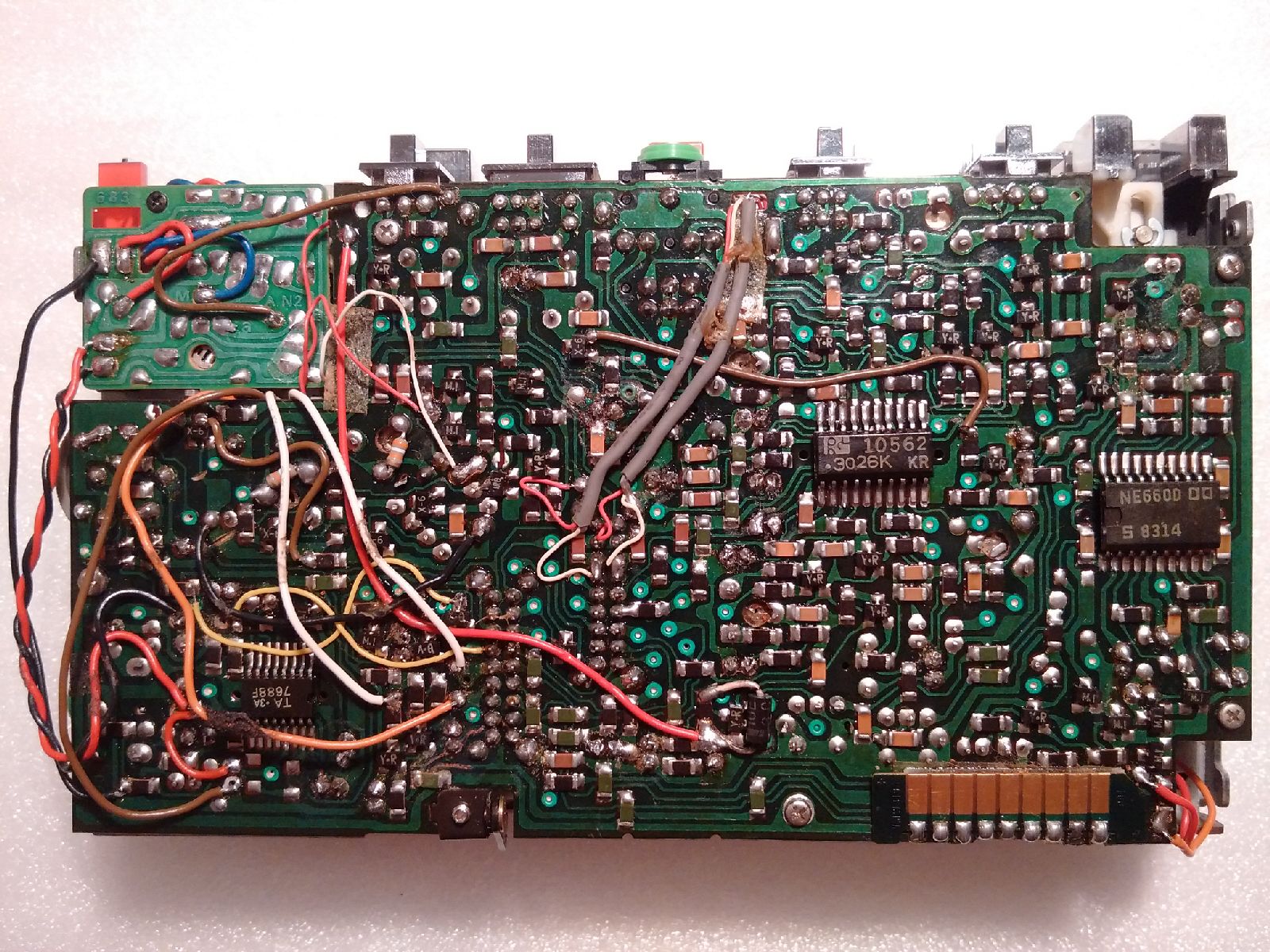

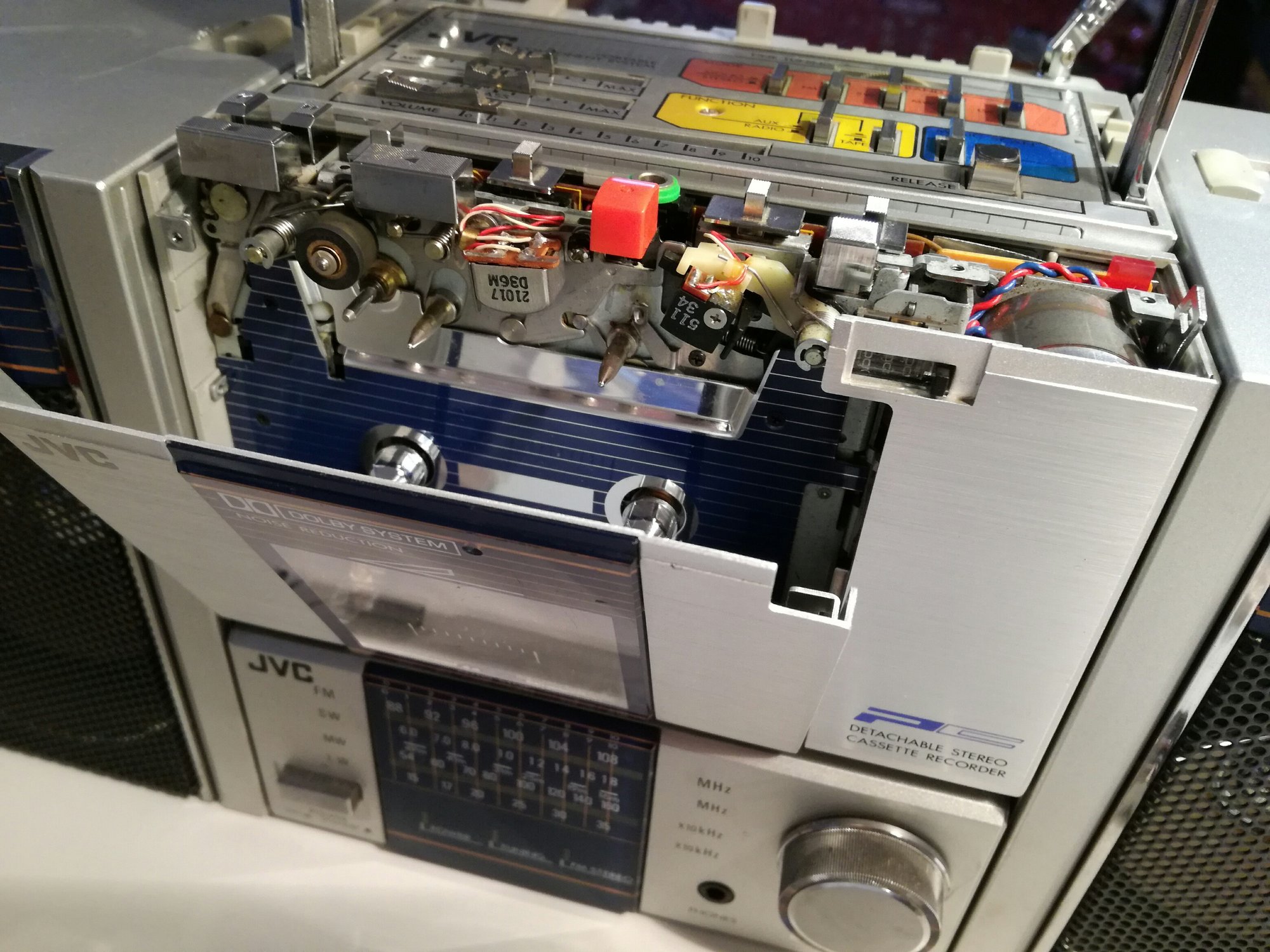

    11. JVC PC100
    (the highlight of the day :)

    IMG_20170202_213705.jpg PC-100-a.jpg IMG_20170115_184114.jpg IMG_20170115_175120.jpg

    ...

    Brutus442 likes this.
  14. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

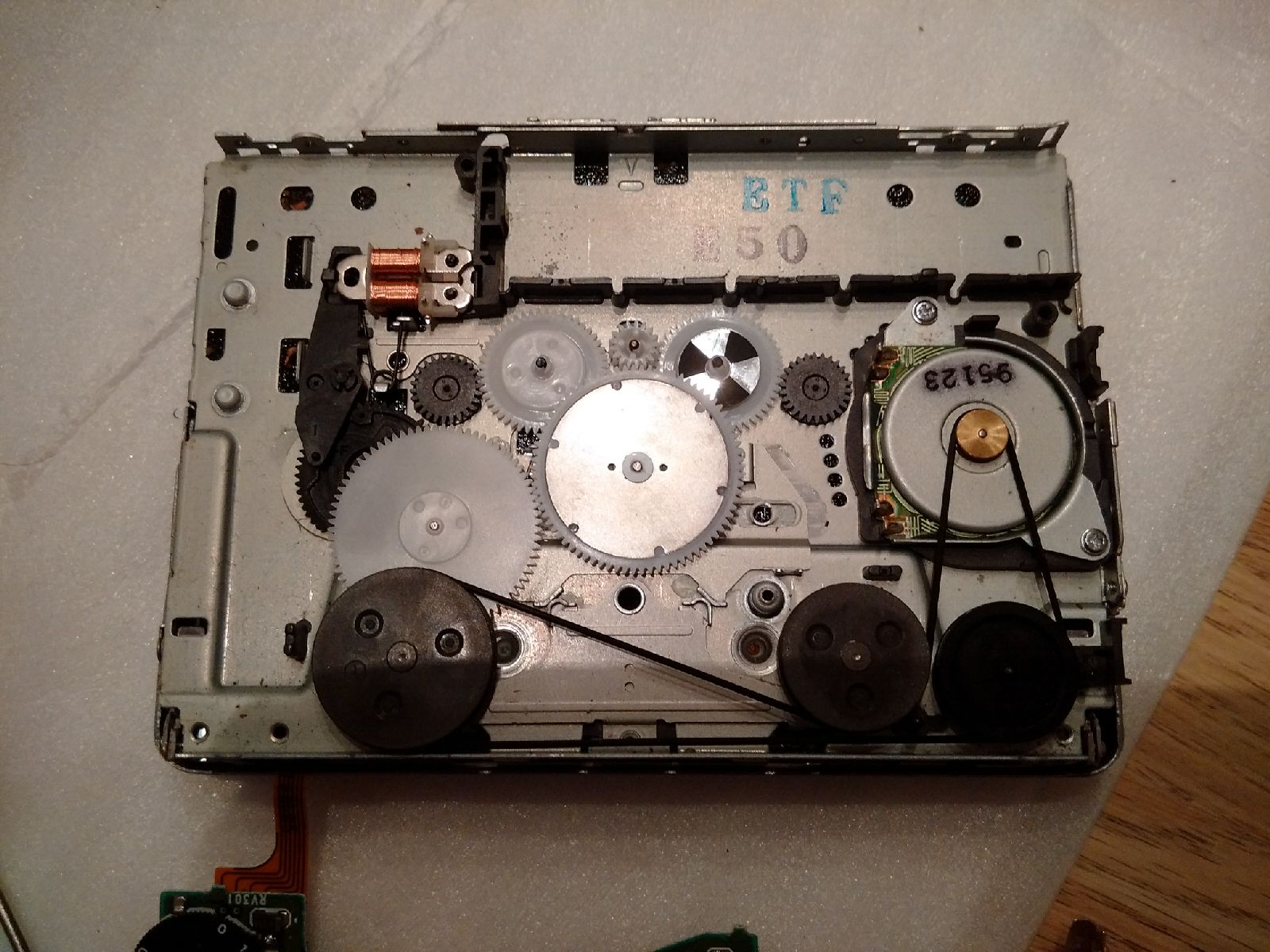

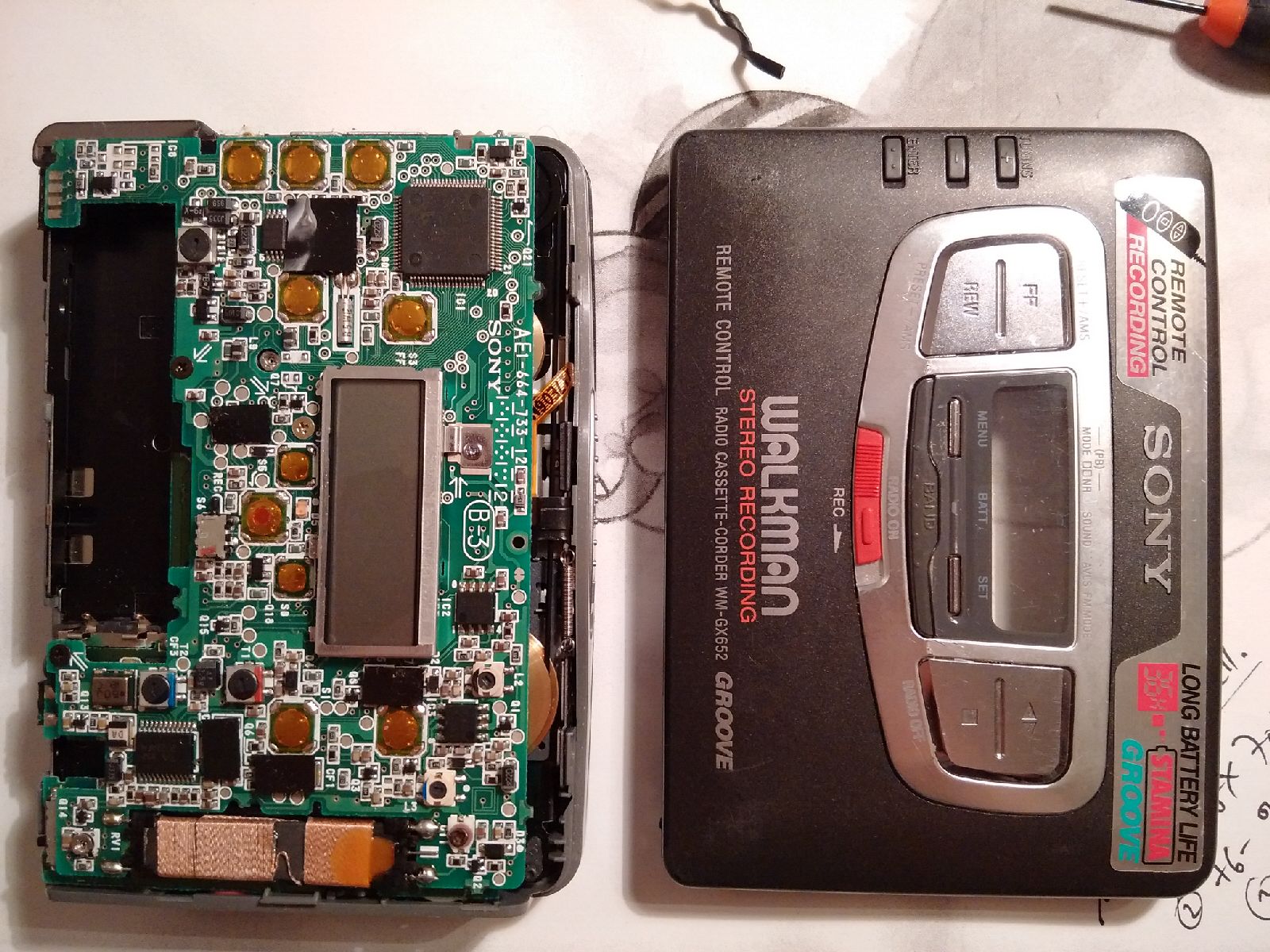

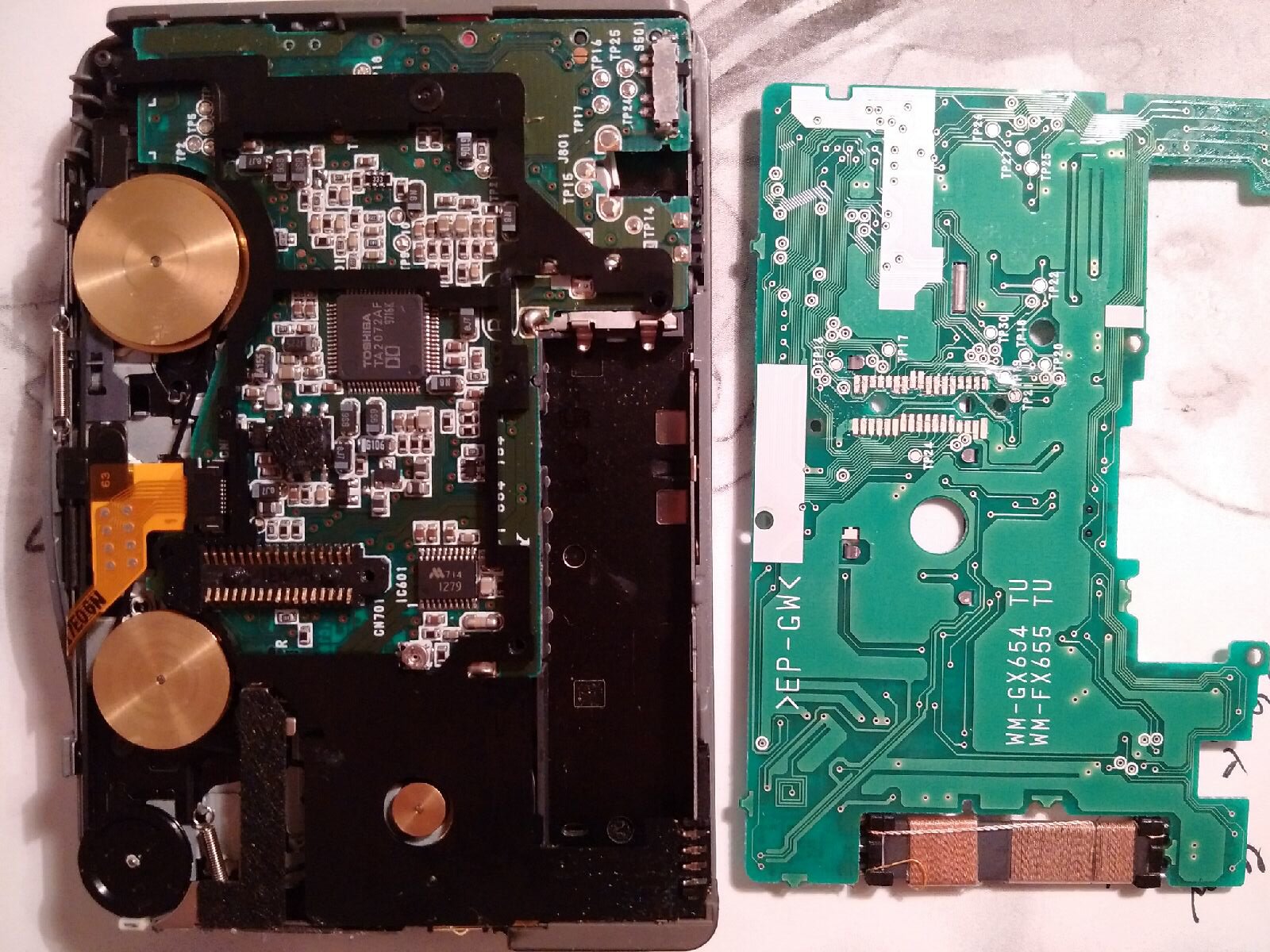

    12. Sony WM-GX652

    IMG_20170130_202502.jpg IMG_20170130_202654.jpg

    Brutus442 likes this.
  15. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

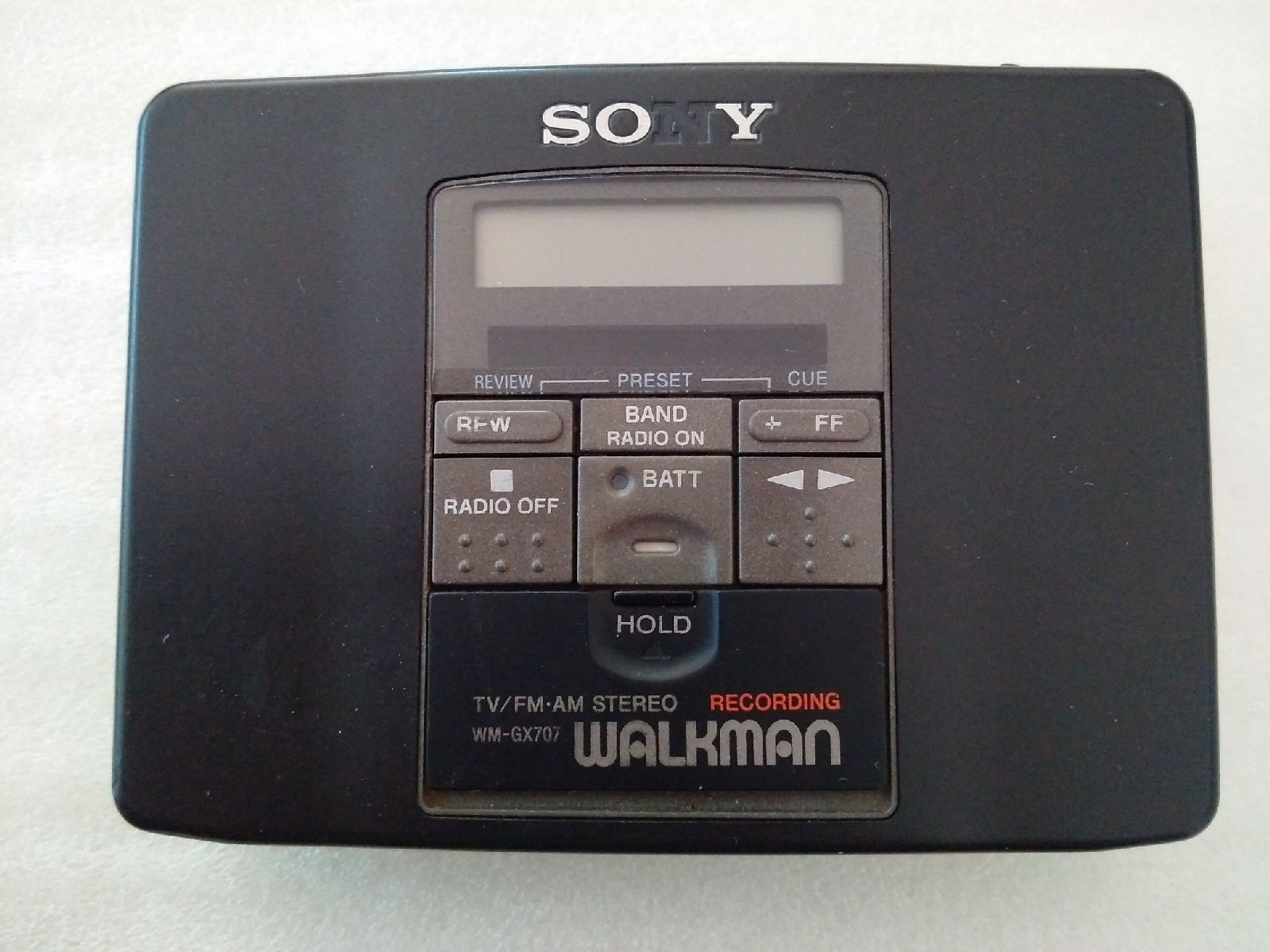

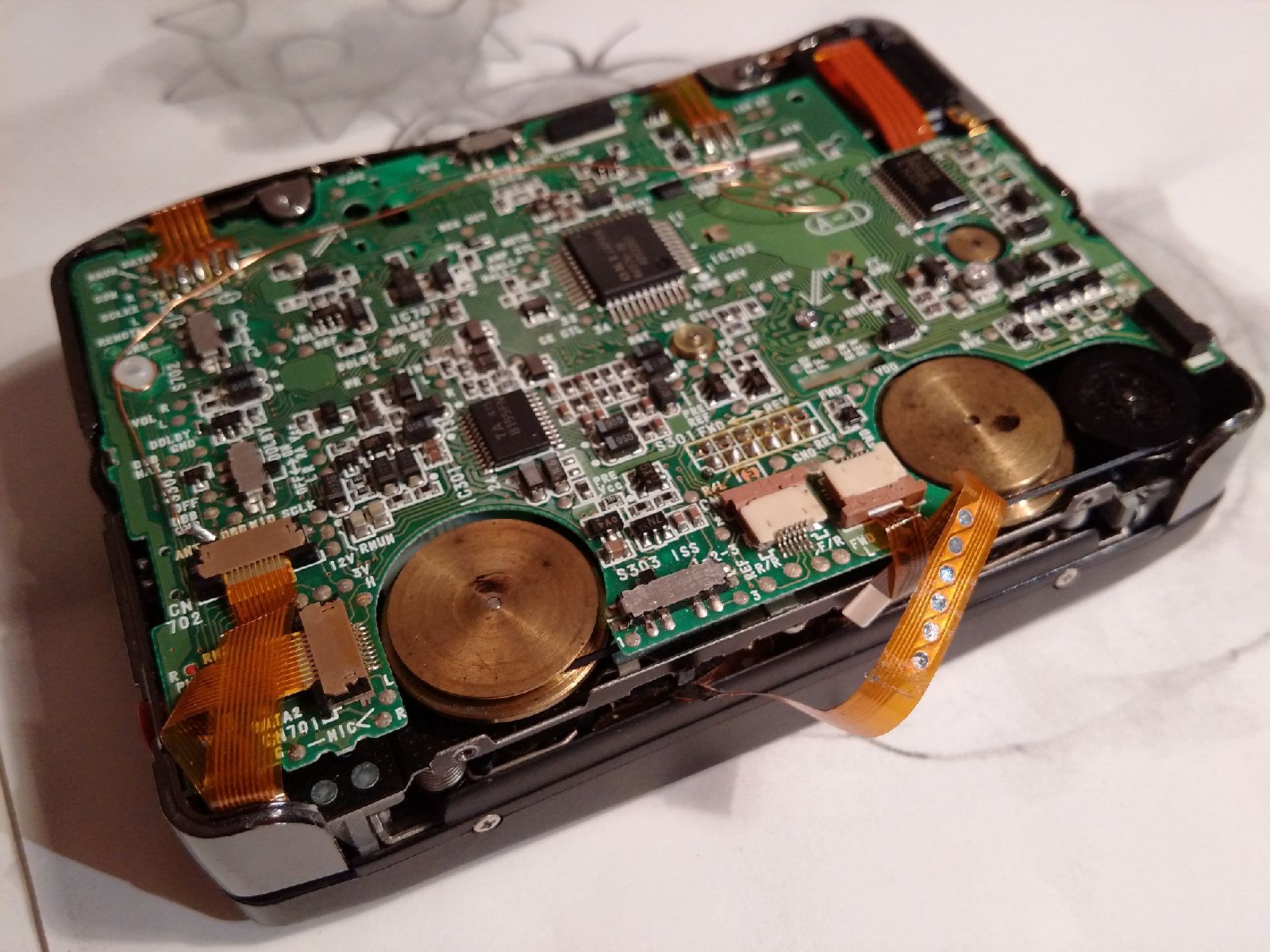

    13. Sony WM-GX707

    IMG_20170129_143556.jpg IMG_20170130_194311.jpg

    Brutus442 likes this.
  16. T-ster

    T-ster Moderator Staff Member S2G Supporter

    Messages:
    1,455
    Trophy Points:
    113
    Location:
    England
    Wow this is turning into a fantastic resource!

  17. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany

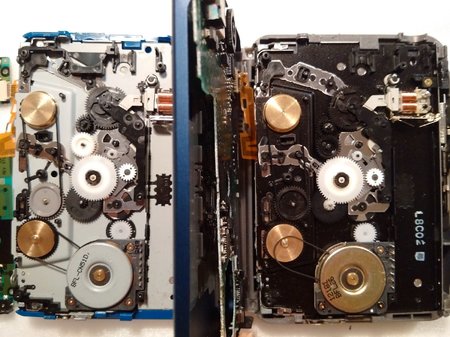

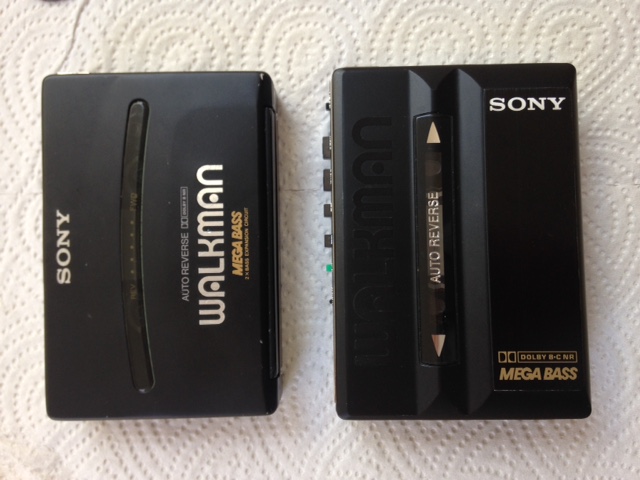

    14. Sony WM150, AF-605, WM190, WM-B603,etc.


    IMG_0621.JPG IMG_0626.JPG

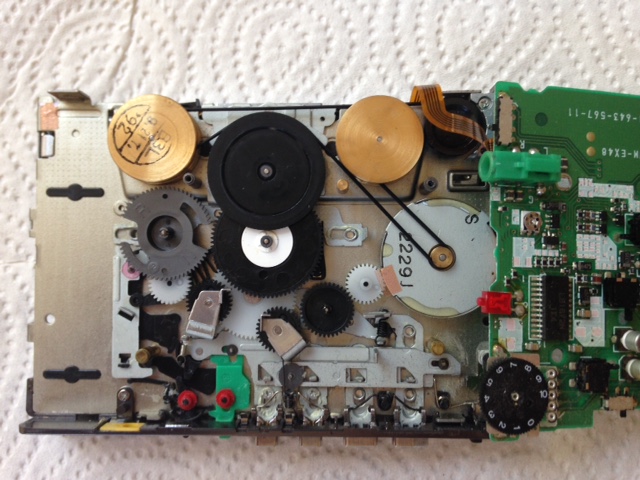

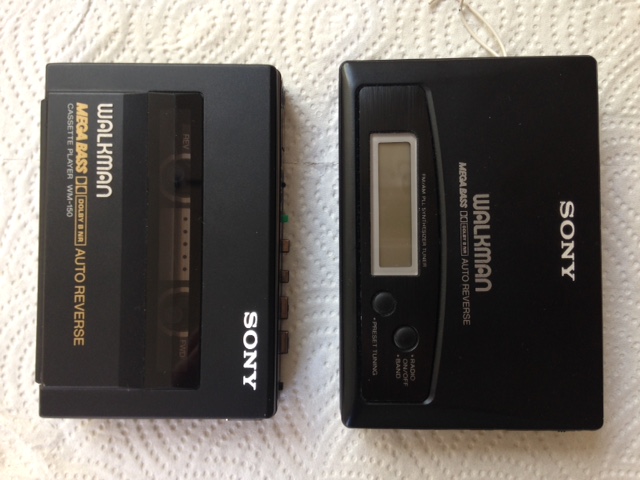

    Left: WMAF605 (WM-BF605), Right:WM-150 (probably many more models have the same opto-sensor based solution)
    IMG_0613 - Kopie.JPG IMG_0631 - Kopie.JPG

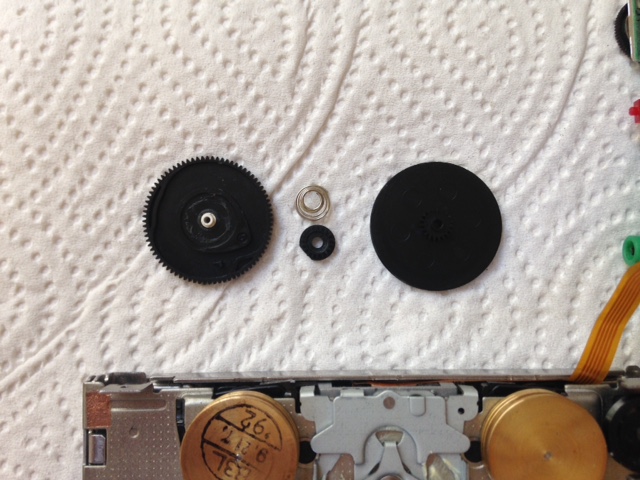

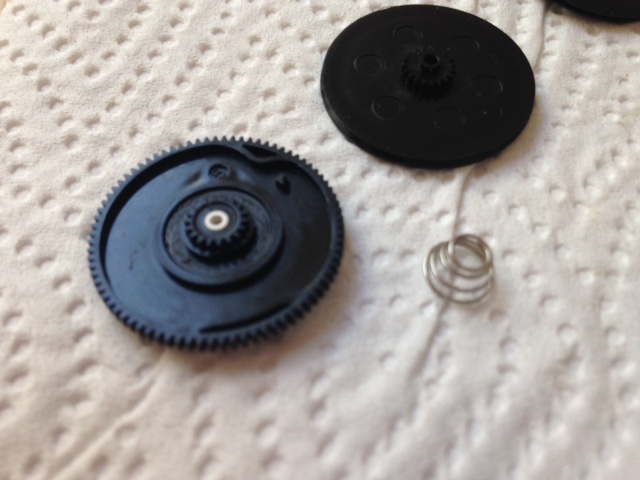

    Left: Disassembled clutch of the above machines, Right: in the center of the clutch broken mini toothwheel.
    This is a common problem of all above machines, and leads to fluctuating tape-speed ev. to complete auto-off all the time.
    IMG_0615 - Kopie.JPG IMG_0617 - Kopie.JPG

    Tutorial - repairing the center wheel: here

    Last edited: Feb 26, 2017
    Sly. and Brutus442 like this.
  18. Phi

    Phi New Member

    Messages:
    1
    Trophy Points:
    3
    Location:
    Japan
    Hello everyone!
    First post here. This morning I opened up my beautiful Sony WM20 I purchased a couple of days ago. I need parts for it and so far I know it is the rubber band but it could be more.... I'm knew to this!


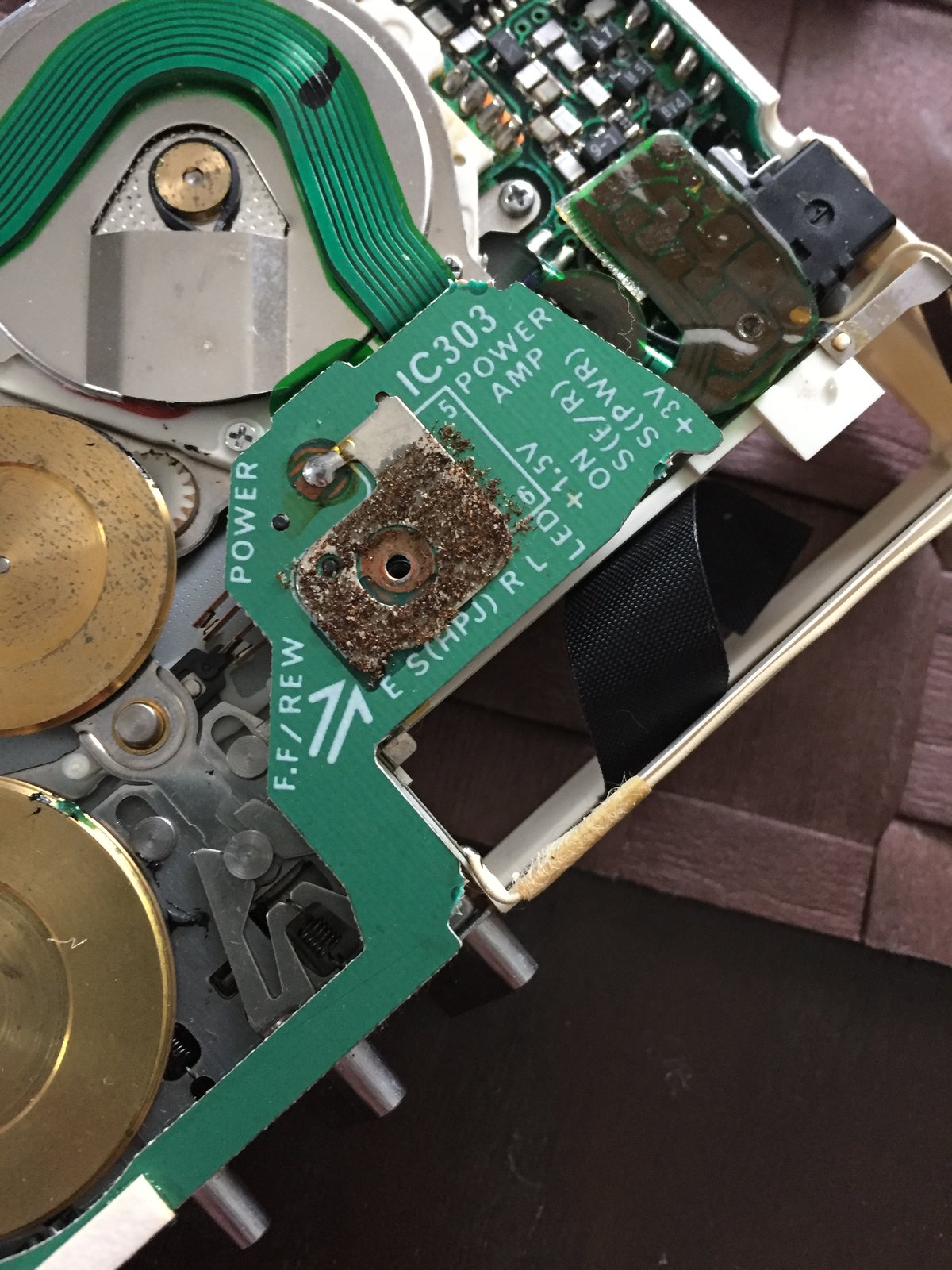

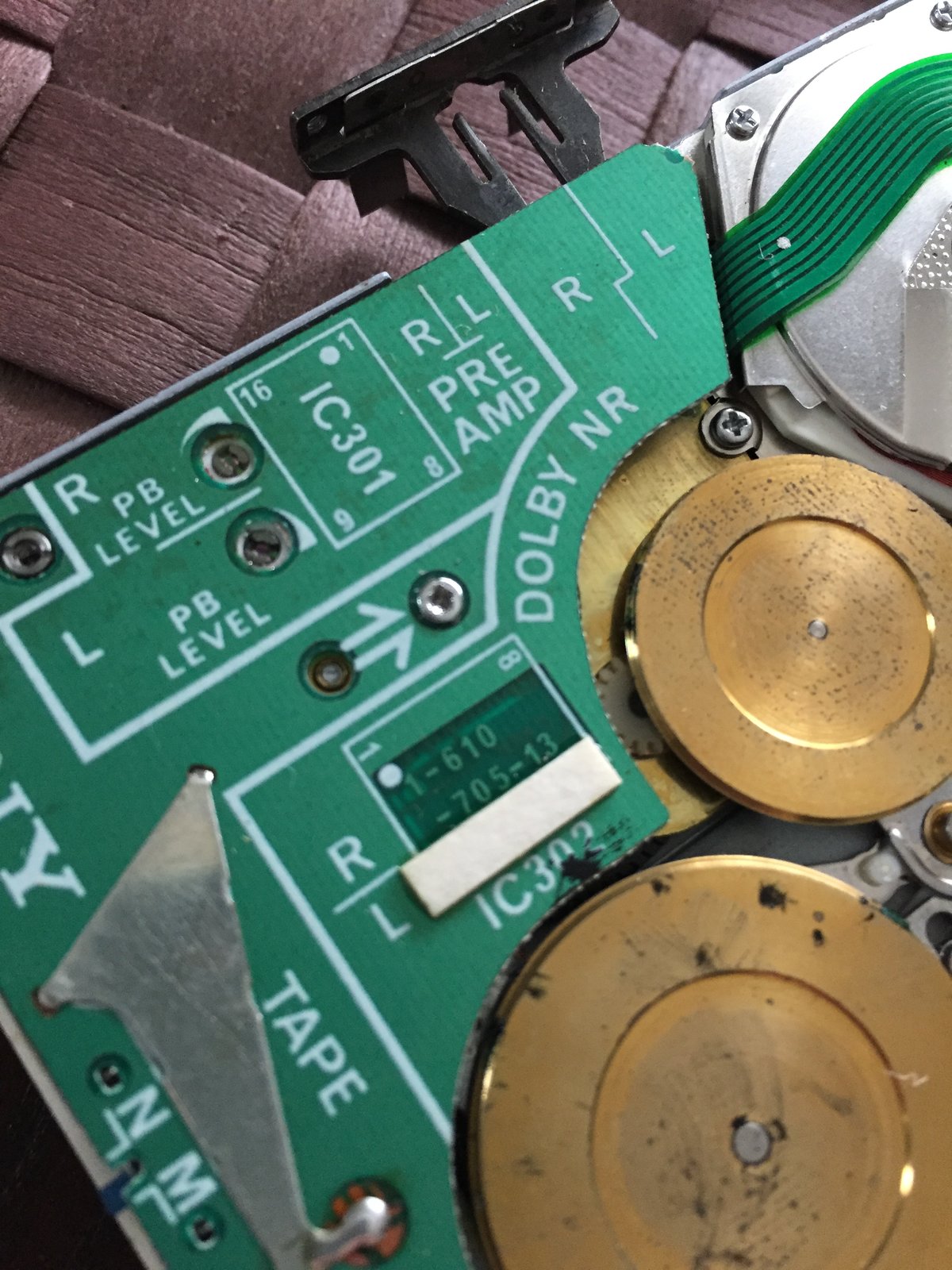

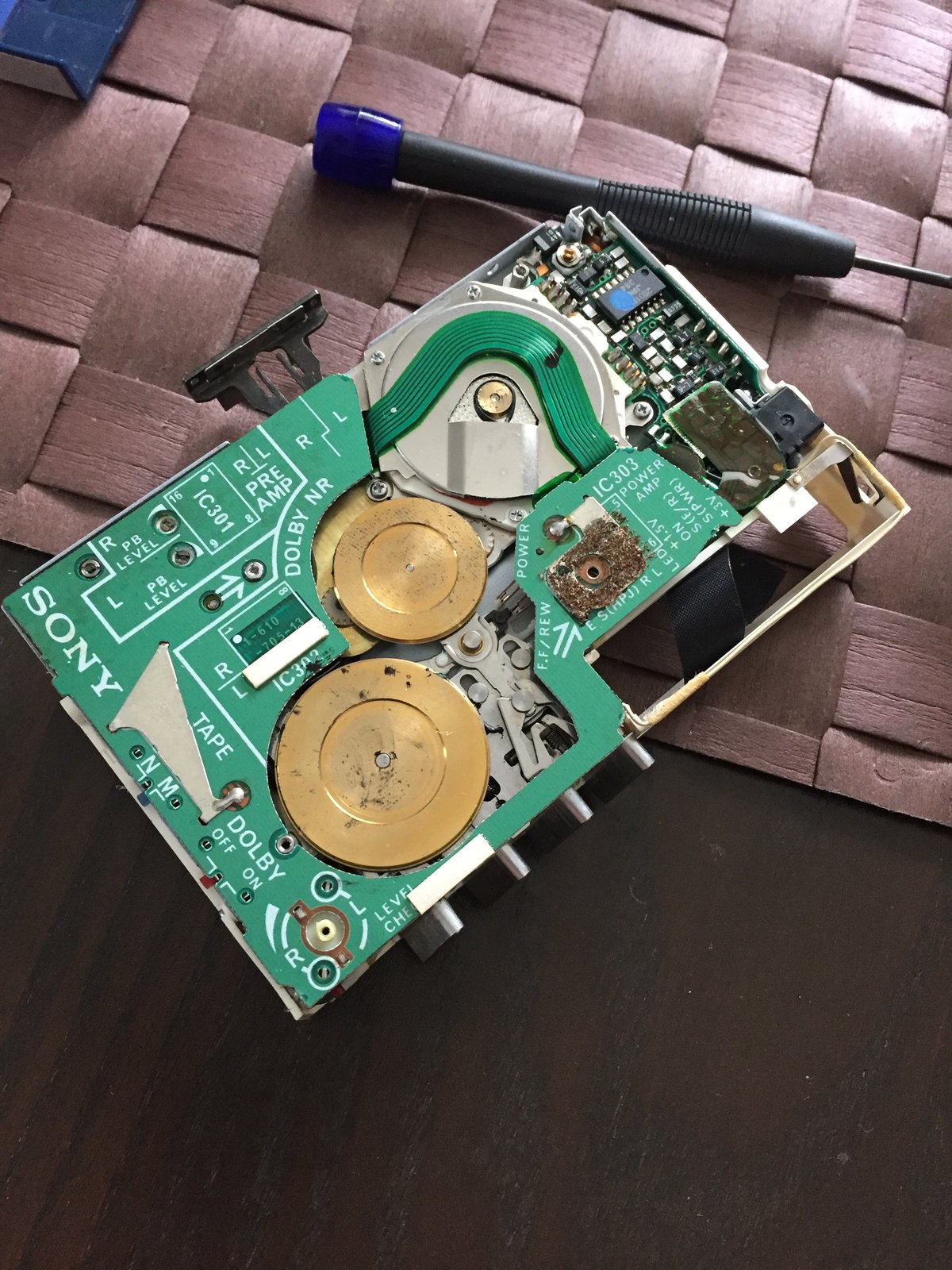

    Attached Files:

    Brutus442 likes this.
  19. Brutus442

    Brutus442 Well-Known Member

    Messages:
    473
    Trophy Points:
    63
    Location:
    Toronto
    This is a great resource!! Cheers for this!

  20. mrn

    mrn Member

    Messages:
    69
    Trophy Points:
    18
    Location:
    germany
    15. WM-D3 a semi-professional mobile cassette recorder with Direct Drive mechanism
    common DD problem: broken center gear.
    possible solutions: glue and extra teeth, or complete gear replacement.

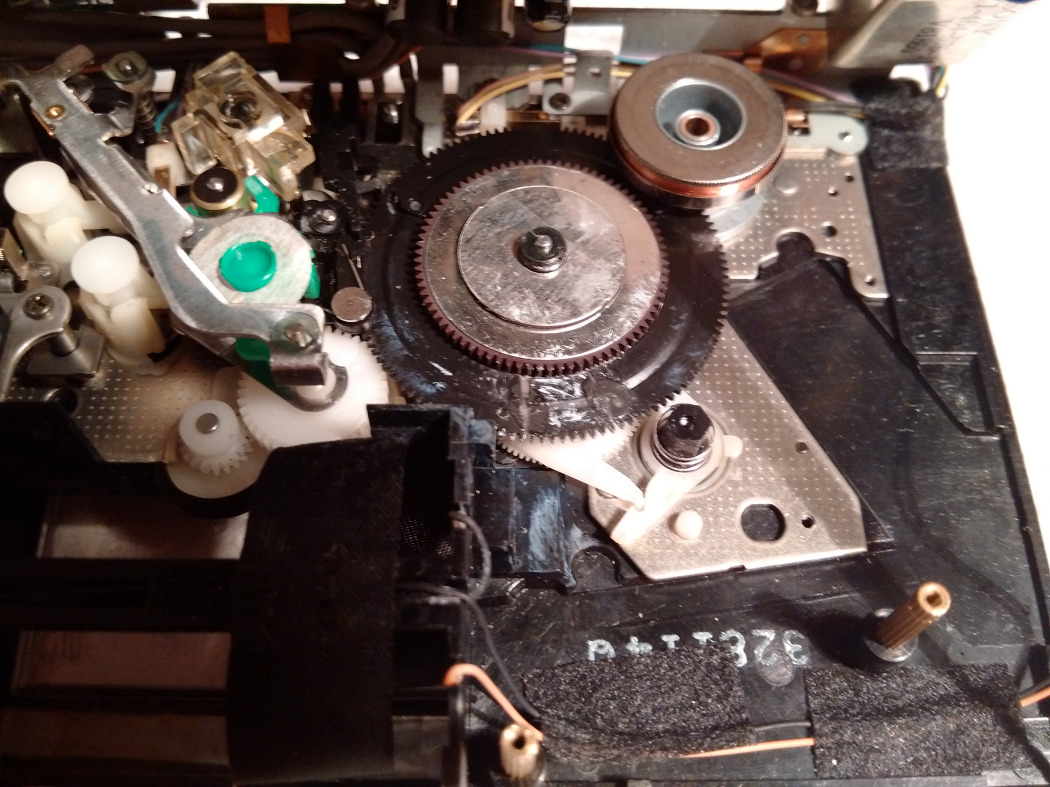

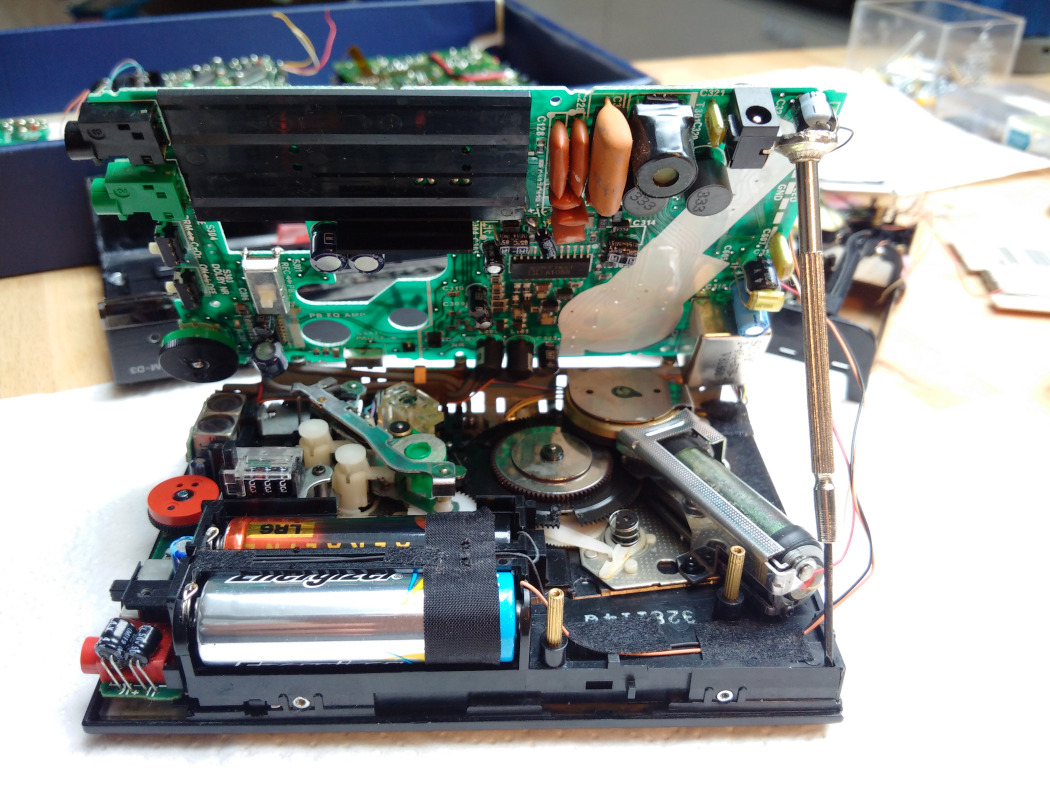

    wm_d3_open.jpg wm_d3_center_wheel_fix.jpg
    PS:
    @Brutus, BoodoKhan, T-ster: Thanks!
    @Phi: Belt is easy to get for your WM20. You can ask our forum member, mihokm. belt size:7/13. good luck!

    Last edited: Feb 25, 2017
    Brutus442 likes this.
