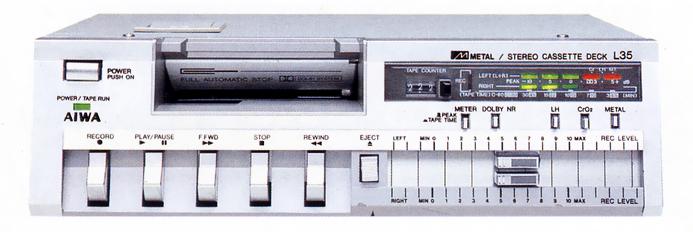

Anybody here has a service manual of a vintage micro Aiwa AD-L35 tape deck. Or a pic of the belt layout and belt specs so I can reconstruct mine.
I have rebuilt the SDL-22 and SD-L30 versions of this. They are not easy to work on, sorry to say. Assuming the L35 is similar... I don't have a record of the belt specs but you can buy belts and pinch rollers on eBay for the 22 and 30 models. Here I will try to upload a picture of the L22 belt paths, to Media and then link to. Aiwa-sdl22-1-86529sch7hslr by DutchNick posted Jan 29, 2023 at 5:11 PM . Hope this helps.
