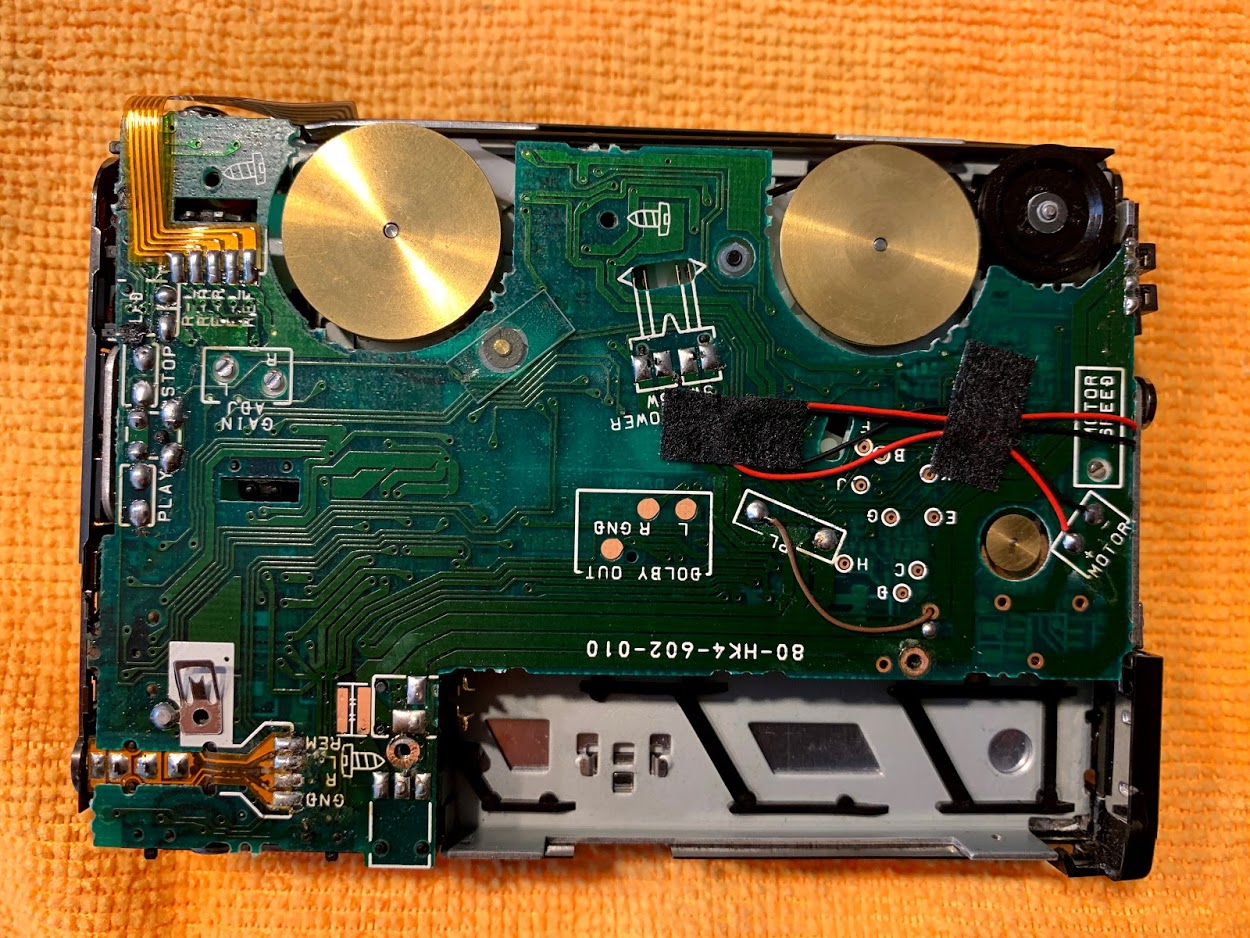

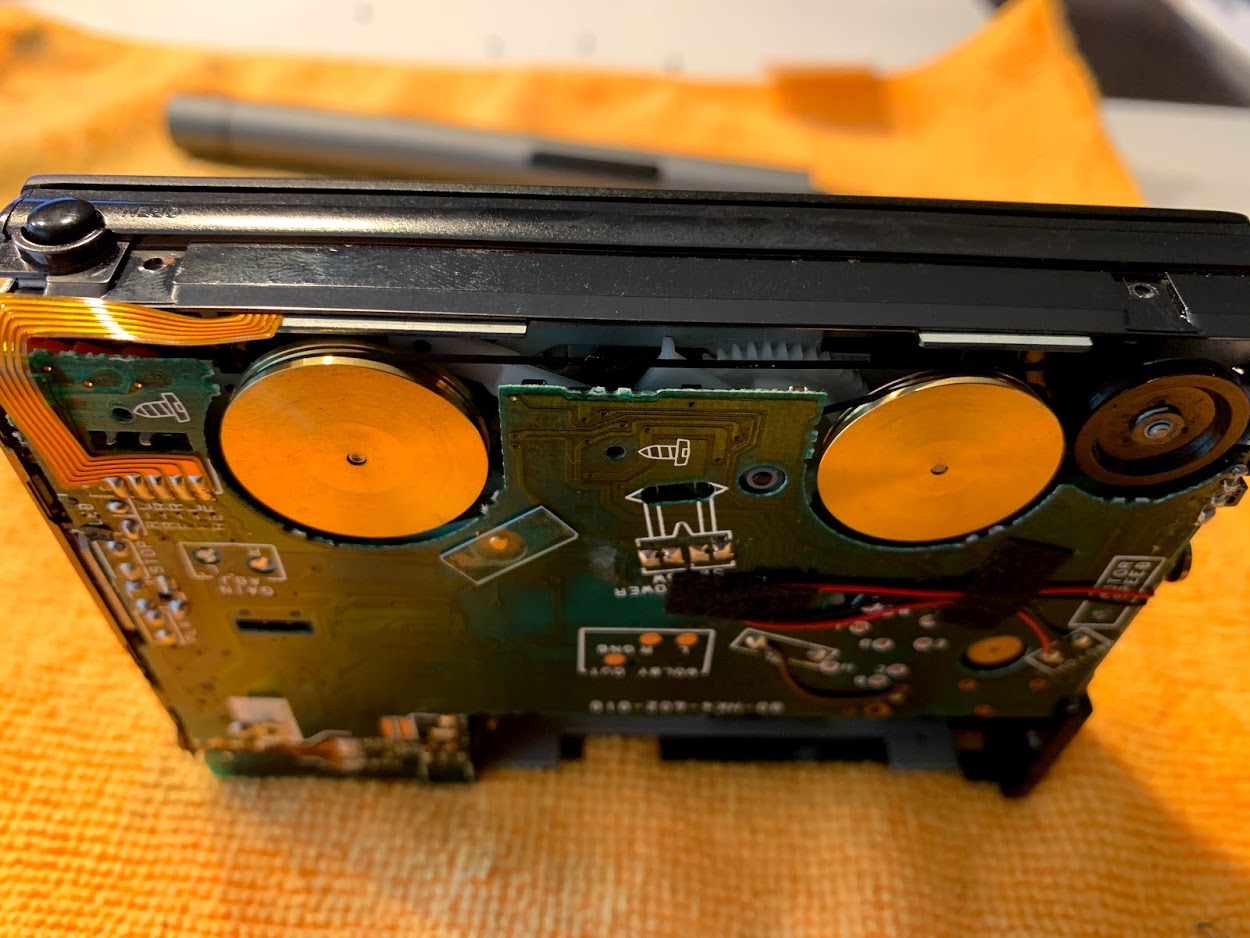

Dear members, I have this nice looking Aiwa hs-p505 mk2, which is in desperate need of belt replacement. Since I don't have the service manual, and I was unable to find it, do you know which parts of the main board needs to be unsoldered in order to have access to the pcb ? In the pictures below I already removed the screws but the pcb refuses to free itself Thanks !

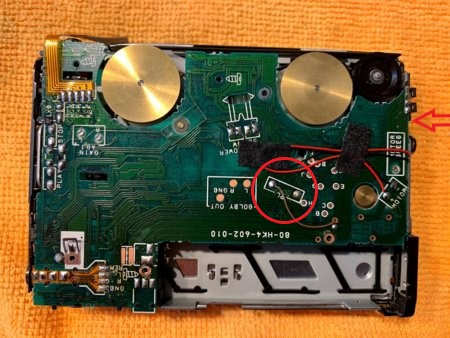

Hi, see edited picture below red circle desolder these 2 points and remove the screw arrowed if you haven't already done so, hope this helps.

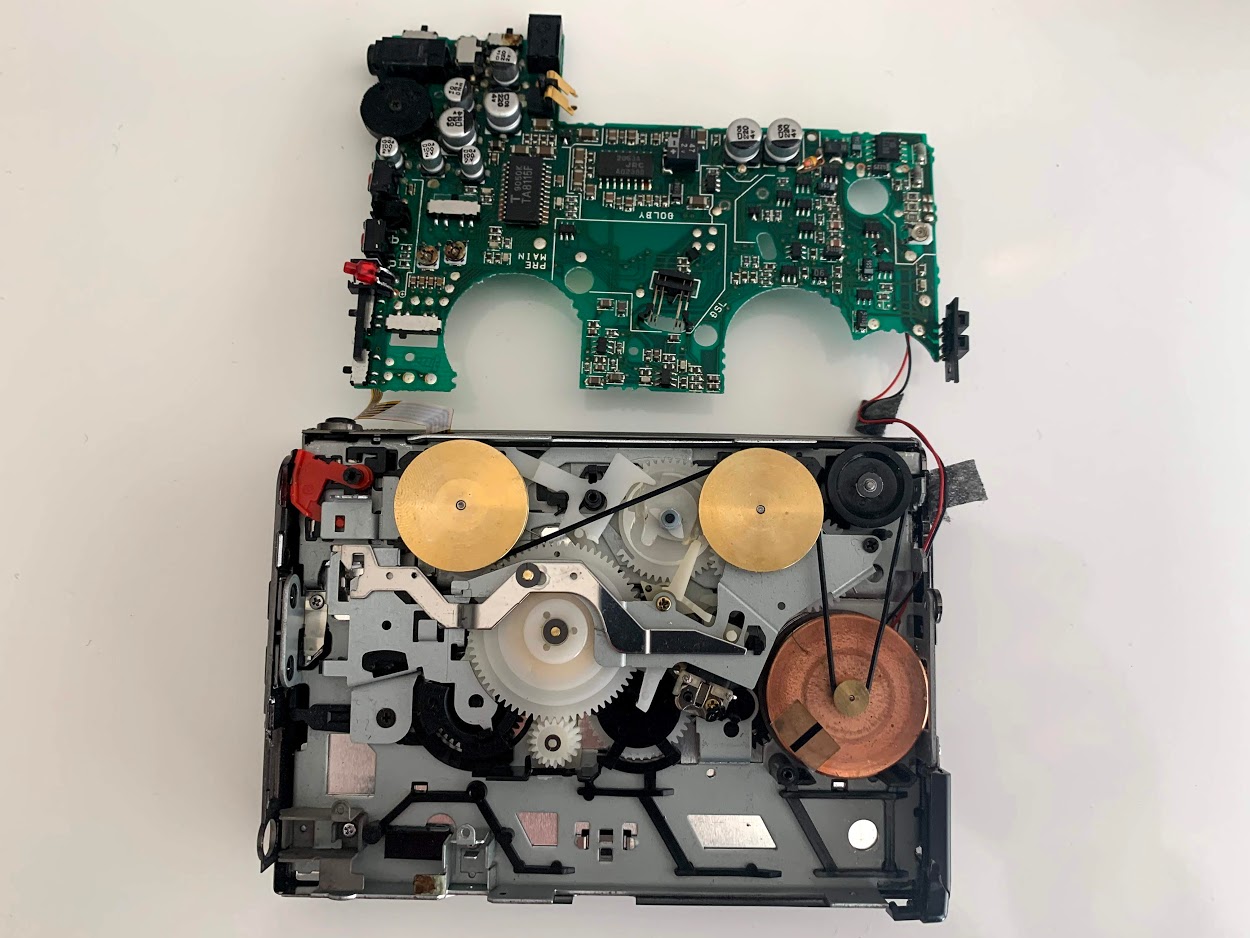

Success ! Do you guys know where can I order a belt ? FixYourAudio does not seem to have this model.. Any compatibilities with other Aiwa models ? Thanks in advance
marian at fix your audio will surely be able to supply this belt.. in fact - this one might fit (from his ebay shop) https://www.ebay.co.uk/itm/Belt-for...732992?hash=item1eab3a2380:g:BDAAAOSw8lpeT8A8 but I recommend messaging him to check
