DIN Audio Pin Out Diagrams

Discussion in 'Tech talk' started by Mister X, Dec 6, 2023.

  1. Mister X

    Mister X Moderator Staff Member

    Messages:
    16,841
    Trophy Points:
    113
    Location:
    Minnesota
    Just in case anybody is wondering....

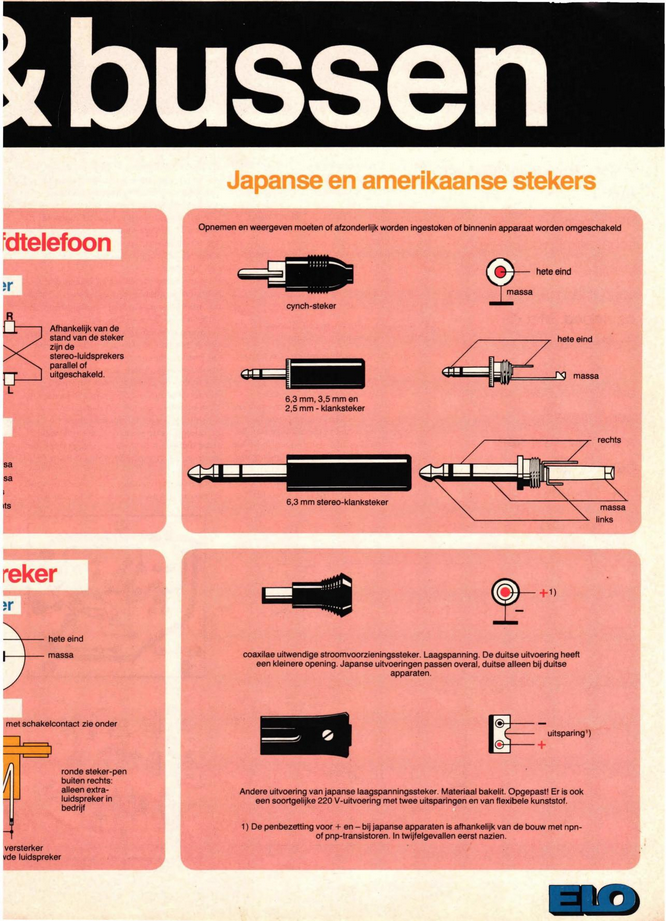

    DIN 1.png DIN 2.png

    Dfcruiser likes this.
  2. soluna

    soluna Active Member

    Messages:
    224
    Trophy Points:
    43
    Location:
    Germany
    I was soldering about 50 of this combinations in the early 80-s. And one of this is still working here, - from my MD-Player ( Jack ) to my GDR Amp (Din). Then from the GDR Amp Speakers out ( with Resistance Bridge ) to Aux in ( Cinch ) of the Yamaha Amp 1.
