Identifying unknown Sony PCB component

Discussion in 'Tech talk' started by Fulltimehuman, Nov 25, 2024 at 1:15 AM.

Tags:
  1. Fulltimehuman

    Fulltimehuman Member

    Messages:
    44
    Trophy Points:
    8
    Location:
    Bremen, Germany
    I am trying to identify a diode I found on the DC-DC converter flex PCB inside my WM F707 that I am trying to restore. Could anyone help me find out what this is or suggest an alternative?

    I am looking for diode D803 (type CL-70G-CD):

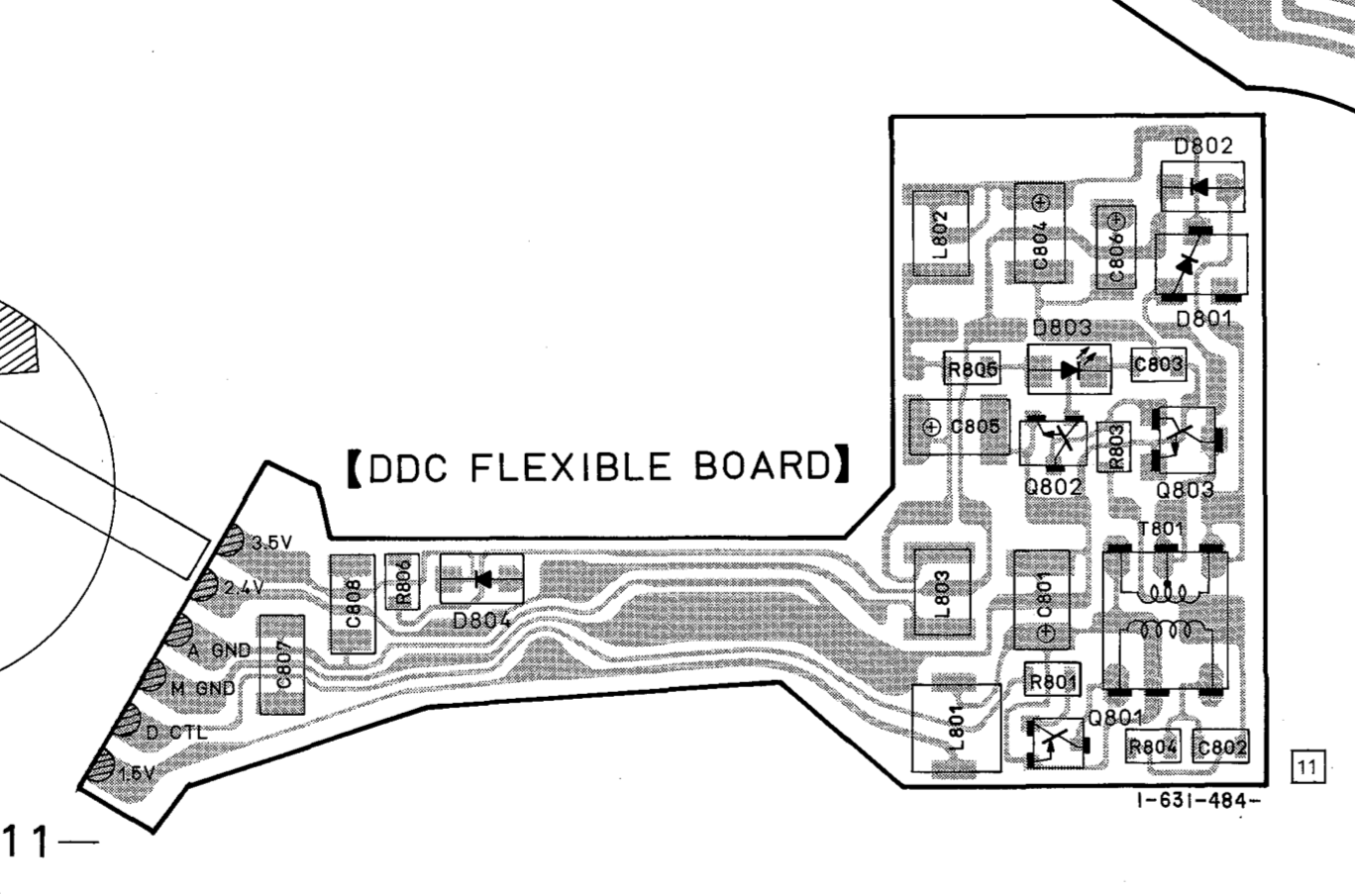

    Bildschirmfoto 2024-11-25 um 09.59.54.png
    This seems to be a 3-pin diode that is entirely unknown to me. I could not find spec sheets and have not been able to identify alternatives:

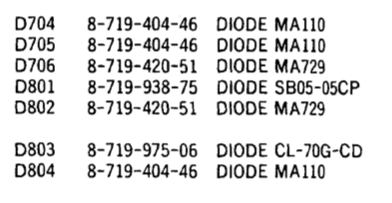

    Bildschirmfoto 2024-11-25 um 10.00.42.png

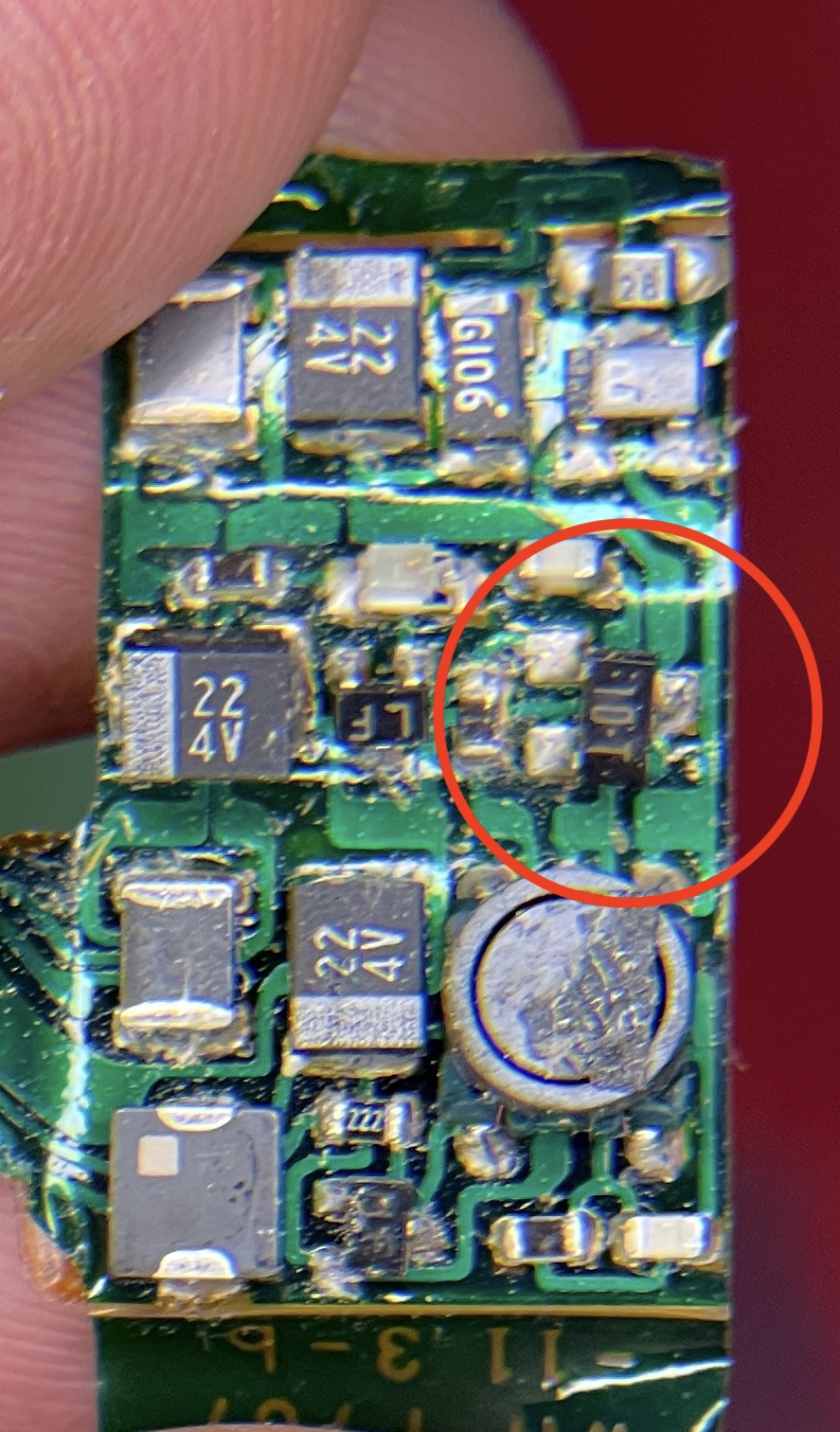

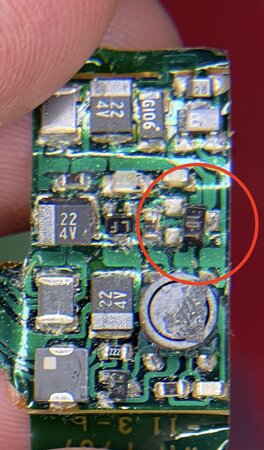

    I think the component is labelled 10-T (or: IO-T?) on-board:
    IMG_1635 2.JPG
