Panasonic RQ-J9 Service Manual

Discussion in 'Tech talk' started by This_Name_Is_Now_Taken, Sep 22, 2019.

  1. This_Name_Is_Now_Taken

    This_Name_Is_Now_Taken New Member

    Messages:
    4
    Trophy Points:
    3
    Location:
    Washington
    I have recently aquired a service manual for my Panasonic Stereo-to-go cassette player.

    This manual includes some dissassembly notes, belt replacement, chip repair procedure, adjustments, a wiring diagram etc.

    If anyone would be interested any of this information I would be happy to supply it.

    Hope this helps somebody

    Jorge, stuck-in-time and Mister X like this.
  2. stuck-in-time

    stuck-in-time Well-Known Member

    Messages:
    394
    Trophy Points:
    63
    Location:
    Jakarta, Indonesia
    Oh! Thank you, I've been looking for the service manual of one of these. I'd love to take up on that offer. You can upload it here perhaps? So others can easily download it too.

    Jorge likes this.
  3. Jorge

    Jorge Well-Known Member

    Messages:
    1,754
    Trophy Points:
    113
    Location:
    Malibu, CA
    +1 to @stuck-in-time !!!
    I tend to get SM for my resto projects, for the sake of knowing what I am doing and then scan the manuals for upload... Guilty of uploading at least one SM bought as .pdf download (for one of my cassette deck restorations) but for the Manuals from Boomboxery (AnalogAlley) I would never do such a thing: the folks keeping these chatrooms alive should get some $$ help from us!

  4. This_Name_Is_Now_Taken

    This_Name_Is_Now_Taken New Member

    Messages:
    4
    Trophy Points:
    3
    Location:
    Washington
    Here you go, in addition to this there is a circuit boards wiring connection diagram which I will scan if someone request it.

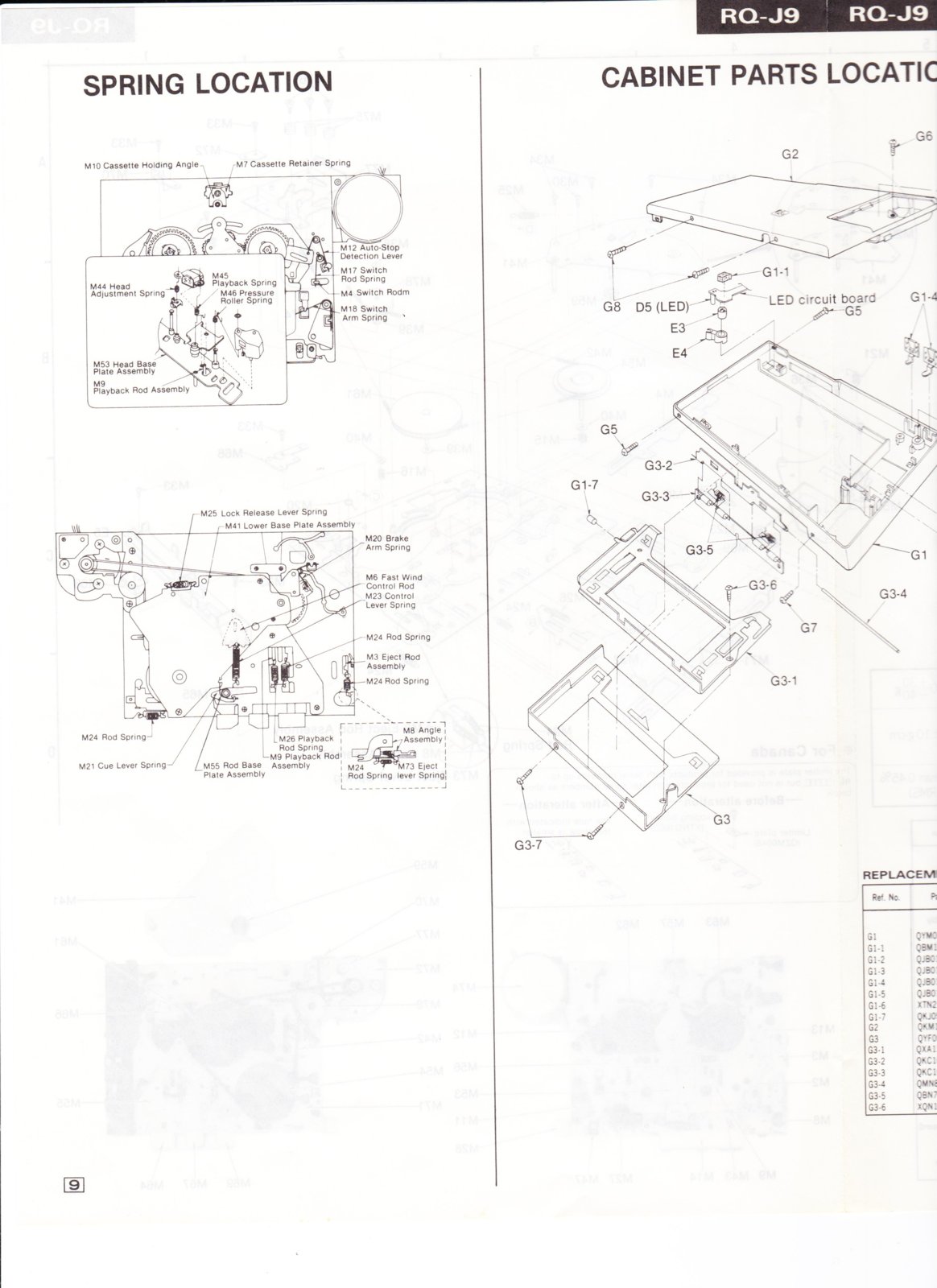

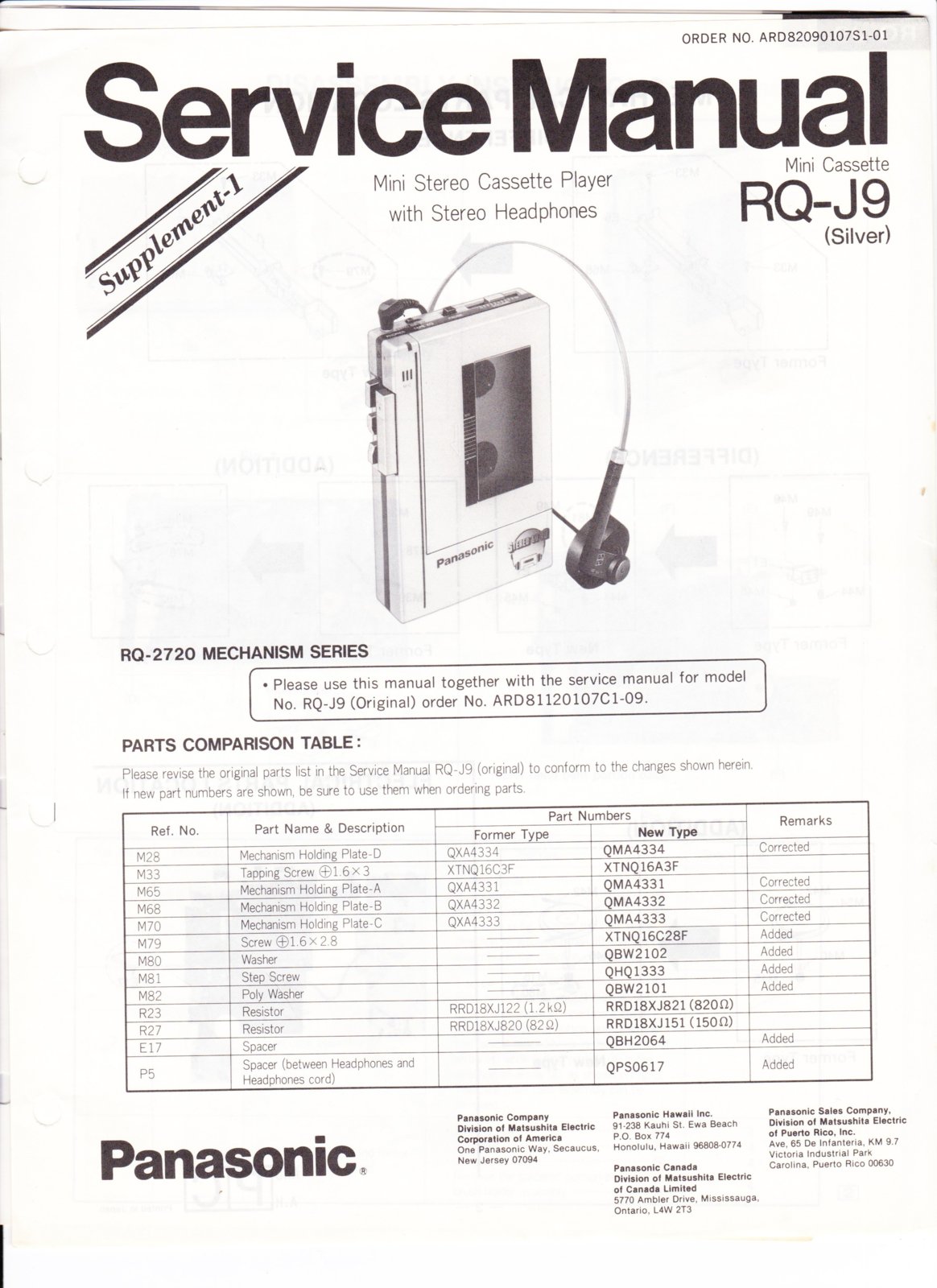

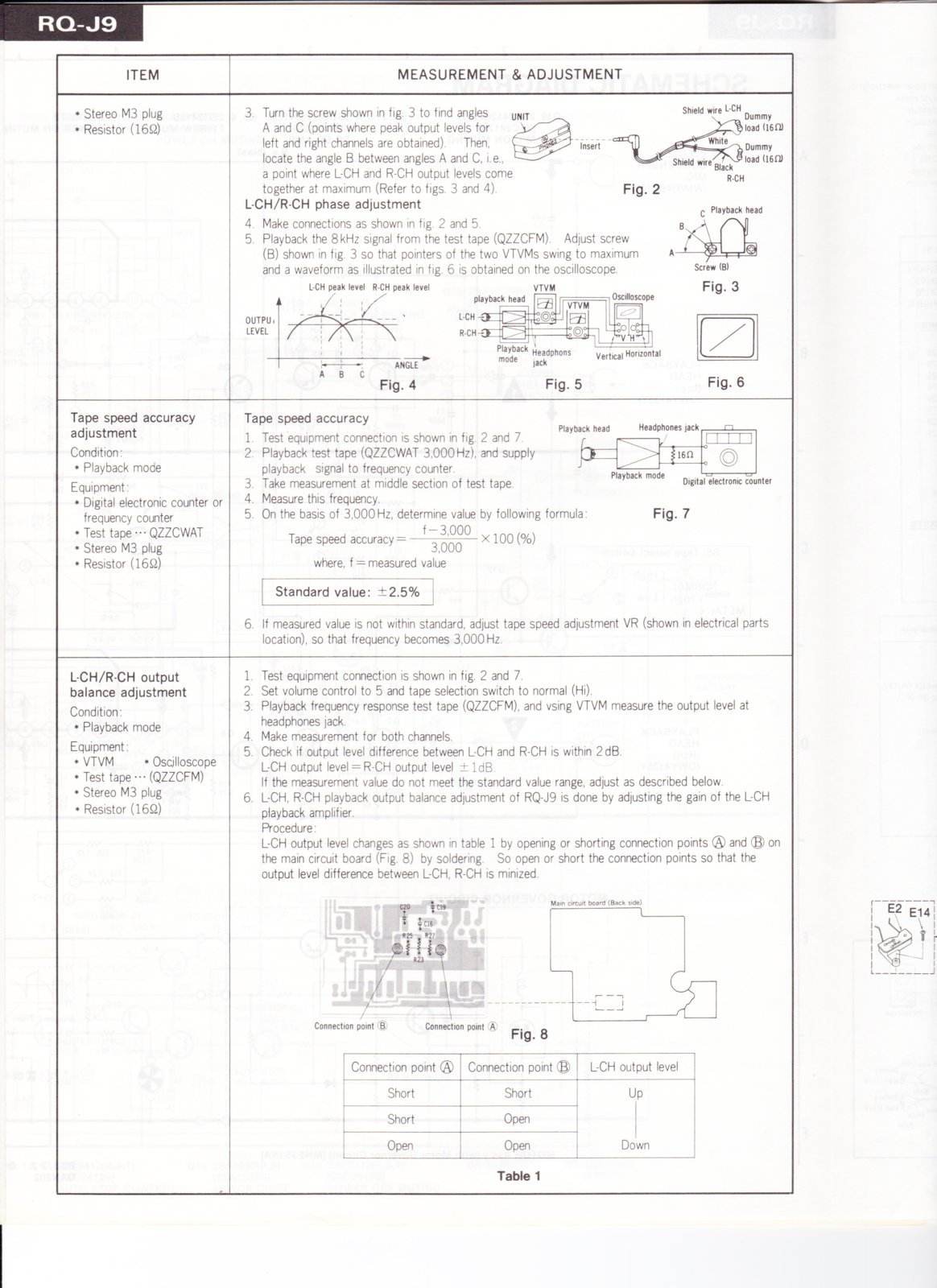

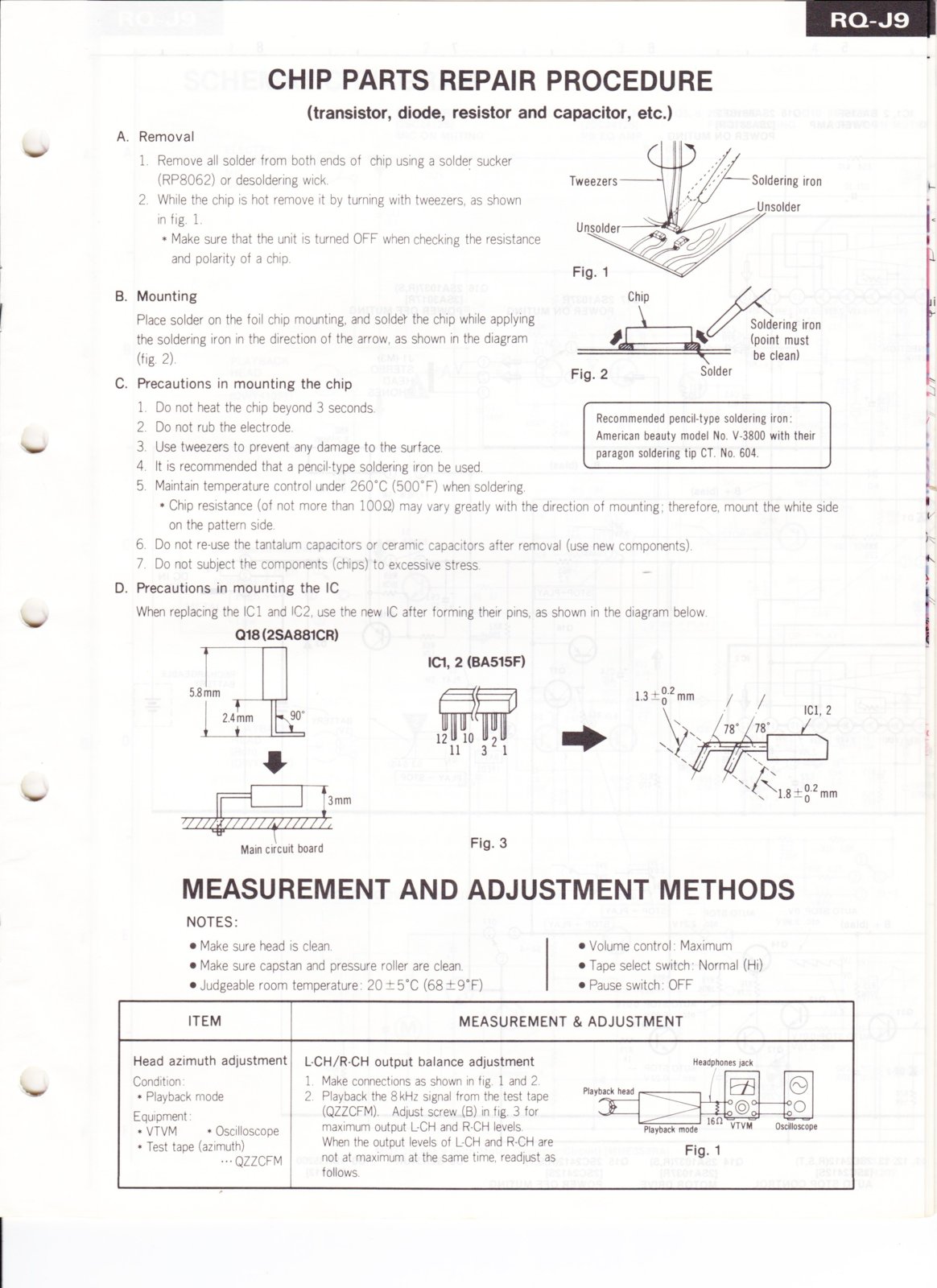

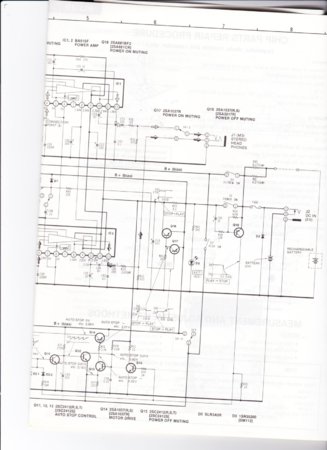

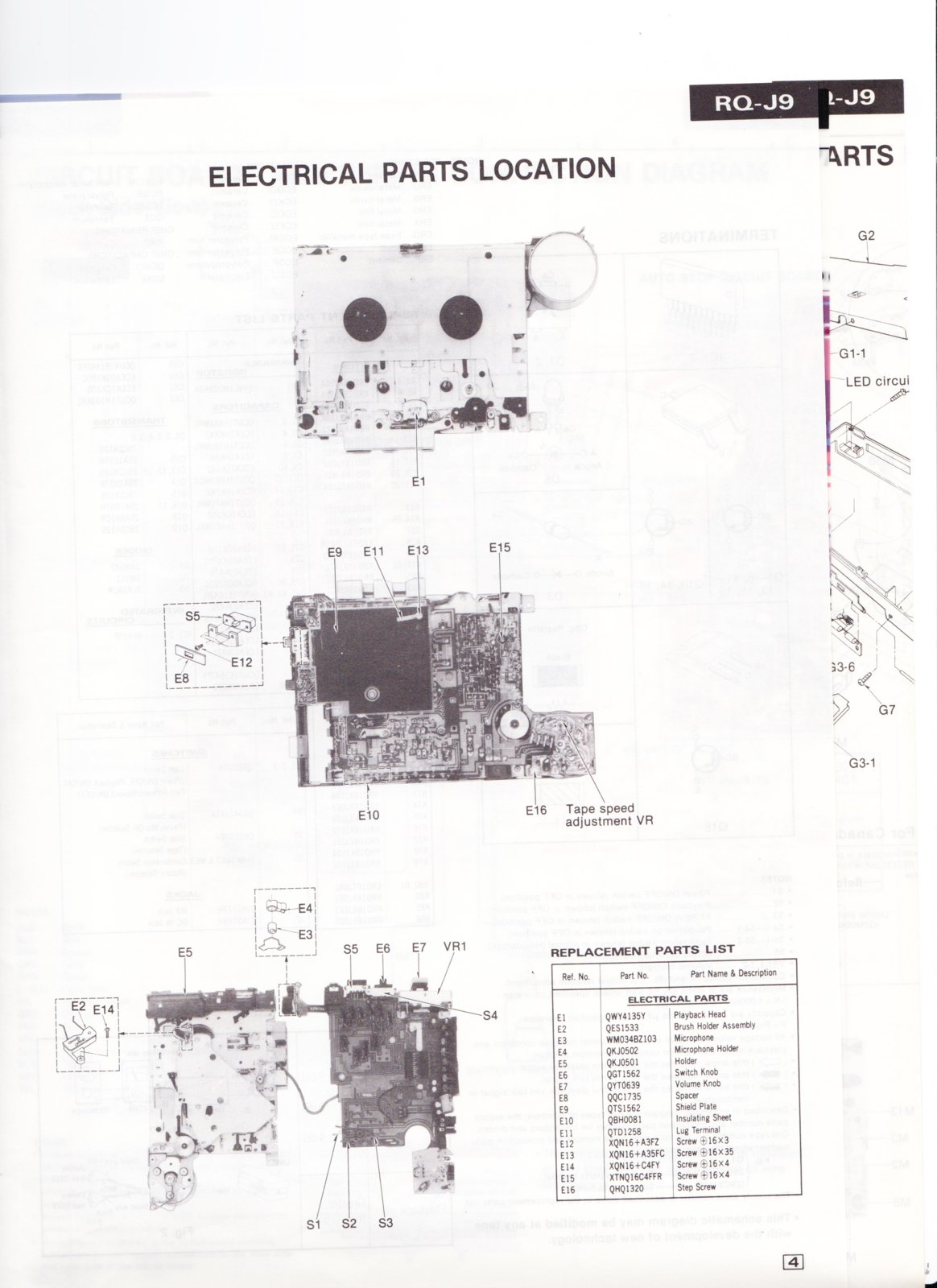

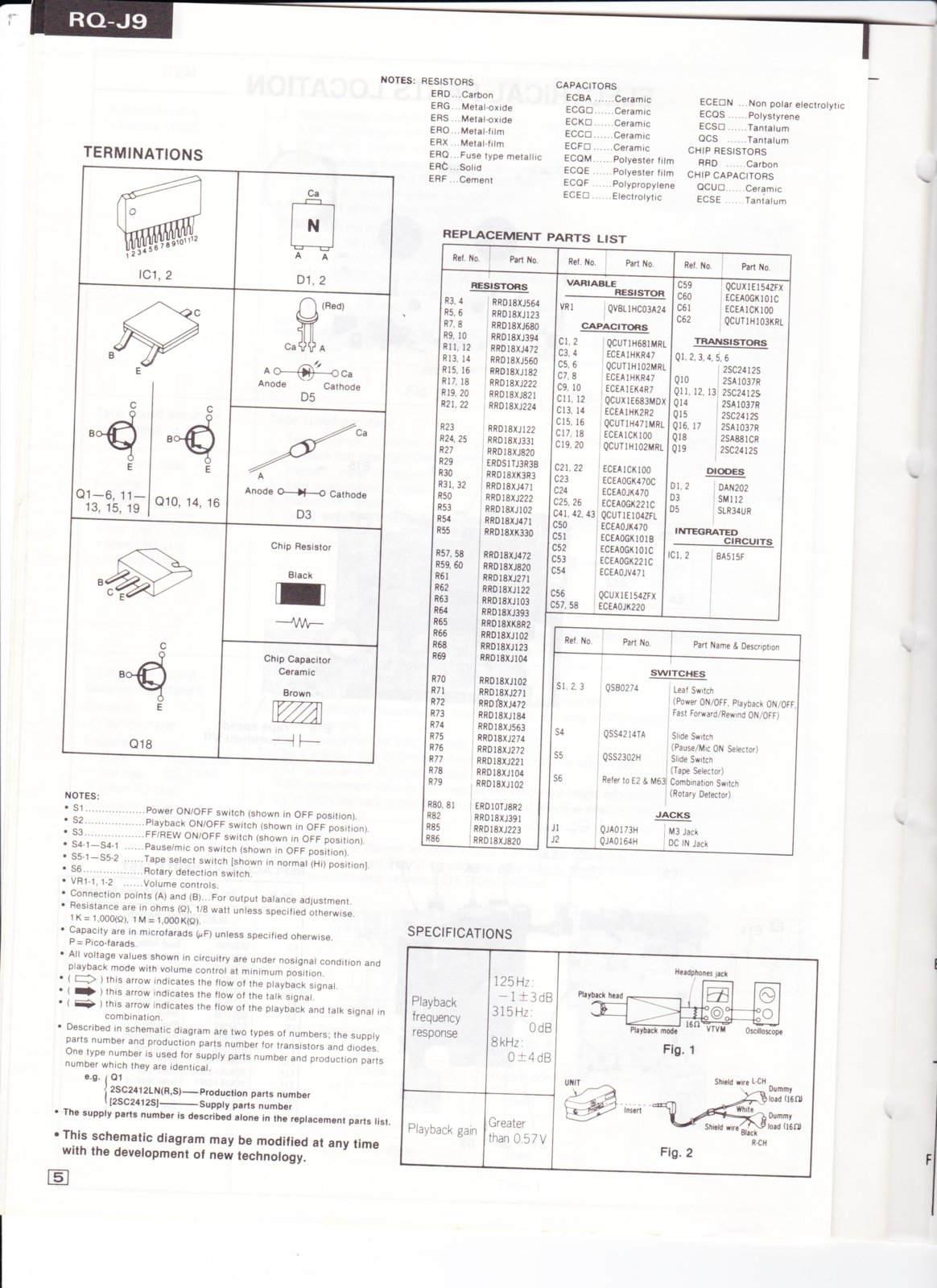

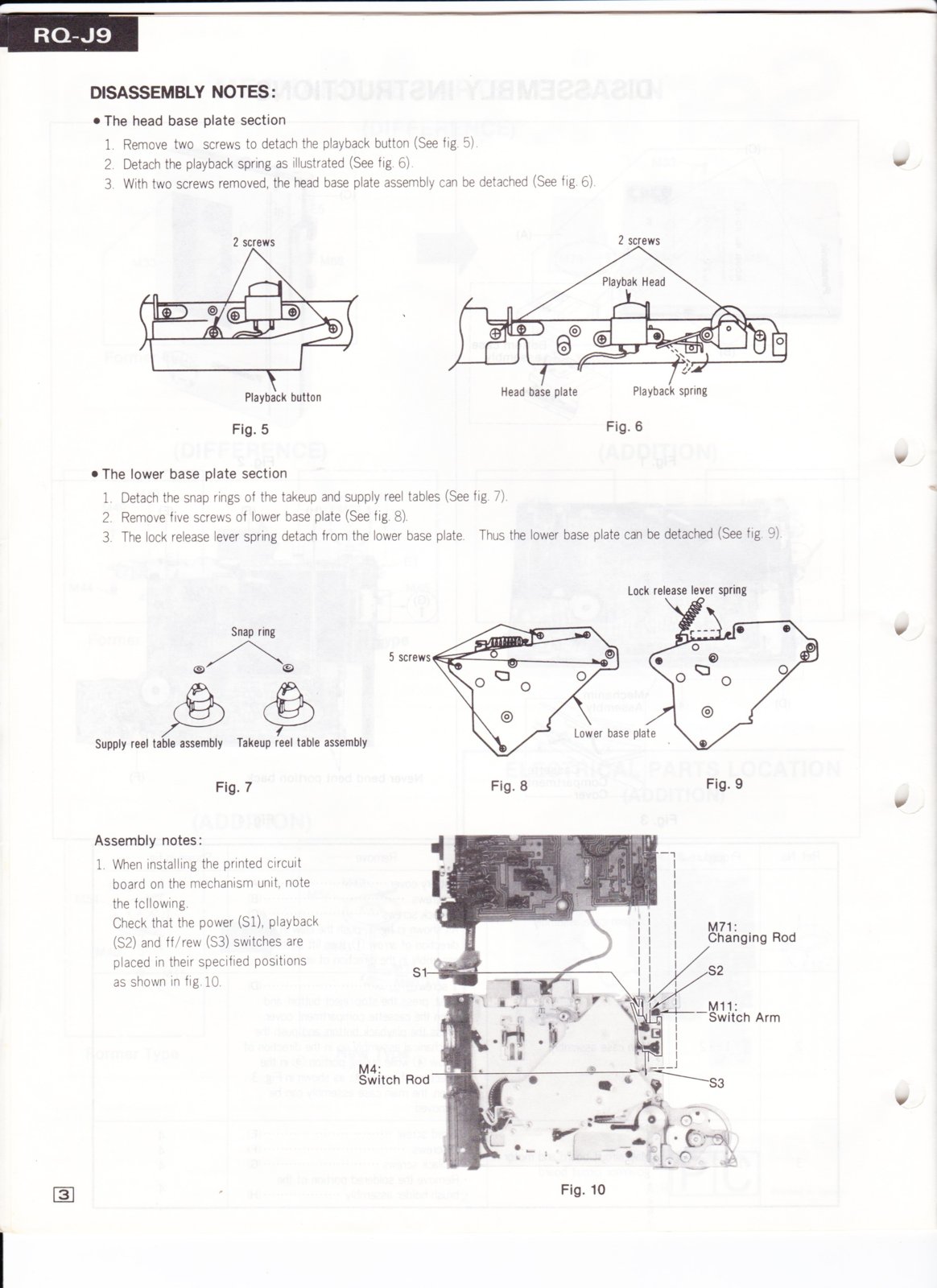

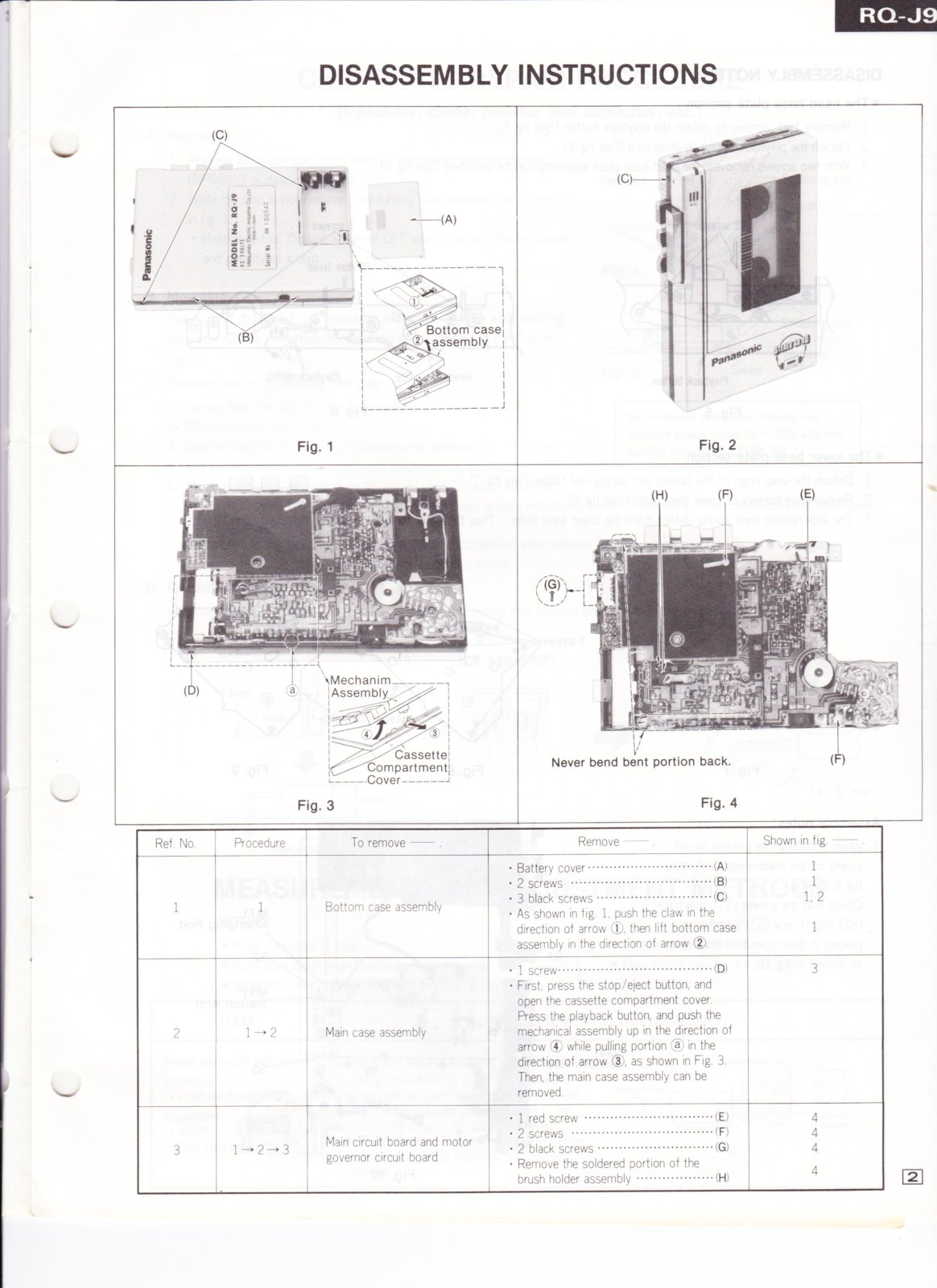

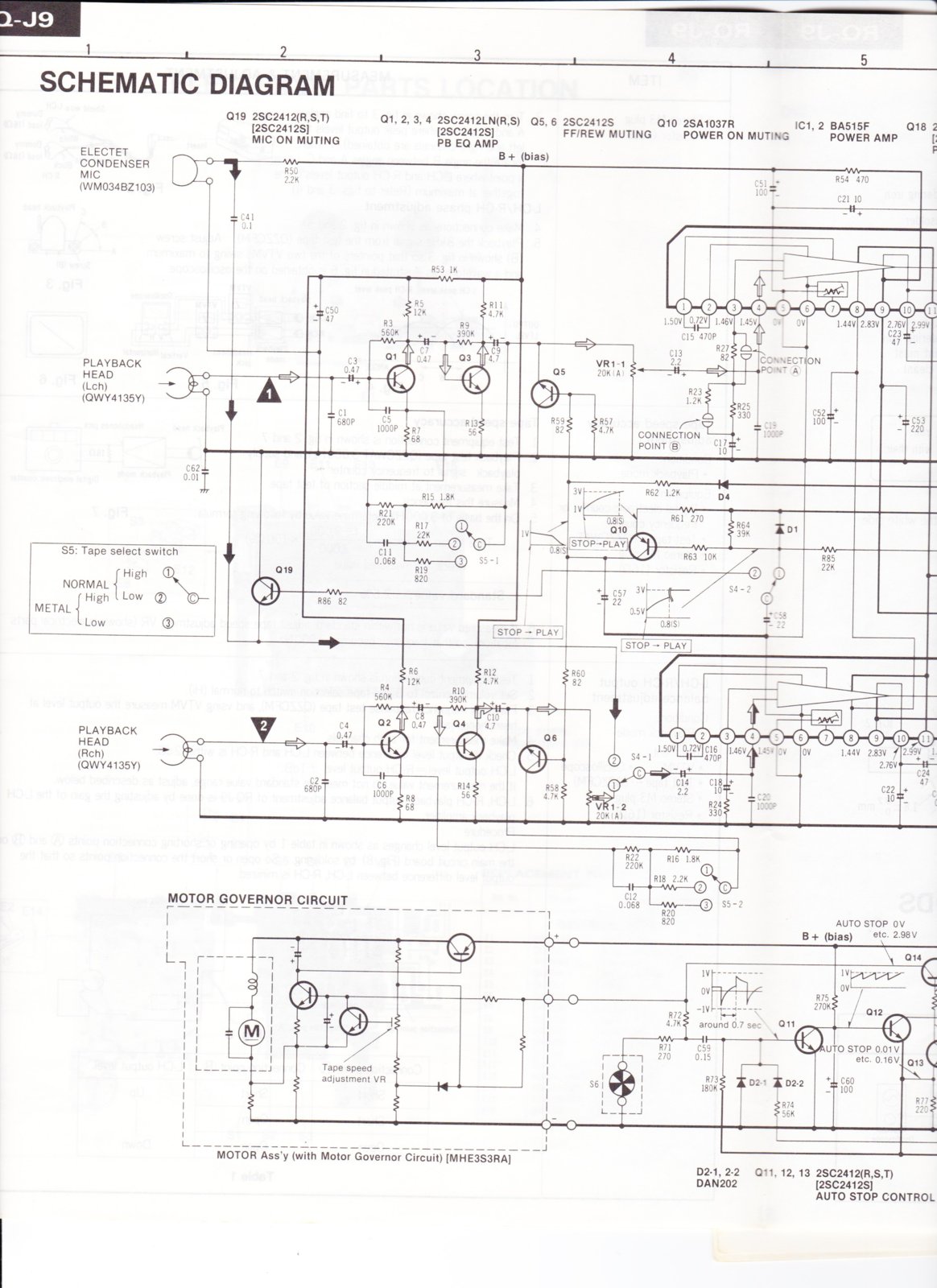

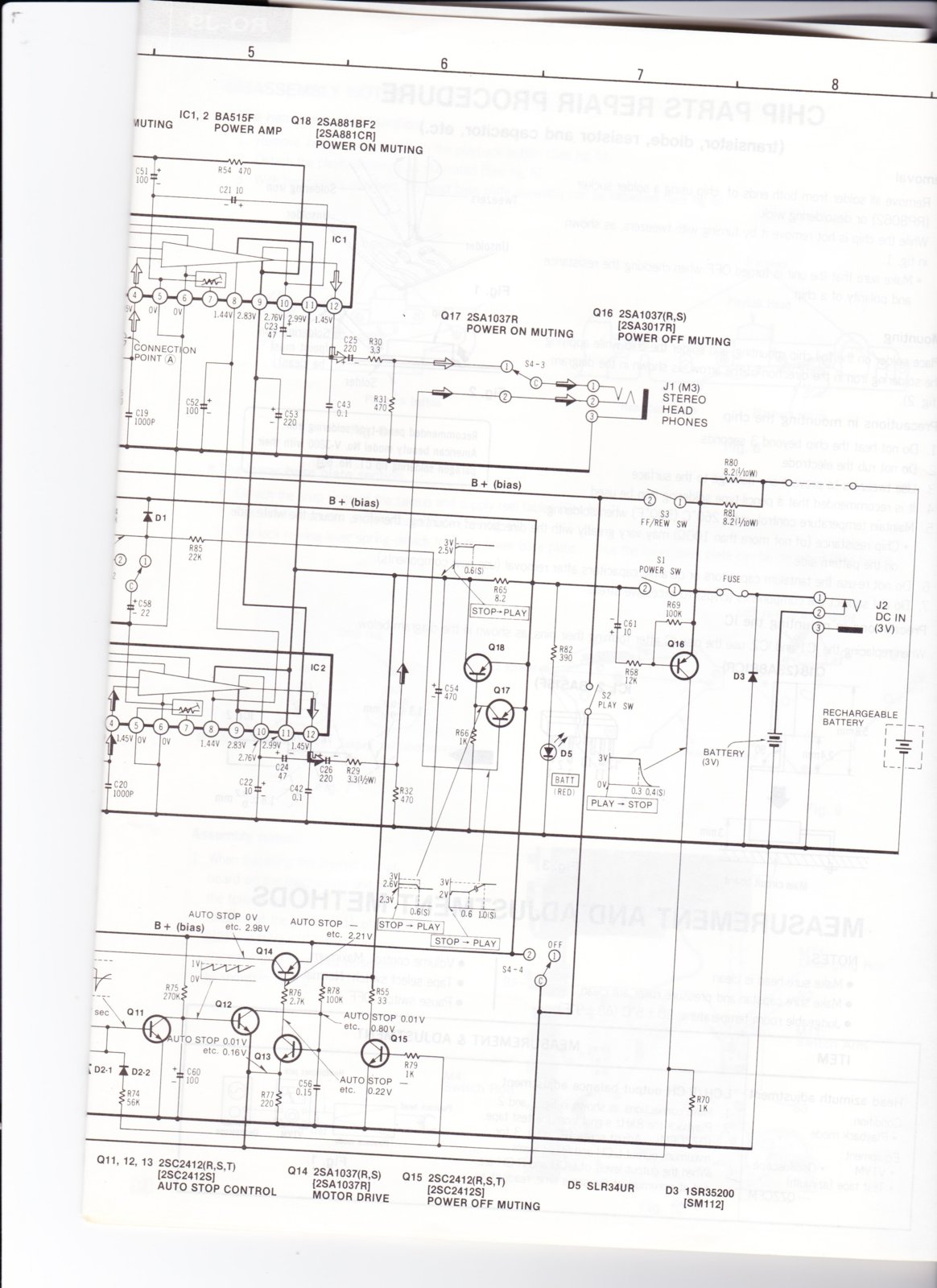

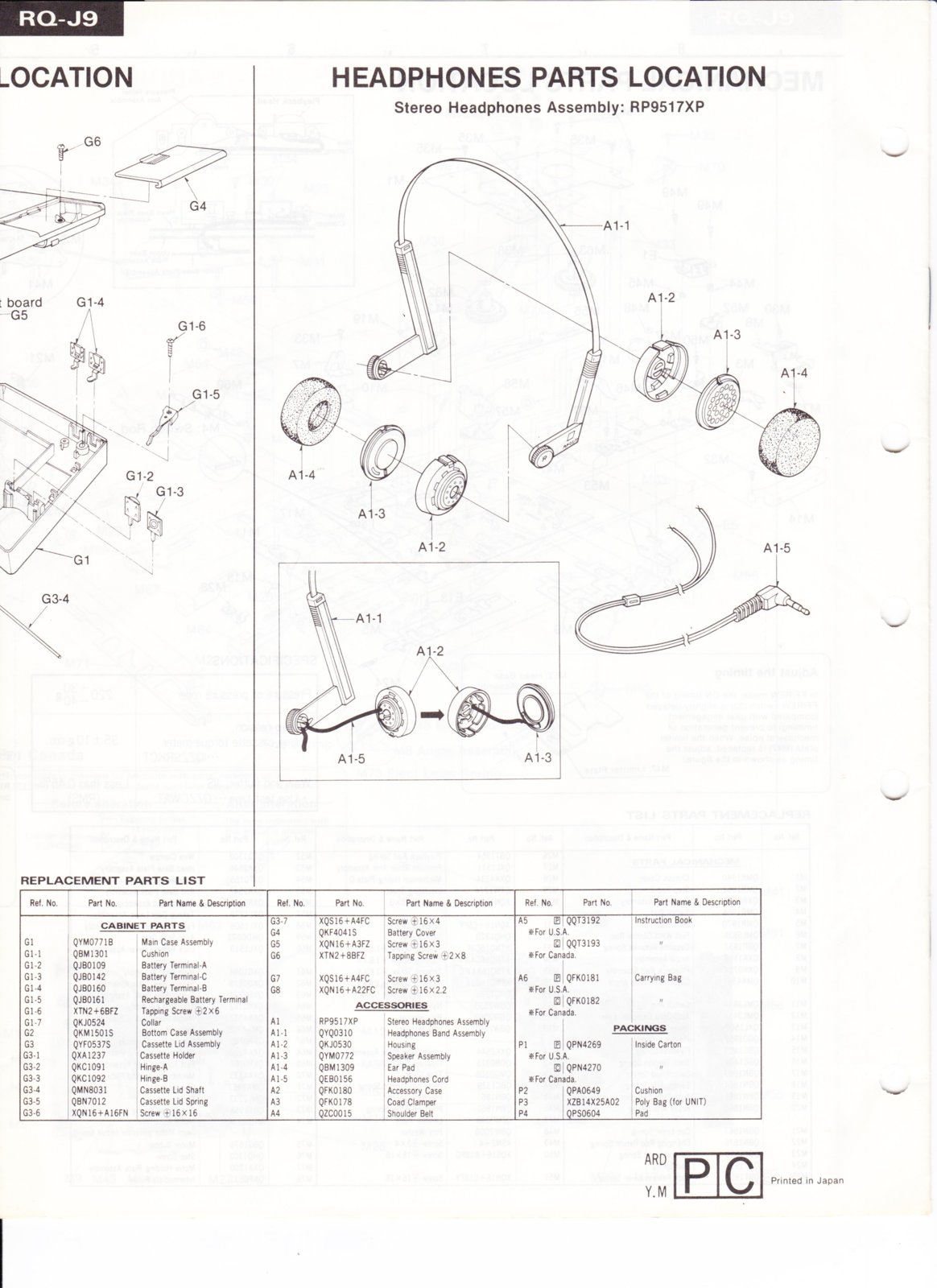

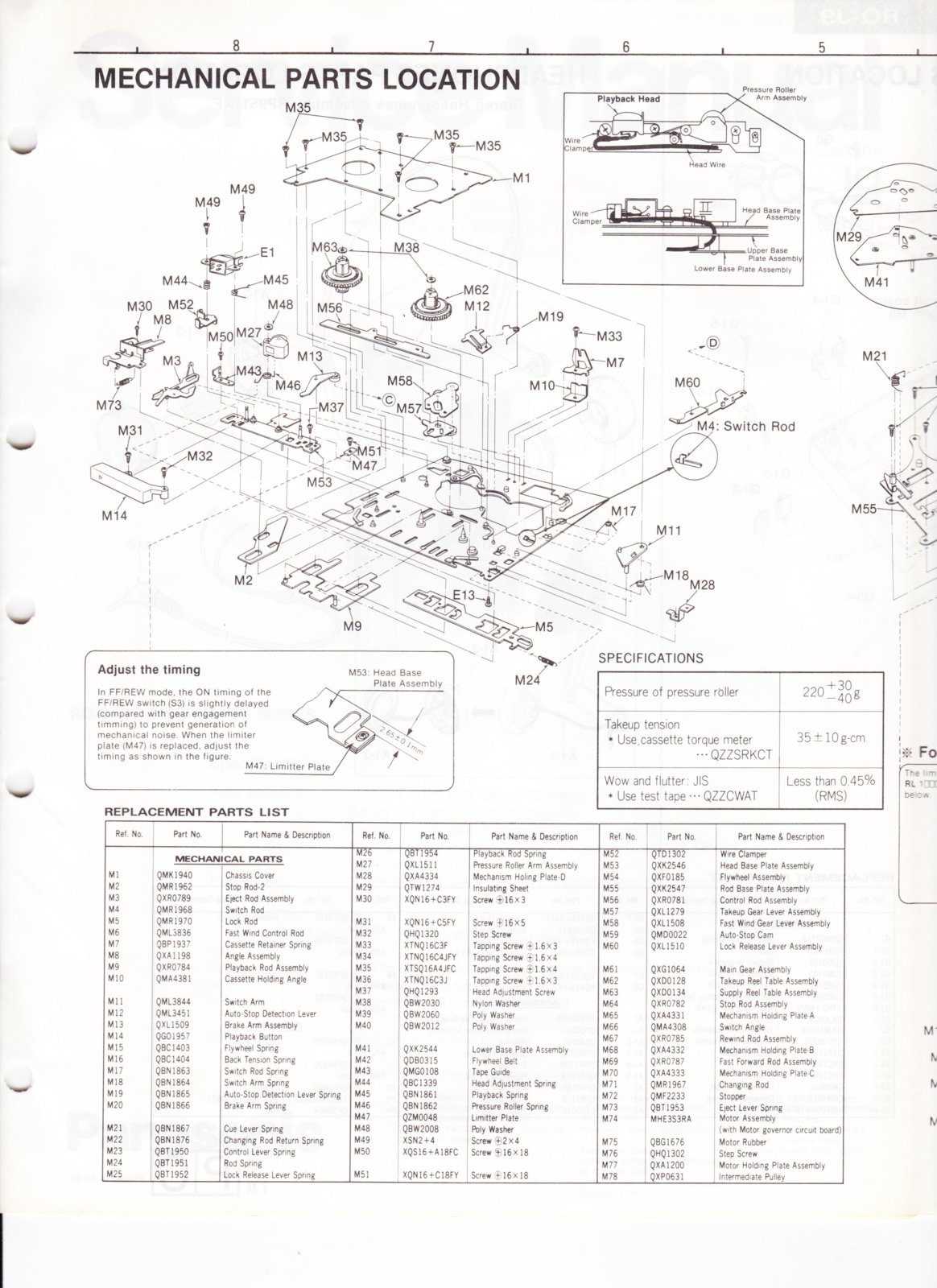

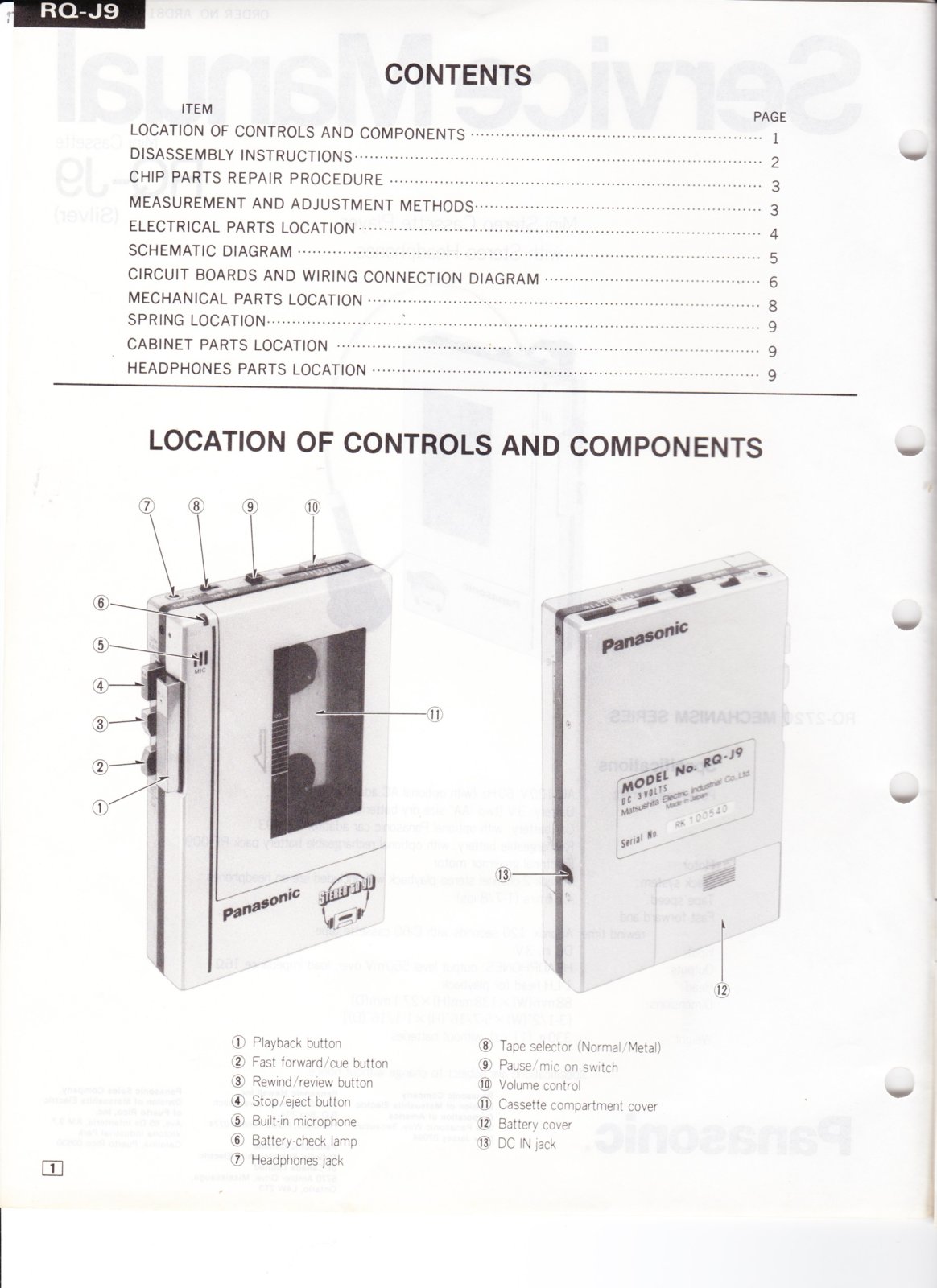

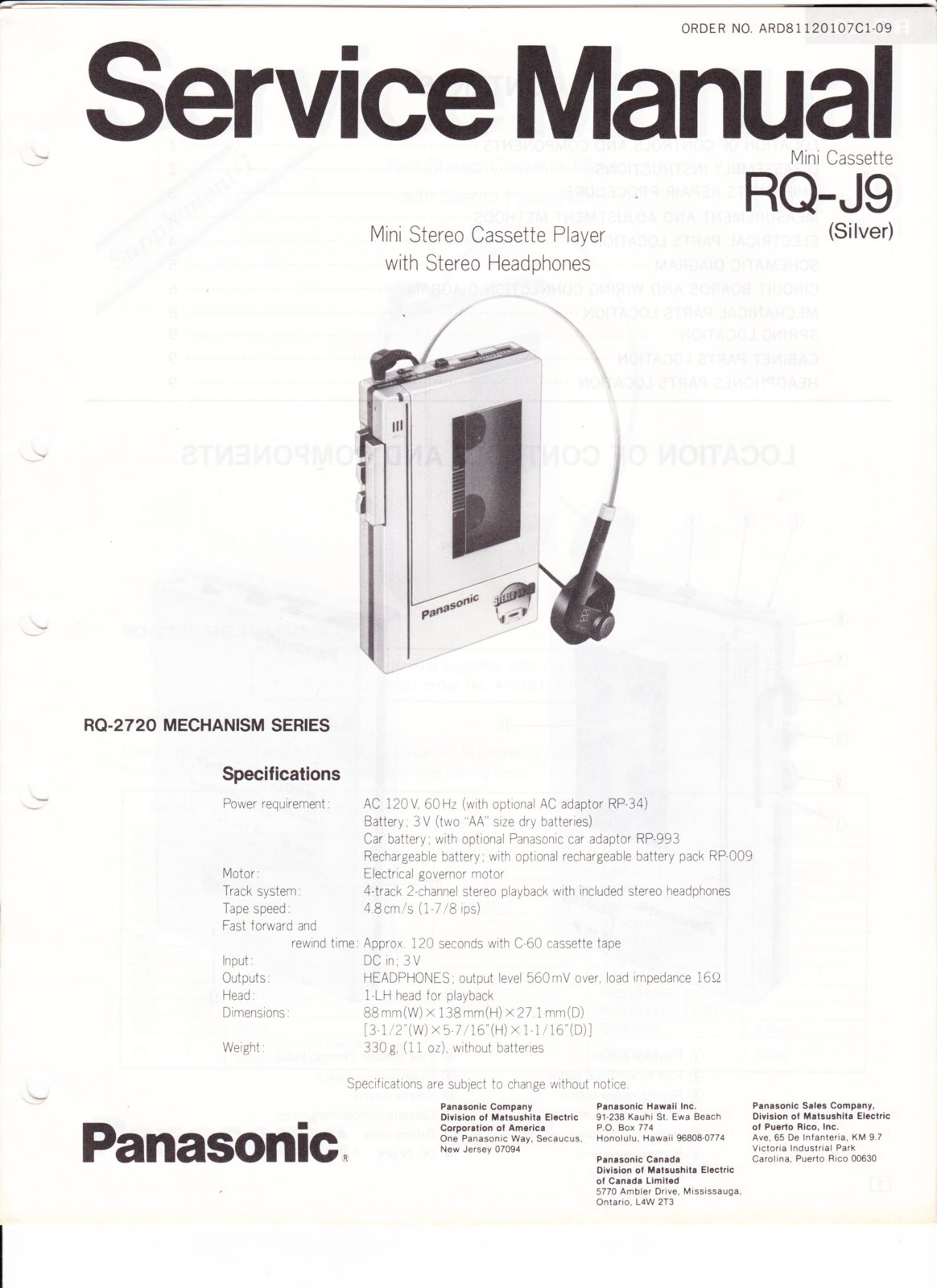

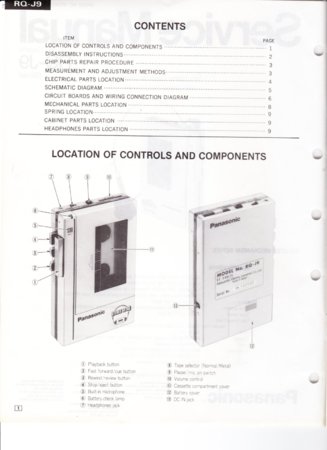

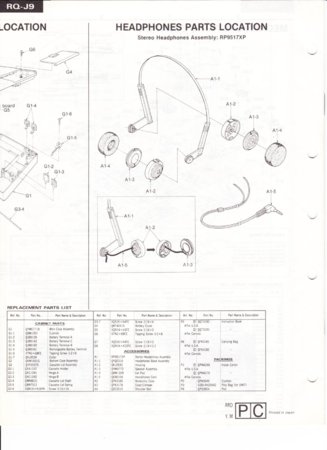

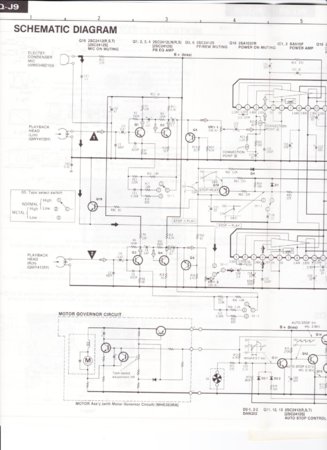

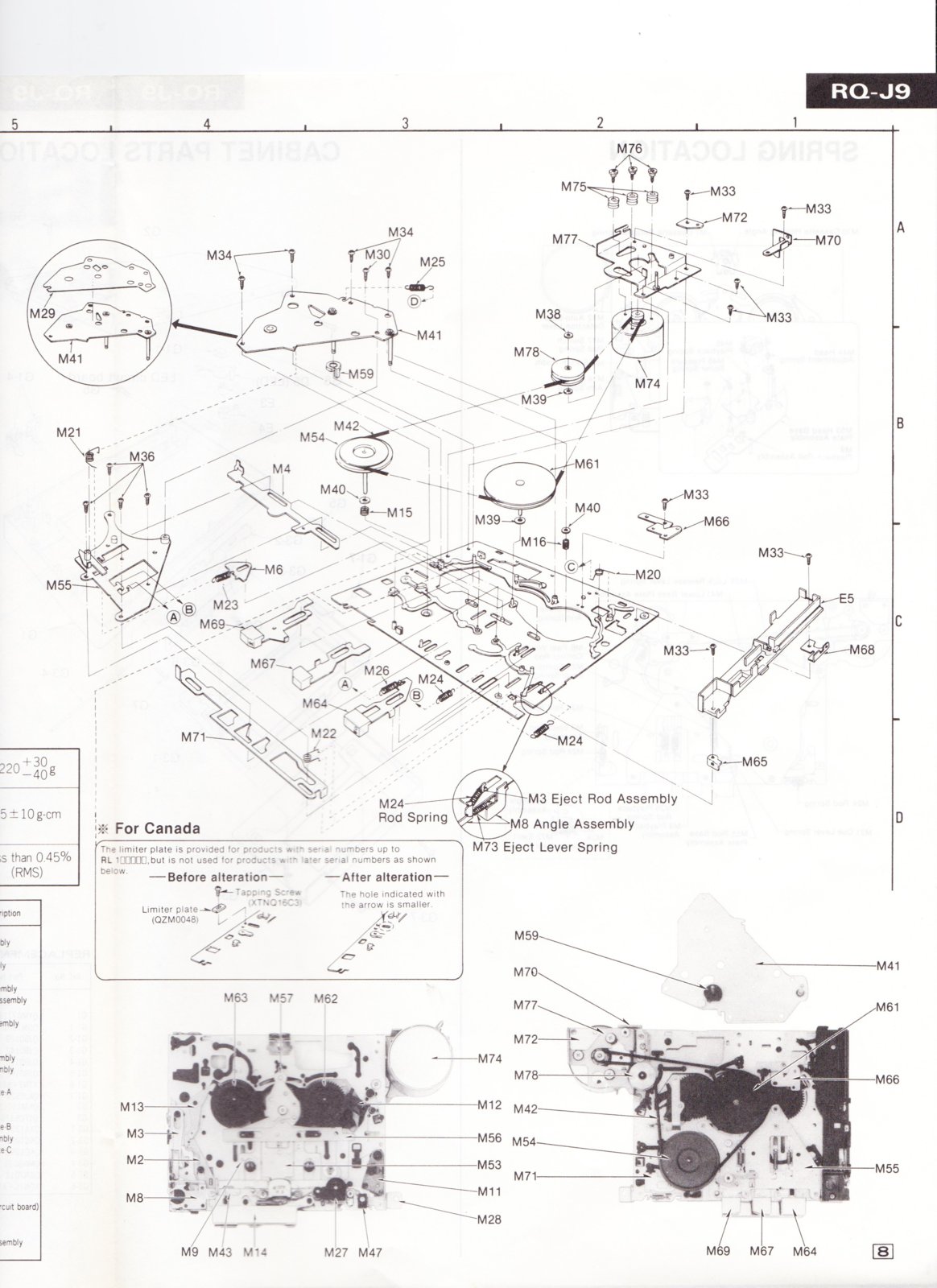

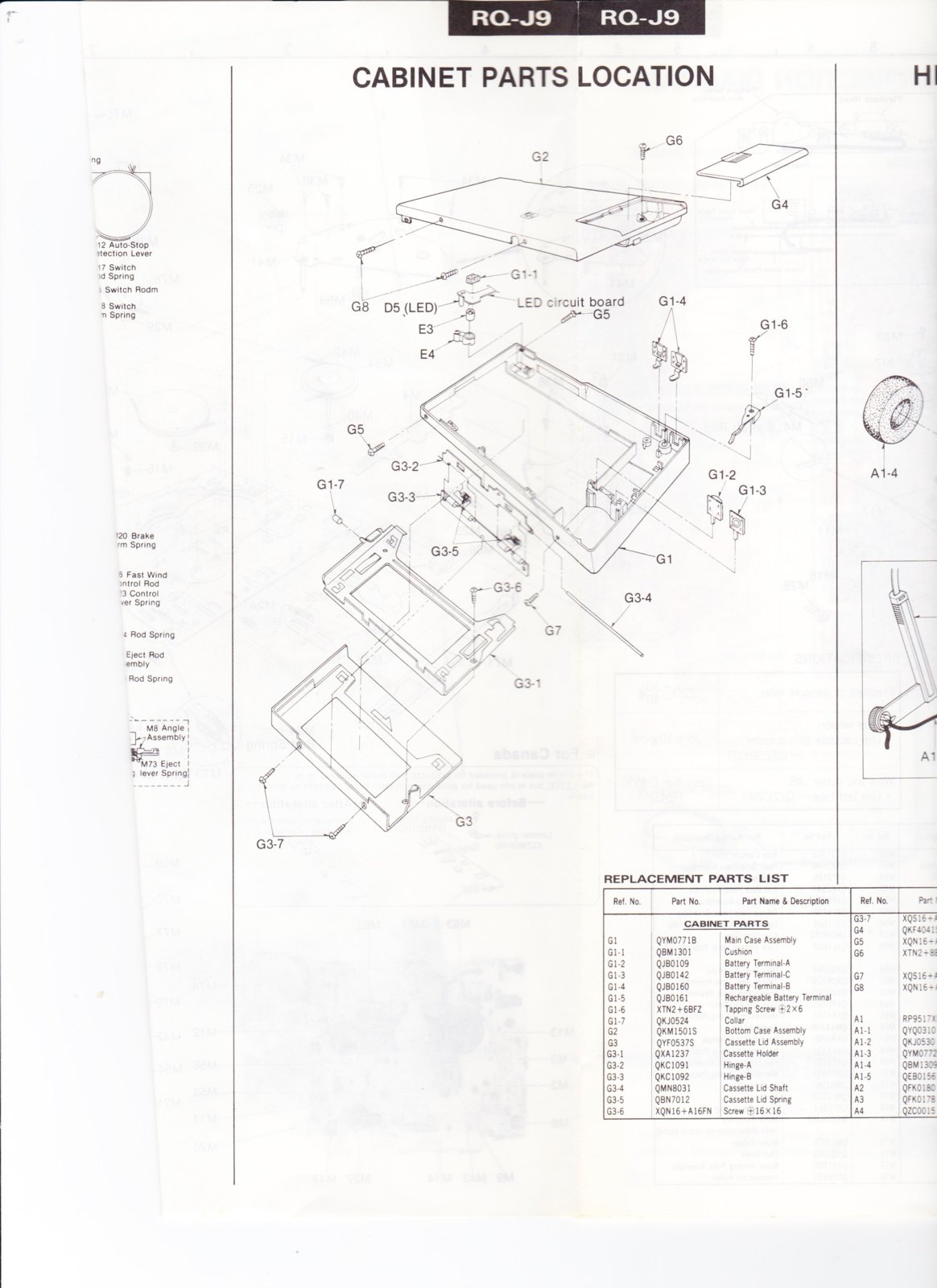

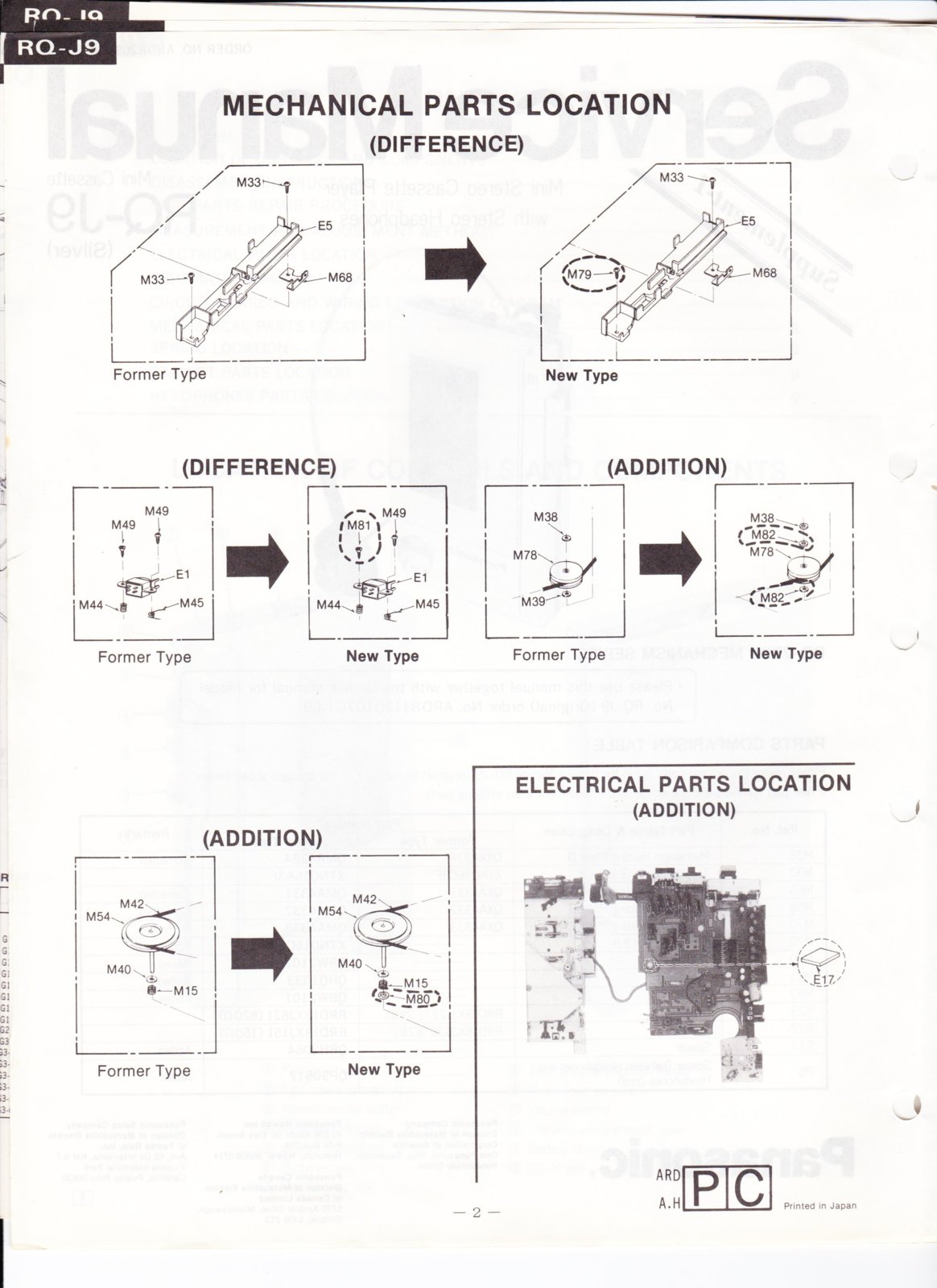

    Cover 001.jpg Page 1 001.jpg Page 2 001.jpg Page 3 001.jpg Page 4 001.jpg Page 5 001.jpg Page 6 001.jpg Page 7 001.jpg Page 8 001.jpg Page 9 001.jpg Page 10 001.jpg Page 11 001.jpg Page 12 001.jpg Page 13 001.jpg Page 14 001.jpg Schematic Diagram Part 1 001.jpg Schematic Diagram Part 2 001.jpg

    stuck-in-time likes this.
  5. stuck-in-time

    stuck-in-time Well-Known Member

    Messages:
    394
    Trophy Points:
    63
    Location:
    Jakarta, Indonesia
    Thank you! It's not always necessary, but it always feel more comfortable having a manual at hand. These are some very lovely units.
