Sony CFS-F10 gear needed.

Discussion in 'Tech talk' started by Recaptcha, Apr 21, 2023.

  1. Recaptcha

    Recaptcha Well-Known Member

    Messages:
    328
    Trophy Points:
    63
    Location:
    USA
    Hi everyone,

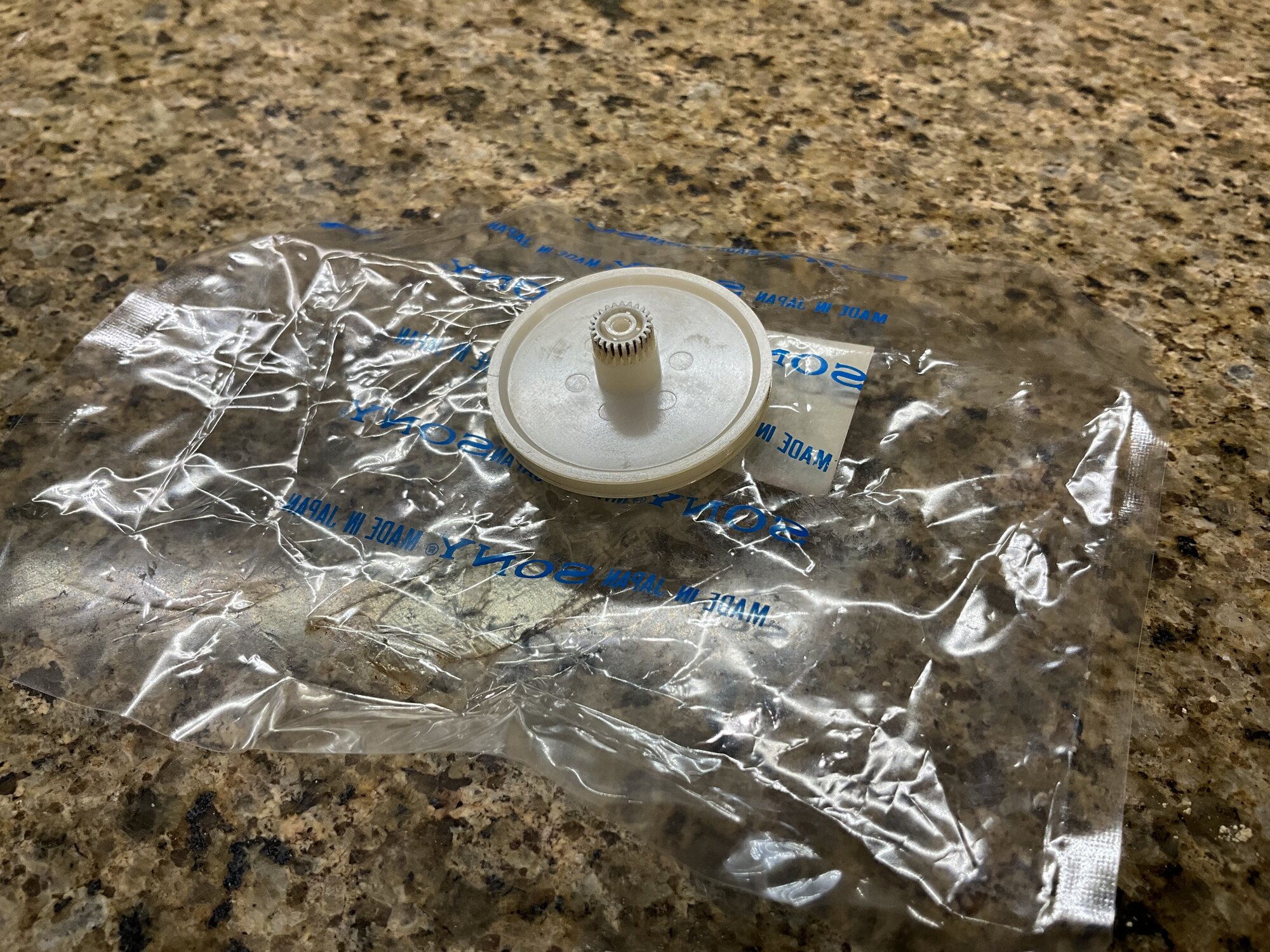

    so I purchased a nice Sony CFS-F10 from Japan recently. The unit arrived and works great, in its box and packaging. Only problem is, when playing a cassette, it makes a nasty ticking/grinding sound. This affects the speed of the cassette. Suspiciously, the unit came with this Sony service bag and gear in the box:

    373E8168-A421-41BA-8D5F-28254A62F555.jpeg 808A9FDE-FFD2-4763-87D1-53FA963CFAC4.jpeg

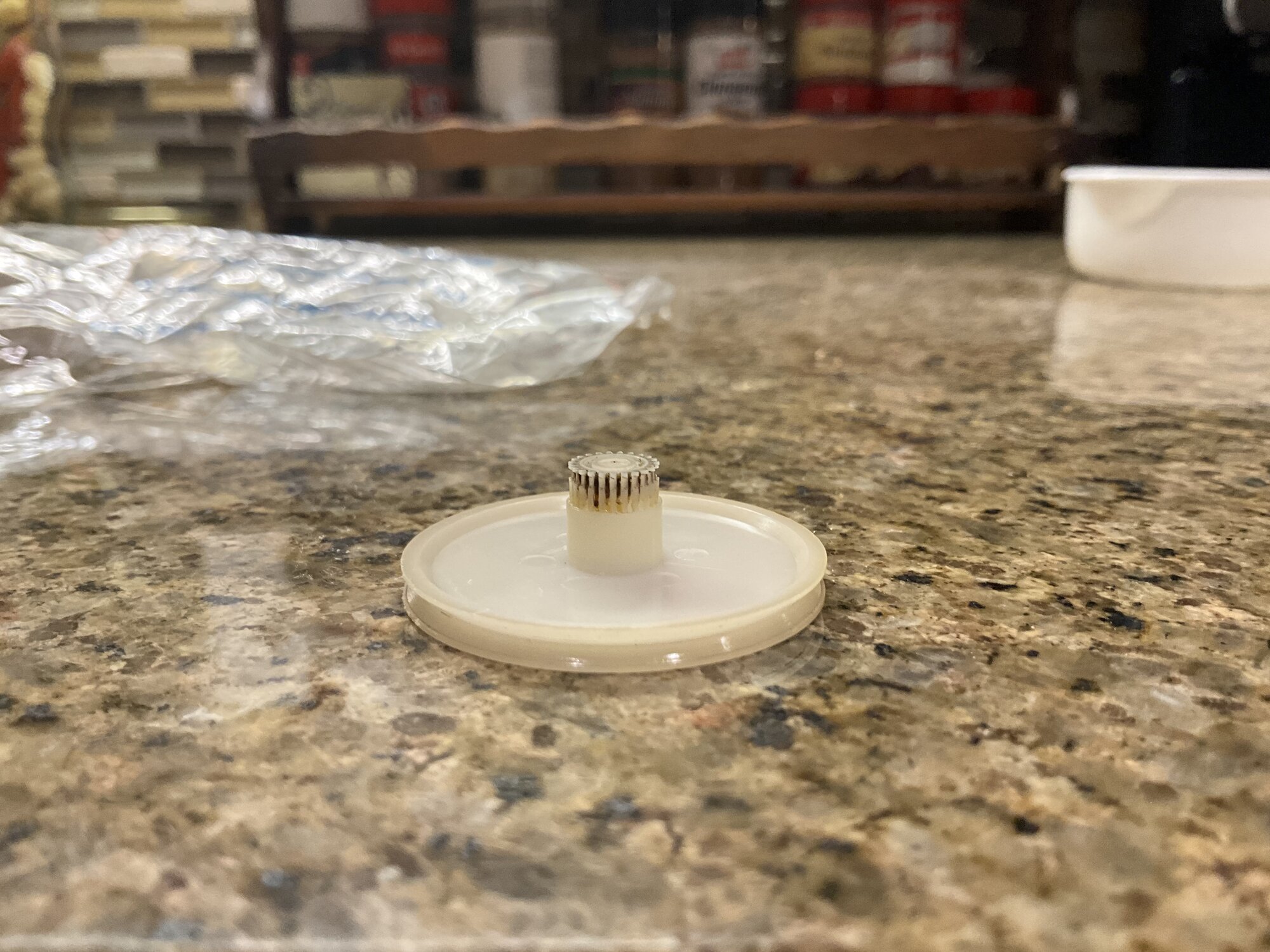

    This gear has a belt attached to one end, and the toothed end attaches to the take up reel. See the teeth are all wore down? I also have a sticker that says it was serviced and replaced in 1985. So this is the original gear from 1982. I took the unit apart and found the gear in it that was added in 1985 is wore down exactly the same way.

    I reached out to Marian from fixyouraudio, he said that a soft plastic was used, and that’s why it failed prematurely. There are 3 gears that sit around the toothed end of this gear, so the strain put on this part is higher than normal. He said to makes this part, he would need to order 1000pcs at least. So we cannot go that route.

    I am asking you guys, how can I get a replacement gear fabricated, there has to be someone out there who has done something like this before… any experience or knowledge is welcome and appreciated.

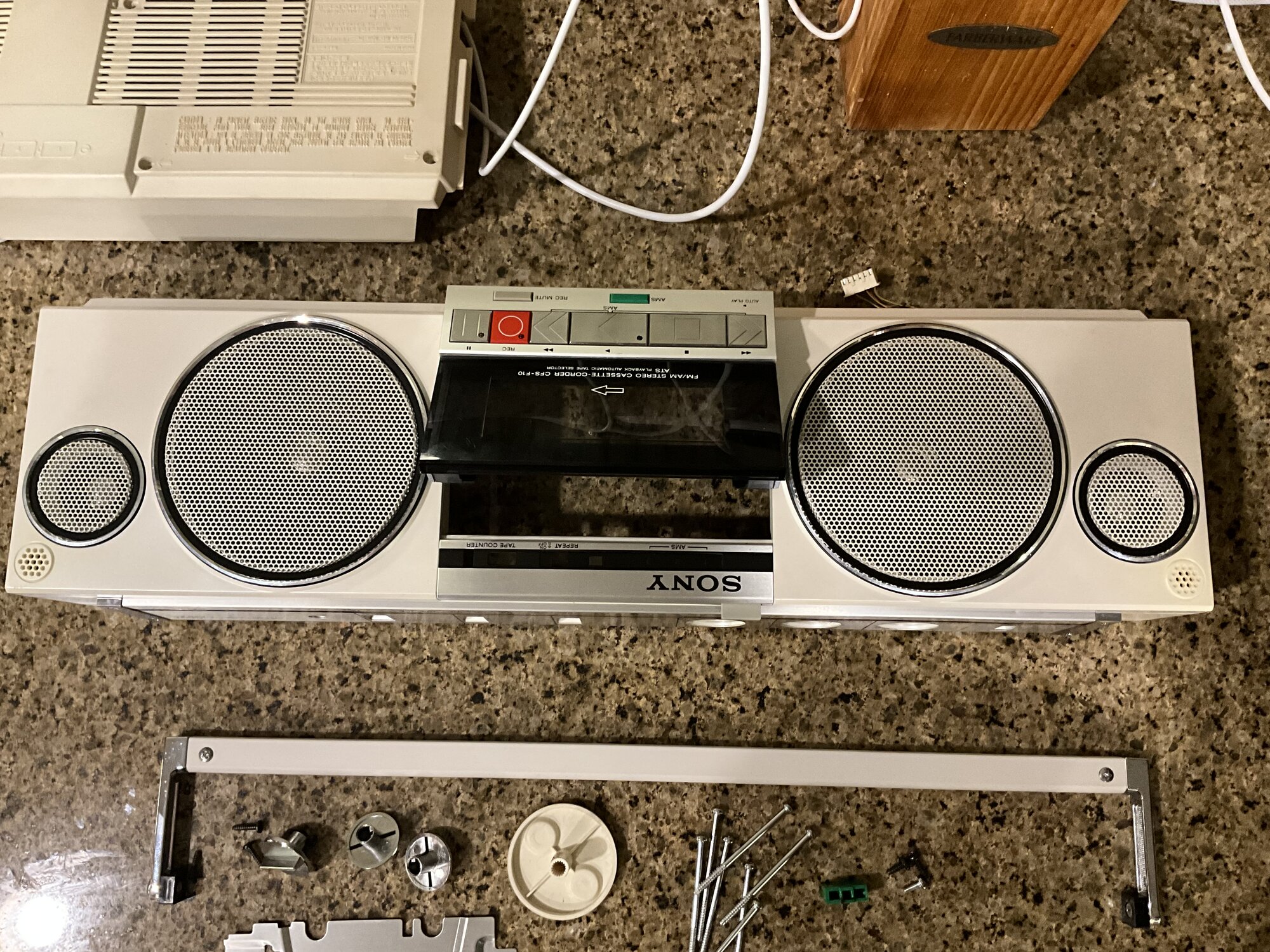

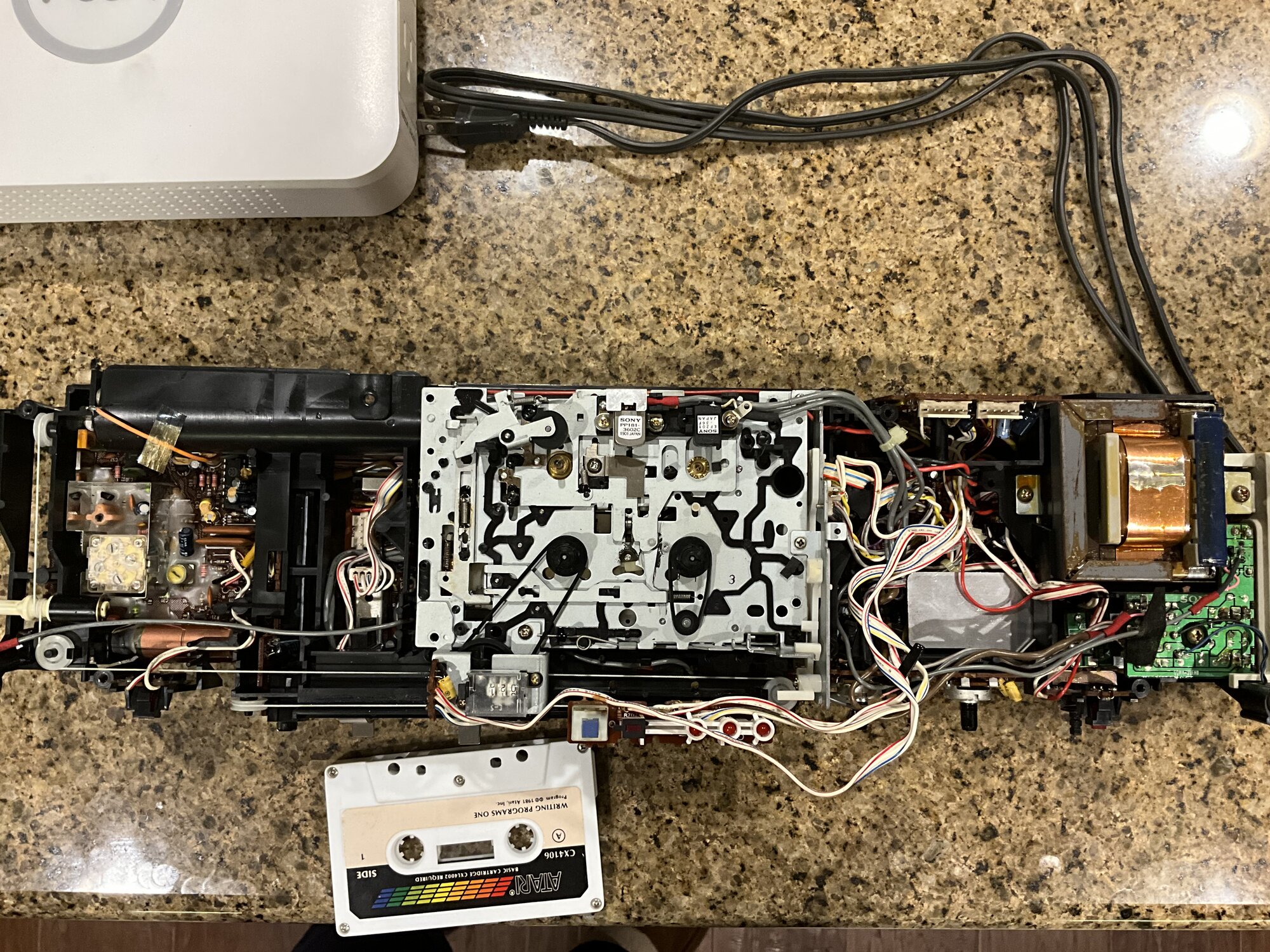

    pictures of unit:

    6D24ABE5-808B-481D-B400-D4ADBDF55A22.jpeg 97F72452-1F39-4057-B94A-3B0C1FD05A9C.jpeg


    Attached Files:

    Cassette2go and Silver965 like this.
  2. Recaptcha

    Recaptcha Well-Known Member

    Messages:
    328
    Trophy Points:
    63
    Location:
    USA
    Haven't forgotten about this project. What I've decided to do is reach out to 3D printing fab houses near me and quote a price on printing a gear. That might just work out.

    Cassette2go likes this.
  3. Silver965

    Silver965 Well-Known Member

    Messages:
    717
    Trophy Points:
    93
    Location:
    Torino
    this is very interesting for me ... I have a CFS-11s and I would like to understand if they have the same mechanics maybe with some photos I can compare them

    Recaptcha and Cassette2go like this.
  4. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    1,553
    Trophy Points:
    113
    Location:
    Dallas Texas USA
    Six more days untill I can devote my full time to repairing these models and I have both the cfs-10 and I made several videos about and gave up on the blue
    Sony CFS-F10 Repair new belt Pictures take up reel issues 5 April 2023 and I have a Red cfs-11 which I plan to repair soon. Meanwhile I am selling other things I have, via youtube.

    Recaptcha and Silver965 like this.
  5. Silver965

    Silver965 Well-Known Member

    Messages:
    717
    Trophy Points:
    93
    Location:
    Torino
    thanks for this post...

  6. Recaptcha

    Recaptcha Well-Known Member

    Messages:
    328
    Trophy Points:
    63
    Location:
    USA
    These videos were very useful in helping me take mine apart! Looks like you are having a different issue with mine, as mine now works fine, with just a clattery sound, but I cannot understand why the gear on yours is ok??

    Last edited: Aug 16, 2023
  7. Recaptcha

    Recaptcha Well-Known Member

    Messages:
    328
    Trophy Points:
    63
    Location:
    USA
    That's a good idea, I know the feature set of both is pratically the same (the F11 adds autoreverse). Sadly, the mechanism looks very different. Check out this video on the F11:

    Sony CFS-F11 ремонт - YouTube

    Last edited: Aug 16, 2023
