Sony ICF-SW100E Radio find

Discussion in 'Gallery' started by T-ster, Dec 9, 2016.

  1. T-ster

    T-ster Moderator Staff Member S2G Supporter

    Messages:
    1,465
    Trophy Points:
    113
    Location:
    England

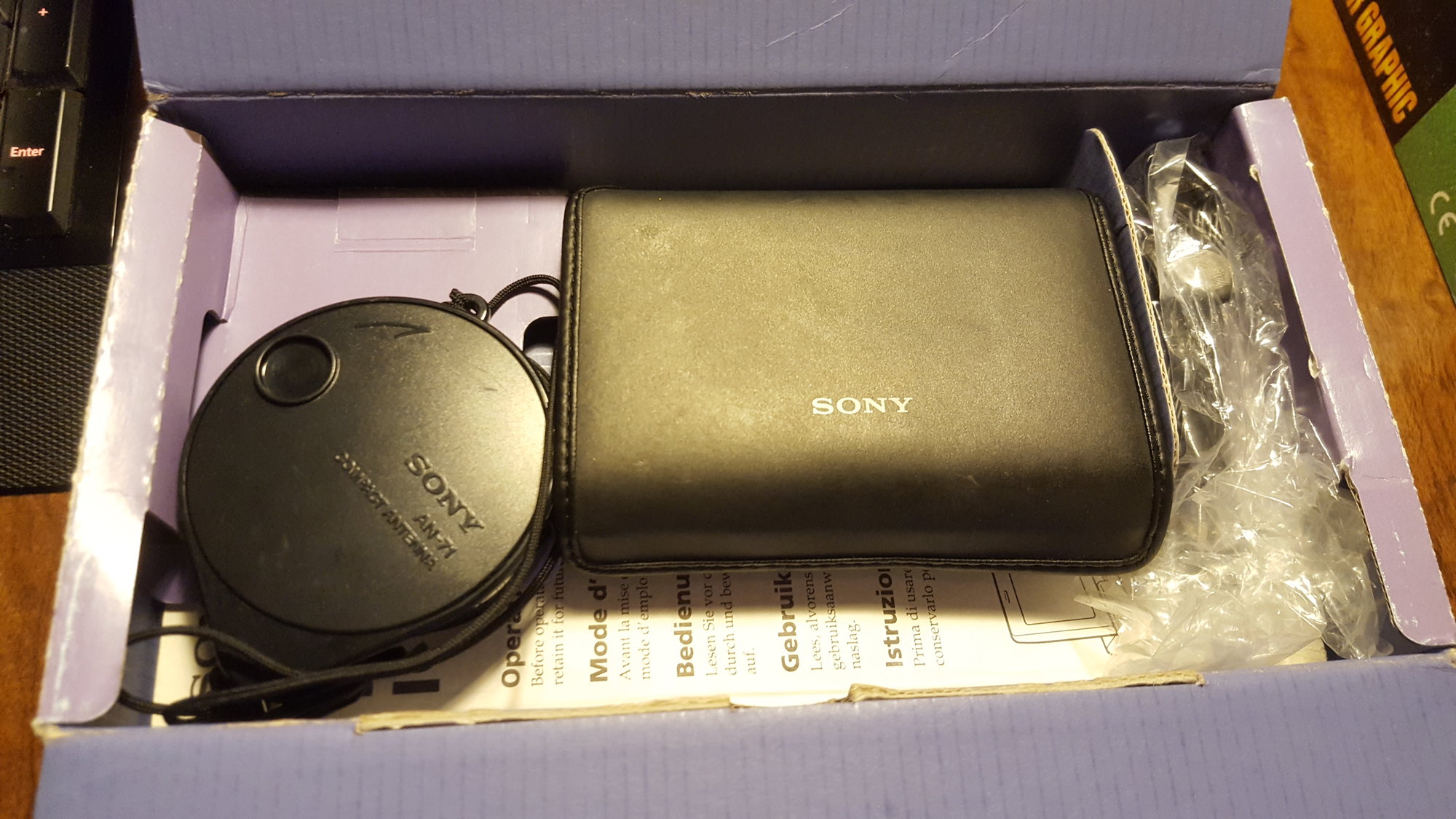

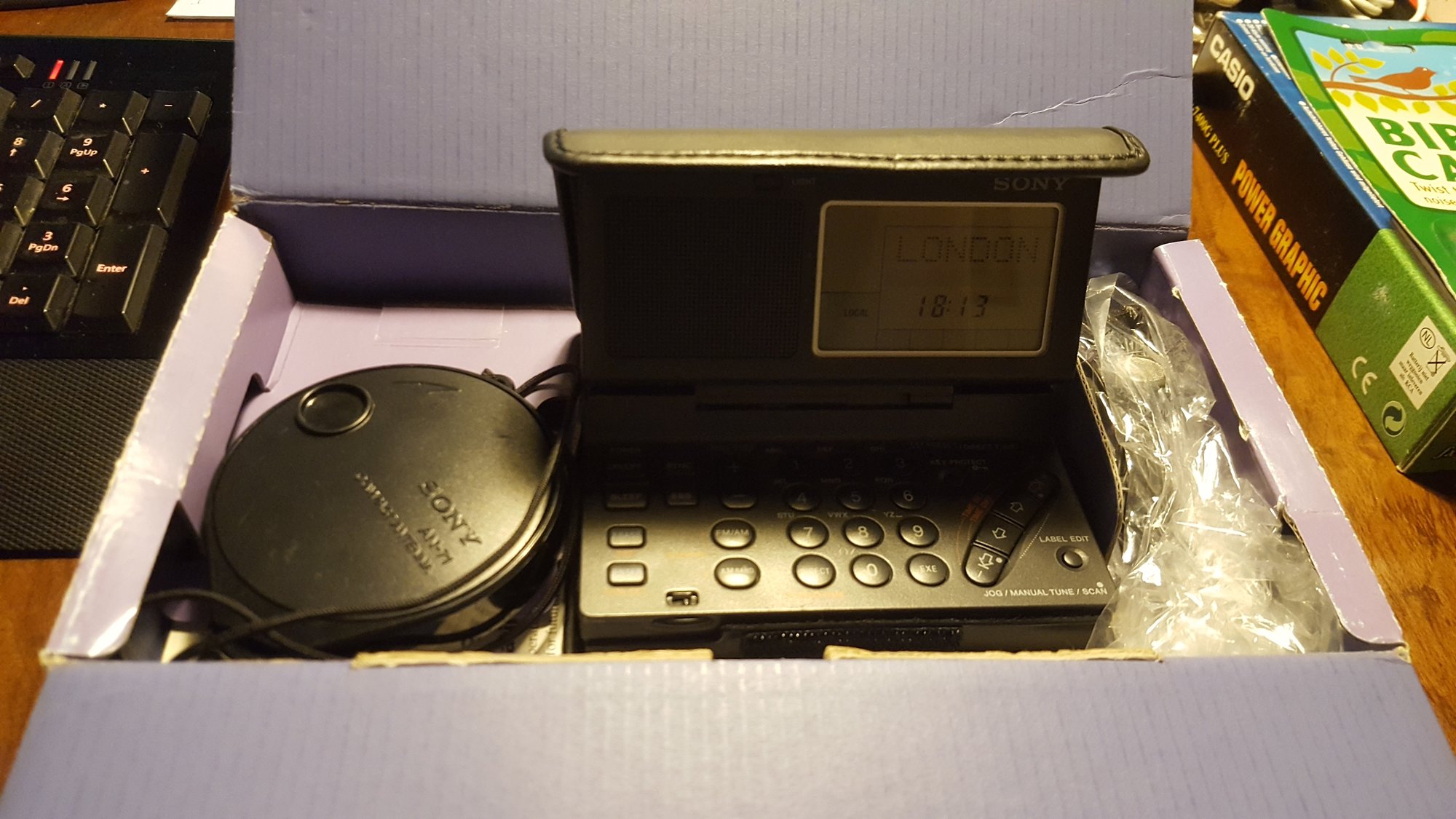

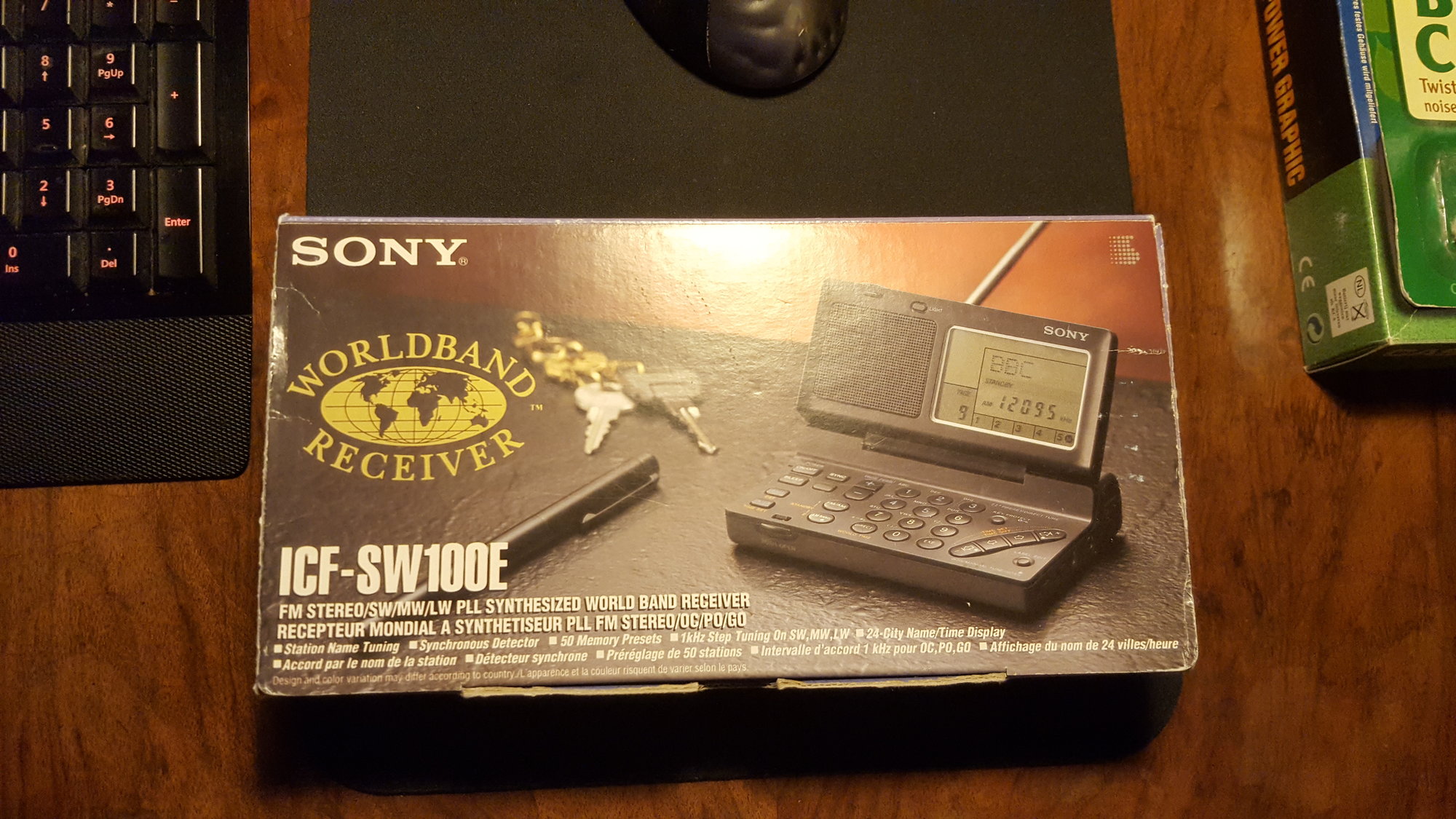

    Not a boombox but still a find i was very happy with, in its box with unused headphones, brochure, SW and World Radio book, aerial and case. Nice!

    20161209_181356.jpg 20161209_181420.jpg

    Mister X and retro like this.
  2. Mystic Traveller

    Mystic Traveller Well-Known Member

    Messages:
    1,830
    Trophy Points:
    113
    Location:
    St. Petersburg, Russia - Oxford, GB
    Wow, a nice Sony Worldwide radio, do like it! :nodding:

  3. Longman

    Longman Well-Known Member S2G Supporter

    Messages:
    3,882
    Trophy Points:
    113
    Location:
    Bournemouth UK
    I can't make it out in the photo, but be careful with the flexi cable which goes through the hinge.
    Sony actually modified the design as the original one bent the cable so much it would quickly fail.

    http://www.tesp.com/SW100FAQ.htm

    http://www.hccc.org.uk/sonyicfrepair.html

    I have one of the originals but modified the case (in a similar manner to the second link) so it was like
    the revised version which had far more space for the cables to pass through

    Amazing that the SW100E was introduced over twenty years ago. I don't think Sony even make Shortwave radios
    any longer although you might find a new old stock ICF SW7600GR.

    T-ster likes this.
  4. T-ster

    T-ster Moderator Staff Member S2G Supporter

    Messages:
    1,465
    Trophy Points:
    113
    Location:
    England
    Longman thats some great information thanks, i wonder if there is a way of telling which version i have?

    It seems an easy mod but to be honest i'm not sure I'll keep hold of it so I may not do it. I'll save the page in case i change my mind though. Its a bloody nice radio for something so small and it tunes impecably.

  5. Deliverance

    Deliverance Active Member

    Messages:
    370
    Trophy Points:
    43
    Location:
    United Kingdom.
    Another nice find I did the mod on the ribbon over a decade ago . The ribbons plagued a few Sonys.

    Last edited: Dec 11, 2016
  6. Longman

    Longman Well-Known Member S2G Supporter

    Messages:
    3,882
    Trophy Points:
    113
    Location:
    Bournemouth UK
    The later version had a noticeable slot below the display where the ribbon cables pass through.
    Have a look at the photo on RadioMuseum

    http://www.radiomuseum.org/r/sony_icf_sw100_icfsw100.html

    The slot means that the ribbon cable can bend over a much larger bend radius when the lid is shut.

  7. T-ster

    T-ster Moderator Staff Member S2G Supporter

    Messages:
    1,465
    Trophy Points:
    113
    Location:
    England
    Ah thats good news then as i have the later one :cool: Very useful info thanks man
