    Hello there!

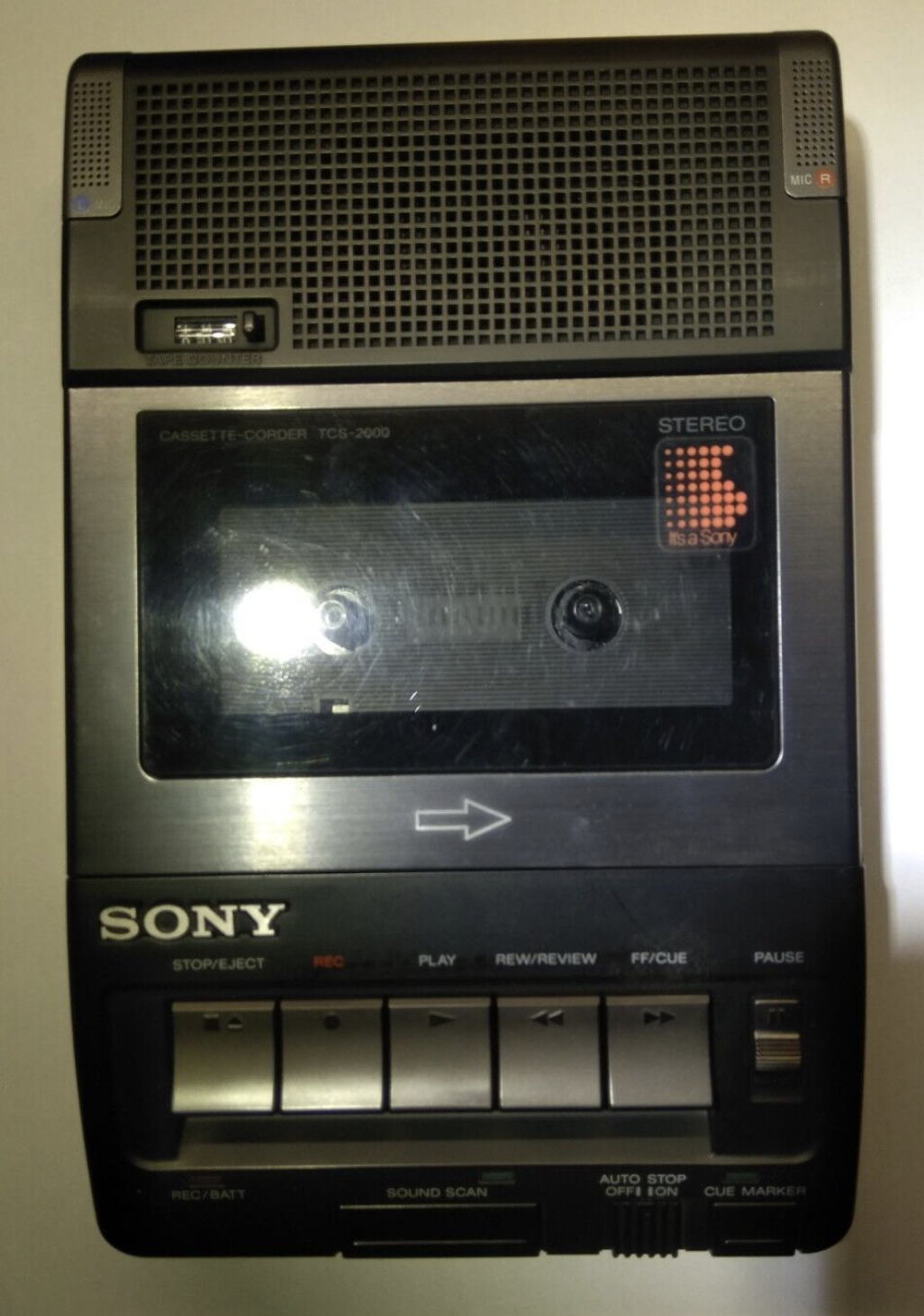

    I recently acquired a Sony TCS2000 in great cosmetic condition, but unfortunately, it doesn’t work.

    Screenshot 2025-02-28 at 13.24.02.png

    I took it apart and found that it has four rubber belts—all of them completely gone . It looks like one or two (the easiest ones to access) were replaced at some point, so I’m not even sure what the originals were like.

    Does anyone know which belts this model uses or where to find replacements? I haven’t been able to find much information on this model.

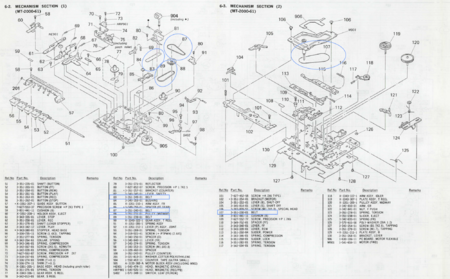

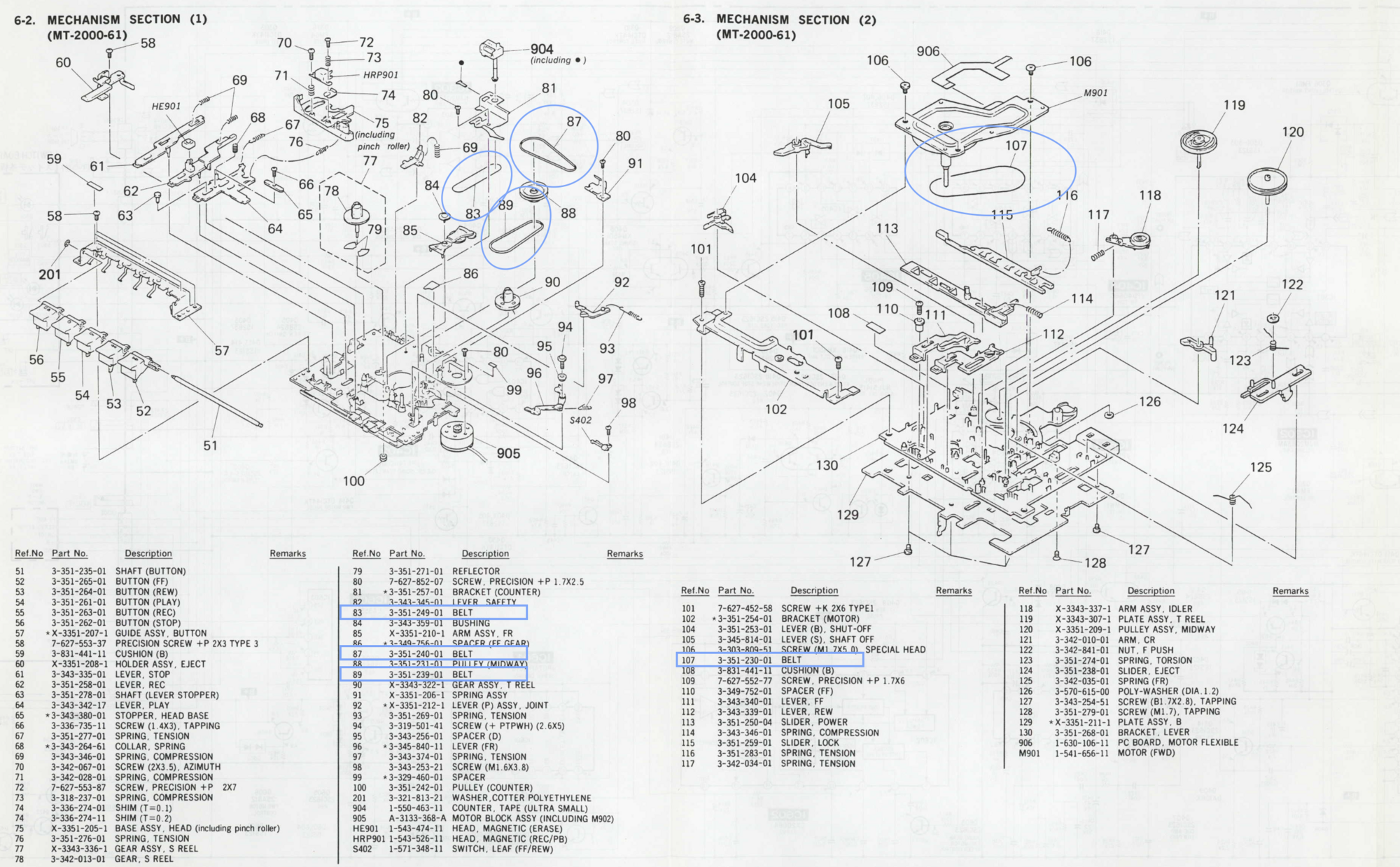

    According to the service manual, the belt part numbers are:

    Ref number: 83
    Part number: 3-351-249-01

    Ref number: 87
    Part number: 3-351-240-01

    Ref number: 89
    Part number: 3-351-239-01

    Ref number: 107
    Part number: 3-351-230-01


    Screenshot 2025-02-28 at 13.18.31.png
