wires for walkmans

Discussion in 'Tech talk' started by Boodokhan, Dec 19, 2016.

  1. Boodokhan

    Boodokhan Well-Known Member

    Messages:
    2,461
    Trophy Points:
    113
    Location:
    California
    I need to buy some wires used in Walkmans. Sometime when i work on a Walkman, accidentally or by ignorance :D pull some wires and when i strip end of the wire to solder it back cannot make it since the wire is not long enough.
    What is the technical specification of the wire used in walkmans?
    Can you please place a link to buy it from Amazon or somewhere else
    Thank you

  2. mrp32Dave

    mrp32Dave Well-Known Member

    Messages:
    276
    Trophy Points:
    63
    Location:
    United Kingdom
    I know what mean about these fine wires breaking off, I don't buy wire so can't help with that. I take wires from old USB or joystick cables these have nice fines wires in them with enough colours to match the originals, hope this helps.

  3. Boodokhan

    Boodokhan Well-Known Member

    Messages:
    2,461
    Trophy Points:
    113
    Location:
    California
    thanks and What i do usually is to use telephone or Ethernet wires. Once i strip the Ethernet cable there are some thin wires inside. But the problem i find with these wires are not as flexible as original walkman wires.

  4. bub

    bub Active Member

    Messages:
    259
    Trophy Points:
    43
    Location:
    Singapore
    My recent source for tiny wires is a discarded cheap lightning cable. The flat kind. I also use individual wires from a thin ribbon cable.

  5. Boodokhan

    Boodokhan Well-Known Member

    Messages:
    2,461
    Trophy Points:
    113
    Location:
    California
    Thanks bub
    I never thought about the lightning cable. I am going to try it

  6. mrp32Dave

    mrp32Dave Well-Known Member

    Messages:
    276
    Trophy Points:
    63
    Location:
    United Kingdom
    I've not had a problem with the stiffness of the wires, getting them neat and flat on circuit boards is easier for me if they have some stiffness.

    I too didn't think about flat lightning cables nor ribbon cable, thanks.

  7. bub

    bub Active Member

    Messages:
    259
    Trophy Points:
    43
    Location:
    Singapore

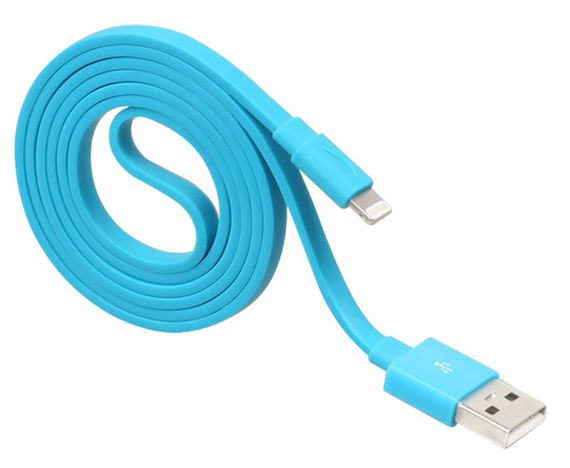

    It's from something like this. Inside the flat rubber casing are individually insulted, thin wires on mine. As it's all junk, different brands may vary. If I can find the heads I cut off I'll take a picture of it.

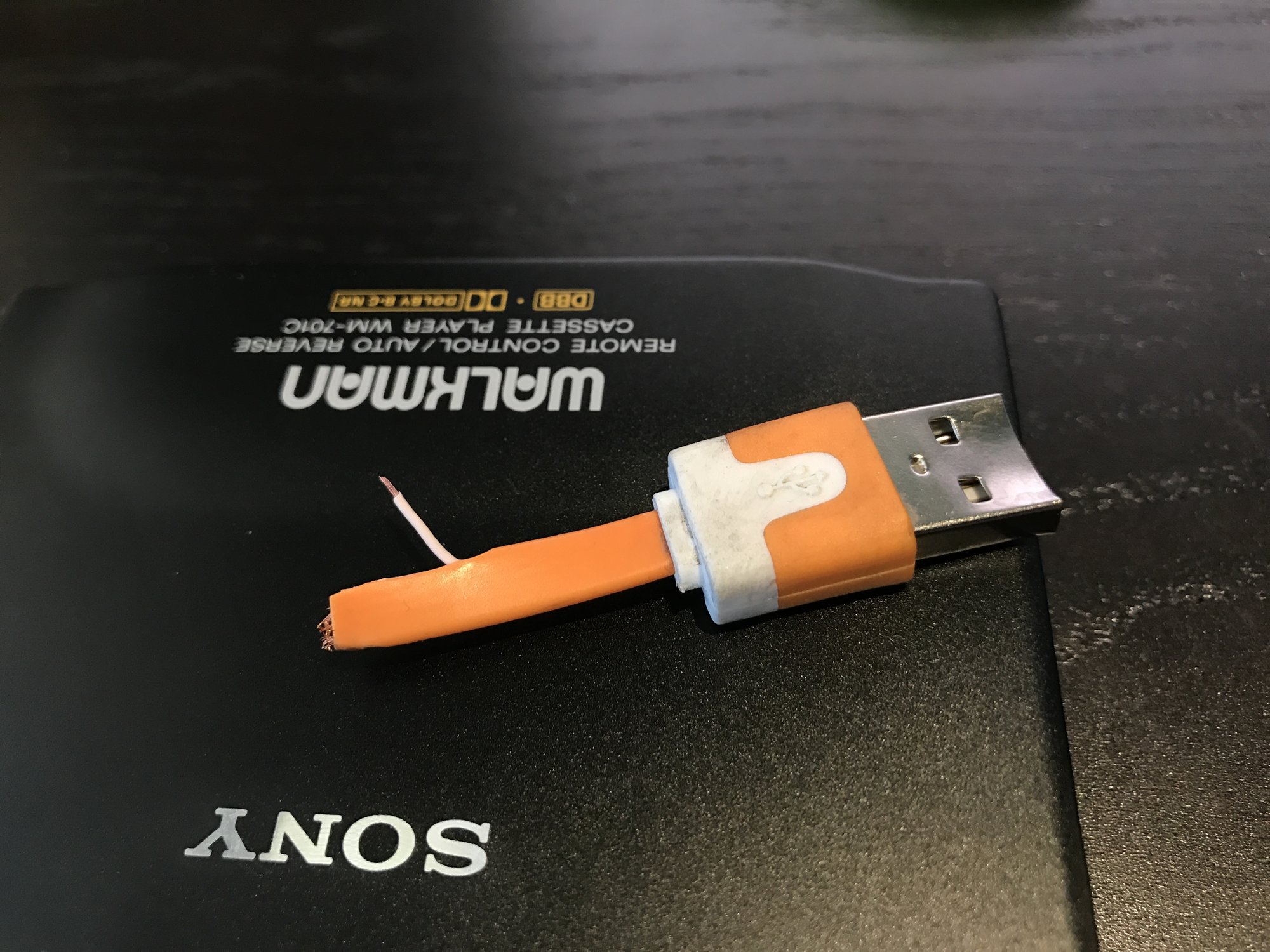

  8. bub

    bub Active Member

    Messages:
    259
    Trophy Points:
    43
    Location:
    Singapore
