WM Fx-123

Discussion in 'Tech talk' started by John_doe01, Oct 10, 2024.

  1. John_doe01

    John_doe01 New Member

    Messages:
    12
    Trophy Points:
    3
    Location:
    Germany
    I have a very weird issue with sony wm fx-123.I have the FM and AM functions working fine and playing audio through the audio jack but, when I switch to tape I don't hear any audio. I first thought the belt must have been worn out so, I opened the walkman and noticed it was intact. This has happened only today on a CrO2 tape and I also changed the tape type from Normal to CrO2/Metal before I hit the play button. After piecing them together my FM/AM is also not working properly now. I don't know what went wrong.

    P.S. I also am missing the spring that holds the play button up, I would like to know if I can find a replacement for this.

    John_doe01, Oct 10, 2024
    #1
  2. Chinewalker

    Chinewalker New Member

    Messages:
    18
    Trophy Points:
    3
    Location:
    Fishers Landing, NY
    Possibly the selector switches just need a cleaning.

    if you’re Stateside, I probably have mechanism parts you need. Have a pic of the missing spring area? I’d it the shallow V spring?

    Chinewalker, Oct 15, 2024
    #2
    Cassette2go likes this.
  3. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    1,491
    Trophy Points:
    113
    Location:
    Dallas Texas USA
    Click on his name. You'll see he's in Germany like I can see that you're in New York and I am in Dallas, Texas, USA

    Cassette2go, Oct 15, 2024
    #3
  4. John_doe01

    John_doe01 New Member

    Messages:
    12
    Trophy Points:
    3
    Location:
    Germany
    Hi,

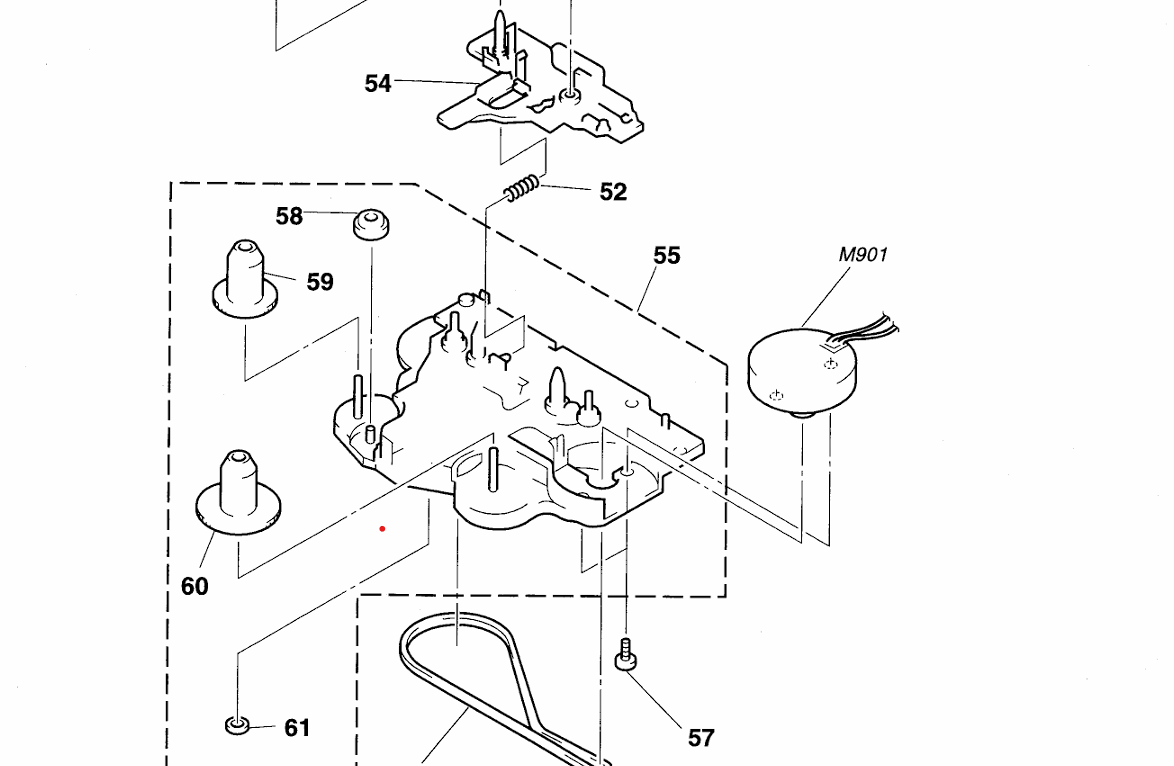

    Thank you. Sorry, I was sick and upload_2024-10-21_2-17-50.png I am missing the one that holds the play button which is part number 52. upload_2024-10-21_2-17-50.png

    John_doe01, Oct 20, 2024
    #4
