    Yea, the quality kind of stinks, barely readable up close



    Mister X, Sep 10, 2026 at 6:51 PM
    #21
  2. Experious

    Experious Active Member

    Messages:
    108
    Trophy Points:
    43
    Location:
    Melbourne

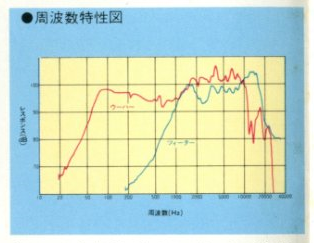

    ⬤周波数特性図 = Frequency Response Diagram
    ウーファー = Woofer
    ツィーター = Tweeter
    I can't read the axes, but they are obviously (y) some sort of power or volume (in dB) and (x) frequency (in Hz)
    This made the frequency numbers readable though, which are 10, 20, 50, 100, 200, 500, 1,000, 2,000, 5,000, 10,000, 20,000 and I can't read the last one.

    Experious, Sep 10, 2026 at 8:17 PM
    #22
    Mister X likes this.
  3. Mister X

    Mister X Moderator Staff Member

    Messages:
    20,111
    Trophy Points:
    113
    Location:
    Minnesota
    The box only goes up to just below 17,000 Hz, I figure it lands around there.

    Mister X, Sep 10, 2026 at 8:19 PM
    #23
  4. Reli

    Reli Well-Known Member S2G Supporter

    Messages:
    1,114
    Trophy Points:
    113
    Location:
    USA
    I believe 17,000 is just what the tape head is capable of reproducing (with a Metal tape). But the amp and speakers should be capable of going higher.

    Reli, Sep 10, 2026 at 8:50 PM
    #24
