Hold problem?

Discussion in 'Tech talk' started by Michelle Knight, Jan 12, 2018.

  1. Michelle Knight

    Michelle Knight Active Member

    Messages:
    130
    Trophy Points:
    28
    Location:
    Sussex, UK
    I am repairing an Aiwa HS P505 - and originally it wasn't listening to the play button. (I don't have a service manual for this unit)

    The play button was indeed dead and has been replaced. However... it still doesn't listen to the play button.

    I suspect that the hold switch is faulty, but I have no idea how to test this.

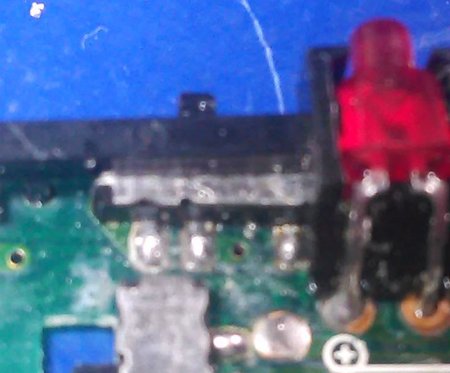

    Here is the switch... it has three positions (for this purpose) - left (remote on) - middle (hold) - right (remote off)

    I have a feeling that this switch is deceased. I was getting spurious readings from it (in the hold position, the centre and right pins were reading... but in the other two positions, nothing was happening.)

    Can anyone advise please?


  2. Michelle Knight

    Michelle Knight Active Member

    Messages:
    130
    Trophy Points:
    28
    Location:
    Sussex, UK
    I did get a step further. There is a safety mechanism that will allow forward and rewind while the lid is open... but it won't allow play while the lid is open.

    Managed to fix that... but the unit still isn't running. Only forward and reverse.... no play. I'm 99.999% sure I've got a problem with the hold switch, but with no schematic, I can't even work out the correct combination to run without hold.

  3. Michelle Knight

    Michelle Knight Active Member

    Messages:
    130
    Trophy Points:
    28
    Location:
    Sussex, UK
    YES - YES - YES - YES - YES - GOT IT !!! ... wow... nothing quite like that feeling of getting it working.

    Well... at least I've got the mechanism listening to the buttons.

    Now to take a large, long swig of tea and try to see if I can get any sound out of it.

    Ball000 likes this.
  4. Ball000

    Ball000 Member

    Messages:
    78
    Trophy Points:
    18
    Location:
    Daoulas
    So what was wrong, and how did you solve the problem?

  5. Michelle Knight

    Michelle Knight Active Member

    Messages:
    130
    Trophy Points:
    28
    Location:
    Sussex, UK
    Now fully working.

    Well, you know about the caps. That much is taken for read.

    Three problems...

    1) The play button microswitch was dead
    2) The hold switch was broken
    3) I'm an idiot.

    I didn't realise that there was a safety switch for only allowing the unit to play, while the cover was closed. That hampered my testing.

    Not having a service manual for this unit, I was running off manuals for other units, and this hold switch is wired differently. It seems to need to be open on the "off" pins (which is, remote off, and hold off) in order for the unit to listen to commands. I was going by another diagram and I was wiring it closed. Thus... hold was engaged.

    The unit probably won't last long though. There is so much leakage that I can't clean it all up. :-( ... but, it's such a great feeling to get it working.

  6. Ball000

    Ball000 Member

    Messages:
    78
    Trophy Points:
    18
    Location:
    Daoulas
    Congratz, you're going fast and well! :)

    Michelle Knight likes this.
  7. Michelle Knight

    Michelle Knight Active Member

    Messages:
    130
    Trophy Points:
    28
    Location:
    Sussex, UK
    Thank you :) ... and now for the next challenge... assembling the sodding thing again !!! ... that's tomorrow's job.. but I'll probably swap the case with the other P505, as that one's dented. ... depending on how much corrosion I find in that one, of course.

  8. bub

    bub Active Member

    Messages:
    140
    Trophy Points:
    28
    Location:
    Singapore
    Did you clean the leakage off with baking soda paste and isopropyl alcohol?
    Take a picture of the board with the old caps removed. If there is crusty solder remaining, you must slowly scrape it off.
    For the hold switch, it it is broken, I would just desolder it and jump it to "Remote Off".

  9. Michelle Knight

    Michelle Knight Active Member

    Messages:
    130
    Trophy Points:
    28
    Location:
    Sussex, UK
    Yes, the procedure was followed. I cleaned it as best I could, but some of the solder is refusing to come clean. I need some better brushes ... small, but stiffer, if you know what I mean. Some of the larger joints, I just de-soldered, and re-soldered.

    I didn't expect to get this working, to be honest. I thought it would be a sacrificial unit to get my hand and eye in. But... it works :) - I have another P505 to do, and that will probably be this weekends project.

    The P505's will be of limited use, because they only go to Dolby B, and I'll be using C for my recordings. I haven't made plans for them yet ... but the P505 will probably die during the next phase in a month or two... which is when I start putting together LiPo batteries in old gumstick shells. I'm bound to make something go pop at that point.

  10. bub

    bub Active Member

    Messages:
    140
    Trophy Points:
    28
    Location:
    Singapore
    Congrats on a first success! To better clean off the crud, I just scrape it off with a tiny flat screwdriver.

    I do not really recommend recording Dolby for Walkmans, especially C, as most Walkmans do not have accurate enough azimuth, and some do not have Dolby Level adjustment.
    Unless everything is perfect, and the Dolby level of your recording matches your Walkman, you will likely get artifacts, like pumping. And if you eventually have a big Walkman collection, it becomes even harder...

    The exception is the D6C, which is closer to a full size deck in performance. Even then...

    Michelle Knight likes this.
