Sony TPS-L2

Discussion in 'Chat Area' started by PeterKKB, Jul 24, 2022.

Tags:
Page 2 of 2
  1. PeterKKB

    PeterKKB New Member

    Messages:
    15
    Trophy Points:
    3
    Location:
    Geneva, Switzerland

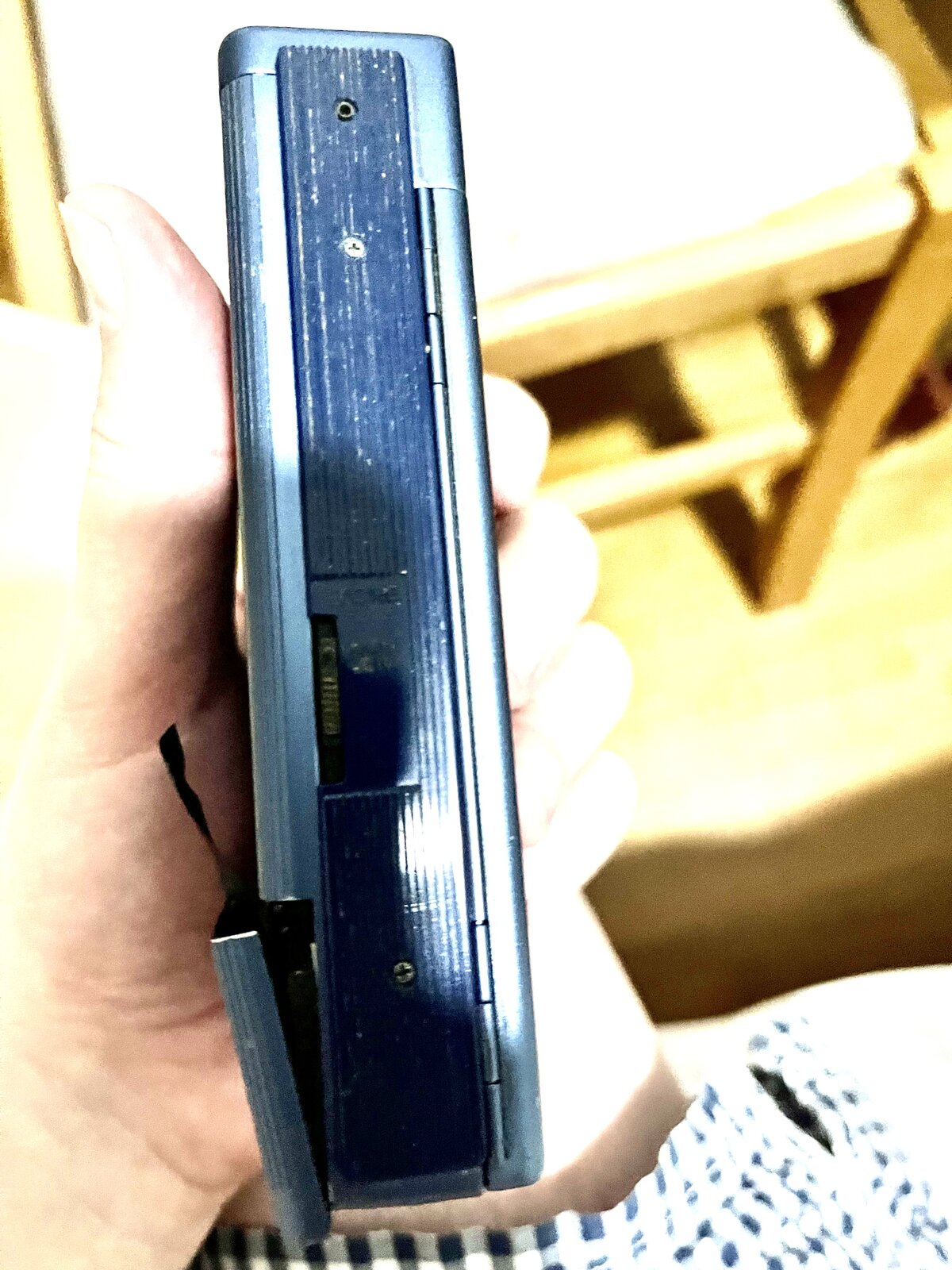

    Sorry the photo is not great. It’s a switch for more or less tremble in a way, simple equalization. It’s interesting that Sony chose not to go down that route probably betting on superior playback sound quality.


    PeterKKB, Aug 7, 2022
    #21
  2. TooCooL4

    TooCooL4 Well-Known Member

    Messages:
    3,184
    Trophy Points:
    113
    Location:
    UK
    No problem PeterKKB, stuck-in-time posted a pic in post #19

    TooCooL4, Aug 7, 2022
    #22
    PeterKKB likes this.
  3. PeterKKB

    PeterKKB New Member

    Messages:
    15
    Trophy Points:
    3
    Location:
    Geneva, Switzerland
    Yeah I noticed afterwards, took me some time to post it.

    PeterKKB, Aug 7, 2022
    #23
    stuck-in-time likes this.
  4. Valentin

    Valentin Well-Known Member

    Messages:
    1,581
    Trophy Points:
    113
    Location:
    Europe

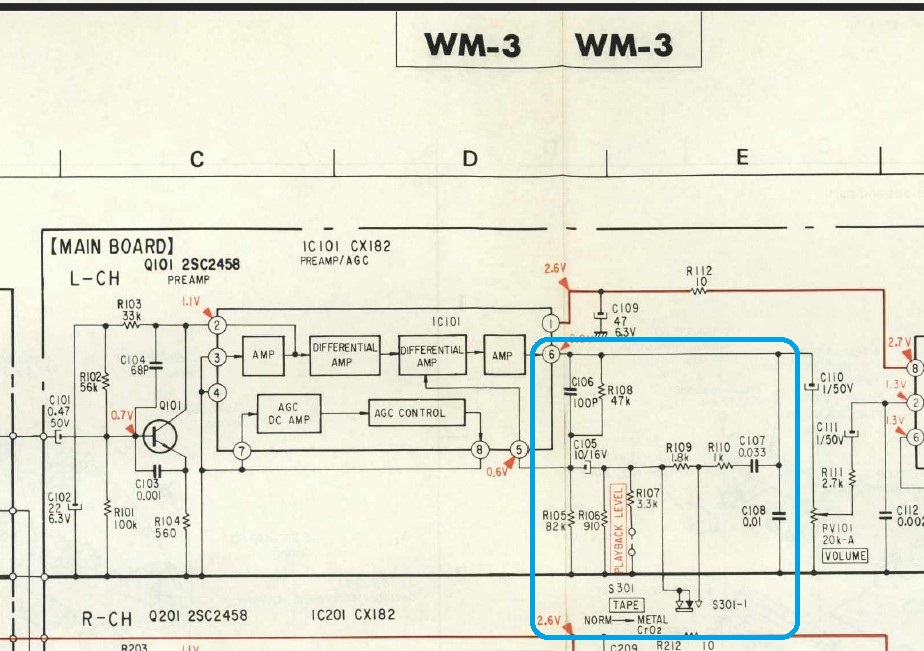

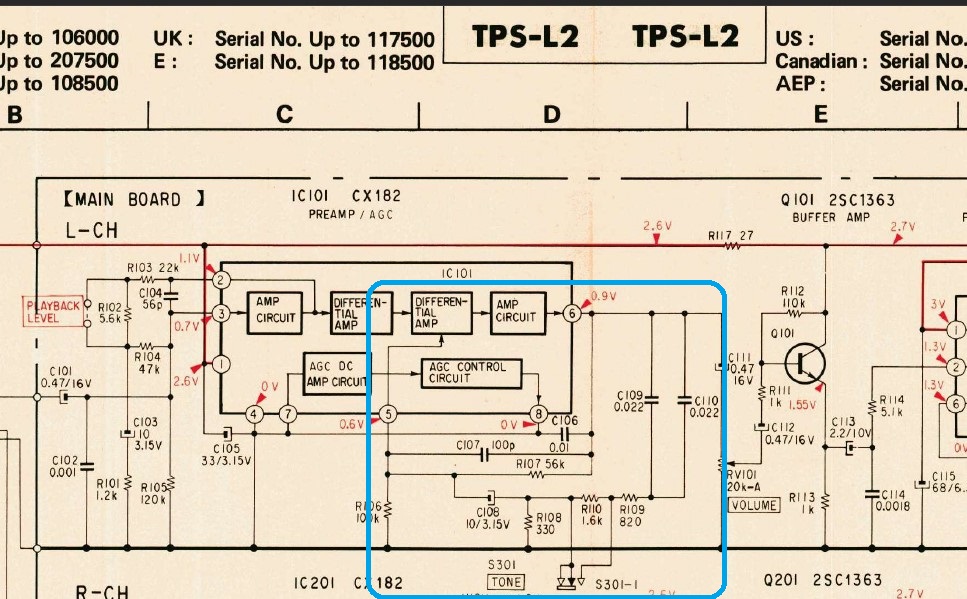

    In regard to the tone control on the TPS-L2, as others have already mentioned it does have a tone control, but that is different from the EQ present on the WM-3.
    Simply put, the TPS-L2 was designed to only play normal TYPE I ones (with 120μs equalization), and not TYPE II and TYPE IV (which are recorded with 70μs EQ).

    Despite the tone control will be better than having nothing, the sound won't be as it should on TYPE IIs and TYPE IVs.

    Attached the differences in the circuits below.


    Attached Files:

    Valentin, Aug 7, 2022
    #24
    stuck-in-time and PeterKKB like this.
