aiwa hs-pl50 without audio ..... restored

Discussion in 'Tech talk' started by Silver965, Jun 11, 2020.

  1. Silver965

    Silver965 Well-Known Member

    Messages:
    713
    Trophy Points:
    93
    Location:
    Torino

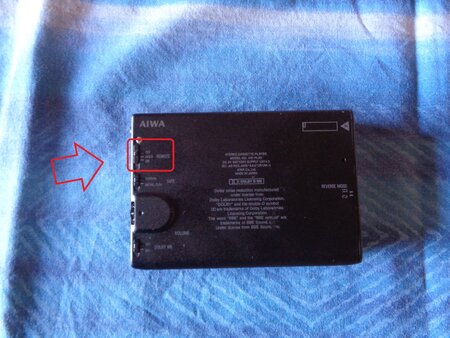

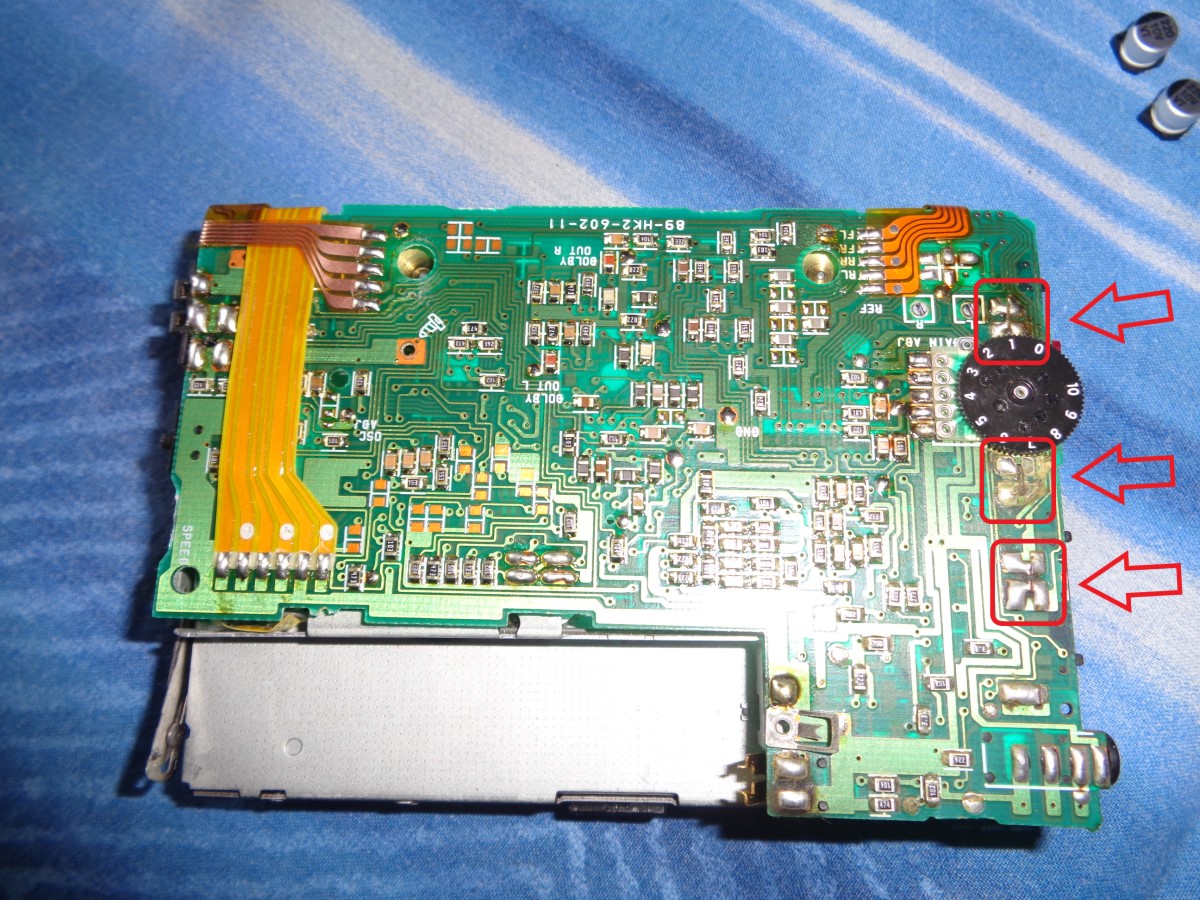

    Hi Juan ... Try re-soldering these contacts .... and check the 3-way switch that works well and is in the off position


    Attached Files:

    mattb1970 likes this.
  2. Silver965

    Silver965 Well-Known Member

    Messages:
    713
    Trophy Points:
    93
    Location:
    Torino

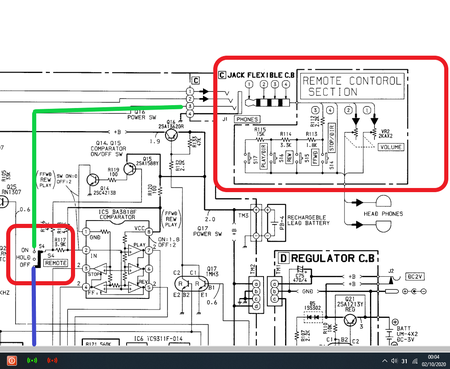

    I'll add this pattern


    Attached Files:

    mattb1970 likes this.
  3. mattb1970

    mattb1970 Member

    Messages:
    97
    Trophy Points:
    18
    Location:
    UK
    Ah, so does the remote switch disable the buttons on the device? That would make sense!

  4. Silver965

    Silver965 Well-Known Member

    Messages:
    713
    Trophy Points:
    93
    Location:
    Torino

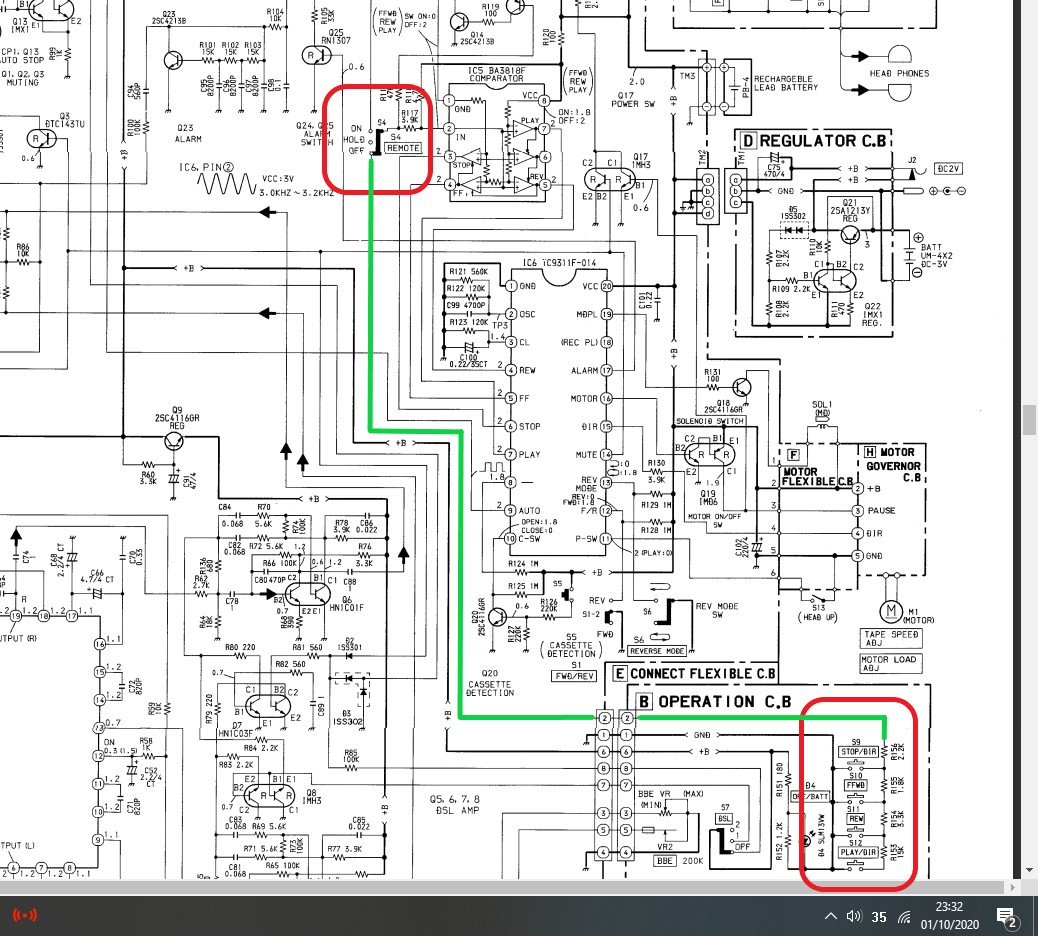

    Yes, because ic 5 acts as a comparator, the commands are assigned based on the value that reads on pin 2 ... so just one wire is enough for all the commands

    mattb1970 likes this.
  5. Silver965

    Silver965 Well-Known Member

    Messages:
    713
    Trophy Points:
    93
    Location:
    Torino
    in fact the same thing happens with the commands coming from the headphone jack


    Attached Files:

  6. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain
    Much apreciated the schematic Silver965.

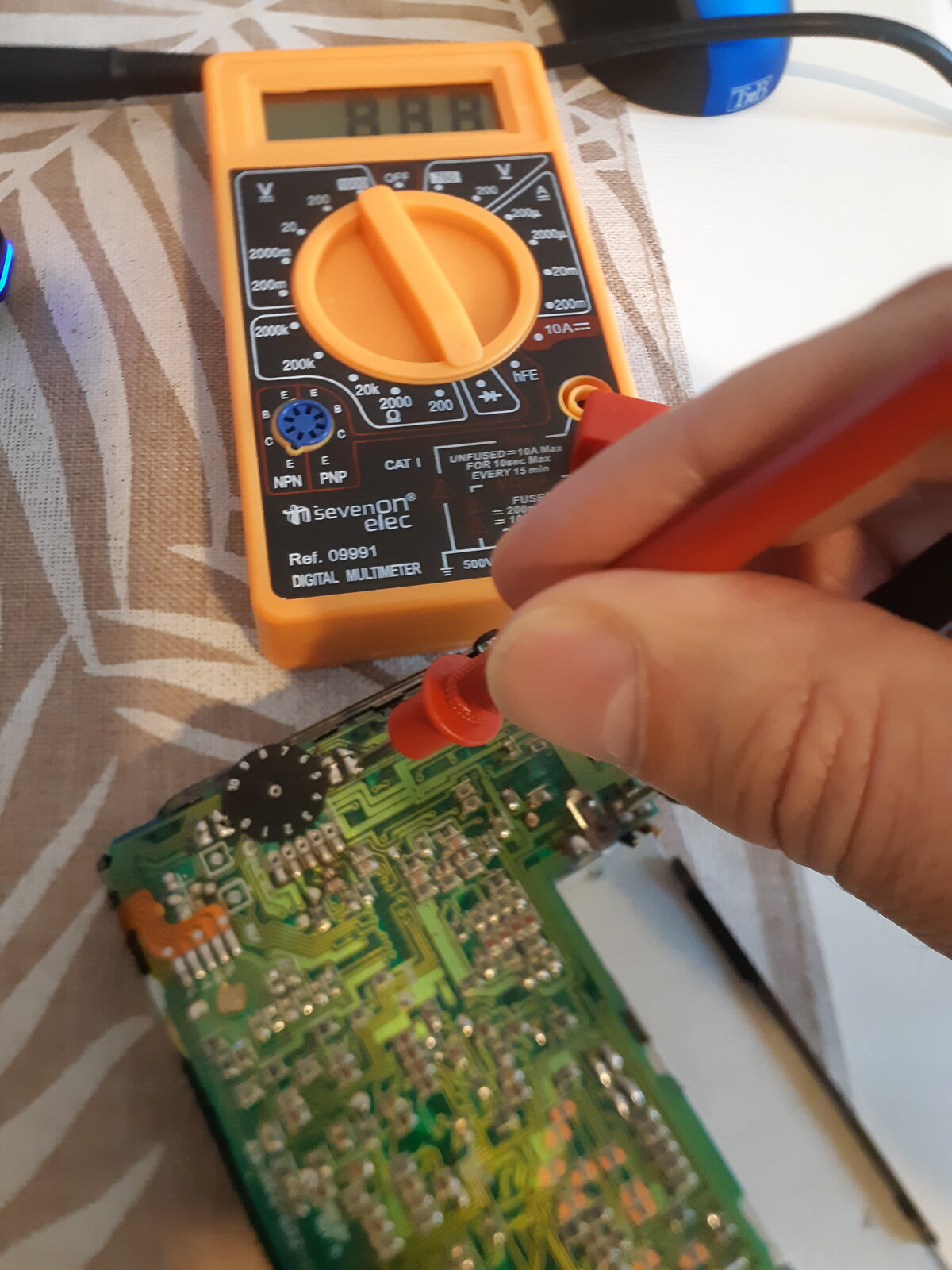

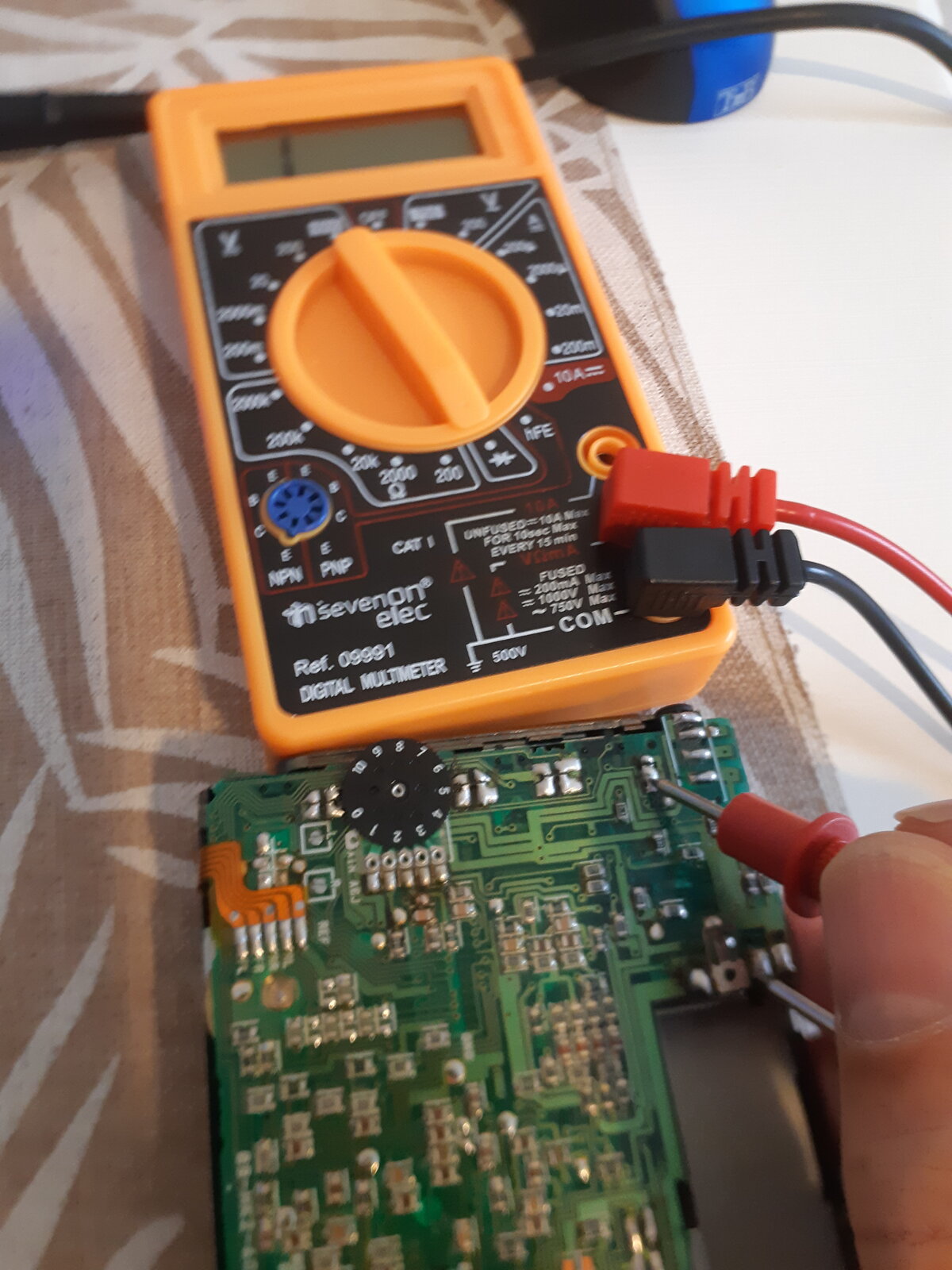

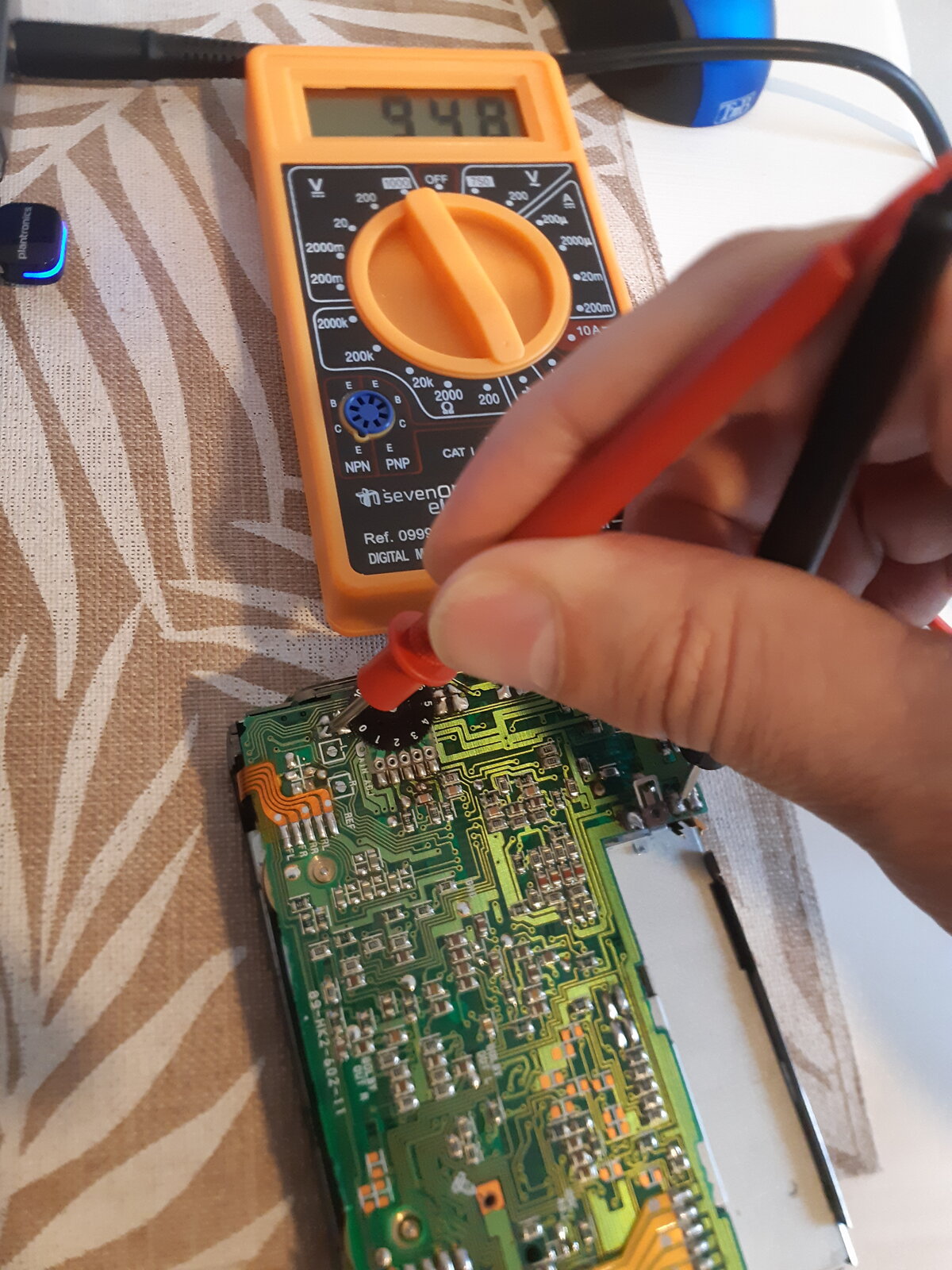

    I`ve resoldered the 3 contacs you mentioned, To be honest I don't have son much electronic skilsl, I'm trying to measure continutiy to chek the joints, as mattb1970 suggested.

    If I'm mesauring properly at 3 points the tester shows continuity,

  7. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain
  8. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain
  9. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain
  10. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain
    Joint 1 and 2, the measure are the same at its every 4 points of solder, at joint 3 there are differents measures, the 2 points next to the volume knob have the same measure while the other two have other different measure, it is normal?

  11. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain

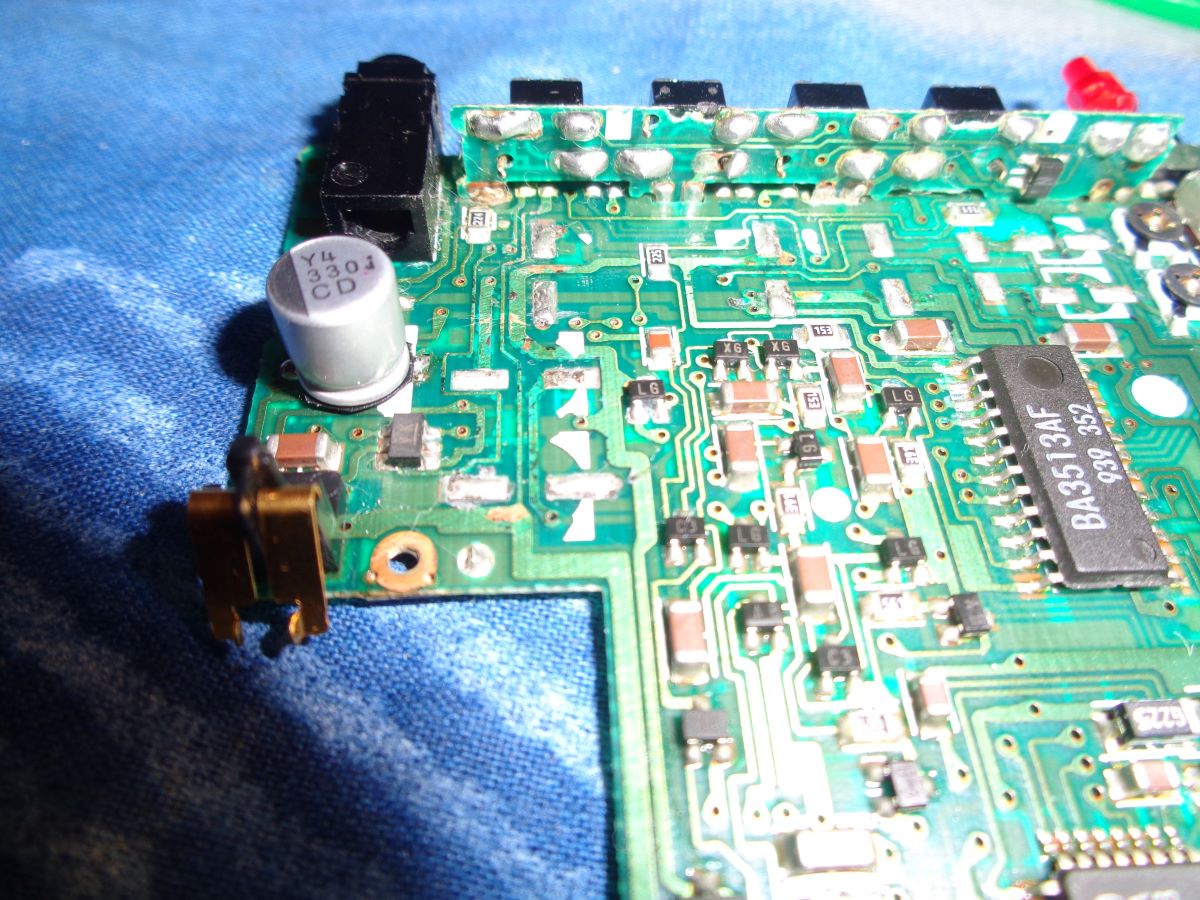

    There is another joint between the main and secondary PCB, this joint appears not to have continuity

  12. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain
  13. Silver965

    Silver965 Well-Known Member

    Messages:
    713
    Trophy Points:
    93
    Location:
    Torino

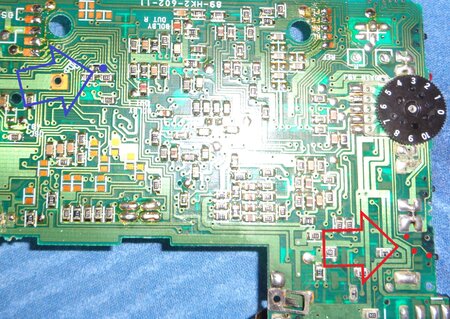

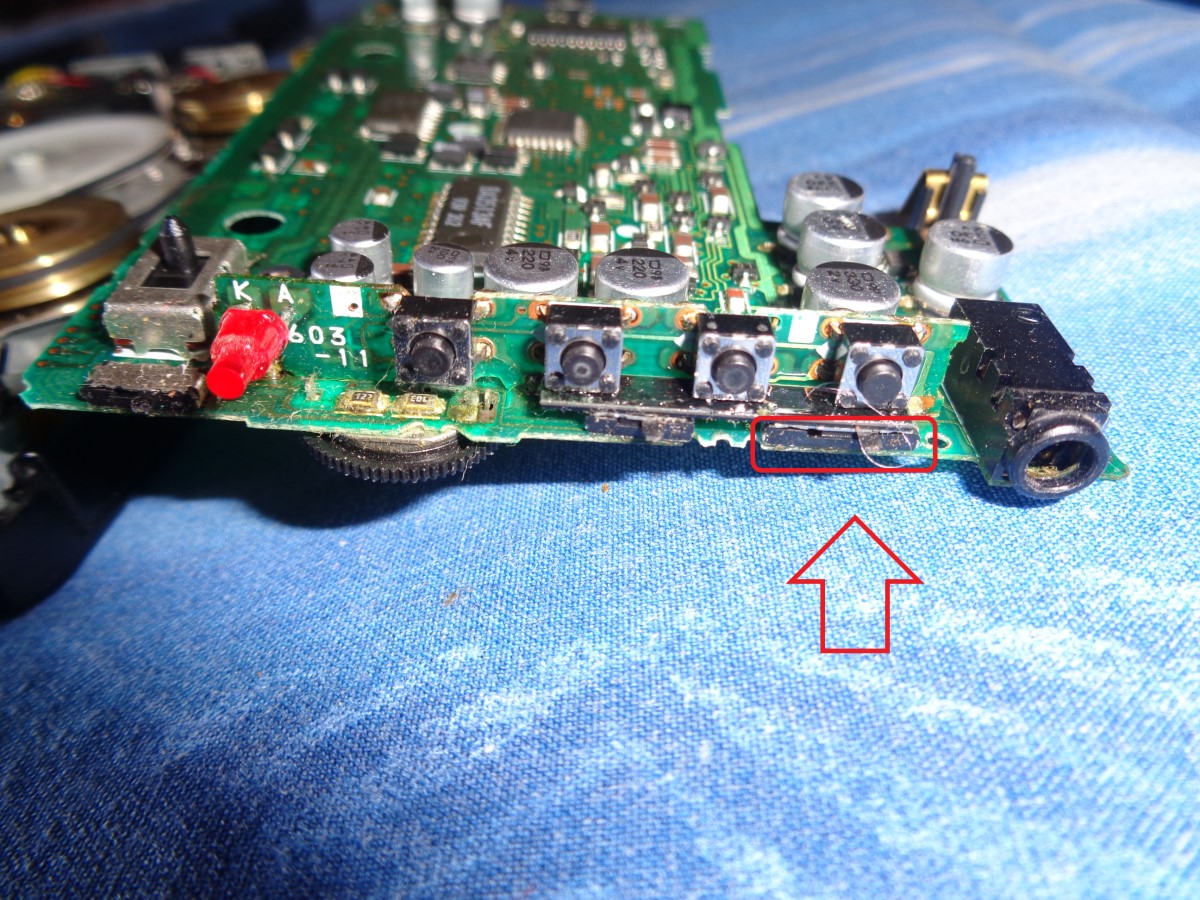

    Check if you have continuity between the BLUE point and the Red ones by moving the microswitch ... you must have one with fixed continuity and two others based on how you put the switch Pin 2 ic5.jpg

  14. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain
    The same measure no matter the switch position

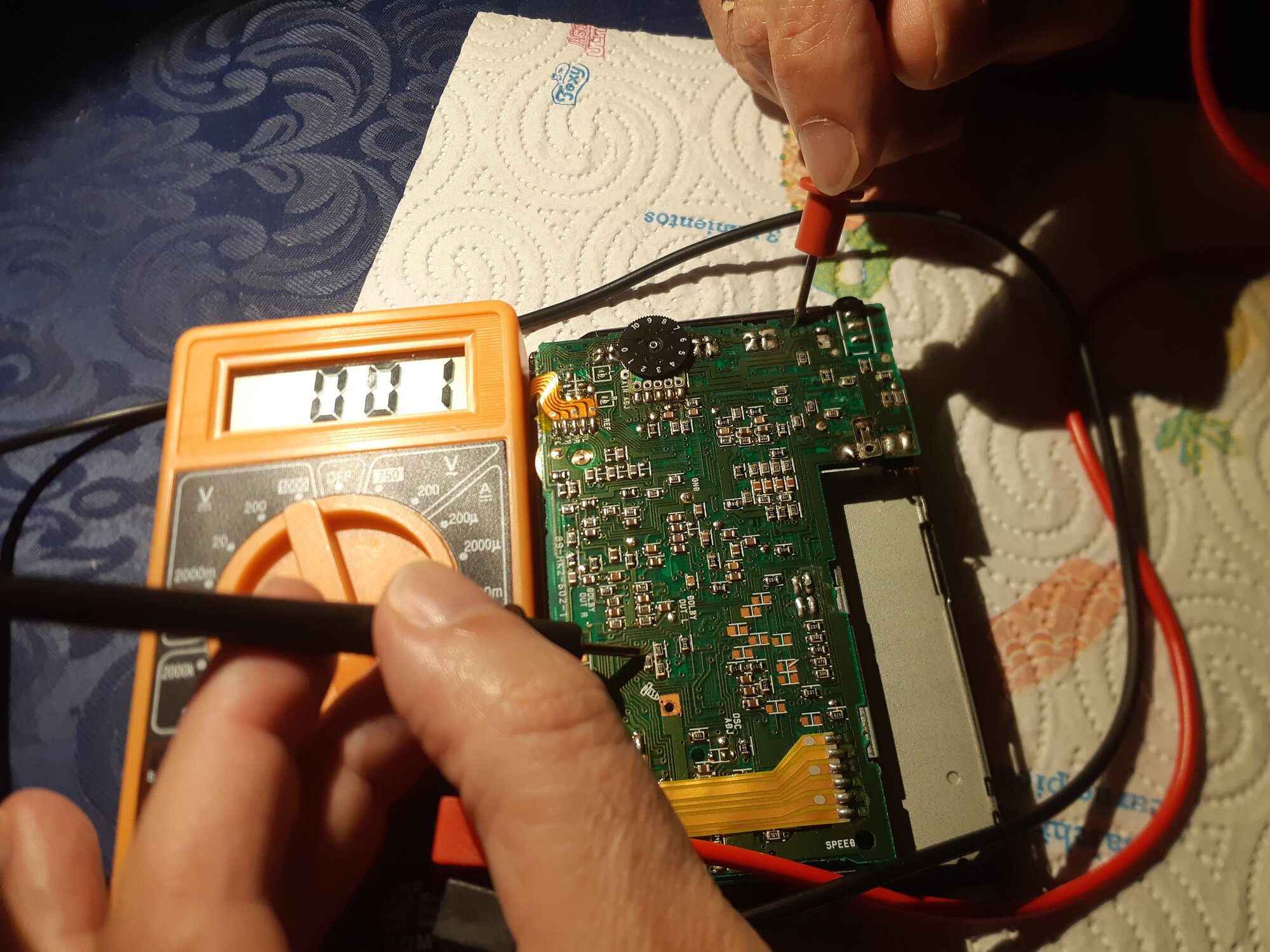

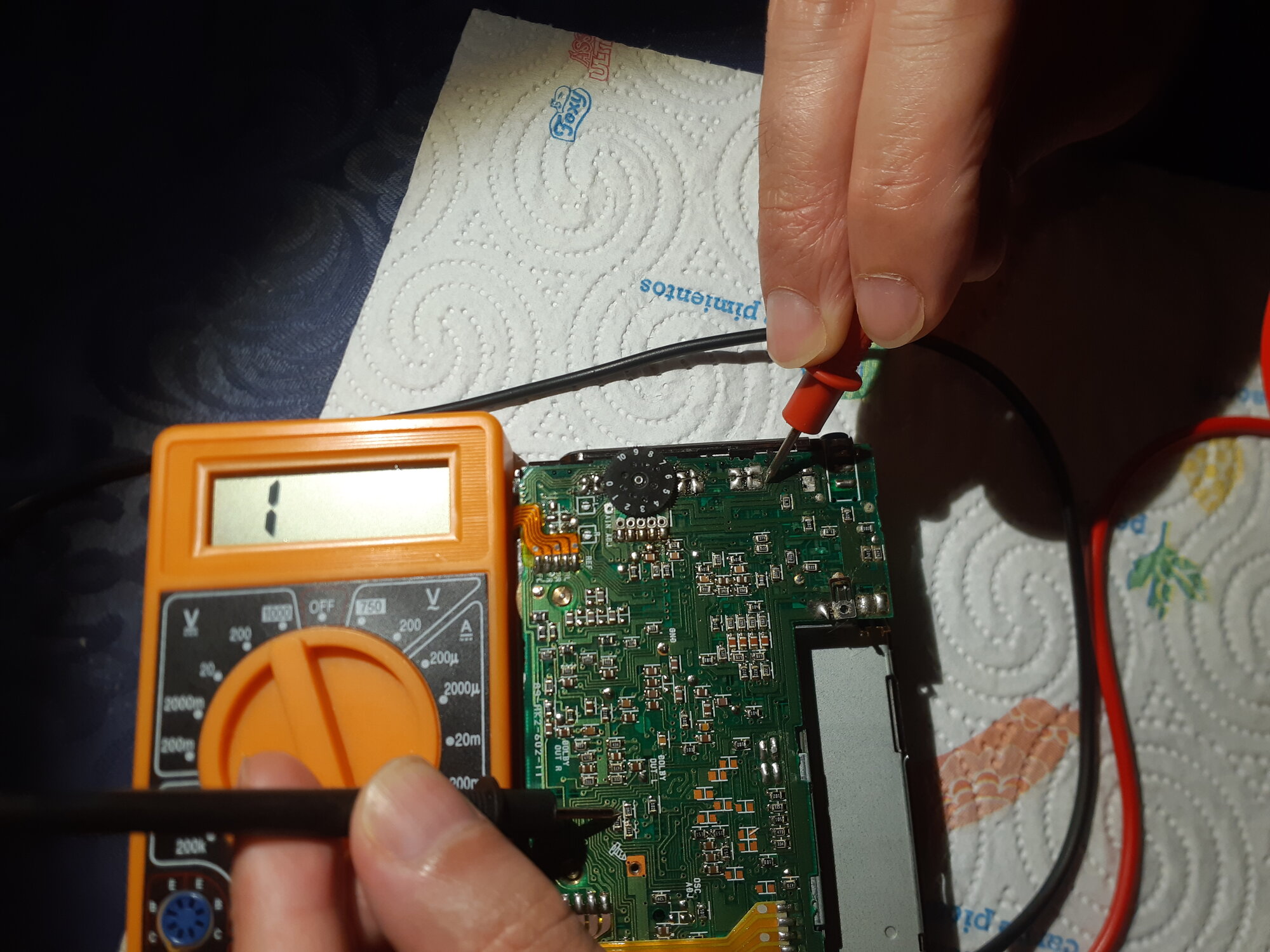

    20201003_220158.jpg 20201003_220249.jpg 20201003_220503.jpg

  15. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain

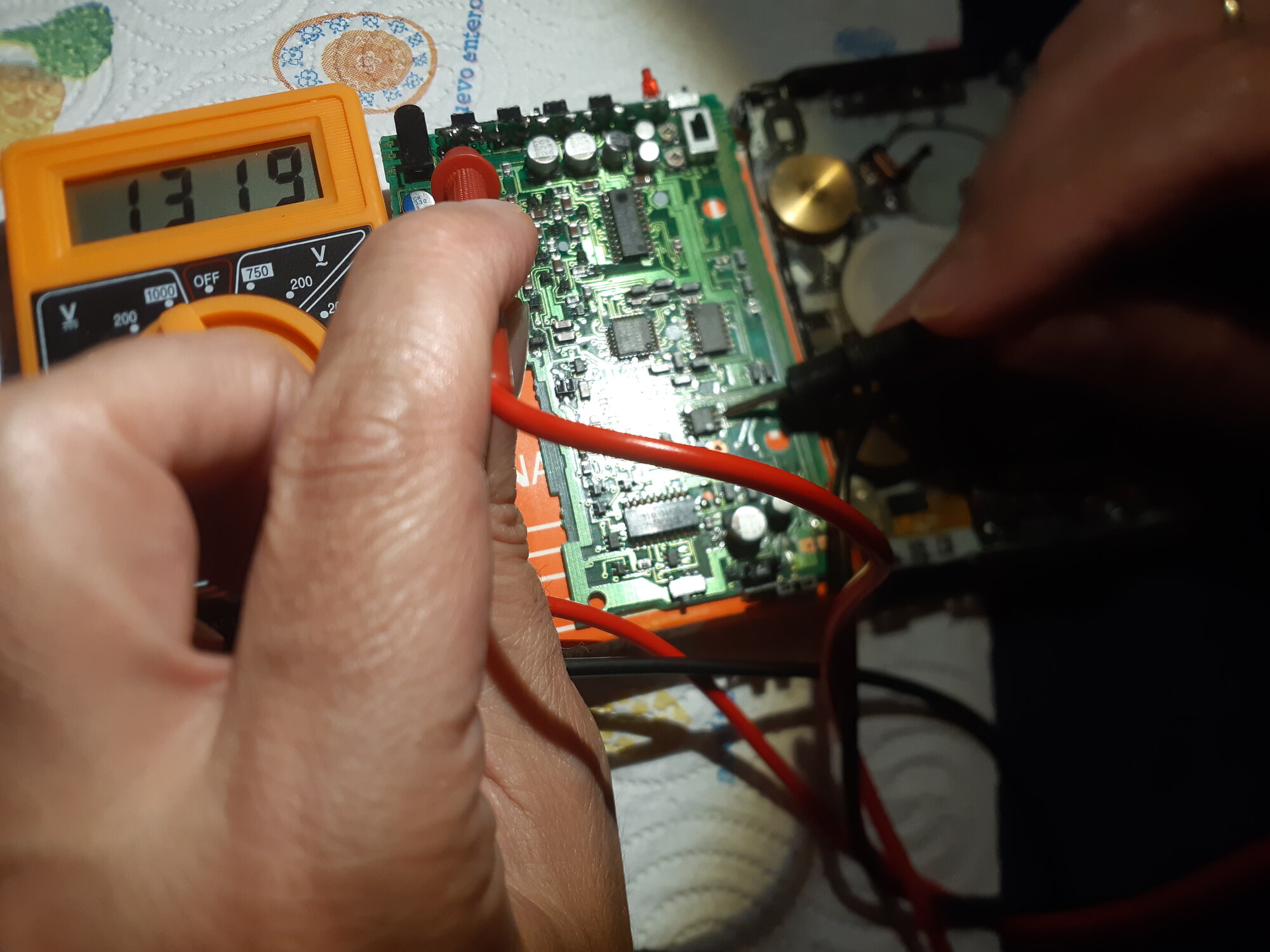

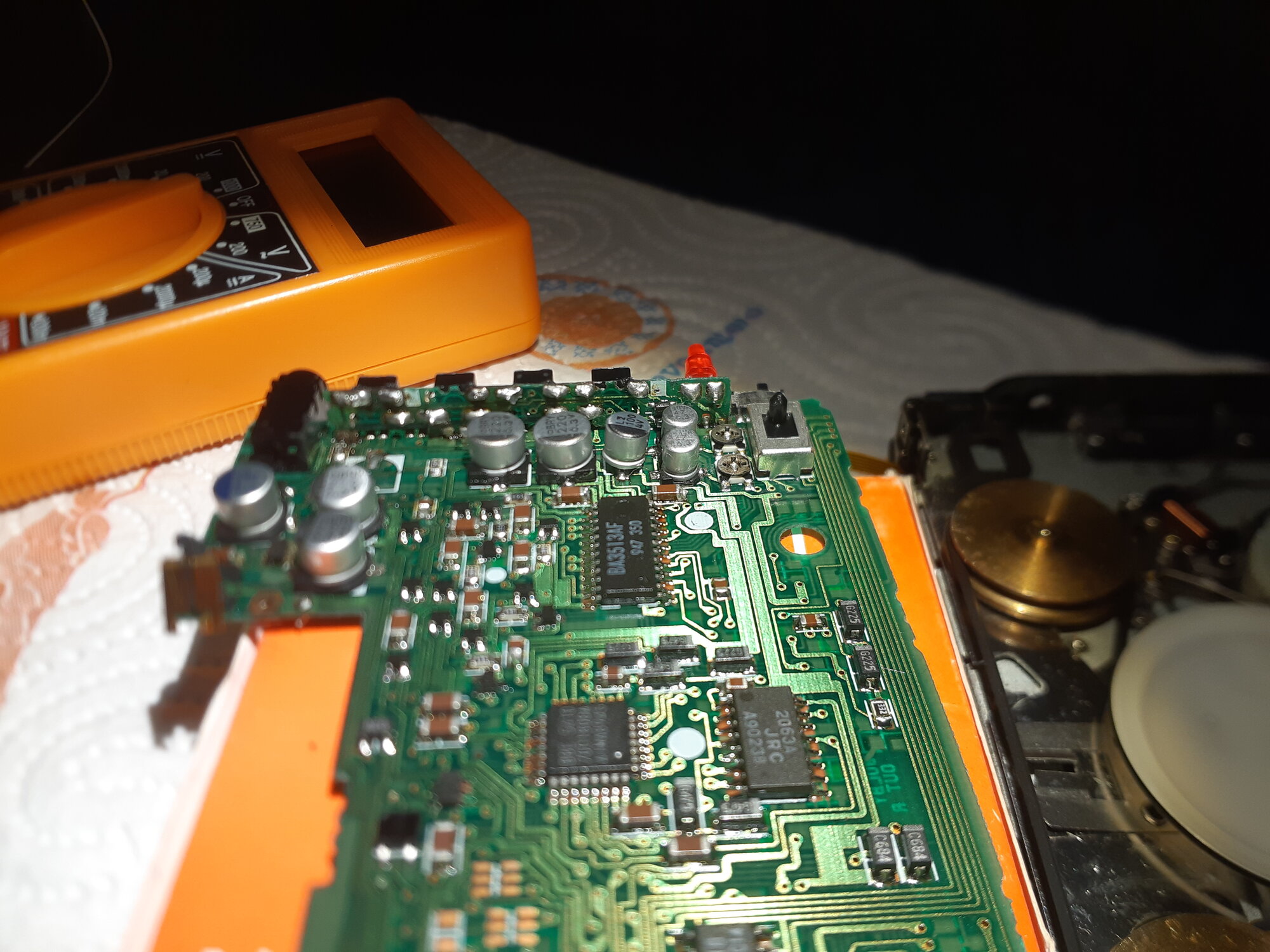

    I 've desoldered the cap located in front of the microswitch pins in order to be able to test the continuit directlty with the pin 2 of the ic5, as you mentioned in previous answer. 20201003_222002.jpg 20201003_222120.jpg

  16. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain
    The microswitch has 4 pins, it seems 2 pins have allways continuity and the other 2 yes or no depending the position of the microswitch

  17. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain
    The led on the secondary pcb turn on when the battery is connected and the tape is tensioned. I think there will be a discontinuity at some point, maybe the signal is entering to the secondary pcb but no returning to the main pcb

  18. JUAN ANDRES MONTIEL DIEZ

    JUAN ANDRES MONTIEL DIEZ Active Member

    Messages:
    191
    Trophy Points:
    28
    Location:
    Spain

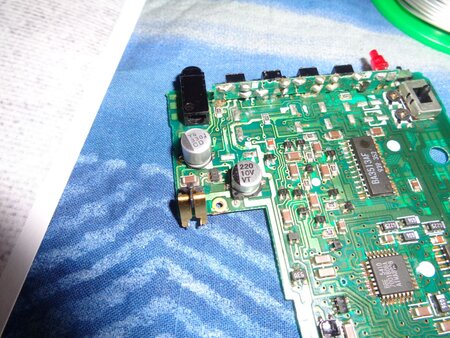

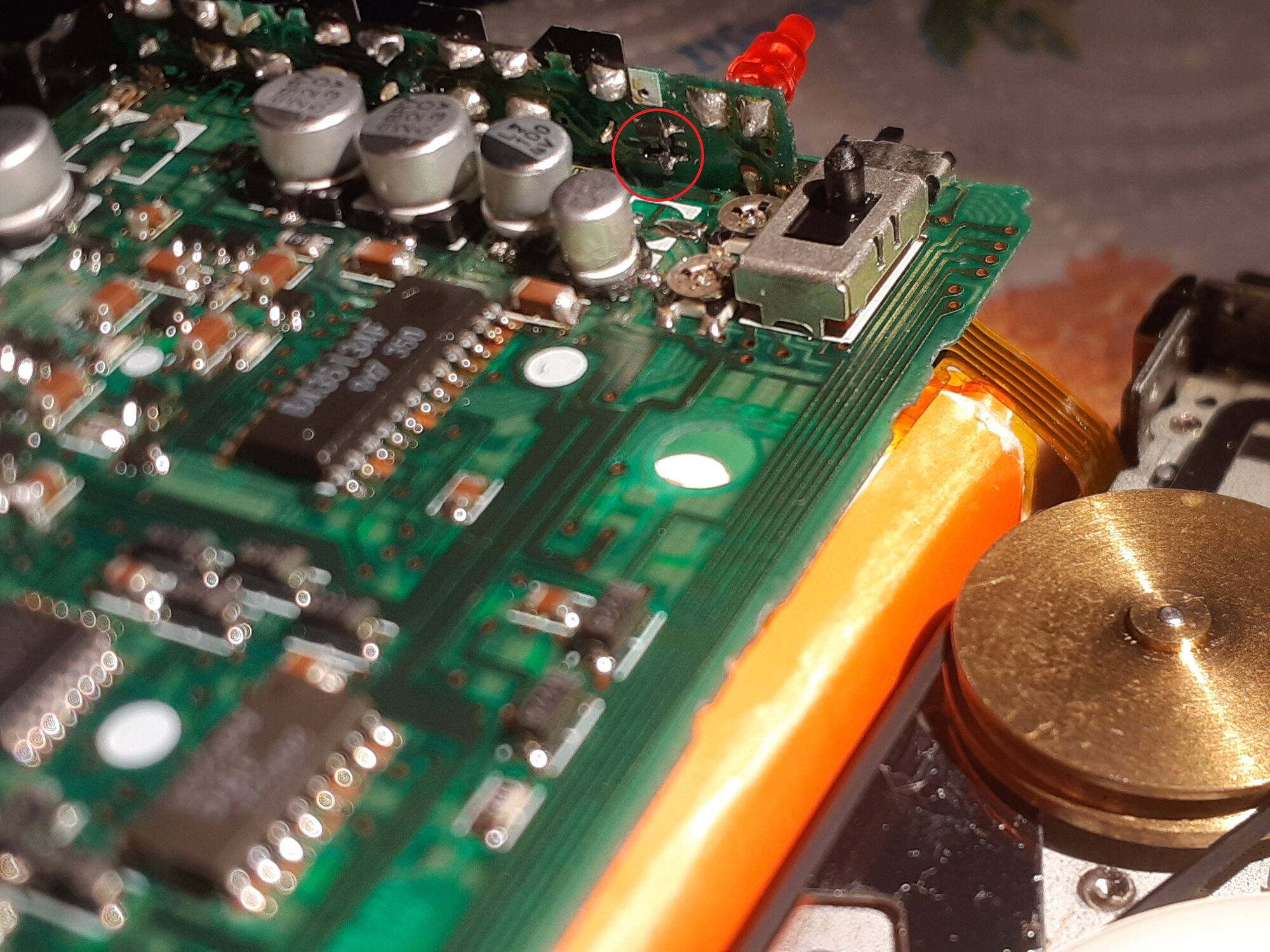

    I think I get the issue, a broken component in the secondary pcb. By desoldering one cap I have access to review the suspected component. It seems to be broken during the desoldering process. I donĀ“t know wich type of component it is. It has four pins, two at each side.

    Silver965 if you have the service manual could you plesase check and tell me the specifications of the componet, or if you prefer could you pass me the service manual?


    Attached Files:

  19. Silver965

    Silver965 Well-Known Member

    Messages:
    713
    Trophy Points:
    93
    Location:
    Torino
    aaaaaa here ... of that component I only have two photos on my pl 50 ..... unfortunately I don't have a service manual for our cases ... but I have this one of the px 505 which is very similar ...


    Attached Files:

    mattb1970 likes this.
  20. Silver965

    Silver965 Well-Known Member

    Messages:
    713
    Trophy Points:
    93
    Location:
    Torino
    these are the photos I have


    Attached Files:
