AIWA/SONY MDR-CD,MDR-5a,MDR-M,MDR-E,MDR-A,AIWA HP-V and others of the golden era

I was referring to the adapter block from 8 pin green Sony connector to 3.5mm, so you can’t use remote.
Standard accessory of DX100 and also 700 series.
I like it except on the 702 it means the adapter is facing down, so the jack extends below the bottom of the device. Kind of annoying.

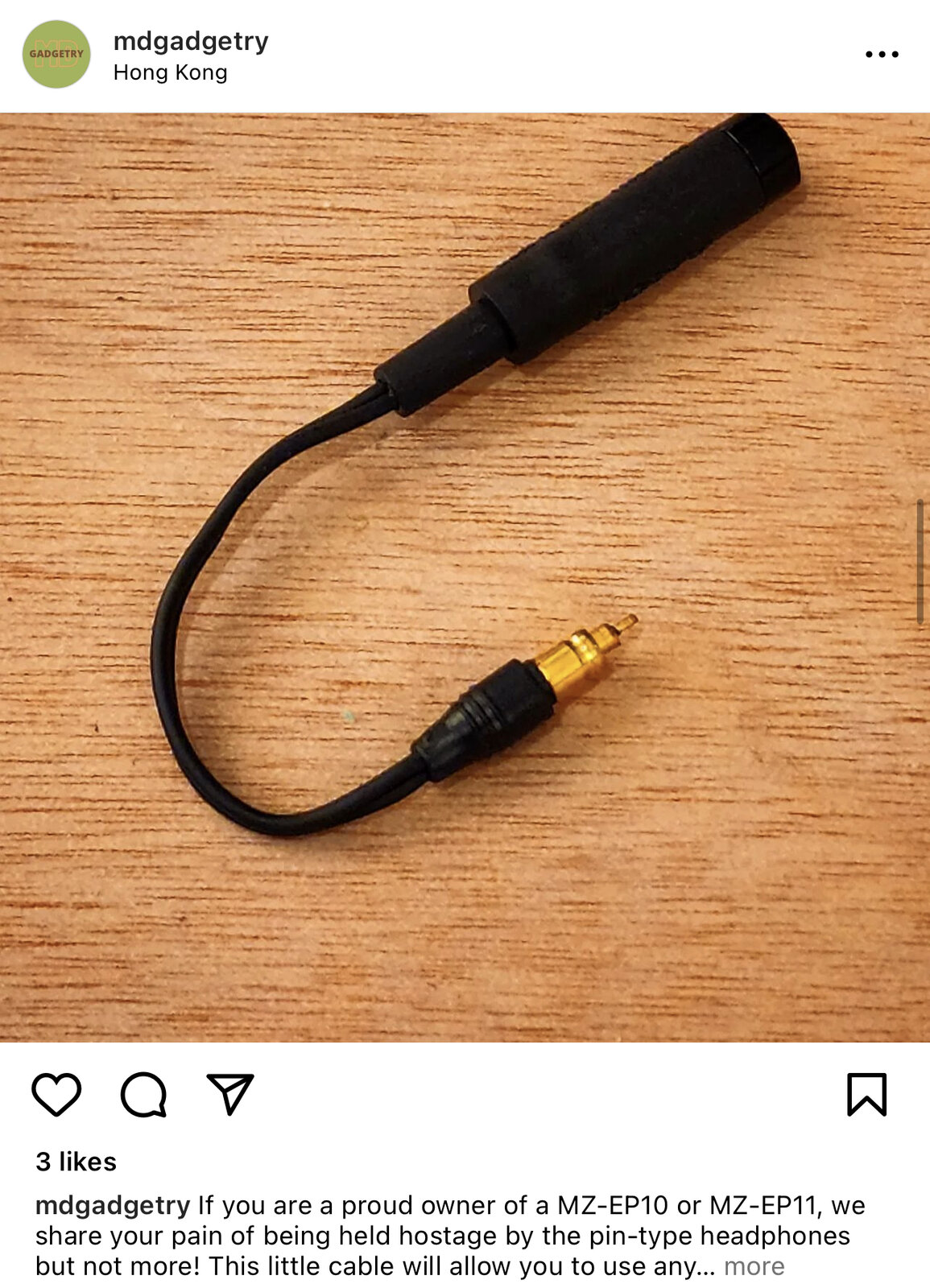

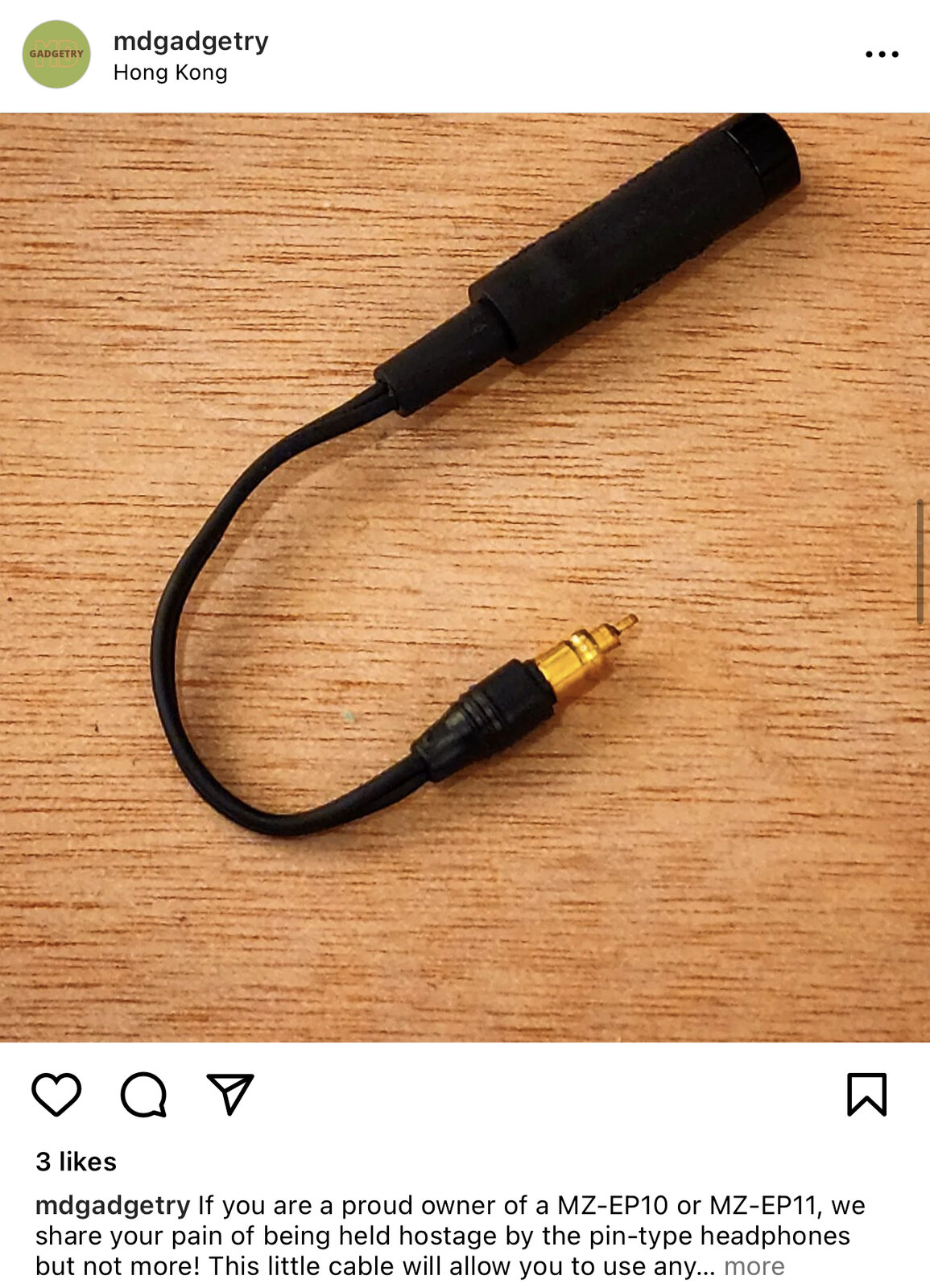

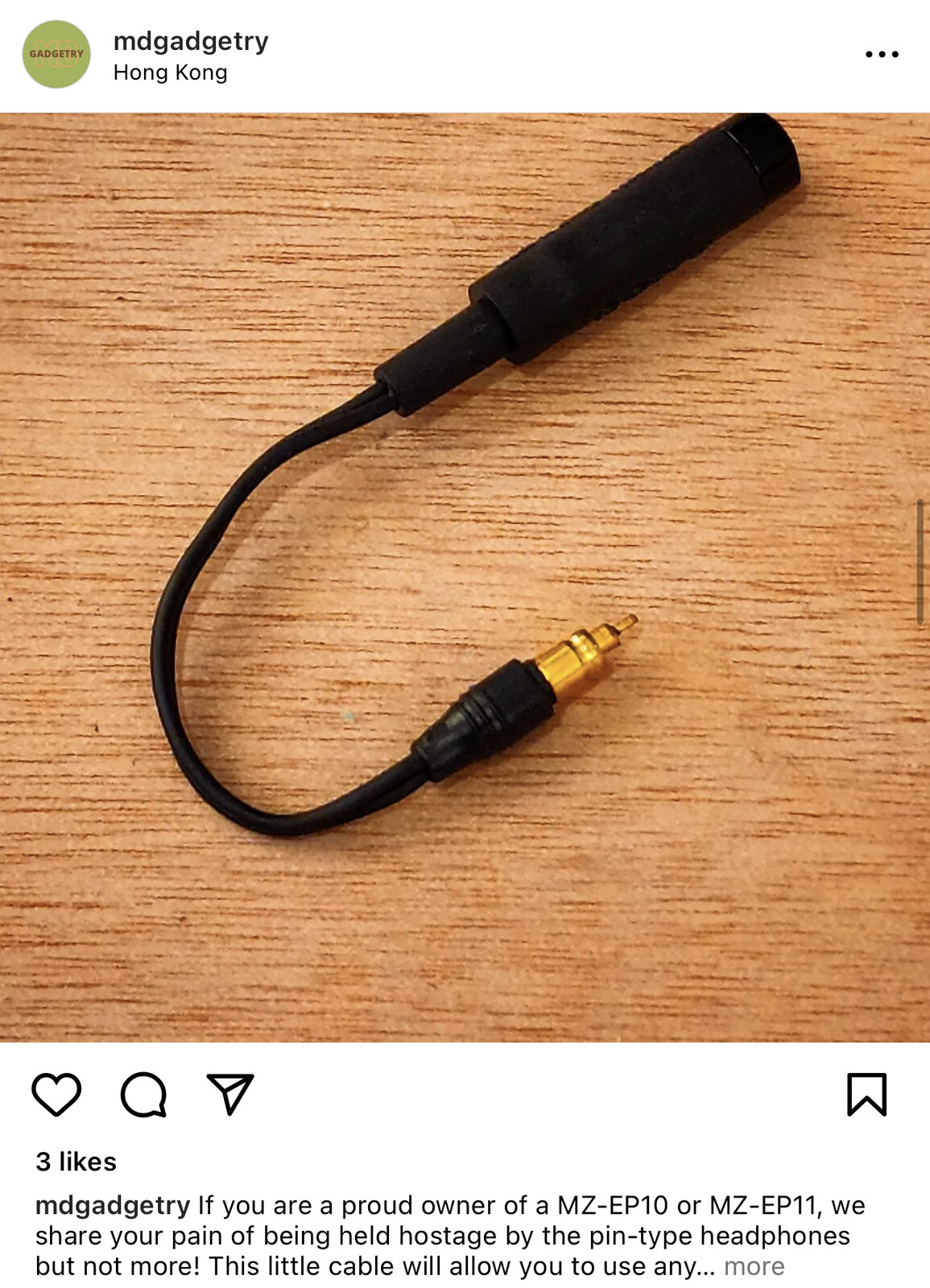

I have recently found this IG channel, not affiliated. I have not purchased yet but intend to do so:



Update: I ordered one from the seller. When it is in as part of a larger order and the DX100 is up to it, I’ll post my findings. Perhaps I can use the DX100 remote on the 702 as well, did not try yet.



I received the adapter cable and it is a Sony original part.

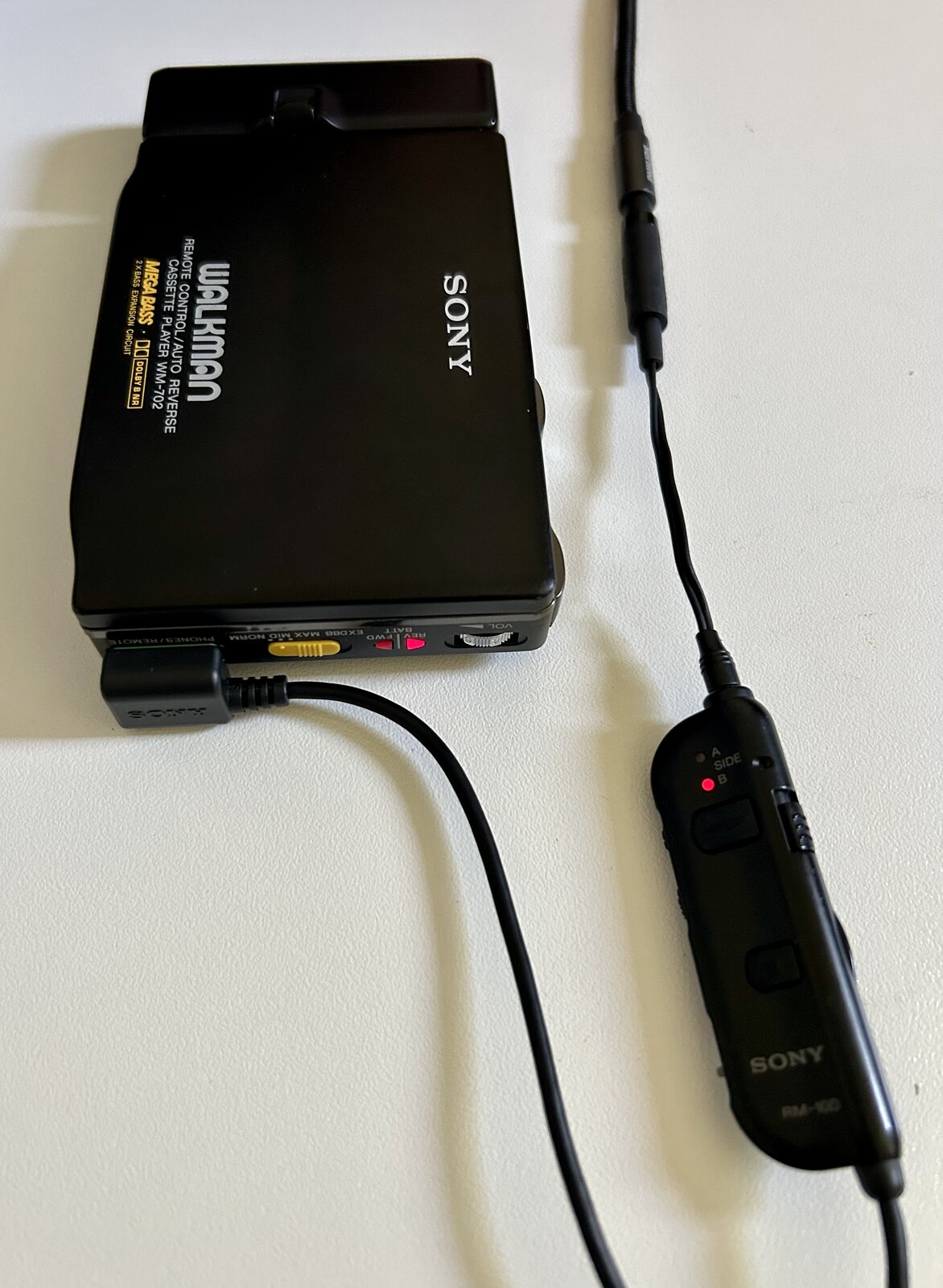

It works great in for the WM-DX100. That remote (RM-10D) also works on the WM-702.

Except for the fact that the connector is protruding and prevents the 702 from laying flat.

The advantage is that you can set it upright, which in turn the 9-pin to 3.5mm adapter block prevents as the input is then on the bottom of the unit.

For anyone interested, here is the info on the adapter:
- Model: EC220
- Type: A1-0610 1264-8486
- Made in China
It is hard to read, part of the mold it seems of the 3.5mm female jack side of the adapter cable.



General Catalog Headphones Nov (1986) JP

Those are high resolution scans by me. Njoy





You can download reduced dpi PDF below



Thanks for posting it @sanchos



Cool! Do you have Aiwa catalogs too? I need two that are cannot be found on the net unfortunately. I have attached the covers.
