Boom boom boom, come back to my room....Cassette Archaeology!

Discussion in 'Cassettes' started by Mister X, Sep 4, 2023.

  1. soluna

    soluna Active Member

    Messages:
    194
    Trophy Points:
    43
    Location:
    Germany
    Is the leader tape in every case thicker than the coated ? I guess, it must be more stable because it must hold the pressure in the spool.

  2. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    1,490
    Trophy Points:
    113
    Location:
    Dallas Texas USA
    Yes

  3. soluna

    soluna Active Member

    Messages:
    194
    Trophy Points:
    43
    Location:
    Germany
    I just have read - the AIWA Deck has an automatically tightening of the tape, if you insert it. May be , this can stress the tape over normal. And if it is a thinner tape, it could be damaged. Just a thought...

  4. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    1,490
    Trophy Points:
    113
    Location:
    Dallas Texas USA
    Remind me to stay away from Aiwa. LOL. I don't think I have any of those brands anyway again LOL

  5. soluna

    soluna Active Member

    Messages:
    194
    Trophy Points:
    43
    Location:
    Germany
    : stay away - i would take it as a gift ;-) by my meaning, this warning is a bit overcautious, - like "This microwave isn`t suitable to dry little pets." , the AIWA deck has got very good recommandations and reviews. I nowhere read about teared tapes.

  6. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,605
    Trophy Points:
    113
    Location:
    Minnesota
    I think something might be wrong with the deck that doesn't slow down, like the light sensor is not working. When I was a young tech working for a cleaning tape maker, I had to build a jig to put to black stickers on the sides of tape shells, Unfortunately I can't remember what the shells looked like it's been 26 years, but there was a way to sense the leader from the sides.

    Our cleaning tape was a porous cloth and without the black stickers the light sensor would shine through the tape media, make the deck think it was at the clear leader, and shut the transport down.

    The tape leader in a lot of newer cassettes changed to "cleaning" tape so you got a couple seconds of cleaning at the beginning and end.

  7. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    1,490
    Trophy Points:
    113
    Location:
    Dallas Texas USA
    I've only seen a few cassettes with the cloth leader tapes, but I prefer not to use them because once there is crud on the leader tape cloth it can transfer it back to the heads. So those cleaning tapes that use cloth are generally only a one use time item. Normally only used in car stereos because you can't reach the heads with a q-tip to clean.

    Mister X likes this.
  8. soluna

    soluna Active Member

    Messages:
    194
    Trophy Points:
    43
    Location:
    Germany
    Oh Yeah, thats the question, how to use cleaning tapes, dry or wet, once or more. Best way is by my meaning to make it manually with clean tips with special liquid - but some decks doesn`t have possibility for optimal access.
    Here`s the absolute solution : :loldiag:

    If somebody is interested in looking at this, - i have the full book here in English and German.

    Mister X likes this.
  9. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    1,490
    Trophy Points:
    113
    Location:
    Dallas Texas USA
    Nah.

  10. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,605
    Trophy Points:
    113
    Location:
    Minnesota
    I believe the cloth would get a couple drops of cleaning fluid before insertion, then PLAY'ed for a few seconds. The tape would last for 12 cleanings and wasn't meant to be reused. The newer tapes have something different, maybe abrasive?

  11. soluna

    soluna Active Member

    Messages:
    194
    Trophy Points:
    43
    Location:
    Germany
    Oh yes, i have here all of these kinds of cassettes, dry some with abrasive tape, and wet some with fluid. And yes, the wet some you can use up to 12 times. And i have a special one with a moving felt tip, also this can used with fluid or without.
    I have to look for a picture of the special, it`s a tricky mechanism.

    Mister X likes this.
  12. soluna

    soluna Active Member

    Messages:
    194
    Trophy Points:
    43
    Location:
    Germany

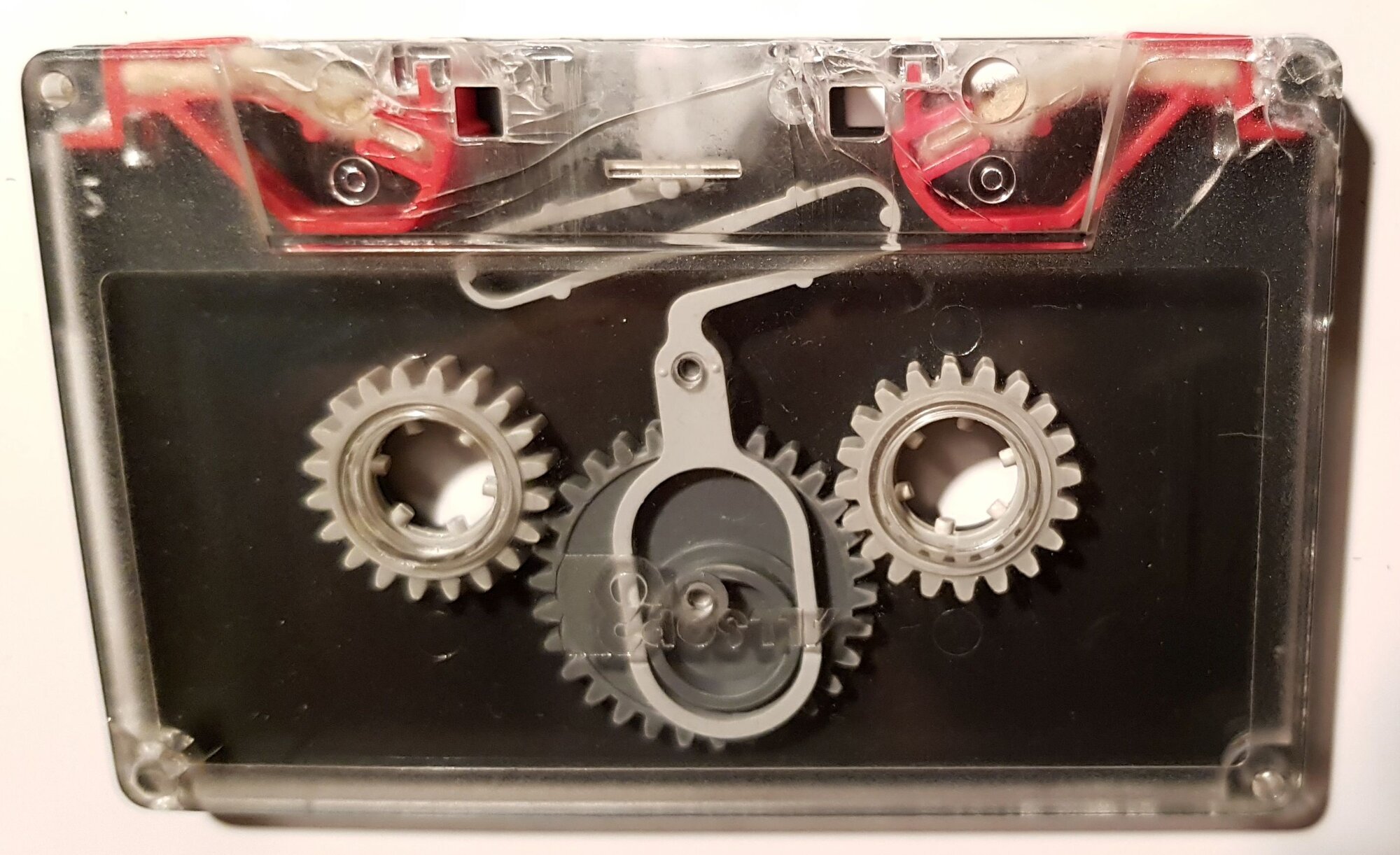

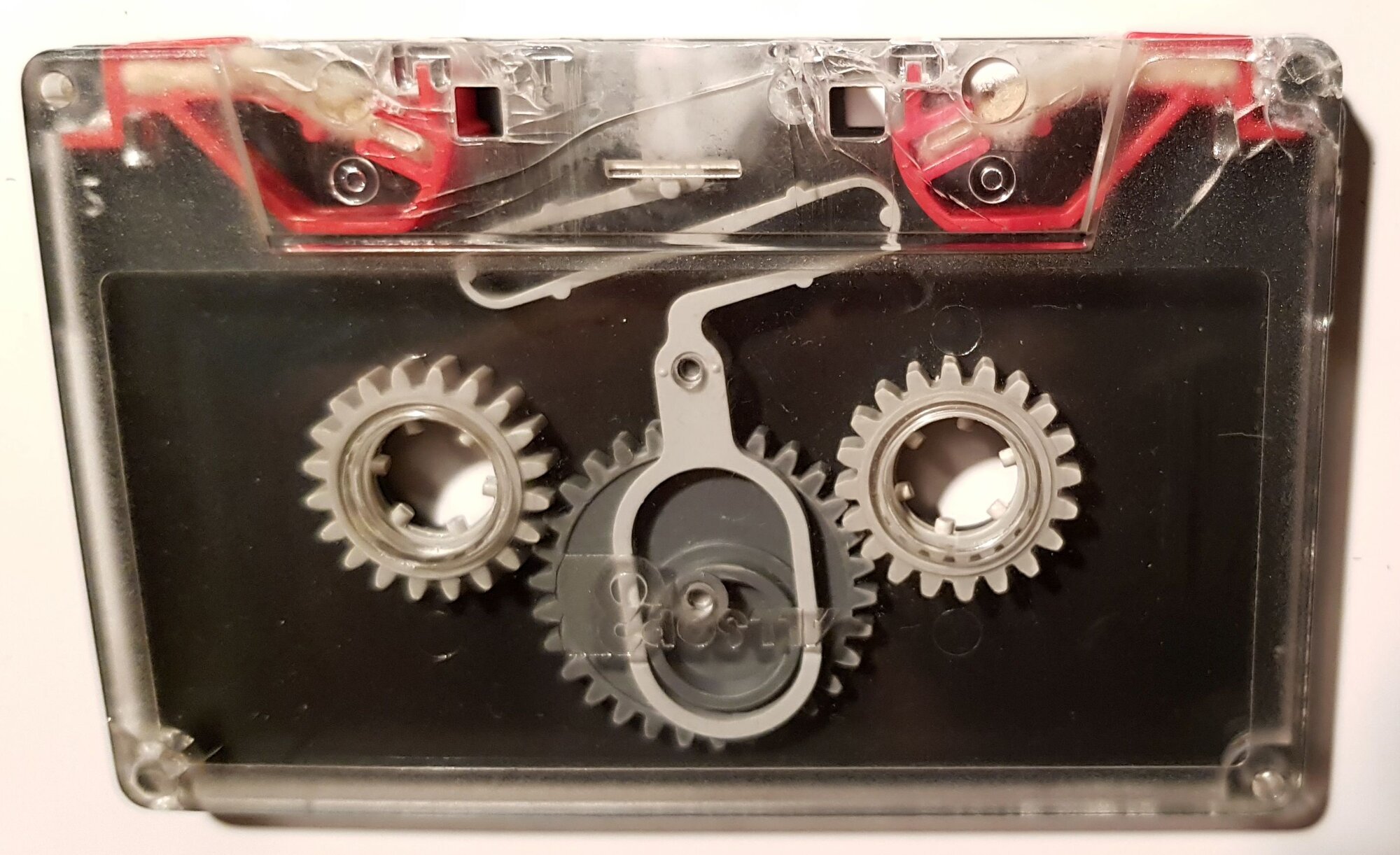

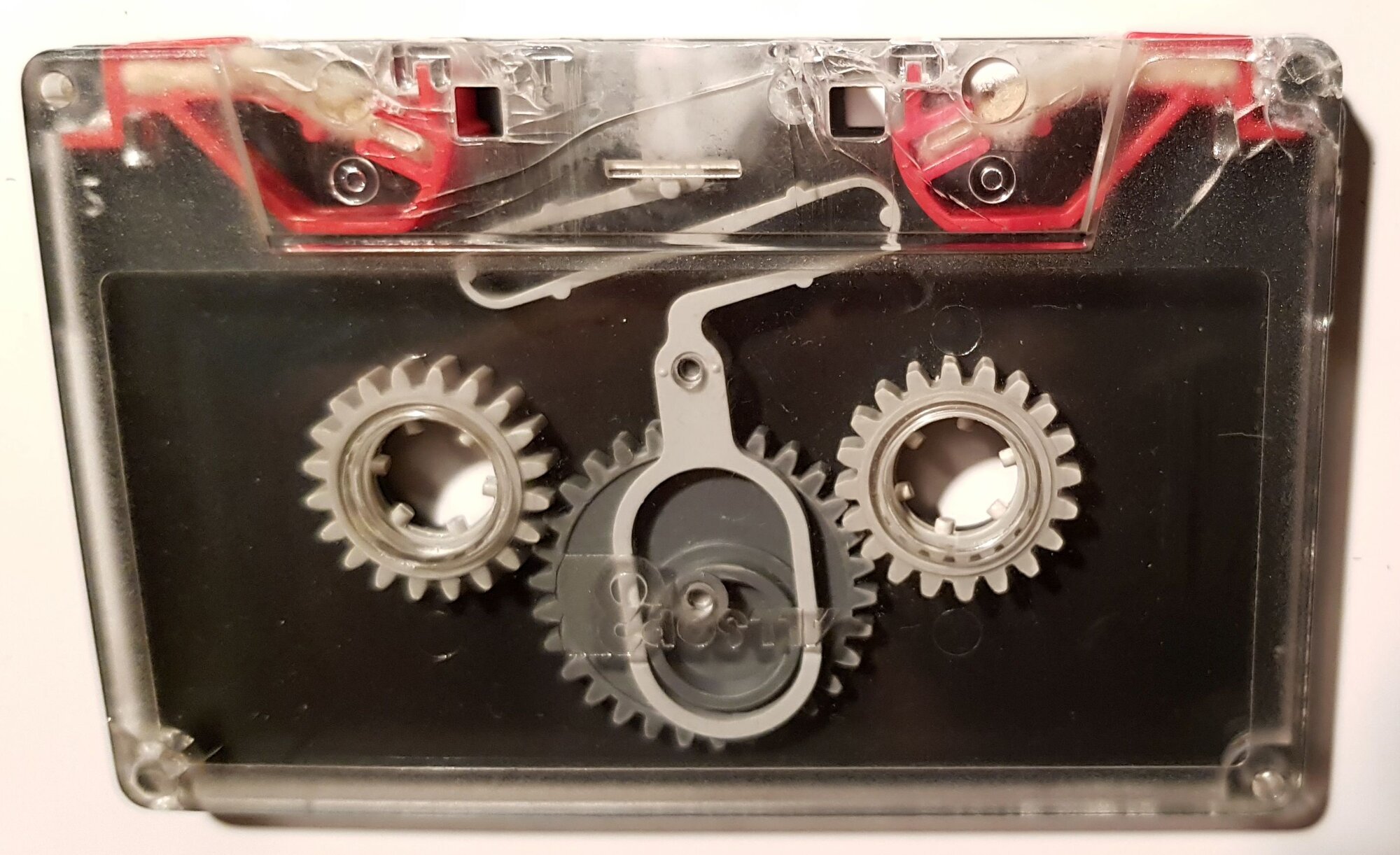

    Here`s the special cassette - the moving tip is driven by an excenter.

    Cassette2go likes this.
  13. Cassette2go

    Cassette2go Well-Known Member

    Messages:
    1,490
    Trophy Points:
    113
    Location:
    Dallas Texas USA
    When you buy those, they're supposed to come with replaceable felt tips and it comes with a little vial of cleaning solution as well

  14. soluna

    soluna Active Member

    Messages:
    194
    Trophy Points:
    43
    Location:
    Germany
    Yes, this all is used up, but i made new tips and pads.

    Cassette2go likes this.
  15. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,605
    Trophy Points:
    113
    Location:
    Minnesota
    Here's one from the company I worked for, they bought out Nortronics before I started. The one shown above, Allsop, was huge, I've got a big box of their stuff, they must have had a patent on the technology. In the early days of the forum I mentioned Geneva was blowing out these tapes on their website, something like $3.00/each. The phones must have lit up because they took down the listing within a few days, funny cuz the website hadn't been updated in years. This R2R style tape used to be hard to find back then but looked great for boombox photos.

    These took cleaning more seriously and the company also sold data head cleaning products for Zip Drive, 8mm and the larger, more standard cassettes that had a metal back plate so they sat perfectly in the transport. You didn't want a cheap cleaning product in the data industry.

    This is taken from a current ebay listing if your interested.


  16. soluna

    soluna Active Member

    Messages:
    194
    Trophy Points:
    43
    Location:
    Germany

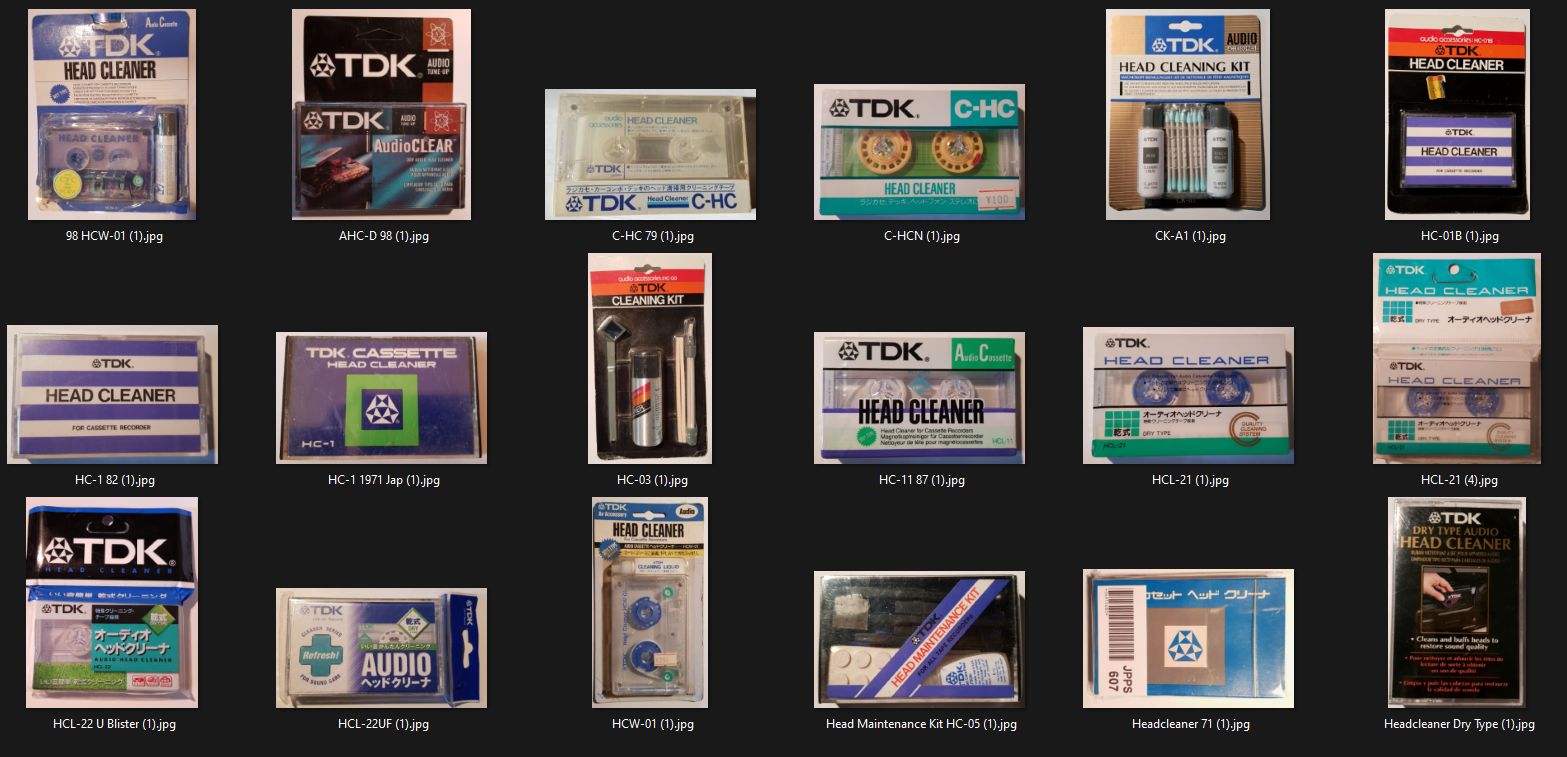

    2 Geneva - i have two similar from TDK, this is the wet type with the tape, that absorbes the liquid
    HC Öffnung.jpg Here you give the liquid in the green holes, they work as depot and give the liquid to the tape, i think the orange ring in the shell on your photo has same function.

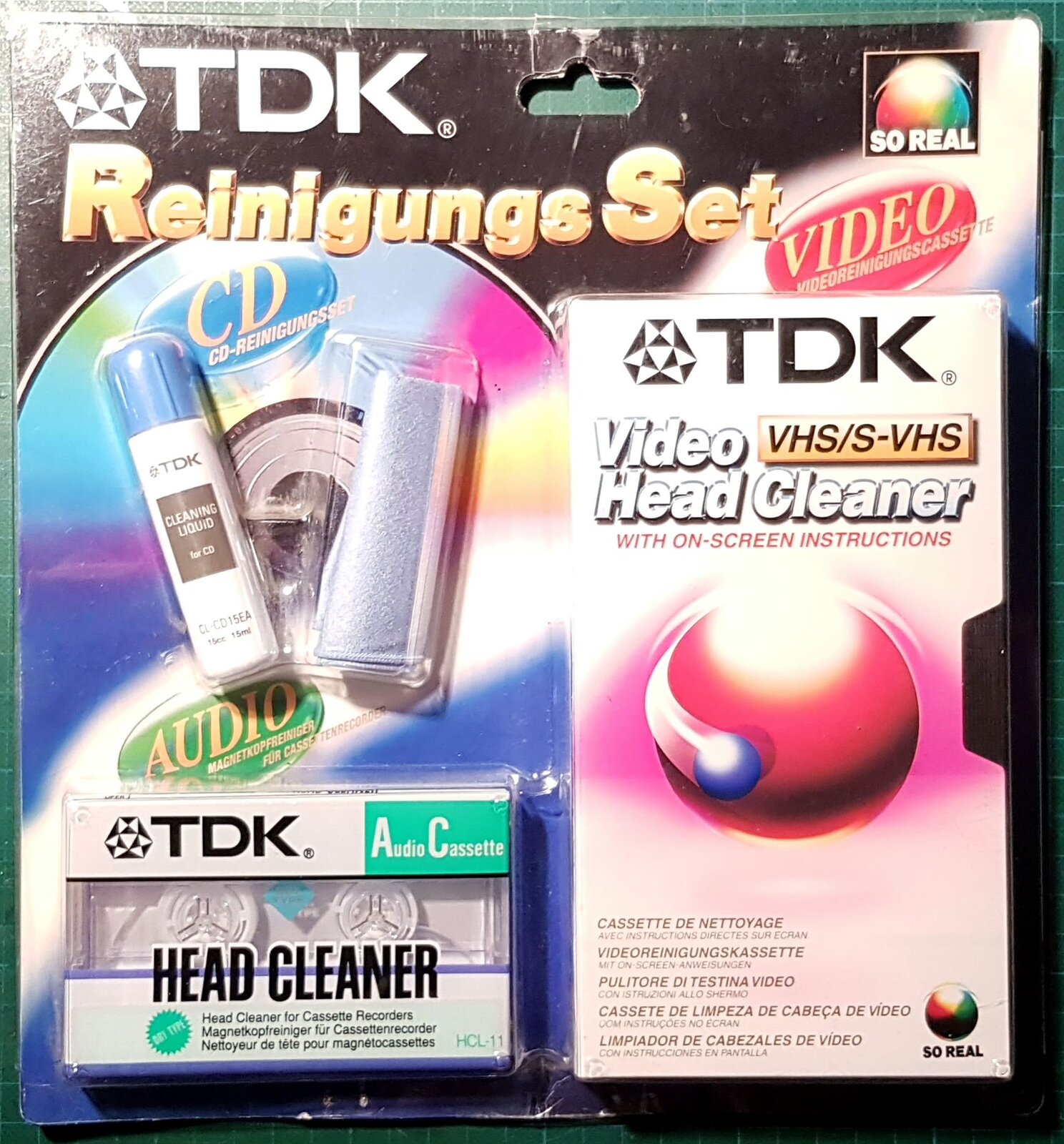

    20240823_073512.jpg But i think here`s the liquid only for cleaning CD.

    Mister X likes this.
  17. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,605
    Trophy Points:
    113
    Location:
    Minnesota
    AGFA from 1980, Klangbild Magazine



  18. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,605
    Trophy Points:
    113
    Location:
    Minnesota

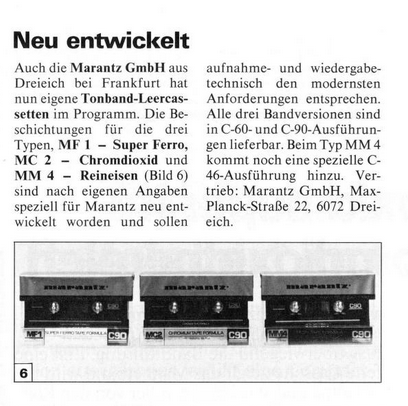

    Marantz 1982, Audio Magazine (Germany)



  19. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,605
    Trophy Points:
    113
    Location:
    Minnesota

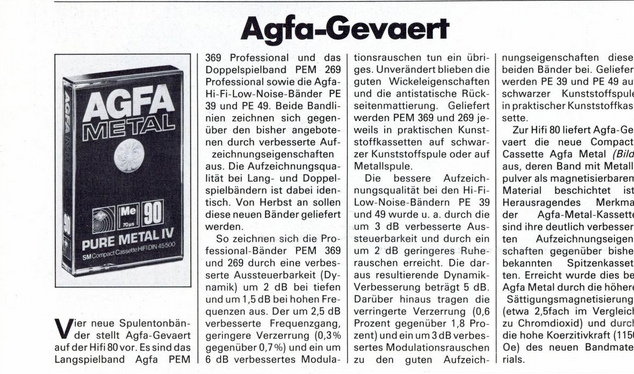

    Agfa 1982, Audio Magazine (Germany)



  20. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,605
    Trophy Points:
    113
    Location:
    Minnesota
    Found on X from user 南天のカノープス, maybe TDK's Museum? I've got one of those Sony Wedge R2R's somewhere around here.
