The Infamous Marantz Mini Stereo Boombox CH-53/CP-53

Discussion in 'Chat Area' started by Mister X, Mar 5, 2018.

Page 3 of 4
  1. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,815
    Trophy Points:
    113
    Location:
    Minnesota
    Great find Ralton! You have the model with the rack and the cassette deck case, it looks like you have everything but the power cord and the headphones for the portable, there should be a pretty big wall wart that came with it, did you get that or the wiring? The unit takes an odd voltage, it might be hard to get the right power-supply. What does Mexico use for wall voltage?

    Mister X, Apr 2, 2020
    #41
  2. Van_Isle

    Van_Isle New Member

    Messages:
    4
    Trophy Points:
    3
    Location:
    Victoria, BC, Canada

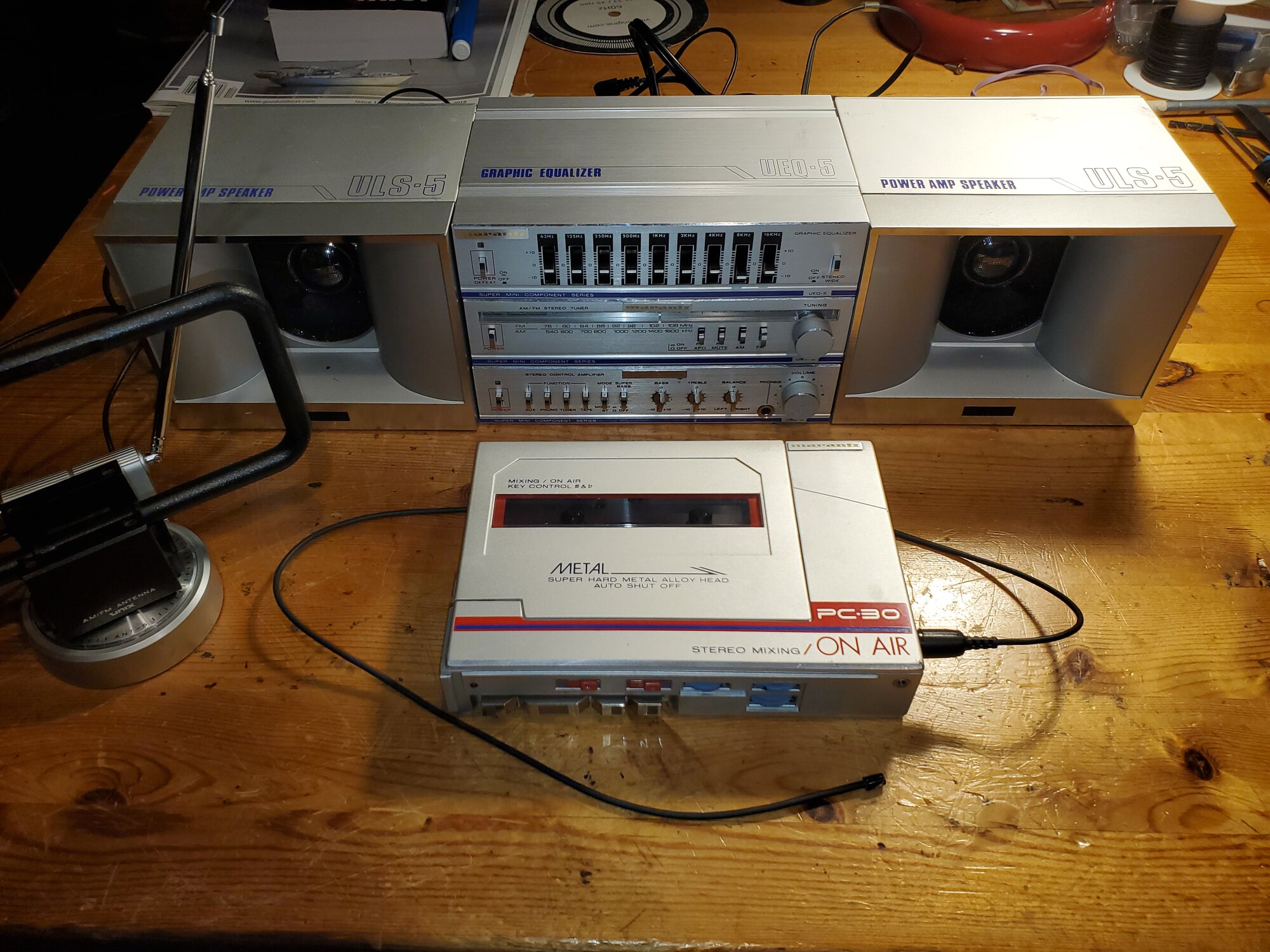

    Just ran across one of these. All Marantz branded. PC-30 cassette. USC-5 amp. UST-5 tuner, EQ UEQ-5, speakers ULS-5. Antenna. Bunch of cables. No power supply. I'll rig up a variable DC supply for testing.


    Attached Files:

    Van_Isle, Feb 17, 2021
    #42
    Mystic Traveller, Mister X and Jorge like this.
  3. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,815
    Trophy Points:
    113
    Location:
    Minnesota
    Nice, just be careful and go by the voltage listed on the back. You have the ultra-rare EQ with a Marantz stick on tag, and everything else; the antenna is branded UNIX, I don't think we were expecting them to stick a label on it, the surface isn't flat. Cool stuff, not fantastic but to a collector it's very interesting.

    Mister X, Feb 17, 2021
    #43
  4. Van_Isle

    Van_Isle New Member

    Messages:
    4
    Trophy Points:
    3
    Location:
    Victoria, BC, Canada
    I hadn't noticed the branding on the antenna, but did note model numbers differed.

    Van_Isle, Feb 19, 2021
    #44
  5. Van_Isle

    Van_Isle New Member

    Messages:
    4
    Trophy Points:
    3
    Location:
    Victoria, BC, Canada
    Well ... I rigged up my variable DC power supply and plugged into one speaker ... loop to 2nd speaker ... then loop to the amp. Not so hot. Amp fires up (actually I guess it's more of a pre-amp with power amp in each speaker. Tuner only works on AM. Speakers do not power up. Used headphones for testing. Haven't listened to the cassette yet ... but it does roll tape, FF and REV fine. Amazingly, there is actually a power supply for sale relatively close to me (Vancouver). But I think I'm looking at selling 'parts / repair' so not worth it to get the PS.

    Van_Isle, Mar 3, 2021
    #45
  6. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,815
    Trophy Points:
    113
    Location:
    Minnesota
    Bummer, yea the little buttons are kind of delicate and may be toast. Most big recievers have push button switches that can do thousands of cycles but I don't think the little ones were built for that, you have to make everything small so it fits in the case.

    Mister X, Mar 4, 2021
    #46
  7. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,815
    Trophy Points:
    113
    Location:
    Minnesota
    I found this ad from Strait Times Newspaper (Singapore) 1983. For some reason there's no branding on the units, some of these were also sold as UNIX.

    Strait Times 1983.png

    Mister X, May 19, 2021
    #47
    Mystic Traveller likes this.
  8. AE_Stereo

    AE_Stereo Active Member S2G Supporter

    Messages:
    109
    Trophy Points:
    43
    Location:
    UAE
    Very Interesting Unit.
    A photo side by side with any popular boombox would be worth to realize the total size of the unit.

    In today's terminology, it would be called an Active Speaker!

    AE_Stereo, May 20, 2021
    #48
    Mystic Traveller and Mister X like this.
  9. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,815
    Trophy Points:
    113
    Location:
    Minnesota
    I just found a press release from 1983, It's Real Hi-Fi From a Mini Cassette, Singapore Monitor 1983, I think the cassette player is labeled wrong as a "CP-53"

    It's real hi-fi from a mini cassette Singapore Monitor 1983.png

    Mister X, Jun 8, 2021
    #49
  10. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,815
    Trophy Points:
    113
    Location:
    Minnesota
    From a Chinese Blog, taken from Hong Kong New Audio Monthy 1983-1984, this is very similar to the earlier ad I posted, this shows the full unit with all of the components. Anybody familar with the magazine?


    marantz pen compo.jpg

    Mister X, Jan 15, 2022
    #50
  11. Mandriva

    Mandriva New Member

    Messages:
    3
    Trophy Points:
    1
    Location:
    Kiev, Ukarine
    From Japan Catalog Unix (Marantz) CRS-3.5 Bustang 1981 Unix 1981.jpg


    Attached Files:

    Mandriva, Feb 16, 2022
    #51
    Mister X likes this.
  12. Mandriva

    Mandriva New Member

    Messages:
    3
    Trophy Points:
    1
    Location:
    Kiev, Ukarine
    From Japan Catalog Unix (Marantz) PenPal 1981 (PC220 PC30 PC36 models)
    Unix PenPal 1981.jpg

    Mandriva, Feb 16, 2022
    #52
    autoreverser and Mister X like this.
  13. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,815
    Trophy Points:
    113
    Location:
    Minnesota
    Wow, thanks Mandriva! And just like that we found an even rarer model, the PC220, It looks like it one-ups the PC200 by using the boom mic to sing along with your tapes.

    Mister X, Feb 17, 2022
    #53
  14. autoreverser

    autoreverser Well-Known Member

    Messages:
    1,799
    Trophy Points:
    113
    Location:
    Europe
    …and all off‘em are Clonemen inside :wink2

    autoreverser, Feb 17, 2022
    #54
  15. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,815
    Trophy Points:
    113
    Location:
    Minnesota

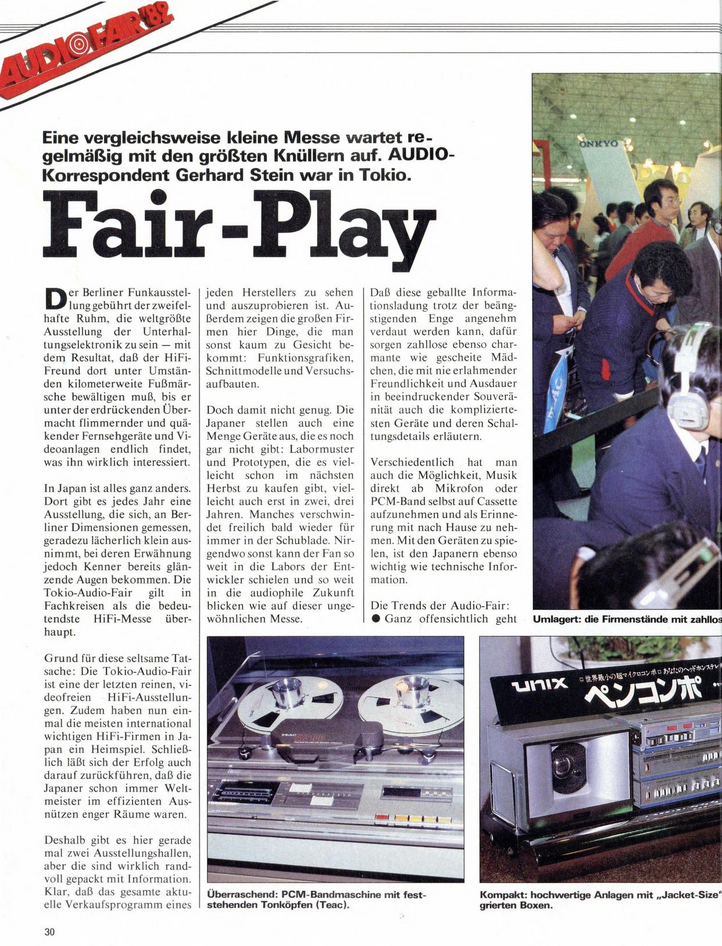

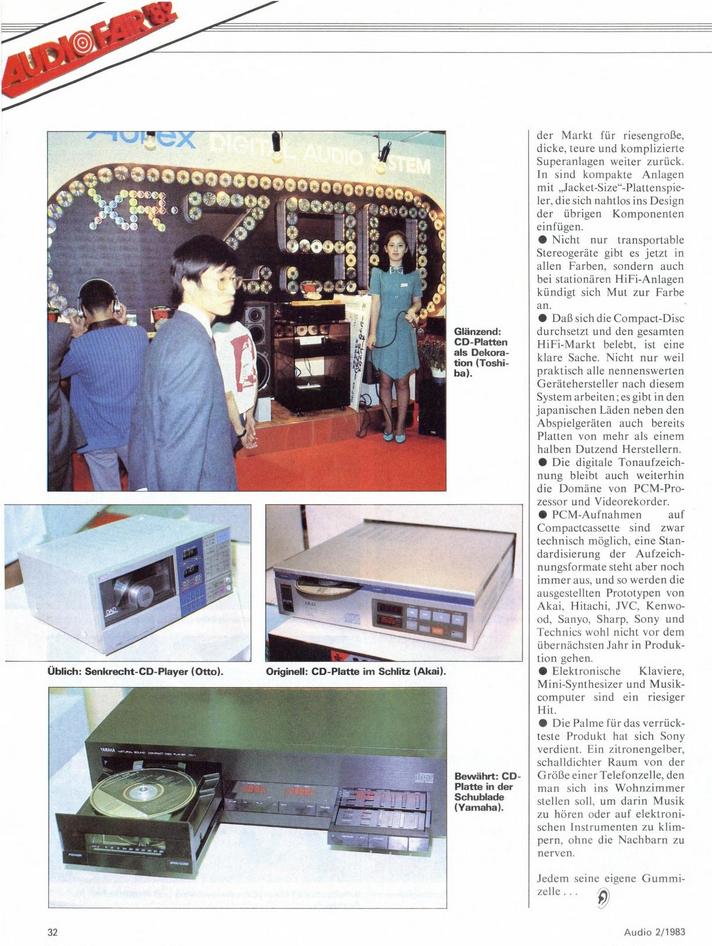

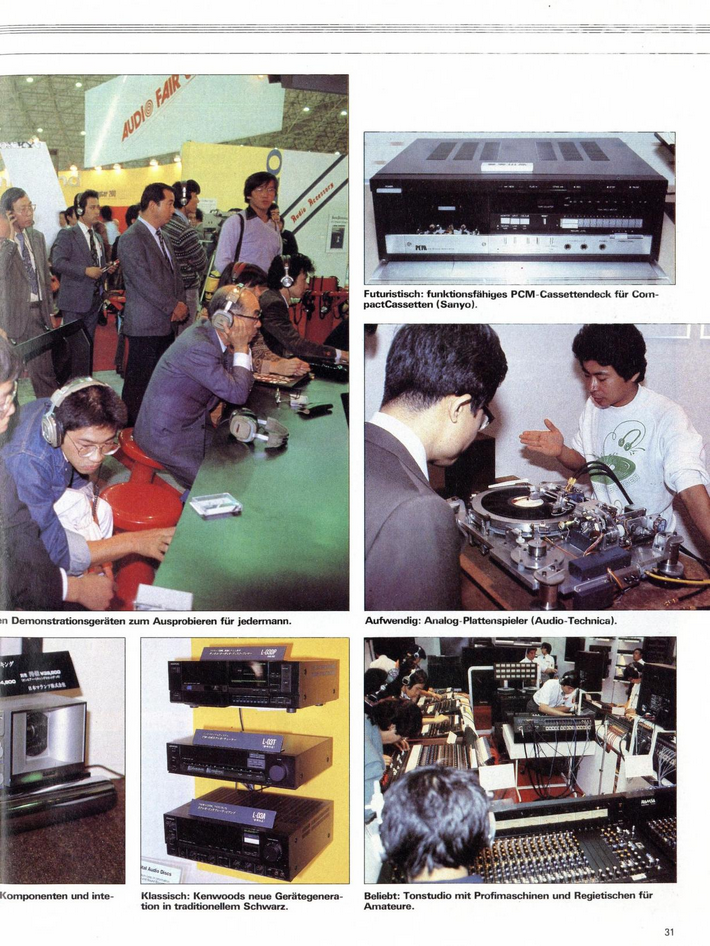

    Found in the newest Wegavision Magazine Dump on archive.org, I can't read it but there's a UNIX!

    Audio 1983 Heft 2 1.png Audio 1983 Heft 2 2.png
    Audio 1983 Heft 2 3.png

    Mister X, Dec 19, 2022
    #55
    Emiel likes this.
  16. Baracus

    Baracus New Member

    Messages:
    7
    Trophy Points:
    3
    Location:
    Australia
    I just inherited my fathers system, main system seems to be working fine, have tested AM, FM, AUX, and Tape inputs but not Phono yet, assuming it will be fine too
    Can't find the case for the walkman but it might turn up still, I know he had it

    He bought it new

    Jumped the gun and posted before givinb it a wipe down, dusty smudges on top will come off

    [​IMG]

    [​IMG]

    Last edited: Jun 23, 2023
    Baracus, Jun 20, 2023
    #56
    On The Beach, Mister X and autoreverser like this.
  17. autoreverser

    autoreverser Well-Known Member

    Messages:
    1,799
    Trophy Points:
    113
    Location:
    Europe
    gosh, i love it, mate - and this is a proper Cloneman on top :thumbsup2:

    autoreverser, Jun 21, 2023
    #57
    Baracus likes this.
  18. Baracus

    Baracus New Member

    Messages:
    7
    Trophy Points:
    3
    Location:
    Australia
    Only issue I am having is that when the signal gets low (ie low volume or gaps between songs) the speakers will power down after a few seconds (lights go off) and then
    come back on once signal kicks in again, and one goes off a little earlier than the other. Noisy when it does it of course

    I don't remember it ever doing this but haven't looked at it for years. I assume the should just stay on when power is on, no matter whether there is signal or not?

    Anyone know anything about this, normal or not?

    Also after looking at the previous posts, I used to have that headset with the mic on it, may turn up also. If I find that and the walkman case I will have e everything that was purchased with it when new.

    Last edited: Jun 23, 2023
    Baracus, Jun 21, 2023
    #58
    Mister X likes this.
  19. Mister X

    Mister X Moderator Staff Member

    Messages:
    15,815
    Trophy Points:
    113
    Location:
    Minnesota
    Nice! Is the power issue with the tape deck? I don't think it matters since it's an FM transmission. I've never noticed mine powering down, I'll look into it. The boom mic is super-rare but very cool, try to find it!

    Mister X, Jun 22, 2023
    #59
  20. Baracus

    Baracus New Member

    Messages:
    7
    Trophy Points:
    3
    Location:
    Australia
    I haven't actually checked the tape deck, might today, it has the weird 3v power source which I don't think came with it so I will put some batteries in.
    Or I may have a variable power source here.

    The issue is happening on both Aux (computer plugged in) and FM so likely universal to any input source to the amp
    And definitely low signal triggering it. So if you try and turn the volume too low, the speakers will lose power, or as I mentioned even if you have volume set low enough that it is working, if there is a lull in the song the speakers might drop out, then come back on with a little pop when it kicks back in.

    If you are anywhere above approx 2.5 or so on volume it seems to be fine, but speakers still power down between songs, quite annoying

    I'll double check I have it hooked up correct with the power and maybe give all the input connectors a little clean, see if that helps.

    Other than that it is working fine, all buttons working properly. EQ faders were quite stiff but seem to be loosening up with a bit of use

    Baracus, Jun 22, 2023
    #60
    Mister X likes this.
